What safety features are typically included?

Units commonly feature 'hold to run' controls and safety check valves on hydraulic cylinders to prevent uncontrolled descent in case of hose failure. PUWER compliance is a standard consideration.

Can this dumper be integrated into an automated line?

Many units include volt-free contacts on the control panel, allowing for connection to a 'Call to Run' signal for integration into automated systems.

What maintenance is required for a hydraulic dumper?

Typical maintenance involves regular checks of hydraulic fluid levels, hose integrity, electrical connections, and general cleanliness. Consult the manufacturer's manual for specific schedules.

Is this suitable for washdown environments?

Given the stainless steel construction and IP65-rated control panel, units of this type are generally designed to withstand washdown procedures common in food processing environments.

What type of bins can this dumper handle?

This specific dumper is designed for standard 120-litre wheelie bins. Buyers should confirm compatibility with their specific bin dimensions and types.

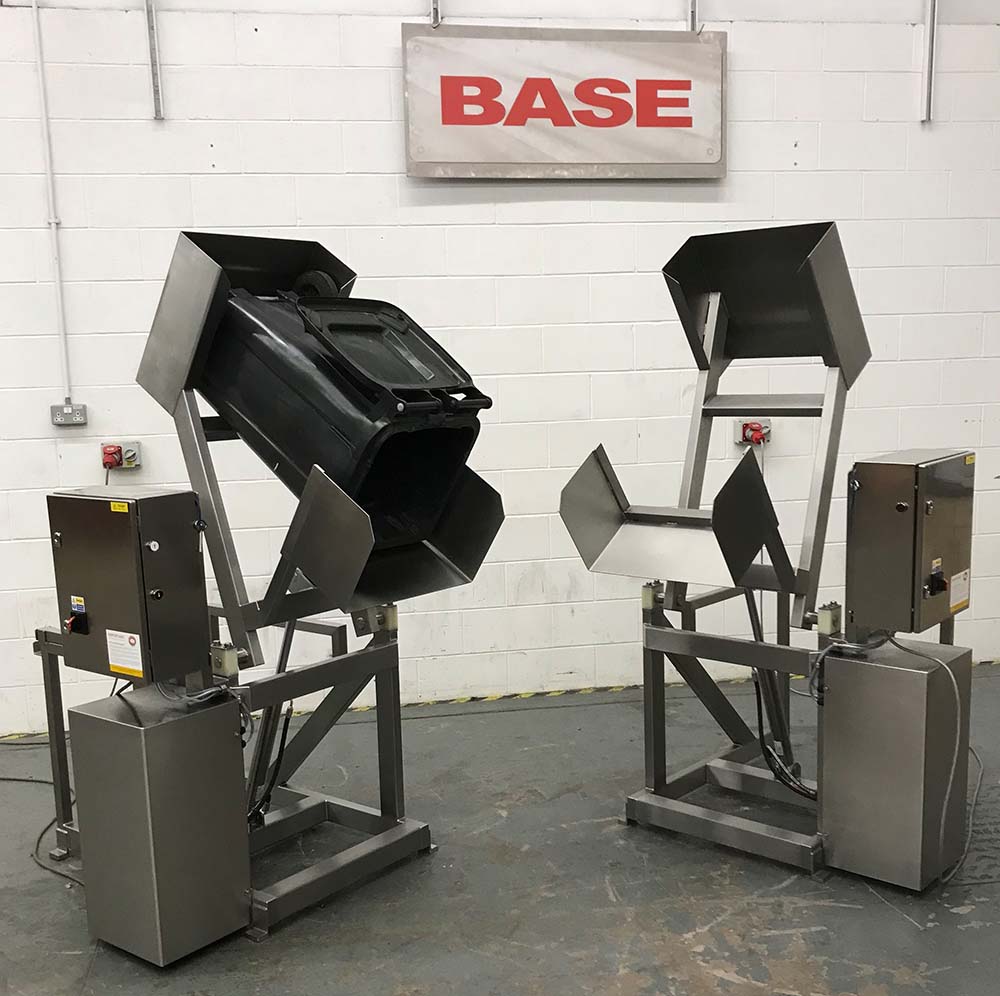

120 Litre Wheelie Bin Dumper - Lifting & Tipping, fotografia 1

120 Litre Wheelie Bin Dumper - Lifting & Tipping, fotografia 2

120 Litre Wheelie Bin Dumper - Lifting & Tipping, fotografia 3

120 Litre Wheelie Bin Dumper - Lifting & Tipping, fotografia 4

120 Litre Wheelie Bin Dumper - Lifting & Tipping, fotografia 5

120 Litre Wheelie Bin Dumper - Lifting & Tipping, fotografia 6

120 Litre Wheelie Bin Dumper - Lifting & Tipping

Disponível

Vendedor verificado

Base Handling Ltd - 120 Litre Wheelie Bin Dumper

Name: 120 Litre Wheelie Bin Dumper
Brand: Base Handling Ltd
SKU: BTH/250/1000/B
Availability: InStock

Preço: Contacte o vendedor para saber o preço

BTH/250/1000/B Hydraulic 120 Litre Wheelie Bin Dumper

This 120 Litre Wheelie Bin Dumper is designed to lift and tip a standard 120 Litre Wheelie Bin at a discharge height of 1000mm and had a Safe Working Load of 250 Kgs. The Wheelie Bin Dumper is constructed from stainless steel and was designed to be bolted to the floor or welded to the deck if preferred. This Wheelie Bin Dumper is powered via a hydraulic powerpack and tips the containers by the extension of a hydraulic cylinder to an angle of 30 degrees past the horizontal. The hydraulic cylinder is fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor.

120 Litre Wheelie Bin Dumper Electrical Control

This 120 Litre Wheelie Bin Dumper was fitted with an IP65 Control Panel mounted on the main frame at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The unguarded 120 Litre Wheelie Bin Dumper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Tipper to operate. As soon as either button is released, the Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

A 5.743 km

Description

120 Litre Wheelie Bin Dumper

Model No.

BTH/250/1000/B

Tipping Height

1000mm

Machine Handing

Right Hand Or Left Hand

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

120 Litre Wheelie Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

UL/CSA Compatibility

All Components UL/CSA Stamped

Powerpack

0.55kW, 415V, 3 PHASE, 50 CYCLE

Tip Angle

120 Degrees

Lifting Capacity

250Kgs

Número de stock

BTH/250/1000/B

Machinery Masters View

Informação típica para esta categoria de máquinas. Confirme sempre os pormenores com o vendedor.

Transferring ingredients from bins into processing machinery.
Loading bulk materials into hoppers or conveyors.
Emptying waste or by-products into larger collection systems.
Moving raw produce or components to elevated workstations.

Typical capacity: Designed for standard 120-litre wheelie bins, with a Safe Working Load commonly up to 250 kg for this class of equipment.
Discharge height: Units of this type typically offer discharge heights around 1000mm, suitable for many standard processing lines.
Construction material: Commonly constructed from stainless steel, particularly for food processing applications, ensuring hygiene and durability.
Power supply: Typically powered by a hydraulic power pack, requiring an electrical connection for the motor (e.g., 3-phase, 400V).
Control system: Often features an IP65-rated control panel with 'hold to run' operation for safety, and potential for remote integration.
Mounting: Designed for secure floor mounting, either bolted or welded, to ensure stability during operation.

Units commonly feature 'hold to run' controls and safety check valves on hydraulic cylinders to prevent uncontrolled descent in case of hose failure. PUWER compliance is a standard consideration.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
