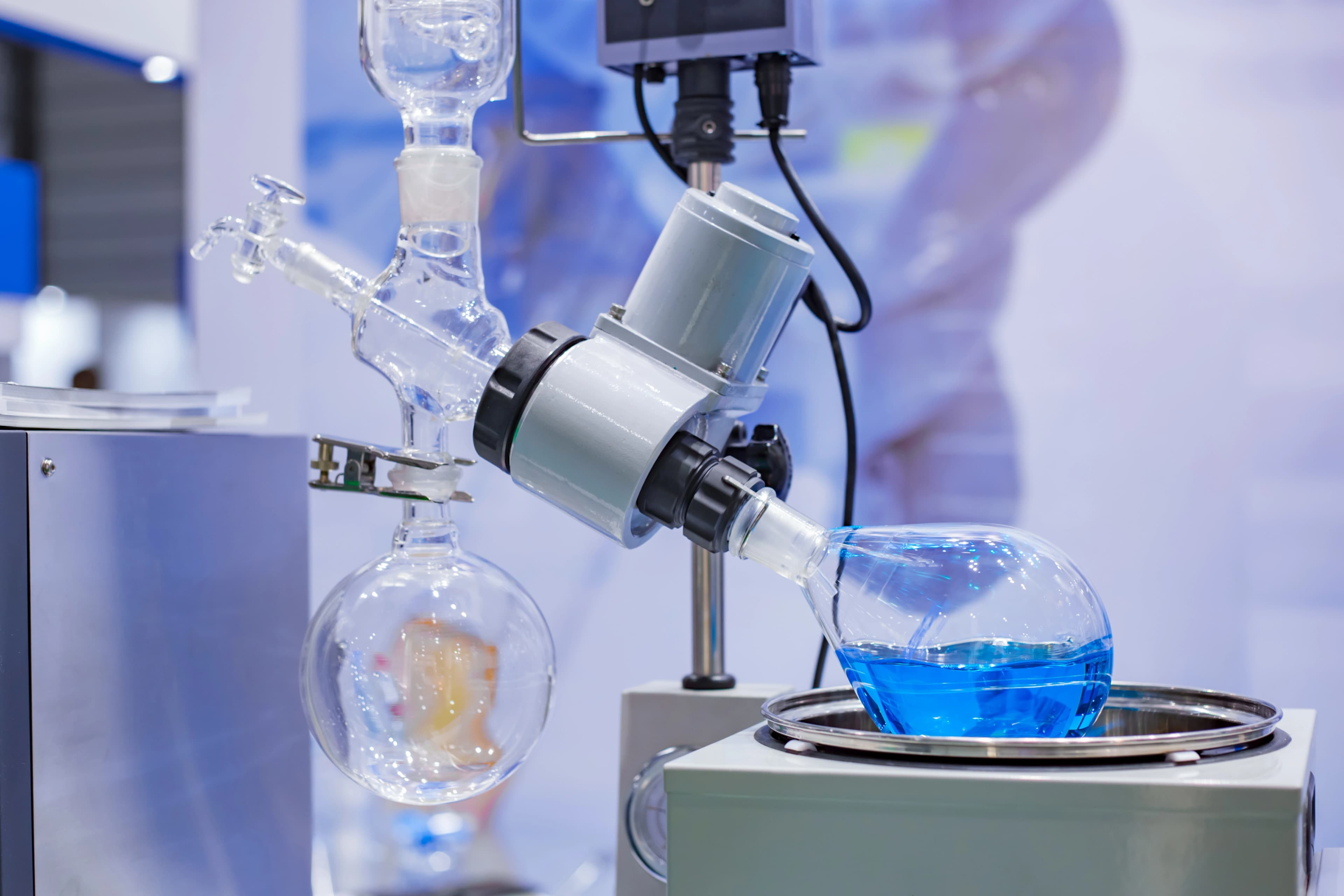

Rotary evaporator basics for chemistry labs

A rotary evaporator removes solvent from a sample gently by combining rotation, reduced pressure, and mild heat. The spinning flask spreads liquid into a thin film, the vacuum lowers the boiling point, and a chilled condenser recovers the vapour. Match flask capacity, bath range, and condenser to your sample volume and solvent, validate vacuum integrity before use, and choose new, used, or refurbished based on your budget and how critical the application is.

How a rotary evaporator works

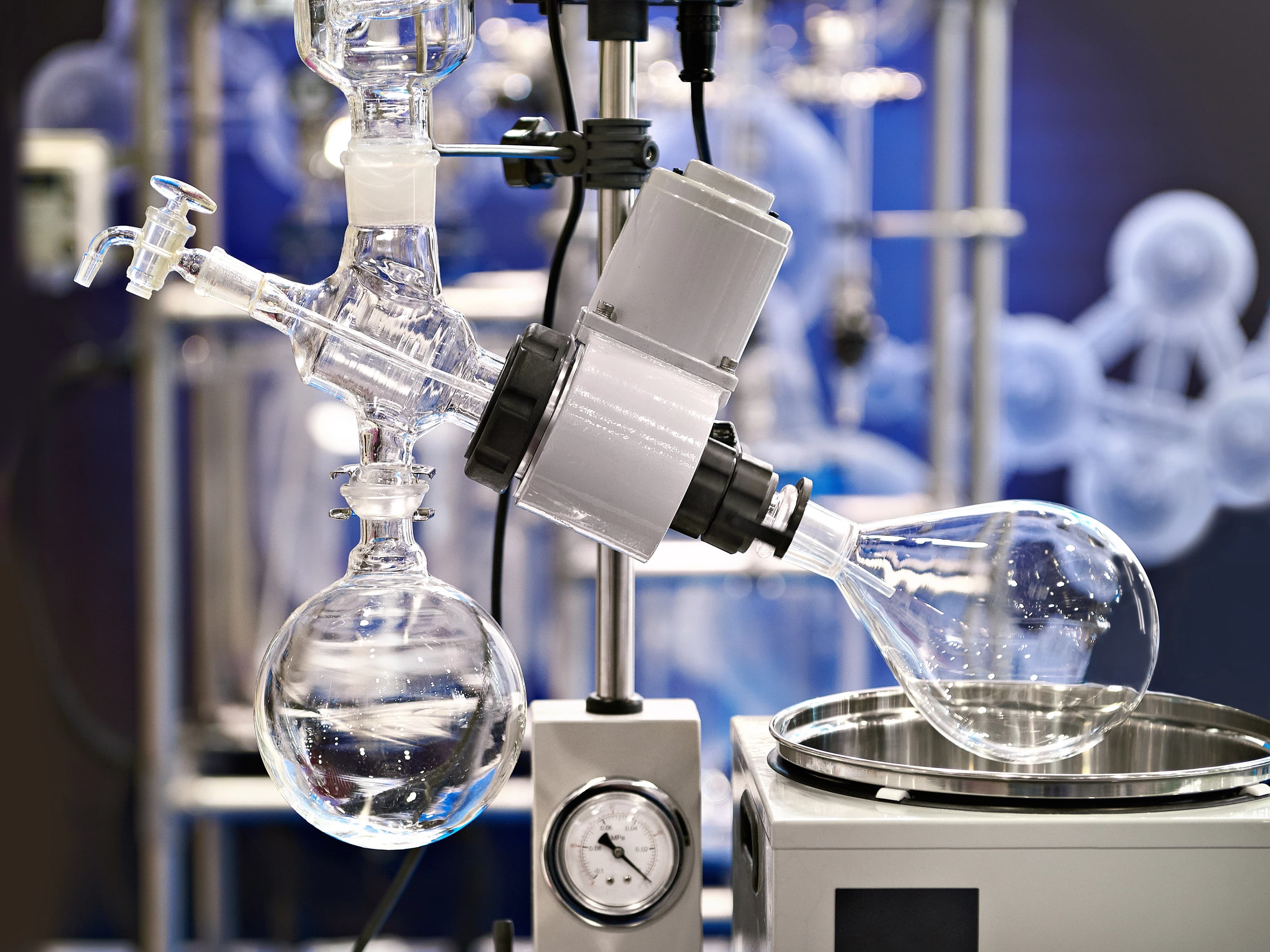

A rotary evaporator separates a volatile solvent from a less volatile sample. The motor spins the round-bottom flask in a heated bath, which constantly renews a thin film of liquid on the glass. A vacuum pump lowers the pressure inside the system, which reduces the boiling point so the solvent evaporates well below its normal temperature. The vapour then travels to a cooled condenser, turns back into liquid, and collects in a receiving flask for reuse or safe disposal.

This combination of rotation, vacuum, and gentle heat is what makes the rotary evaporator so useful. By evaporating at low temperature, it protects delicate compounds that would degrade under direct, vigorous boiling. Because it recovers the solvent rather than venting it, it also supports safer, cleaner working practices.

Why gentle evaporation matters

Many target molecules in chemistry and natural product work are sensitive to heat. Pushing the temperature too high can break them down and ruin a sample. A rotary evaporator lets you tune pressure and bath temperature so the solvent leaves while the product stays intact, which protects both yield and quality.

The key components of a rotary evaporator

Knowing the parts helps you read a spec sheet and judge whether a unit fits your workflow. A complete rotary evaporator system brings several elements together.

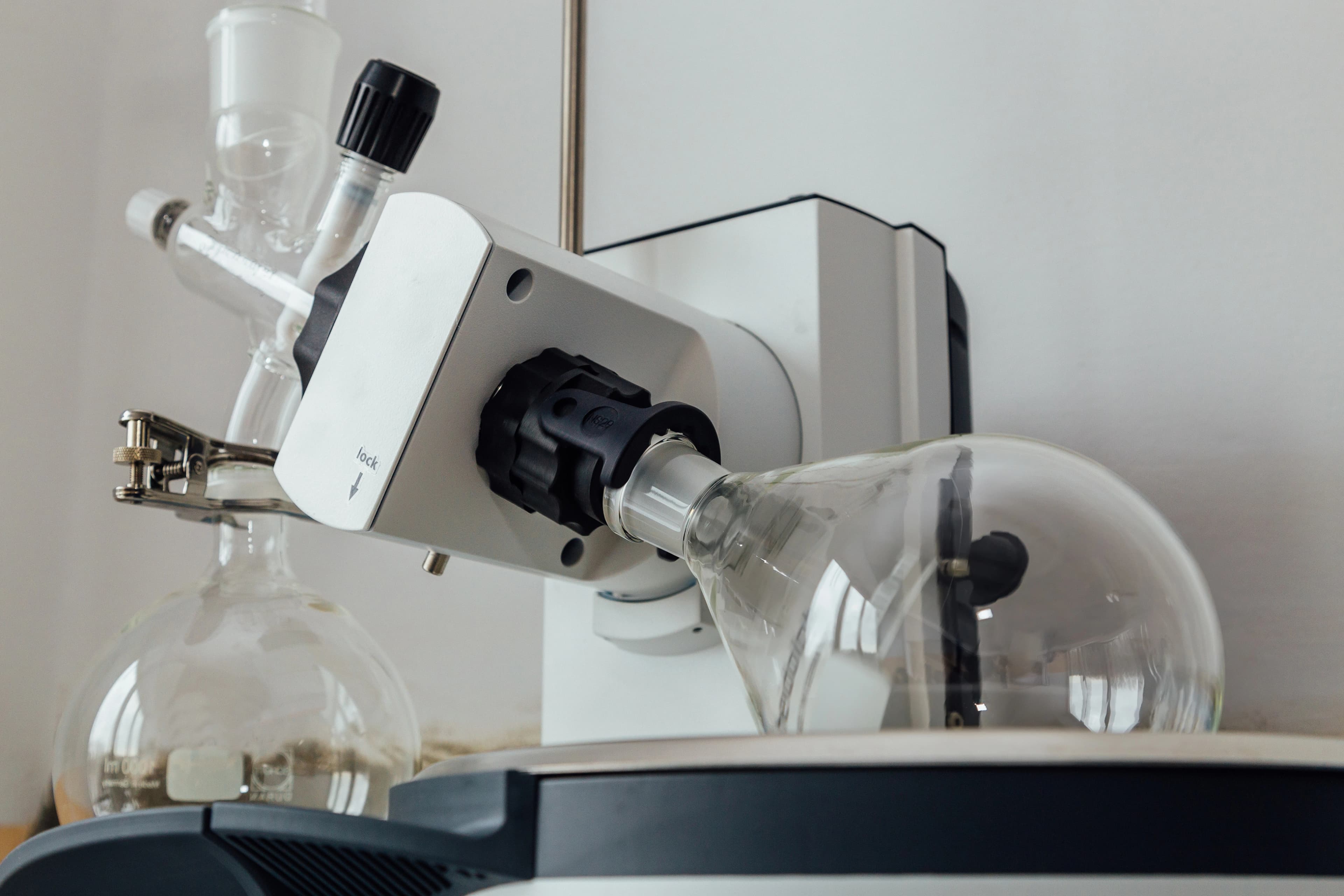

Motor and flask drive

The motor rotates the evaporation flask at an adjustable speed. Smooth, controllable rotation creates an even film and prevents bumping. Look for a stable drive and an easy way to raise and lower the flask into the bath, ideally with a motorised lift on larger units.

Heating bath

The bath warms the flask, usually with water or oil for higher temperatures. Accurate, even heating helps you hold a steady evaporation rate. Safety features such as an over-temperature cut-off and a clear level indicator are worth having.

Condenser and vacuum

The condenser cools the vapour back to liquid, often using a chiller or cold water supply. The vacuum source, paired with a controller, sets the pressure and therefore the boiling point. A well-matched vacuum pump and condenser improve recovery and reduce solvent loss. Glassware should be chemically compatible with your solvents.

Lab scale	Recommended rotary evaporator type	Typical flask size	Key feature to prioritise
Teaching or small research	Compact benchtop unit	Up to around one litre	Simple controls and small footprint
Routine analytical and synthesis	Mid-range benchtop unit	One to three litres	Motorised lift and vacuum control
Pilot or high throughput	Large or industrial unit	Five litres and above	Robust drive and efficient condenser

How to select and run a rotary evaporator

Start with your typical sample volume and solvent. Match the flask capacity, bath range, and condenser to those, and leave headroom for larger batches. A motorised lift, a vacuum controller, and a reliable chiller make daily work smoother and recovery more complete. Check that the glassware coatings and seals suit your solvents, since aggressive chemicals can attack the wrong materials.

Run the rotary evaporator safely by setting rotation, vacuum, and bath temperature to suit the solvent, then ramping gently to avoid bumping. Secure the glassware, use a splash guard, and keep clamps tight. Where the rules apply, follow PUWER for safe use of work equipment and keep maintenance records. Service the vacuum source, replace worn seals, and clean the condenser so performance stays consistent. Align documentation with recognised ISO expectations where your quality system requires it.

Quick buying checklist

Confirm flask capacity and bath temperature range. Check the condenser type and cooling source. Review vacuum control and pump compatibility. Confirm glassware and seal compatibility with your solvents. Finally, check the footprint, power, and the spares available locally.

New, Used, or Refurbished Rotary Evaporator

New units offer the latest controls, full warranties, and predictable lead times, which suit demanding synthesis and regulated work. Used units cost less and suit teaching labs, pilot projects, or backup capacity, provided you inspect the glassware, seals, and drive. Refurbished units sit between the two, with tested performance and often a short warranty at a lower price than new. Whichever route you choose, check the vacuum integrity, examine the glassware for cracks, and run a test evaporation before committing. A sound, used, or refurbished rotary evaporator can equip a capable lab on a modest budget.

How Machinery Masters Can Help

Machinery Masters lists new and used laboratory equipment side by side from verified sellers so you can compare a rotary evaporator across conditions and budgets in one place. Browse the marketplace, filter to new or used listings, and review specifications before you enquire. Financing can spread the cost of larger systems and chillers. If you want help matching a model to your scale and solvents, get in touch, and the team can point you to suitable listings.

Frequently Asked Questions

What is a rotary evaporator used for?

A rotary evaporator removes solvent from a sample gently, so you can concentrate a product or recover the solvent. It is widely used in synthesis, extraction, and analytical preparation. The low-temperature operation protects heat-sensitive compounds.

Why does a rotovap use a vacuum?

The vacuum lowers the pressure inside the system, which reduces the boiling point of the solvent. That lets the solvent evaporate at a much lower temperature than it normally would. Gentle conditions protect delicate molecules and improve yield.

What solvents can a rotary evaporator handle?

It can handle a wide range of common laboratory solvents, provided the glassware, seals, and vacuum system are compatible. Always check material compatibility and set pressure and temperature to suit each solvent. Recovering solvent also supports safer disposal.

How do I avoid bumping during evaporation?

Bumping happens when liquid boils too violently. Lower the vacuum and raise the bath temperature gradually, keep the flask rotating to spread a thin film, and avoid overfilling. A splash guard helps protect the sample if bumping does occur.

Is a used rotary evaporator a good buy?

A well-maintained used rotary evaporator can serve a lab reliably for years. Inspect the glassware for cracks, check the seals and vacuum integrity, and run a test evaporation. Refurbished units add tested performance and often a short warranty for extra confidence.
