1100 Litre Wheelie Bin Tipper

BTM/2P/500/3100/B/G Double Pillar 1100 Litre Wheelie Bin Tipper

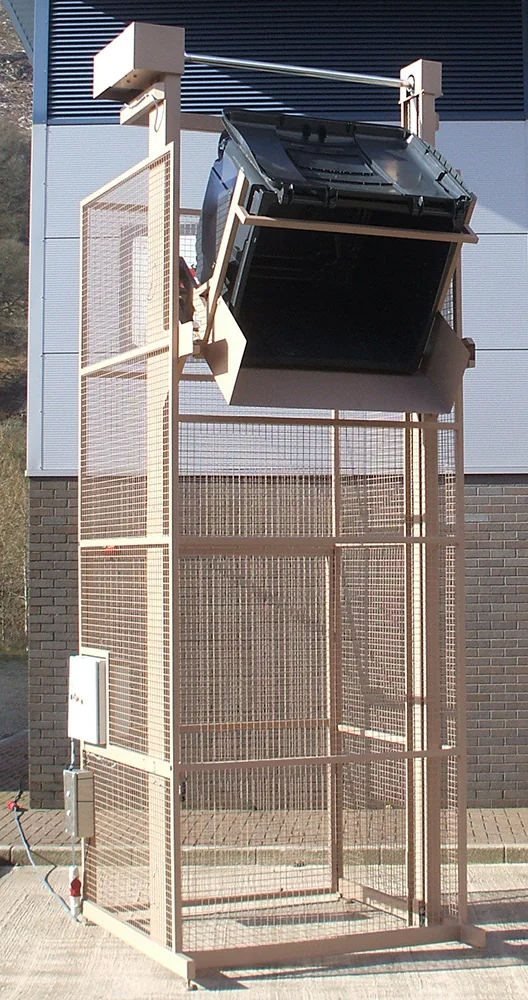

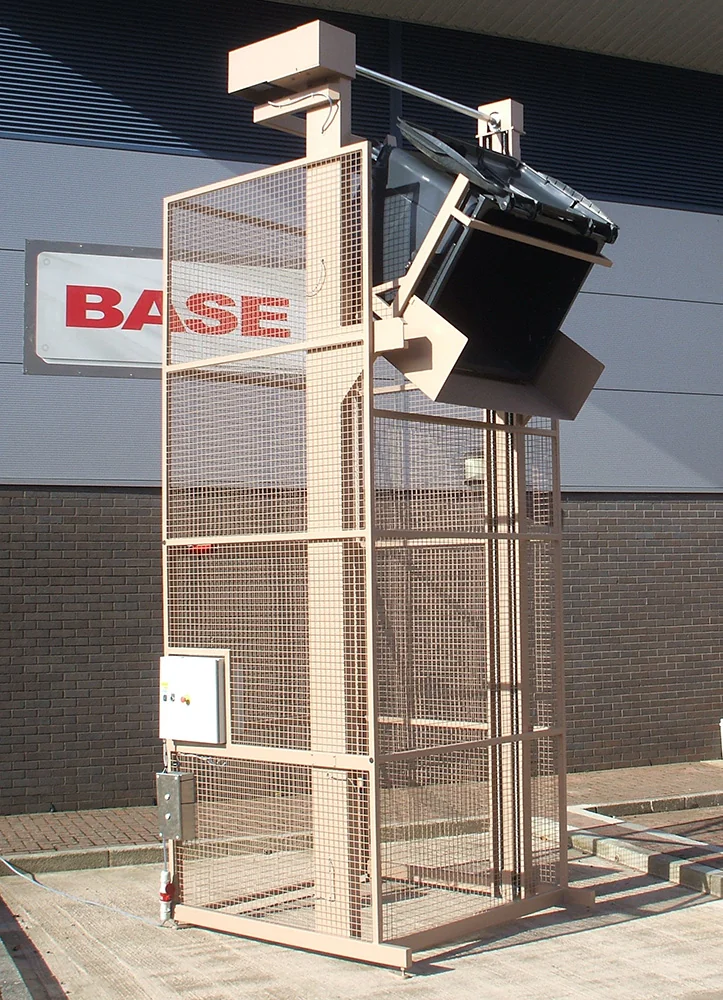

This Double Pillar 1100 Litre Wheelie Bin Tipper is designed to lift and tip an 1100 Litre wheelie bin at a discharge height of 3100mm. The 1100 Litre Wheelie Bin Tipper is manufactured from mild steel with a powder coated finish, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

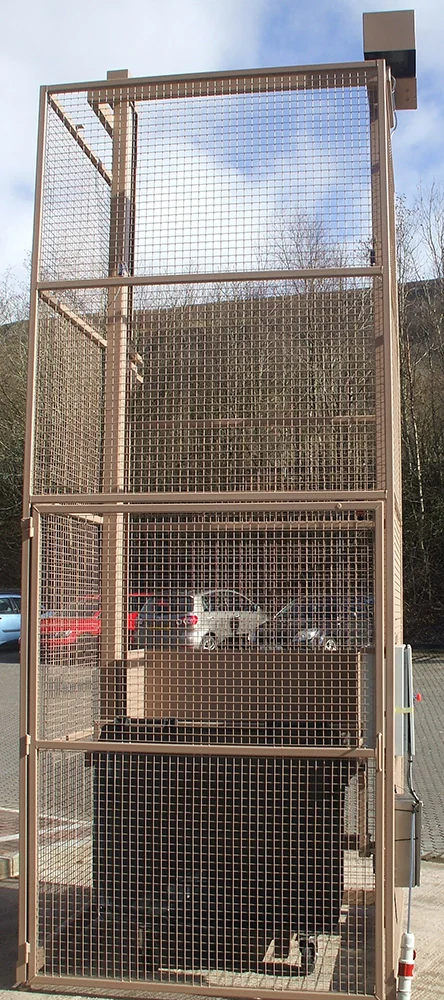

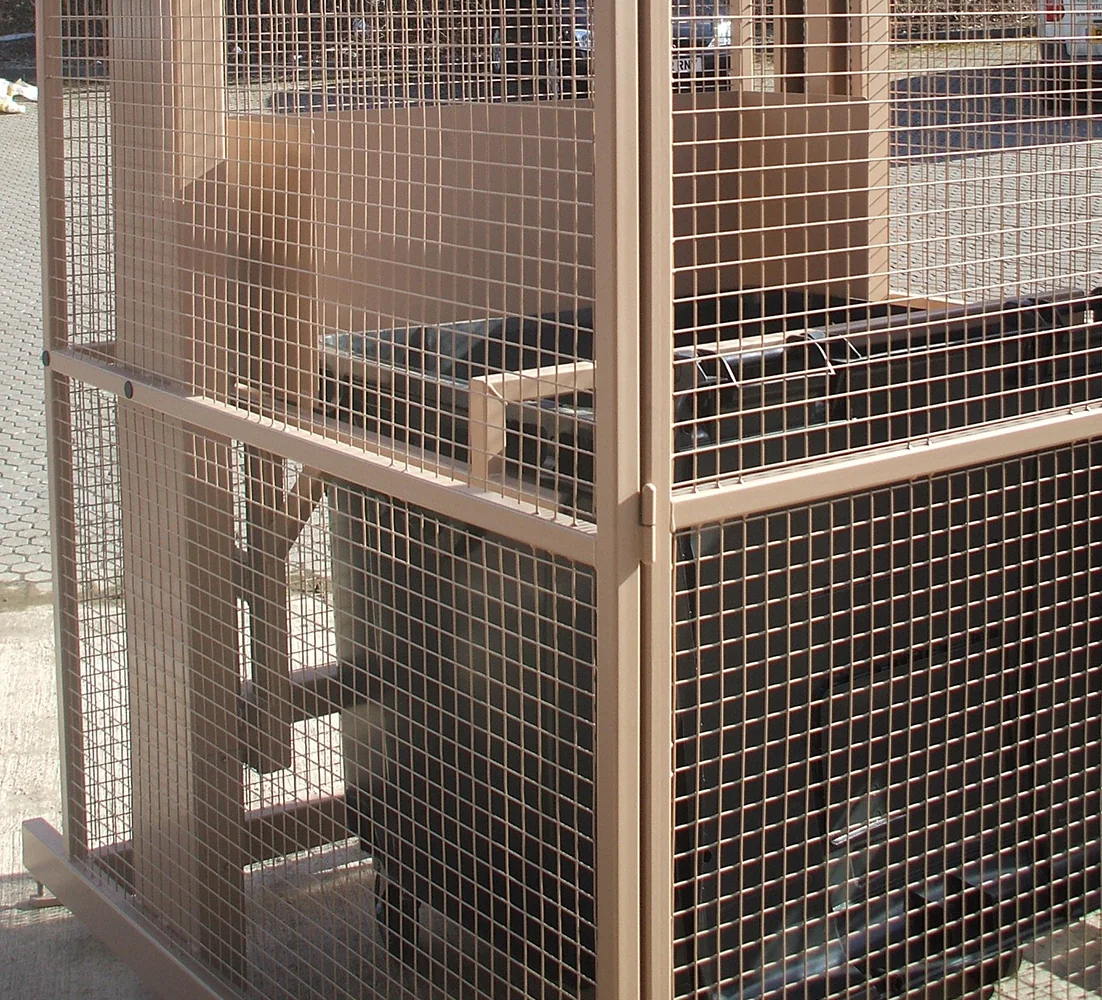

The safety guard is constructed from 40 x 40 x 3mm mild steel box section and 3mm wire, 40mm aperture weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery. It encloses the 1100 Litre Wheelie Bin Tipper to a height of 4560mm on three sides, 3000mm at the front with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the 1100 litre wheelie bin tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

1100 Litre Wheelie Bin Tipper Electrical Control

This 1100 Litre Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The 1100 Litre Wheelie Bin Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the 1100 Litre Wheelie Bin Tipper to the full down position. The control panel has the facility for a ‘call to run’ signal to be connected if required.
