What type of bins can this tipper handle?

This specific unit is designed for standard 200-litre Eurobins. Buyers should confirm compatibility for other bin types or sizes with the seller.

Is this tipper suitable for washdown environments?

Given its Grade 304 stainless steel construction and IP65 rated control panel, units of this type are generally designed for use in environments requiring regular cleaning and washdown. Buyers should confirm specific IP ratings with the seller.

What are the typical installation requirements?

Units of this design are typically bolted to the floor for stability and safe operation. Electrical connection to a suitable three-phase supply will also be required.

Does this equipment come with safety certifications?

Equipment sold in the UK market should comply with relevant safety standards. This unit includes guarding to BS EN 14120:2015. Buyers should request full documentation and certifications from the seller.

Can the discharge height be adjusted?

While some industrial tippers offer adjustable discharge heights, this particular unit is described with a fixed discharge height of 2400mm. Buyers should confirm any adjustability with the seller.

What maintenance is typically required for a bin tipper?

Routine maintenance typically involves checking the lifting chain, motor gearbox, electrical connections, and safety interlocks. Regular cleaning is also essential, especially in food processing applications. Specific maintenance schedules should be obtained from the manufacturer's manual.

200 Litre Tote Bin Tipper - Lifting & Tipping, photo 1

200 Litre Tote Bin Tipper - Lifting & Tipping, photo 2

200 Litre Tote Bin Tipper - Lifting & Tipping, photo 3

200 Litre Tote Bin Tipper - Lifting & Tipping, photo 4

200 Litre Tote Bin Tipper - Lifting & Tipping, photo 5

200 Litre Tote Bin Tipper - Lifting & Tipping, photo 6

200 Litre Tote Bin Tipper - Lifting & Tipping

Available

Verified seller

Base Handling Ltd - 200 Litre Tote Bin Tipper

Name: 200 Litre Tote Bin Tipper
Brand: Base Handling Ltd
SKU: BTM/300/2400/B/G-
Availability: InStock

Price: Contact seller for price

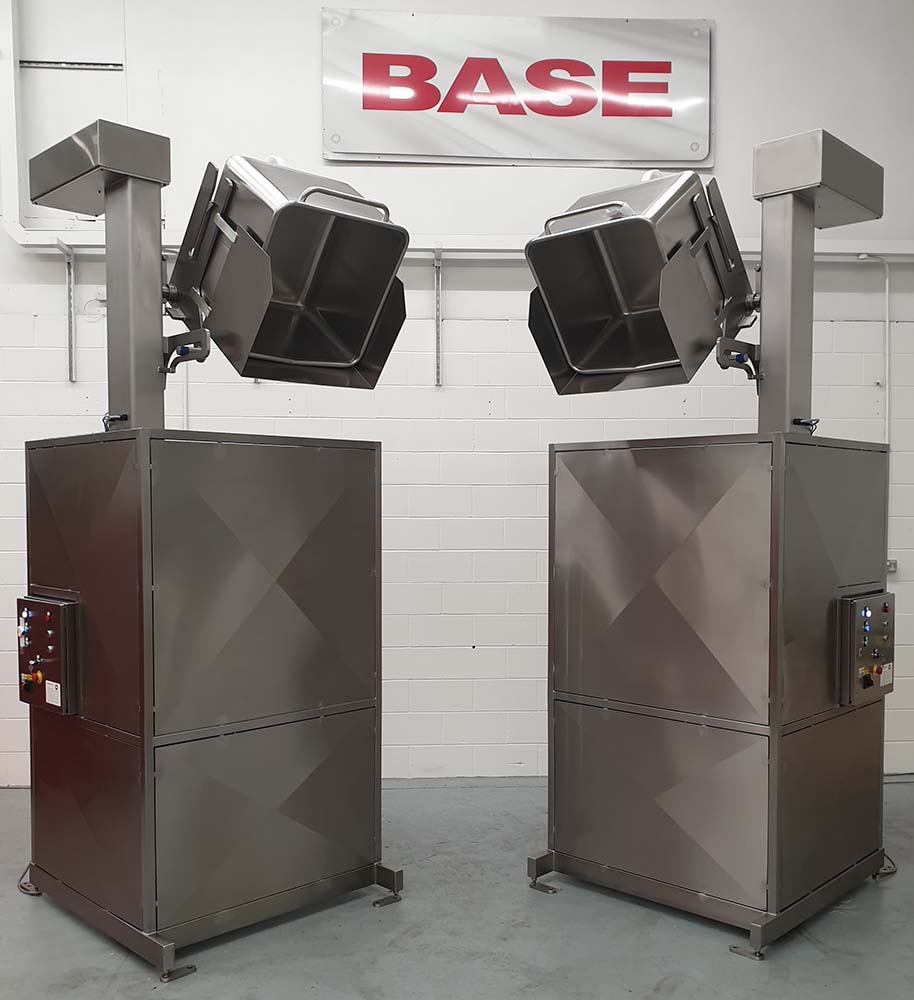

BTM/300/2400/B/G Single Pillar 200 Litre Tote Bin Tipper.

This 200 Litre Tote Bin Tipper is designed to lift and tip a standard 200 Litre Eurobin at a discharge height of 2400mm to load ingredients, via an intermediate hopper, into a cooking vessel.

The 200 Litre Tote Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor.

The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards.

This 200 Litre Tote Bin Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards.

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet.

It encloses the 200 Litre Tote Bin Tipper to a height of 2200mm on three sides, with a hinged guard door on the fourth side.

The guard door is electrically and mechanically interlocked preventing the 200 Litre Tote Bin Tipper from operating when the door is open.

Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

200 Litre Tote Bin Tipper Electrical Control.

This 200 Litre Tote Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates the following controls:

Up
Down
Guard Release
Emergency Stop
Reset Facility.

The 200 Litre Tote Bin Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position.

Once the product has been discharged, pressing the ‘Down’ push button once will return the 200 Litre Tote Bin Tipper to the full down position.

The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

200 Litre Tote Bin Tipper

Model No.

BTM/300/2400/B/G

Capacity

300 Kgs

Maximum Headroom

4000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

200 Litre Tote Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Tip Height

2400mm

Tip Angle

135 Degrees

Load/Tension Chain

¾” Simplex

Stock Number

BTM/300/2400/B/G-

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring bulk ingredients into mixers or processing vessels.
Loading raw materials into hoppers for further processing.
Elevating and discharging product into packaging lines.
Moving waste materials from collection bins into larger receptacles.
Integrating with automated production lines for controlled material feed.

Typical capacity: Designed for standard 200-litre Eurobins; other capacities are commonly available for this class of equipment.
Discharge height: Units of this type commonly offer discharge heights suitable for loading into cooking vessels or hoppers, typically up to 2400mm as described.
Construction material: Typically manufactured from Grade 304 stainless steel for hygiene and durability in food processing environments.
Lifting mechanism: Commonly employs a chain-driven motor gearbox system, often top-mounted for efficiency.
Safety features: Units typically include integrated safety guarding to standards such as BS EN 14120:2015, with interlocked access doors.
Power supply: For industrial equipment of this nature, a three-phase electrical supply is typically required.
Footprint: Single pillar designs offer a relatively compact footprint, though exact dimensions vary by model and discharge height.
Control panel: Often fitted with an IP65 rated stainless steel control panel, positioned for operational and maintenance access.

This specific unit is designed for standard 200-litre Eurobins. Buyers should confirm compatibility for other bin types or sizes with the seller.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
