Mueller - 2014 PyroPure P4003 Pure Steam Condensing System
Copied to clipboard!
Price: £ 15,000
This listing is for a Mueller PyroPure P4003 Pure Steam Condensing System.
The unit is in full working condition and is ready for immediate release.
This Unit was installed new in 2015 by Freestead Process Technology.

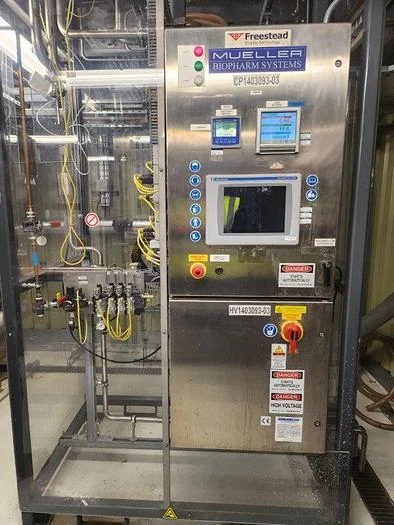

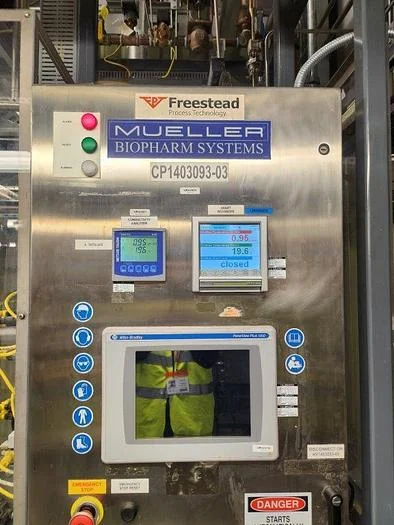

This Unit is fitted with a Allen Bradley Compact Logix PLC and Panel View plus 1000 HMI's-
Product Overview:
The Mueller P4003 is a high-capacity pure steam condensing system, part of the trusted PyroPure series. Designed for pharmaceutical manufacturing, this system produces pyrogen-free and endotoxin-free water-for-injection (WFI) by condensing pure steam. Built to meet or exceed U.S. Pharmacopoeia (USP) standards for WFI, as well as CE marked and FDA compliant with 3.1B material certification. It is a versatile solution for facilities requiring both pure steam and WFI quality distillate. Its robust design and advanced features ensure reliable operation, compliance, and minimal maintenance.
Key Specifications:
Model Number: P4003
Capacity: 100 gallons per hour or 379 litres per hour of WFI-quality distillate.
Pure Steam Inlet: 807 pounds per hour or 366 kilograms per hour.
Coolant Requirement: 978 gallons per hour or 3702 litres per hour.
Pure Steam Output Compliance: Pyrogen-free and endotoxin-free, meeting USP WFI standards.
Core Features
High-Quality Output:
Produces pyrogen-free steam and WFI-quality distillate, ideal for pharmaceutical-grade applications.
Utilizes a tangential nozzle design for optimal impurity separation in the pure steam generator.
Efficient Design:
Fully drainable components eliminate contamination risks and ensure clean operation.
Electro-polished 316/316L stainless steel with a maximum surface roughness of 20 Ra for all product contact areas.
USP Class VI-certified elastomers for enhanced safety and regulatory compliance.
Ease of Maintenance:
Removable tube bundle in the condenser allows for easy cleaning and inspection of critical surfaces.
Requires only 24 inches of clearance on all sides for service and maintenance.
Minimal instrumentation with just one control loop simplifies operation and reduces potential downtime.
Installation Flexibility:
Can be integrated with a PyroPure pure steam generator for dual production of pure steam and WFI.
Optional stand-alone design for remote installation at the point of use, adding versatility to your setup.
Applications:
Pharmaceutical Manufacturing: Sterile environments, autoclave processes, and critical cleaning procedures.
Biotechnology: Providing WFI for sensitive biological processes.
Healthcare: Humidification and sterilization in clean rooms or hospital sterilization units.
Cambridgeshire, United Kingdom5,791 km away
Model Number
PyroPure P4003
Stock Number
413024b
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Production of Water-for-Injection (WFI) for pharmaceutical formulations and active pharmaceutical ingredient (API) manufacturing.
- Sterilisation of process equipment, vessels, and piping in cleanroom environments.
- Humidification of controlled environments where sterile conditions are critical.
- Preparation of media and buffers requiring high-purity water.
- Cleaning-in-Place (CIP) and Sterilisation-in-Place (SIP) systems for biopharmaceutical processes.
Typical Specifications
- Typical WFI Distillate Capacity
- For this class of equipment, capacities commonly range from 100 to 500 litres per hour, depending on the specific model configuration.
- Pure Steam Inlet Requirement
- Units of this type typically require a pure steam inlet capacity commensurate with the WFI output, often in the range of 300 to 1000 kg/hr.
- Coolant Requirement
- Coolant flow rates for pure steam condensing systems are typically substantial, often several times the WFI output, to ensure efficient condensation.
- Control System
- Modern pure steam systems commonly feature PLC-based control with HMI for automated operation and monitoring.
- Materials of Construction
- Process contact parts are typically constructed from 316L stainless steel with specific surface finishes to prevent contamination and facilitate cleaning.
- Compliance
- Equipment in this category is generally designed to meet or exceed pharmacopoeial standards such as USP WFI, EP, and JP, and often carries CE marking.
- Footprint
- The physical footprint can vary significantly, but these are typically skid-mounted units requiring dedicated plant room space.
- Power Supply
- Electrical requirements commonly involve a three-phase supply, typically 400V or 480V, for control systems and ancillary components.
Frequently Asked Questions
- Its primary function is to produce Water-for-Injection (WFI) quality distillate by condensing pure steam, ensuring the water is pyrogen-free and endotoxin-free for critical pharmaceutical applications.
