What types of bins can this tipper accommodate?

This specific unit is designed for 240-litre wheelie bins. Other tippers in this category may be configured for various bin sizes, including 120L, 360L, or custom containers.

Is this equipment suitable for washdown environments?

Yes, constructed from Grade 304 stainless steel with an IP65 rated electrical enclosure, this unit is designed for use in environments requiring regular cleaning and washdown.

What are the typical safety features on a bin tipper?

Common safety features include full guarding with interlocked access doors, emergency stop buttons, and safety circuits that prevent operation if guards are open or the bin is not correctly seated. This unit meets BS EN 14120:2015 standards.

Does this tipper require permanent installation?

This unit is designed for floor bolting to ensure stability and safe operation. Mobile or semi-mobile versions are available in the market for different operational needs.

What maintenance is typically required for a bin tipper?

Routine maintenance typically involves checking chain tension, lubricating moving parts, inspecting electrical connections, and verifying the functionality of safety interlocks. Regular cleaning is also essential in food processing environments.

240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 1

240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 2

240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 3

240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 4

240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 5

240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 6

240 Litre Wheelie Bin Tipper - Lifting & Tipping

Available

Verified seller

240 Litre Wheelie Bin Tipper

Name: 240 Litre Wheelie Bin Tipper
SKU: BTM/300/2000/B/G
Availability: InStock

Price: Contact seller for price

BTM/300/2000/B/G Single Pillar 240 Litre Wheelie Bin Tipper

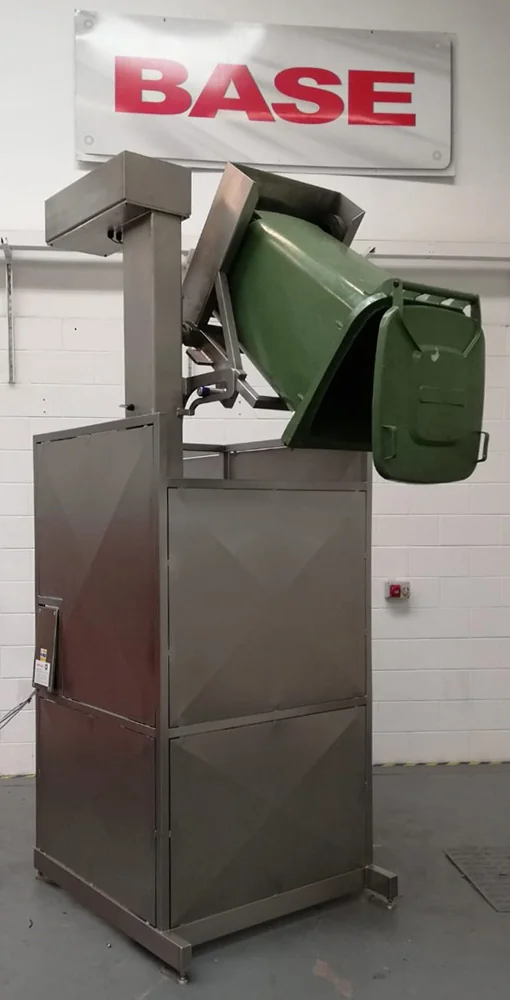

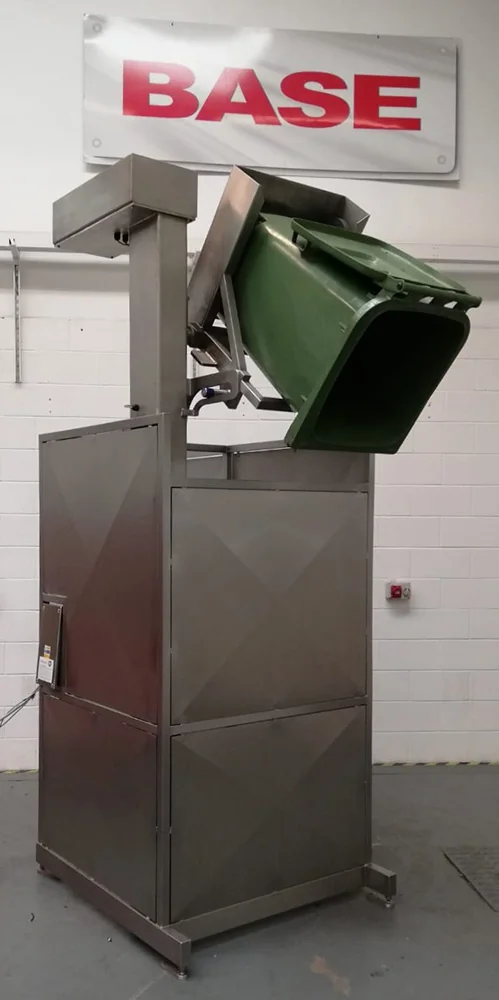

This Single Pillar 240 Litre Wheelie Bin Tipper is designed to lift and tip at a discharge height of 2000mm. The 240 Litre Wheelie Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

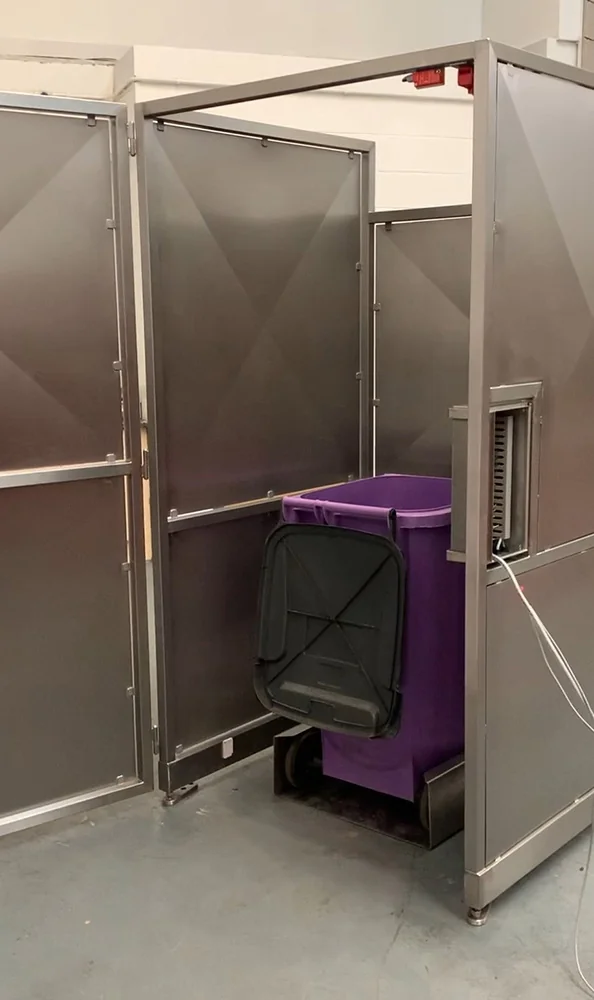

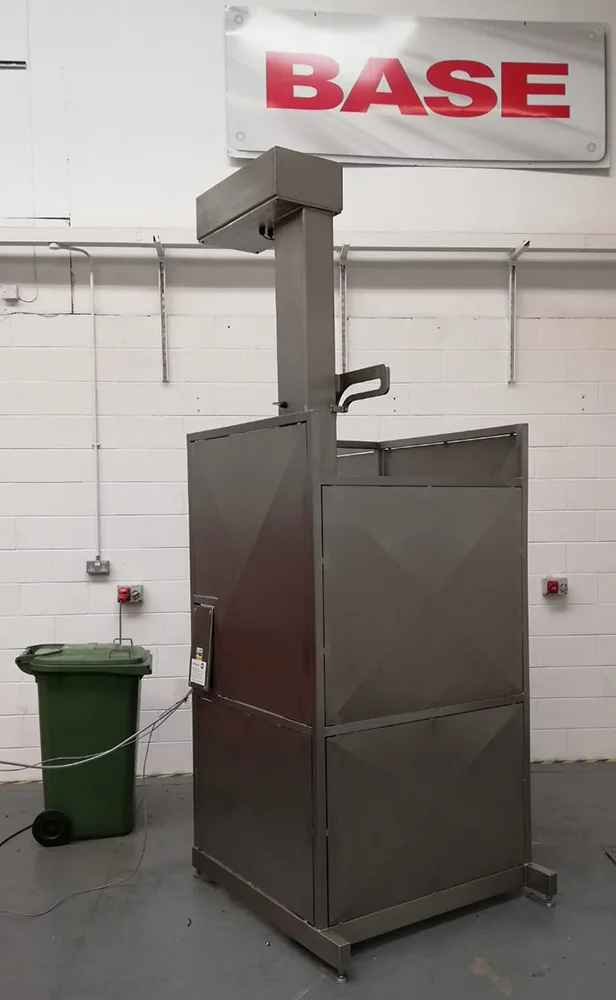

This 240 Litre Wheelie Bin Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. The safety guard encloses the 240 Litre Wheelie Bin Tipper to a height of 2200mm on two sides, 1950mm on the tipping side with a hinged guard door through which the bin is loaded. The guard door is electrically and mechanically interlocked preventing the 240 Litre Wheelie Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

240 Litre Wheelie Bin Tipper Electrical Control

This 240 Litre Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Terminal Box which is mounted on the safety guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control was incorporated into the Main Control System by others.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar 240 Litre Wheelie Bin Tipper

Model No.

BTM/300/2000/B/G

Capacity

300 Kgs

Tipping Height

2000mm

Tipping Angle

135 Degrees

Overall Height

3201mm

Machine Handing

Right Hand

Maximum Headroom

4000mm

Tipping Chute

Container Description

240 Litre Wheelie Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/2000/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients or waste from standard 240-litre wheelie bins into processing machinery or larger containers.
Loading bulk solids, powders, or liquids from bins into hoppers, mixers, or conveyors.
Handling waste products in food processing environments, ensuring hygienic and contained transfer.
Ergonomically lifting and tipping bins to reduce manual handling risks in production lines.

Typical Specifications

Typical capacity: Designed for standard 240-litre wheelie bins, typically handling loads up to 250kg for this class of equipment.
Discharge height: This unit specifies 2000mm; other units of this type commonly offer discharge heights ranging from 1500mm to 3000mm.
Construction material: Manufactured from Grade 304 stainless steel, with Grade 316 commonly available for more corrosive environments.
Power supply: Typically requires a 3-phase electrical supply, commonly 400V, 50Hz, with a motor power in the range of 0.75kW to 2.2kW.
Safety features: Includes a safety guard to BS EN 14120:2015, with interlocked access doors and lift carriage position sensing, which is standard for compliant equipment.
Mounting: Designed for floor bolting, ensuring stability during operation.
Ingress Protection (IP) rating: Electrical controls commonly feature an IP65 rating for washdown environments.
