What type of tote bins are compatible with this tipper?

This unit is designed for standard 300-litre tote bins. Buyers should confirm the exact dimensions and type of their bins with the seller.

Is guarding required for this equipment?

The description indicates this specific unit is unguarded. Buyers should assess their site-specific safety requirements and consult with the seller regarding suitable guarding solutions to comply with PUWER regulations.

Can the discharge height be adjusted?

While the unit has a stated discharge height, the limit switches are typically adjustable by trained personnel for fine tuning on site. Significant height changes would require structural modification.

What maintenance is typically required for a bin tipper?

Routine maintenance commonly includes checking chain tension, lubricating moving parts, inspecting electrical connections, and verifying safety features. Specific schedules will be provided by the manufacturer.

Is this unit suitable for outdoor use?

While the control panel is IP65 rated, the overall suitability for outdoor use depends on the motor and other components' environmental ratings. It is generally recommended for indoor or sheltered environments unless specified otherwise.

Available

Verified seller

300 Litre Tote Bin Tipper

Name: 300 Litre Tote Bin Tipper
SKU: BTM/300/2000/B
Availability: InStock

Price: Contact seller for price

BTM/300/2000/B Single Pillar 300 Litre Tote Bin Tipper

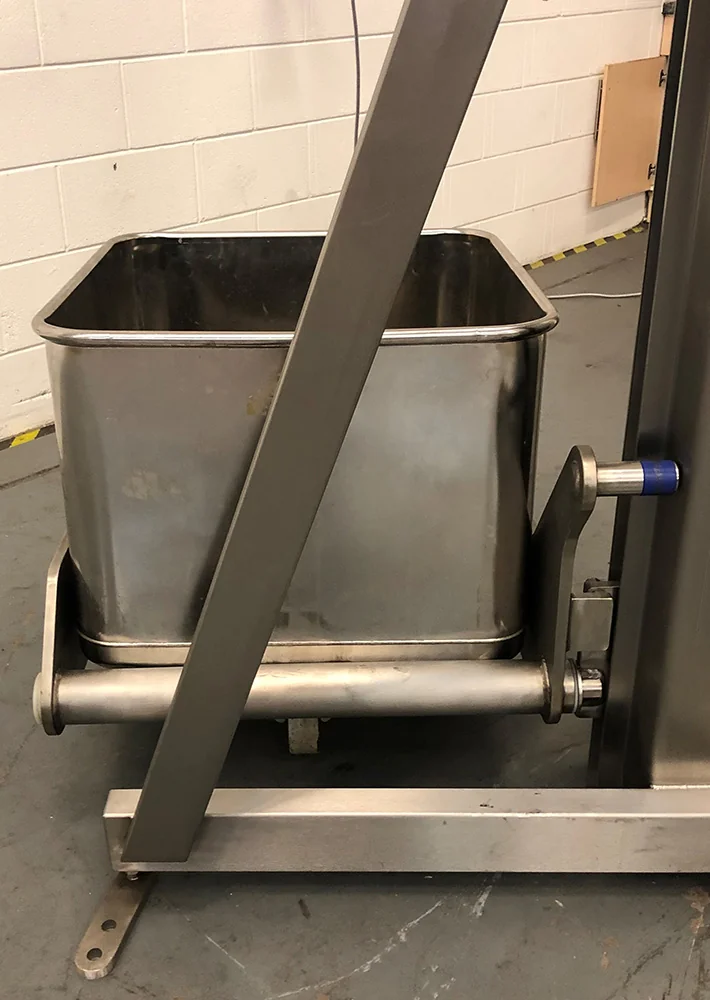

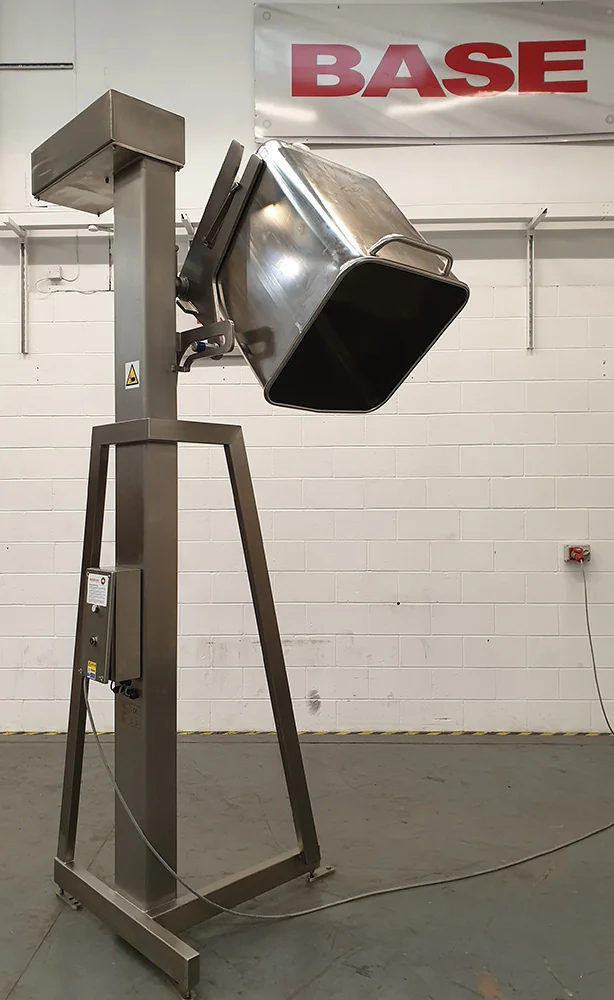

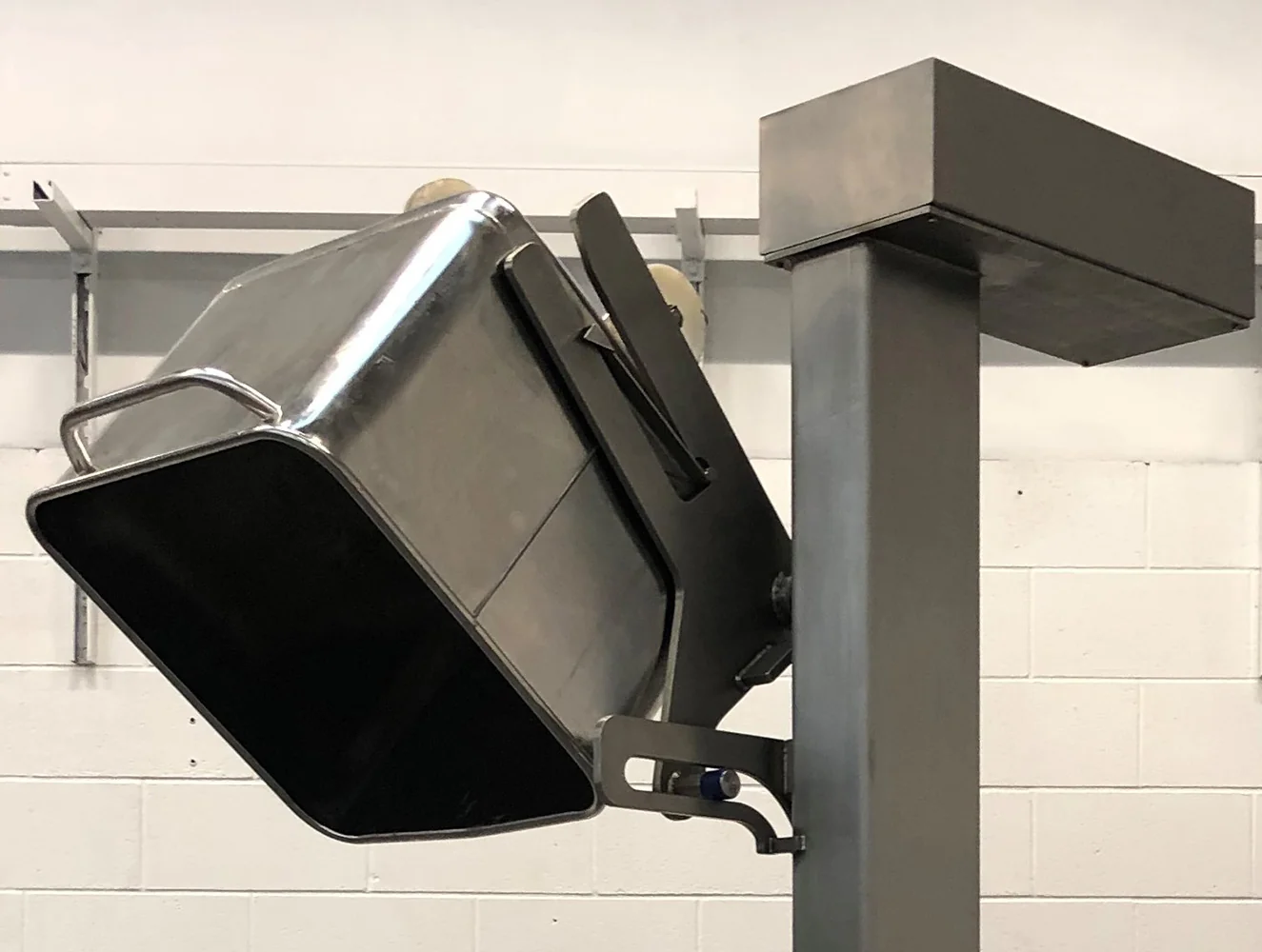

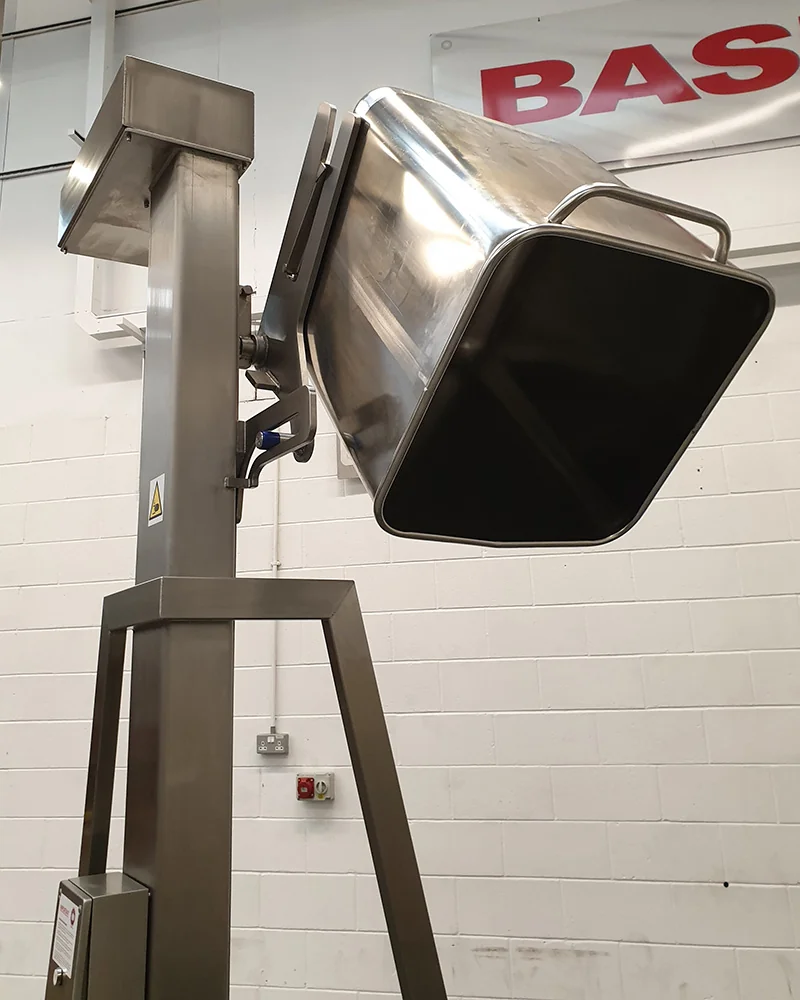

This Single Pillar 300 Litre Tote Bin Tipper is designed to lift and tip at a discharge height of 2000mm. The 300 Litre Tote Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded 300 Litre Tote Bin Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

300 Litre Tote Bin Tipper Electrical Control

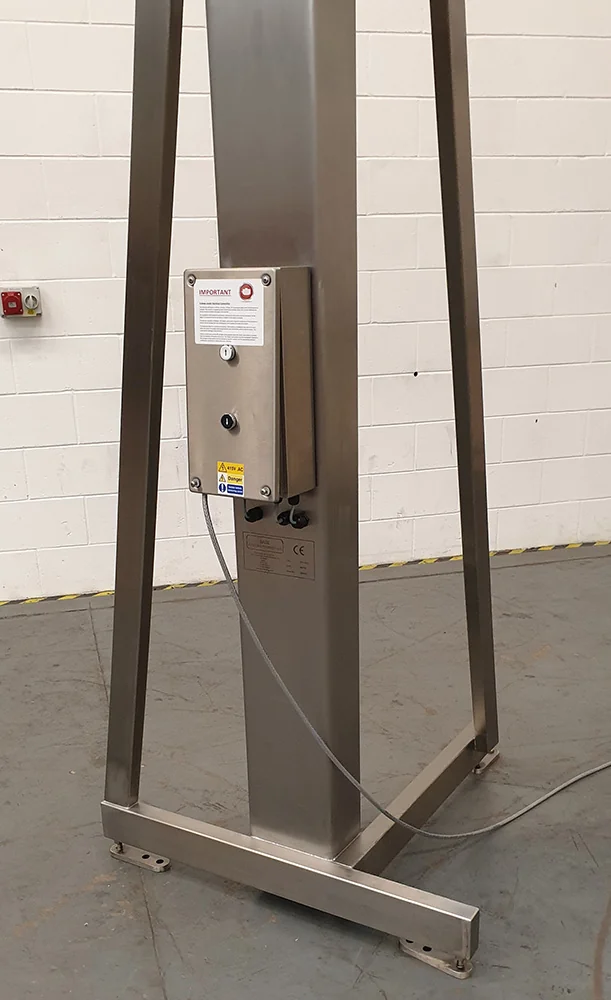

This 300 Litre Tote Bin Tipper was fitted with an IP65 Stainless Steel Control Panel mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded 300 Litre Tote Bin Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the 300 Litre Tote Bin Tipper to operate. As soon as either button is released, the 300 Litre Tote Bin Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar 200 Litre Tote Bin Tipper

Model No.

BTM/300/2000/B

Safe Working Load

300 Kgs

Tipping Height

2000mm

Tipping Angle

135 Degrees

Overall Height

3135mm

Machine Handing

Left Hand

Maximum Headroom

4000mm

Tipping Chute

Container Description

300 Litre Tote Bin

Base Arrangement

Base Frame Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/2000/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from tote bins into mixers or processing vessels.
Loading bulk materials into hoppers or conveyors at elevated positions.
Emptying waste or by-products from standard tote bins into collection systems.
Feeding packaging lines with semi-finished products from storage bins.

Typical Specifications

Typical capacity: Designed for 300-litre tote bins, which is a common industrial standard.
Discharge height: This unit specifies a 2000mm discharge height, suitable for many elevated feeding applications.
Construction material: Typically Grade 304 stainless steel for food contact and hygienic environments.
Power supply: Commonly 3-phase industrial power, with specific voltage (e.g., 400V) to be confirmed with the seller.
Control system: Often features an IP65 rated control panel, indicating protection against dust and water jets.
Safety features: Units of this type commonly include safety latches and 'hold to run' controls for operator safety.
Mounting: Typically designed for floor bolting to ensure stability during operation.

Frequently Asked Questions

This unit is designed for standard 300-litre tote bins. Buyers should confirm the exact dimensions and type of their bins with the seller.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
