Manufacturer: Miflex-Masz
Model: APO-11P-90
Category: Tea Equipment
Year: 2018
Status: For Sale
Machine Notes:

Miflex-Masz APO-11P-90 Pyramid Tea bagging Machine

Year 2018

PYRAMID TEA PACKING MACHINE (up to 100bpm)
+ OUTER ENVELOPE MACHINE - KH-400 (up to 80bpm)

The line includes the following:
1. Model # APO 11 P - Miflex automatic Pyramid Tea bag machine(8 load cell-weighing system). (60 mm x 60 mm – standard size)

PYRAMID MACHINE – MIFLEX MODEL # APO-11P
The Pyramid Tea bag machine MIFLEX model # APO 11P is a high performance tea bag packing machine capable of producing a triangular and a rectangular Teabag with or without heat sealed outer envelope.

Technical data:
Electrical supply -    3x400V/230V 50Hz
Pneumatics     6 bar
Installed power    3,5 kVA
Compressed air consumption -                         2,5 m3 /h
Overall dimensions of APO-11P -    2000mm x 2500mm x 3500mm
Weight:      1100 kg
No. of Staff required to operate:             1 person
Packing material: Nylon, PLA, other ultrasonic sealed
Width of packing material 140mm max.
Diameter of material reel 500mm
Reel core diameter:      75mm
No. of reels installed on machine :         1 reel
Dimensions of bag with tag and thread: 60mm x 60mm

Product:
Tea or fruit tea with fraction dimensions:           12 – 15 mm
Bag's weight    from 2 to max. 4gram
Max. Volume of product 25cm³

Efficiency: Output - max. 100 Pcs/min

(Depending on the type of teas and materials used)

Construction:
All components of Pyramid machine APO-11P are placed on self-supporting steel frame covered by protections. All machine elements having direct contact with packed product are made of materials approved by the State Institute of Hygiene (PZH).
All components are easy for cleaning.
This machine is equipped with an ultrasonic sealing and cutting system, and with a variable adjustment of speed.

The basic sub-assemblies APO-11-P Pyramid machine:
• Packing material unwinder
• Guide rolls
• Seam molding system
• Vertical ultrasonic sealing system
• Horizontal ultrasonic sealing syste
• Main drive with regulation of working speed : 10-100 cycle/ min.
• 8 load cell-weight dosing system
• control cabinet

Accessories:
1. Control
• PCD - SAIA Swiss company
• sensors
• visualization of error conditions
2. Pneumatics by 'METAL WORK' company
3. Mechanic and pneumatic drives
4. Variable adjustment of speed
5. Moved elements protected by guards
6. CD - machine program

Protective system – residual current operated protection device.

Mechanical protection – guards.

Working conditions – general-purpose production room

Location: North America

Please contact us for further details.
Video:

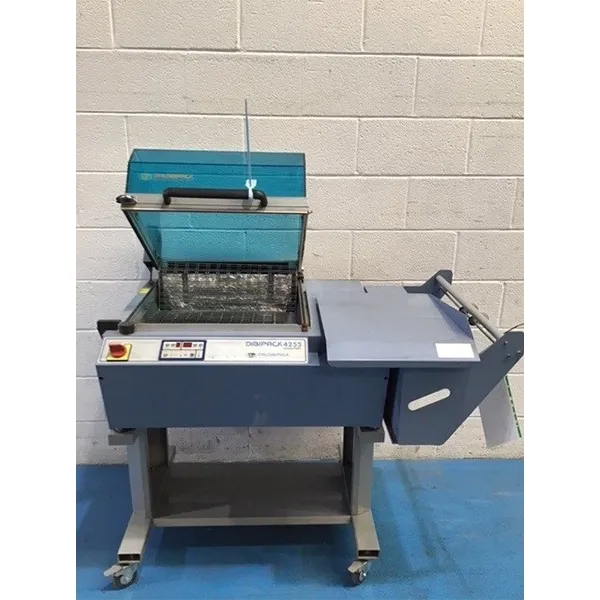

Dibipak - 4255 EV L Sealer With Built In Heat Shrink Tunnel
