What type of bins can this tipper handle?

This specific unit is designed for 500 Litre wheelie bins. Buyers should confirm compatibility with their specific bin dimensions and types when contacting the seller.

Is this tipper suitable for outdoor use?

While constructed from stainless steel and featuring an IP65 control panel, prolonged outdoor exposure may require additional weather protection. It is primarily designed for indoor industrial environments.

What are the typical maintenance requirements?

Regular inspection of chains, motor gearbox, safety interlocks, and general structural integrity is required. Lubrication points should be checked as per the manufacturer's guidelines.

Can the discharge height be adjusted?

Fixed discharge height units like this are common. If an adjustable discharge height is required, buyers should specify this to the seller as it typically involves different design configurations.

What installation considerations are there?

The unit requires a level, solid floor for bolting down and sufficient clear space for operation and maintenance, including access for bin loading and discharge. Electrical supply will also need to be provisioned.

Is this unit suitable for ATEX zones?

The description does not specify ATEX compliance. If operating in potentially explosive atmospheres, buyers must confirm ATEX certification with the seller, as this requires specialised design and components.

Available

Verified seller

500 Litre Wheelie Bin Tipper

Name: 500 Litre Wheelie Bin Tipper
SKU: BTM/2P/600/2200/B/G
Availability: InStock

Price: Contact seller for price

BTM/2P/600/2200/B/G Double Pillar 500 Litre Wheelie Bin Tipper

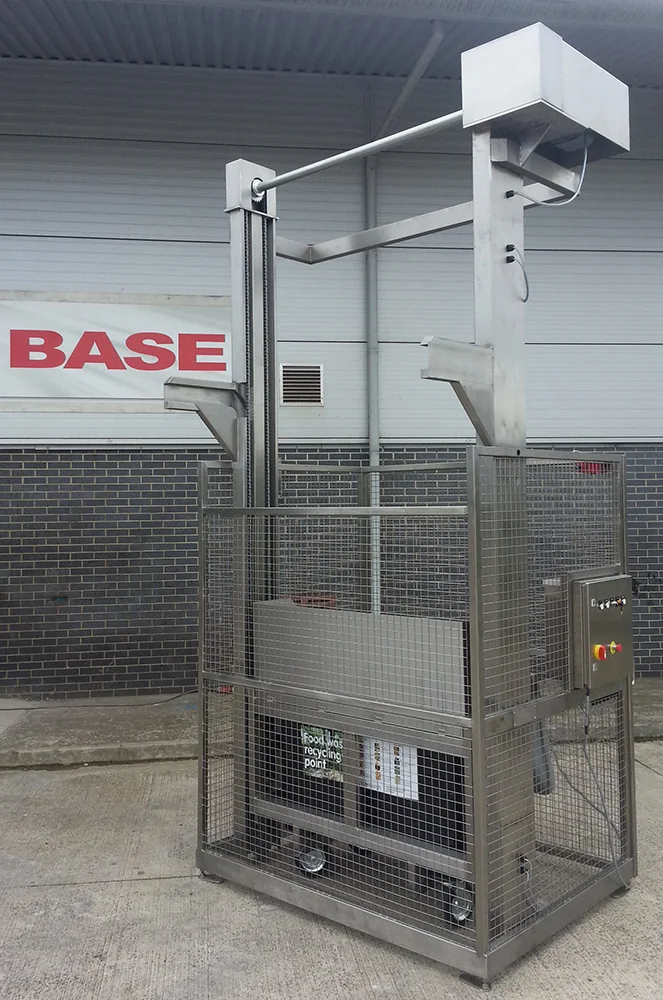

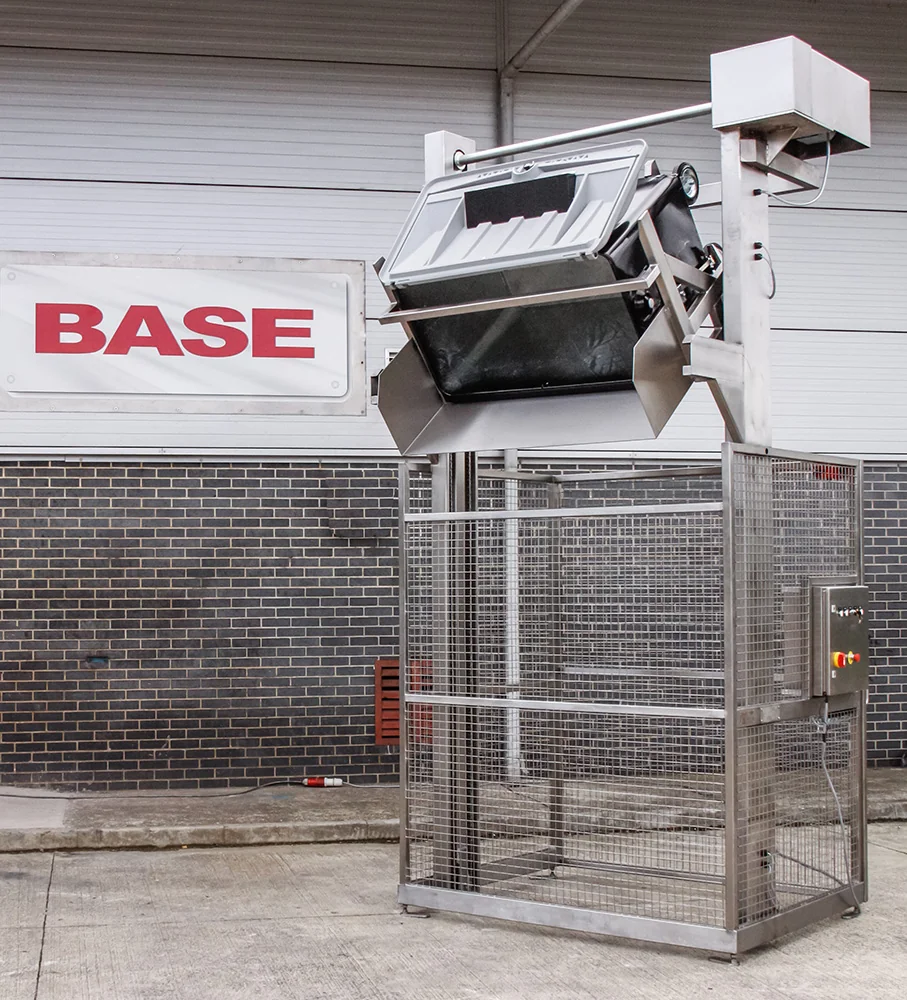

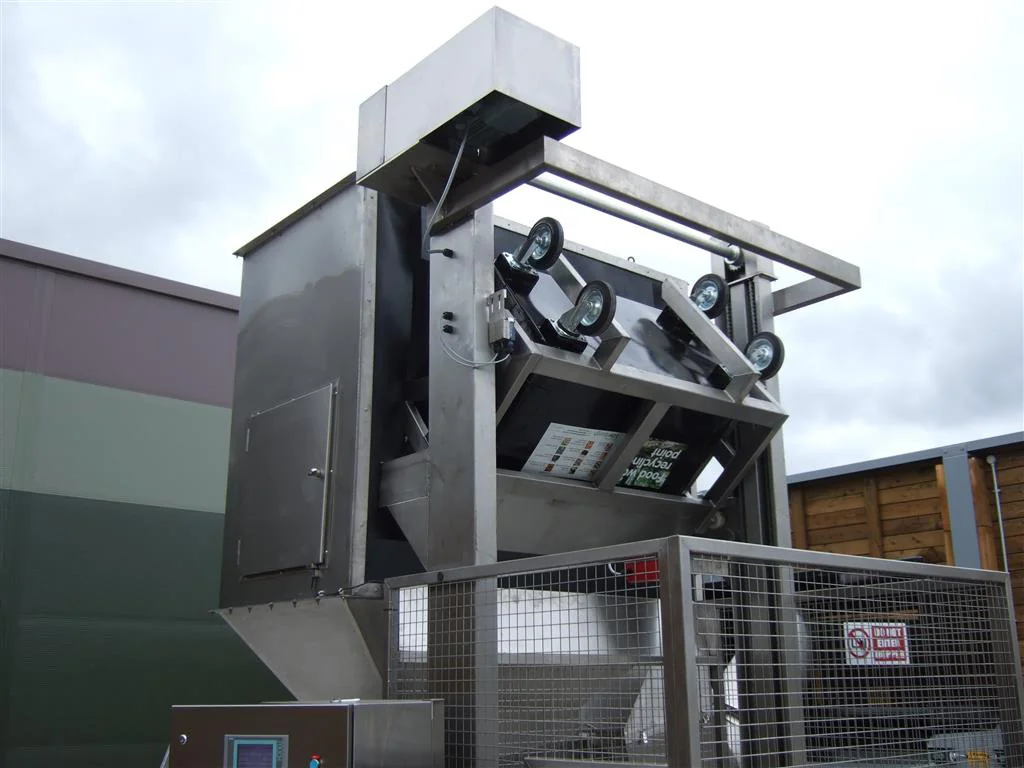

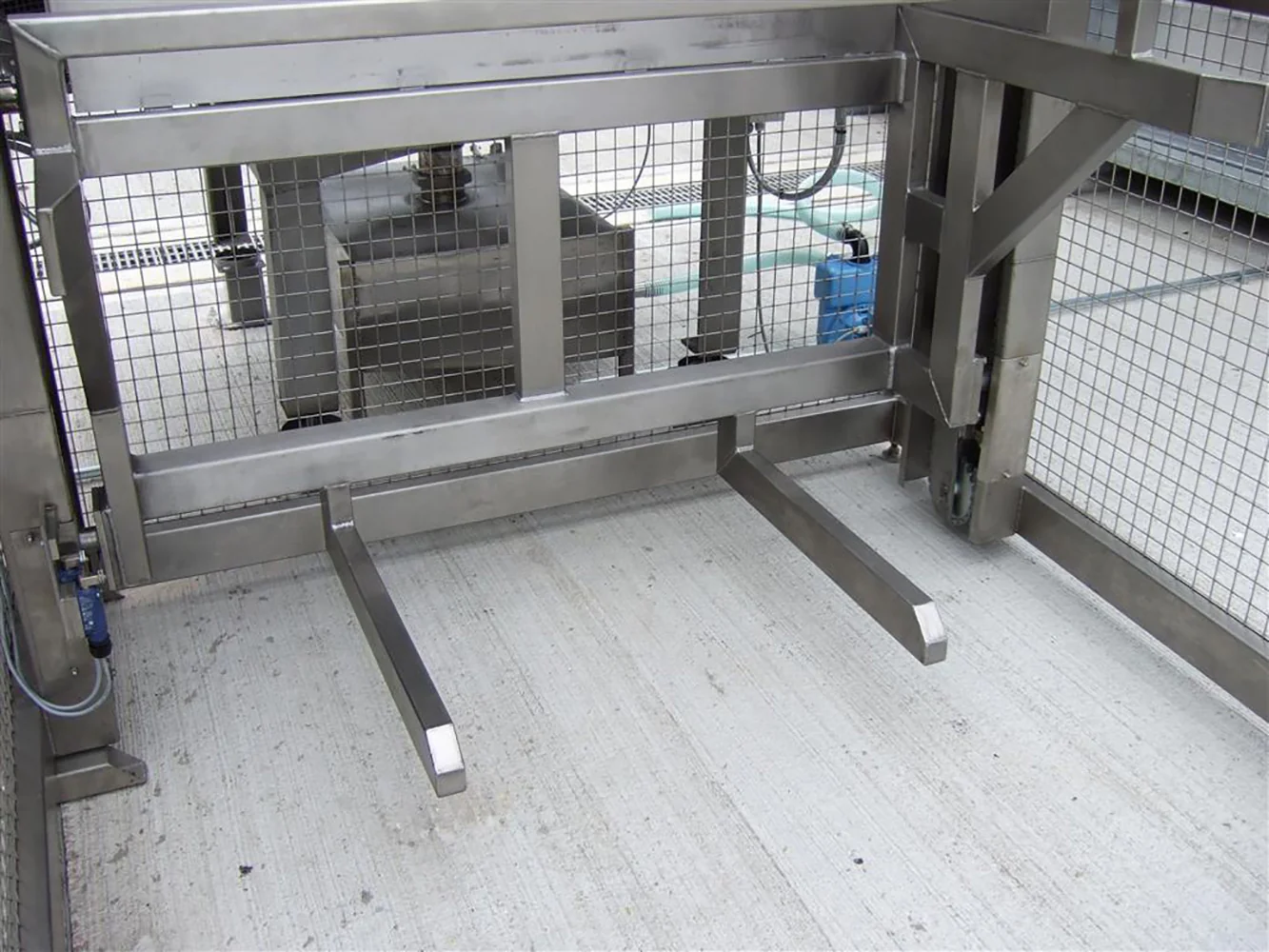

This 500 Litre Double Pillar Wheelie Bin Tipper is designed to lift and tip a 500 Litre Wheelie Bin at a discharge height of 2200mm. The 500 Litre Wheelie Bin Tipper is constructed from Grade 304 stainless steel, is fully welded throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

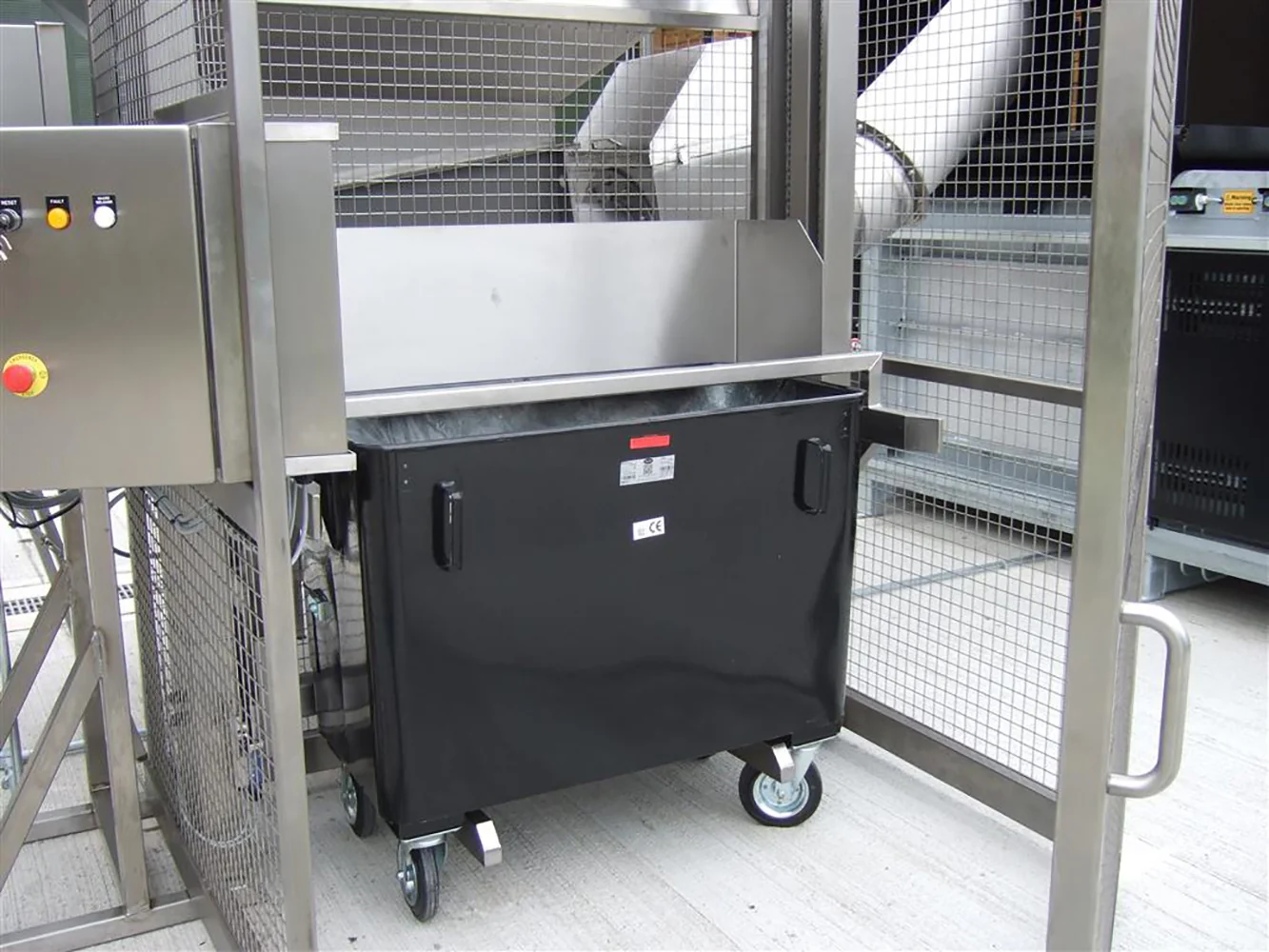

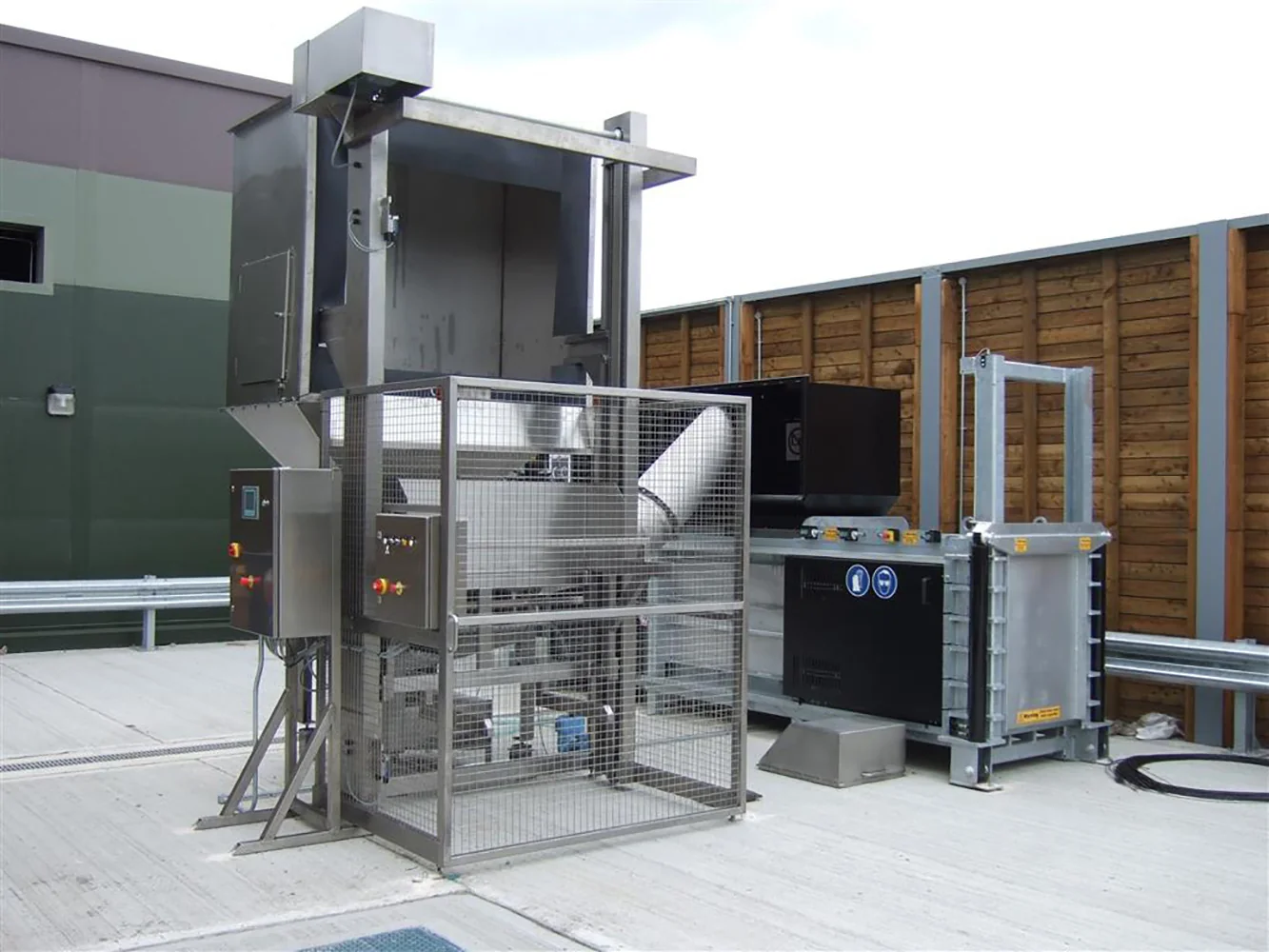

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture stainless steel weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. It encloses the 500 litre Wheelie Bin Tipper to a height of 2200mm on two sides, approximately 2000mm on the tipping side with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the 500 Litre Wheelie Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

500 Litre Wheelie Bin Tipper Electrical Control

This 500 Litre Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the Safety Guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility.

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The guarded 500 Litre Wheelie Bin Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the machine to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

600 Kgs Double Pillar Wheelie Bin Tipper

Model No.

BTM/2P/600/2200/B/G

Capacity

600 Kgs

Tipping Height

2200mm

Tipping Angle

130 Degrees

Overall Height

3900mm

Machine Handing

Left Hand

Maximum Headroom

4000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

500 Litre Wheelie Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Gearbox Detail

SEW Eurodrive

Motor Detail

2.2kW, 415V, 3 PHASE, 50 CYCLE C/W BRAKE

Load/Lift/Tension Chain

1" Simplex

Tensile Strength

6000 Kgs, 3000 Kgs

Tension Chain

¾” Simplex

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/2P/600/2200/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from bins into mixers or hoppers in bakeries and food manufacturing.
Loading raw materials into processing lines, such as vegetables into washing or cutting equipment.
Discharging waste products from collection bins into larger skips or compactors.
Feeding bulk solids into packaging machinery in various food and pharmaceutical settings.
Moving ingredients between different stages of a production process where manual lifting is impractical or unsafe.

Typical Specifications

Typical capacity: This unit is specified for 500 Litre wheelie bins. For this class of equipment, capacities commonly range from 120 Litre to 1100 Litre bins.
Discharge height: This unit offers a 2200mm discharge height. Tippers of this type typically offer discharge heights from 1000mm to over 3000mm.
Construction material: Constructed from Grade 304 stainless steel, which is standard for food processing environments due to its corrosion resistance and ease of cleaning.
Power supply: Commonly 3-phase electrical supply (e.g., 400V, 50Hz in the UK), though single-phase options can be found for smaller units.
Mounting: Designed to be bolted to the floor for stability, which is typical for fixed-position tippers.
Safety features: Includes safety guarding to BS EN 14120:2015 and electrically/mechanically interlocked guard doors, which are critical safety standards for machinery in operation.
Control panel rating: Fitted with an IP65 rated stainless steel control panel, indicating protection against dust and low-pressure water jets, suitable for washdown environments.
