What types of bins can this dumper handle?

This specific unit is designed for 660-litre wheelie bins or two 360-litre wheelie bins. Always confirm compatibility with your specific bin dimensions with the seller.

Is this dumper suitable for food processing environments?

Yes, units constructed from Grade 304 stainless steel with welded construction throughout are typically suitable for hygienic environments, provided they meet specific local regulations.

What are the installation requirements for this equipment?

This dumper is designed to be bolted to the floor, requiring a suitable concrete base. It also requires a 3-phase electrical connection. Specific foundation and electrical requirements should be confirmed with the seller.

How does the safety guarding work?

The safety guard fully encloses the dumper, with electrically and mechanically interlocked hinged doors. These doors prevent operation when open and can only be opened when the lift carriage is at its lowest position, enhancing operator safety.

What maintenance is typically required for a bin dumper?

Routine maintenance typically involves checking chains, sprockets, motor gearbox, and electrical components for wear. Regular cleaning, especially in hygienic applications, is also essential. Consult the manufacturer's manual for specific schedules.

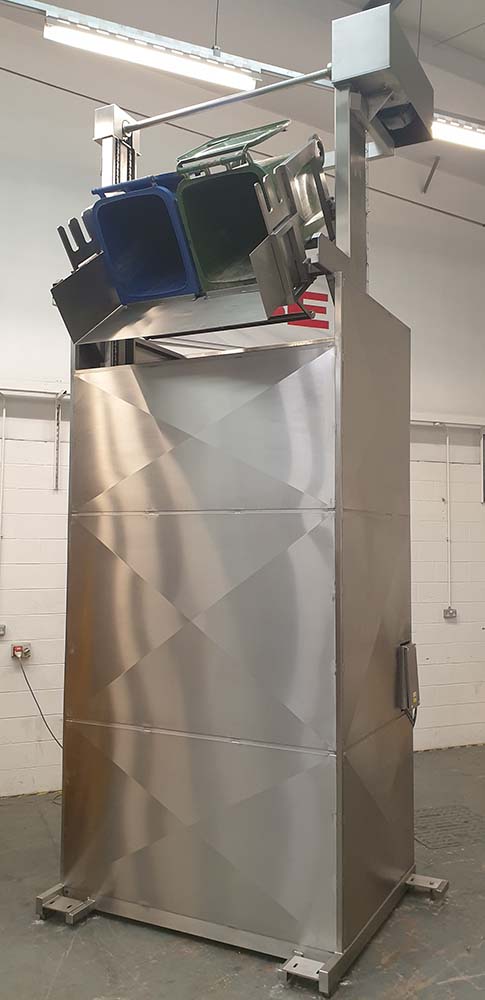

660 Litre Wheelie Bin Dumper - Bin Tippers and Dumpers, photo 1

660 Litre Wheelie Bin Dumper - Bin Tippers and Dumpers, photo 2

660 Litre Wheelie Bin Dumper - Bin Tippers and Dumpers, photo 3

660 Litre Wheelie Bin Dumper - Bin Tippers and Dumpers, photo 4

660 Litre Wheelie Bin Dumper - Bin Tippers and Dumpers, photo 5

660 Litre Wheelie Bin Dumper - Bin Tippers and Dumpers, photo 6

660 Litre Wheelie Bin Dumper - Bin Tippers and Dumpers

Available

Verified seller

Base Handling Ltd - 660 Litre Wheelie Bin Dumper

Name: 660 Litre Wheelie Bin Dumper
Brand: Base Handling Ltd
SKU: BTM/2P/400/3400/B/G
Availability: InStock

Price: Contact seller for price

BTM/2P/400/3400/B/G Double Pillar 660 Litre Wheelie Bin Dumper.

This Double Pillar 660 Litre Wheelie Bin Dumper is designed to lift and tip either a single 660 Litre Wheelie Bin or 2 off 360 Litre Wheelie Bins at a discharge height of 3400mm.

The 660 Litre Wheelie Bin Dumper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor.

The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards.

The 660 Litre Wheelie Bin Dumper is supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards.

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet.

It encloses the 660 Litre Wheelie Bin Dumper to a height of 3720mm on all sides with a pair of hinged guard doors through which the bins are loaded.

The guard doors are electrically and mechanically interlocked preventing the 660 Litre Wheelie Bin Dumper from operating when a door is open.

Additionally, the guard doors can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

660 Litre Wheelie Bin Dumper Electrical Control.

The 660 Litre Wheelie Bin Dumper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the Safety Guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

The control panel incorporates the following controls:

Up
Down
Guard Release
Emergency Stop
Reset Facility.

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The 660 Litre Wheelie Bin Dumper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position.

Once the product has been discharged, pressing the ‘Down’ push button once will return the machine to the full down position.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

660 Litre Wheelie Bin Dumper

Model No.

BTM/2P/400/3400/B/G

Capacity

400 Kgs

Overall Height

5250mm

Machine Handing

Left Hand

Maximum Headroom

To Be Confirmed

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

1 Off 660 Litre Wheelie Bin, 2 Off 360 Litre Wheelie Bins

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

2.2kW, 415V, 3 PHASE, 50 CYCLE C/W BRAKE

Gearbox Detail

SEW Eurodrive

Tensile Strength

6000 Kgs, 3000 Kgs

Lift Speed

6.4 Meters/Minute

Tension Chain

¾” Simplex

Lift Chain

1" Simplex

Tip Height

3400mm

Tip Angle

130 Degrees

Stock Number

BTM/2P/400/3400/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring waste or ingredients from wheelie bins into larger hoppers or processing lines.
Elevating bulk materials for controlled discharge in food processing, pharmaceutical, or chemical industries.
Emptying refuse bins into compactors or skips in industrial waste management.
Loading raw materials into mixers, grinders, or other primary processing equipment.

Typical capacity: Designed to handle standard 660-litre wheelie bins, or commonly two 360-litre bins simultaneously.
Discharge height: For this unit, a discharge height of 3400mm is specified. This class of equipment typically offers a range of discharge heights to suit various receiving hoppers.
Construction material: Commonly manufactured from Grade 304 stainless steel, particularly for hygiene-sensitive applications.
Mounting: Units of this type are typically designed for floor mounting, requiring bolting for stability.
Lifting mechanism: Often employs a chain-driven system via a motor gearbox, with double pillar designs providing stability for heavier loads.
Safety features: Typically includes comprehensive safety guarding to standards like BS EN 14120:2015, with interlocked access doors.
Electrical control: Commonly features an IP65 rated control panel, suitable for washdown environments and mounted for operator convenience.
Power supply: Units of this industrial capacity typically require a 3-phase electrical supply, often 400V.

This specific unit is designed for 660-litre wheelie bins or two 360-litre wheelie bins. Always confirm compatibility with your specific bin dimensions with the seller.

Bin tippers and dumpers are valued across waste management, recycling, and manufacturing sectors for their reliability and durability. Buyers typically prioritise robust construction, hydraulic system condition, and container compatibility when purchasing used models. Industry sentiment favours equipment with well-maintained lifting mechanisms and minimal corrosion. Common strengths include straightforward operation, longevity with proper maintenance, and cost efficiency compared to new units. Potential buyers should inspect wear on hydraulic cylinders, structural integrity of the bin, and service history before purchase.
