What types of bins can this tipper handle?

This specific unit is designed for 770-litre wheelie bins or two 240-litre wheelie bins. Buyers should confirm compatibility for their specific bin types and dimensions with the seller.

Is this equipment suitable for washdown environments?

Yes, the Grade 304 stainless steel construction and IP65-rated electrical components typically make this class of equipment suitable for regular washdown in food processing facilities.

What are the typical safety features of a bin tipper?

Common safety features include full guarding, interlocked access doors that prevent operation when open, and limit switches to control lift and tip cycles. This unit meets BS EN 14120:2015 safety standards.

Does this unit require special installation?

Bin tippers of this size and capacity are typically designed to be bolted to the floor for stability. Professional installation is recommended to ensure correct setup and safety compliance.

Can the discharge height be adjusted?

This unit has a fixed discharge height of 4200mm. While some bin tippers offer adjustable discharge heights, this is less common for fixed-pillar designs. Buyers should confirm specific requirements with the seller.

What maintenance is typically required for a bin tipper?

Routine maintenance usually involves checking chains, sprockets, motor gearbox, and electrical components for wear. Lubrication of moving parts and inspection of safety interlocks are also common tasks.

770 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 1

770 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 2

770 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 3

770 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 4

770 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 5

770 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 6

770 Litre Wheelie Bin Tipper - Lifting & Tipping

Available

Verified seller

770 Litre Wheelie Bin Tipper

Name: 770 Litre Wheelie Bin Tipper
SKU: BTM/2P/400/4200/B/G
Availability: InStock

Price: Contact seller for price

BTM/2P/400/4200/B/G Double Pillar 770 Litre Wheelie Bin Tipper

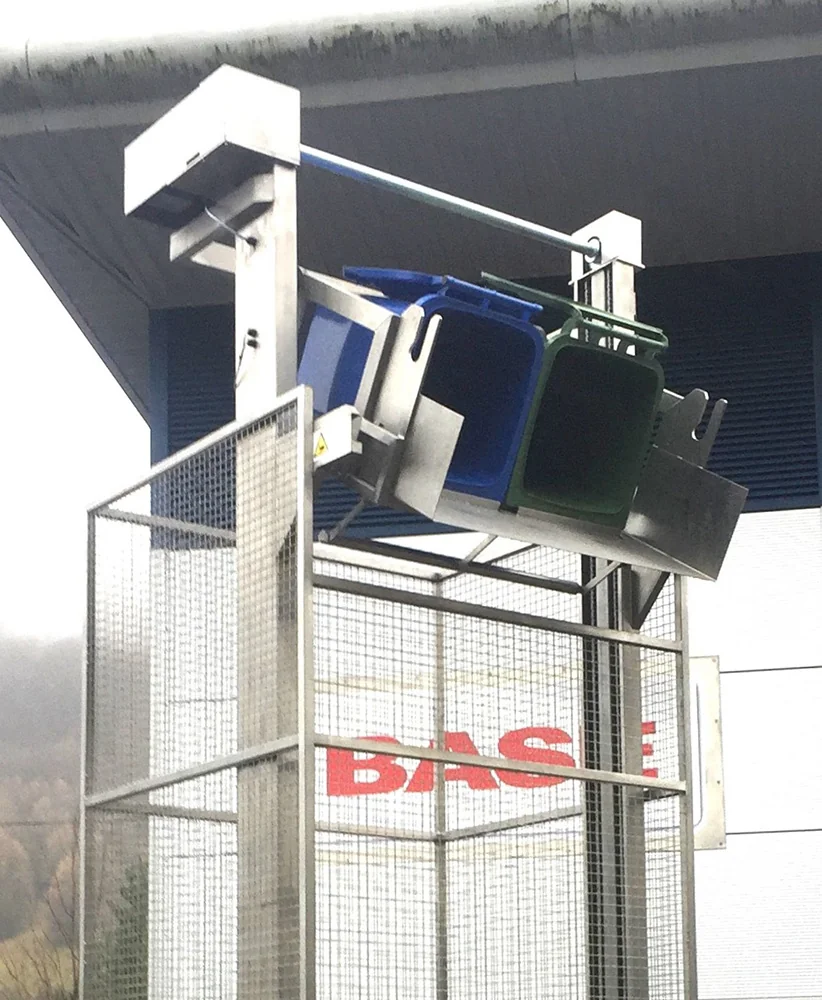

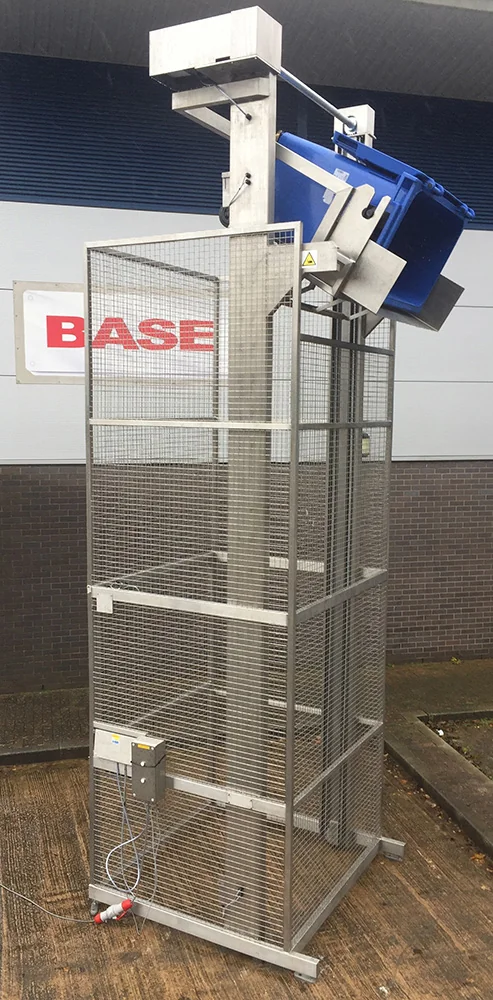

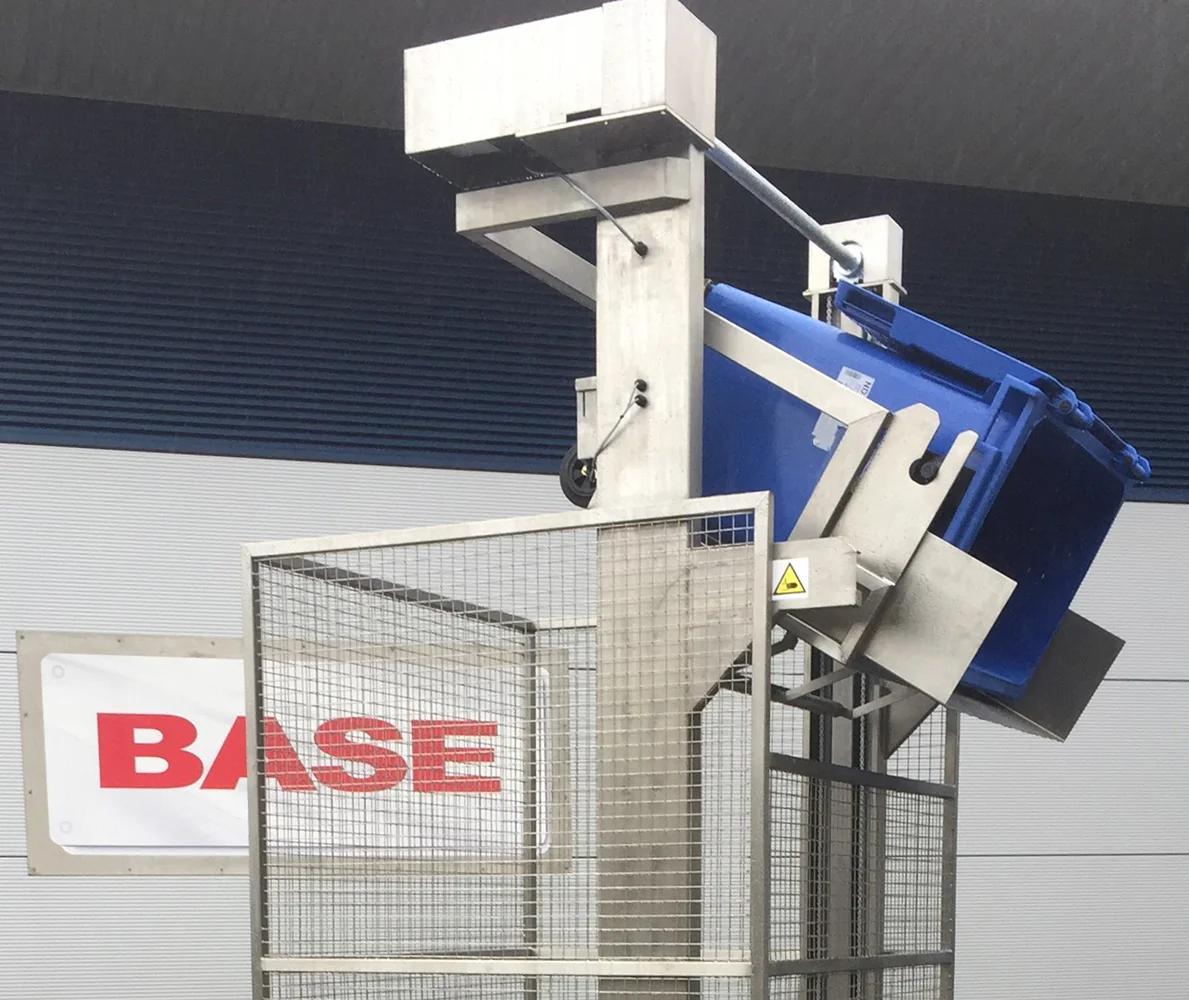

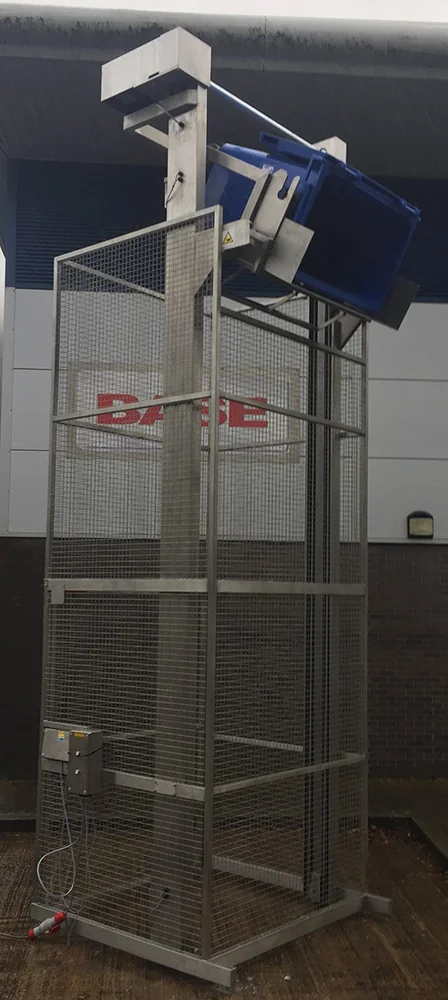

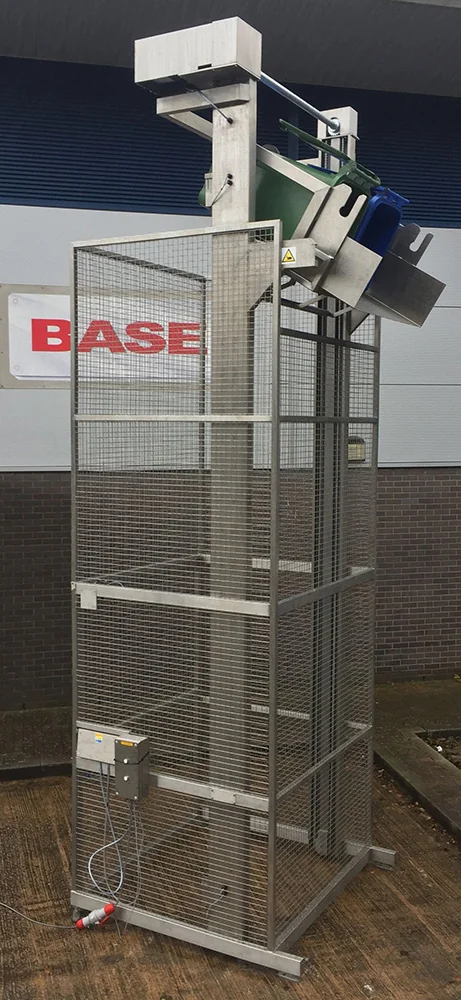

This Double Pillar 770 Litre Wheelie Bin Tipper is designed to lift and tip either a single 770 Litre Wheelie Bin or 2 off 240 Litre Wheelie Bins at a discharge height of 4200mm. The 770 Litre Wheelie Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

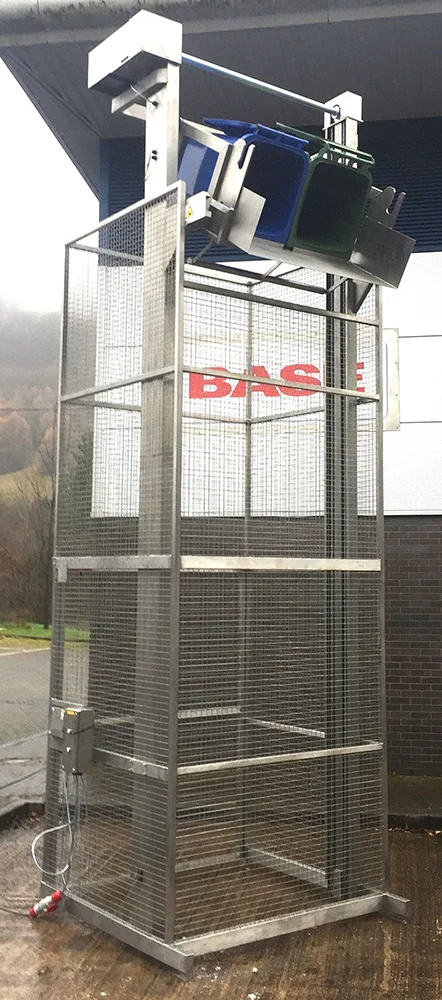

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture stainless steel weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. It encloses the 770 Litre Wheelie Bin Tipper to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the 770 Litre Wheelie Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

770 Litre Wheelie Bin Tipper Electrical Control

This 770 Litre Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Terminal Box and all components will be wired down to this as follows:-

Magnetic Safety Guard Door Switch
Interlocked Safety Guard Door Switch
Upper Limit Switches x 2 off
Lower Limit Switches x 2 off
Motor Gearbox and Brake
Push Button Station

The 770 Litre Wheelie Bin Tipper tipper control was integrated into the main control system.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

400 Kgs 770 Litre Wheelie Bin Tipper

Model No.

BTM/2P/400/4200/B/G

Capacity

400 Kgs

Tipping Height

4200mm

Tipping Angle

130 Degrees

Overall Height

5966mm

Machine Handing

Left Hand

Maximum Headroom

6000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

1 Off 770 Litre Wheelie Bin, 2 Off 240 Litre Wheelie Bins

Base Arrangement

Bolted To The Floor

Control Circuit

Supplied By Others

Electrical Rating

IP65

Limit Switches

Telemecanique

Gearbox Detail

SEW Eurodrive

Motor Detail

1.1kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Lift Chain

¾" Duplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/2P/400/4200/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring bulk ingredients from bins into processing lines.
Loading mixers, hoppers, or conveyors with raw materials.
Discharging waste or by-products into larger collection systems.
Handling ingredients in bakeries, dairies, and ready-meal production.
Ergonomic lifting of heavy bins to reduce manual handling risks.

Typical Specifications

Typical capacity: Designed for 770-litre wheelie bins, or two 240-litre bins. Other units in this class commonly handle 120L to 1100L bins.
Discharge height: This unit offers a 4200mm discharge height. Units of this type typically range from 1500mm to over 5000mm.
Construction material: Grade 304 stainless steel, welded construction, suitable for food processing environments.
Lifting mechanism: Chain-driven by a motor gearbox, typically robust and low-maintenance.
Safety features: Enclosed guarding to BS EN 14120:2015, interlocked guard door, and safety limit switches are standard for this class.
Power supply: Typically 3-phase electrical supply, commonly 400V, 50Hz in the UK.
Mounting: Designed for floor bolting to ensure stability during operation.
Ingress Protection (IP) Rating: Control components often have an IP65 rating, indicating protection against dust and low-pressure water jets.
