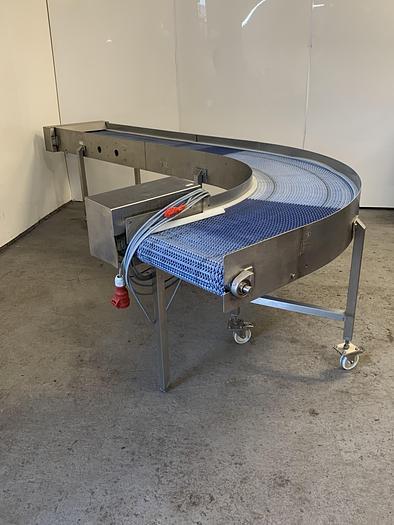

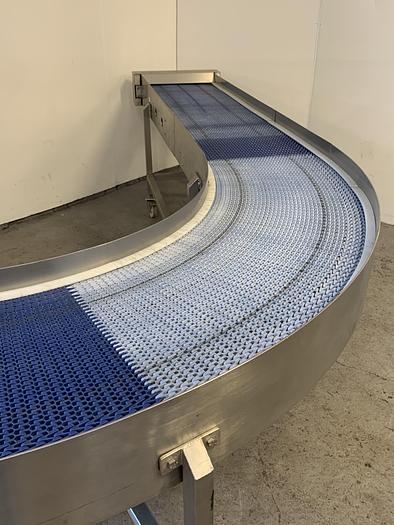

90 degree Angled Conveyor

Applications & Use Cases

• Changing product direction on a production line.
• Connecting two conveyor lines at a right angle.
• Optimising floor space in a facility by redirecting flow.
• Integrating with other processing or packaging machinery.

Typical Specifications

Typical belt width

Commonly ranges from 200mm to 600mm for this class of equipment.

Power supply

Typically requires a 3-phase electrical supply, often 400V, 50Hz, though single-phase options are available for lighter duties.

Motor power

For this type of unit, motor power typically ranges from 0.37kW to 1.5kW, depending on load and belt speed.

Belt material

Commonly PVC, PU, or rubber, selected based on the conveyed product and application environment.

Frame material

Typically constructed from mild steel (painted or powder-coated) or stainless steel for food-grade or corrosive environments.

Throughput

Highly variable, depending on belt speed, width, and product characteristics. Buyers should contact the seller for specific unit performance.

Frequently Asked Questions

• What types of products can this conveyor handle?

  Angled conveyors are suitable for a wide range of discrete items, packages, and some bulk materials, provided they are stable on the belt and can withstand the directional change.

• Is this unit reversible?

• What maintenance is typically required for an angled conveyor?

• Can this conveyor be integrated with existing lines?

• What are the common safety features on this type of equipment?
