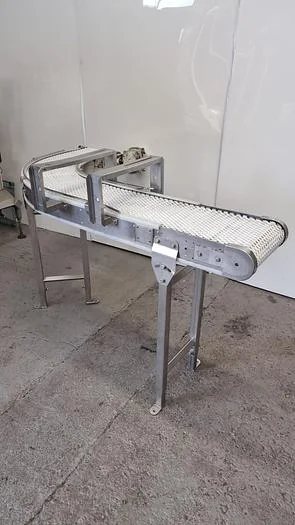

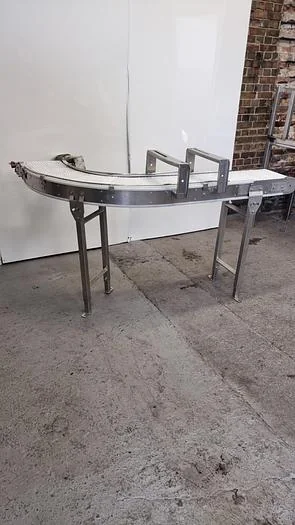

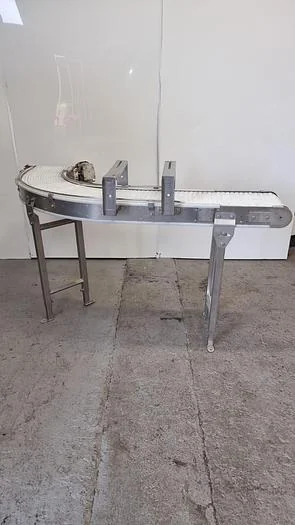

NN - 90 Degree Conveyor

Applications & Use Cases

• Changing the direction of product flow on a processing line.
• Integrating different stages of a food production or packaging process.
• Optimising floor space by navigating around obstacles or tight corners.
• Feeding products into subsequent machinery, such as ovens, chillers, or packaging lines.

Typical Specifications

Typical belt width

Commonly ranges from 150mm to 600mm, depending on product size and throughput requirements.

Power supply

Typically 230V single-phase or 400V three-phase, 50Hz, for the motor drive.

Conveyor material

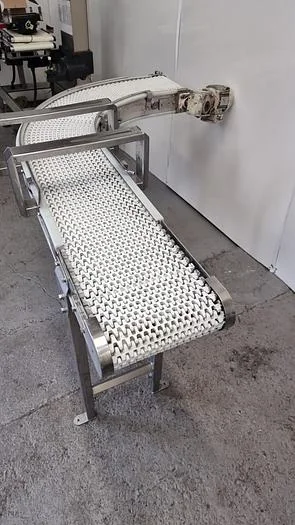

Belts are typically food-grade plastic (e.g., modular plastic belt) or polyurethane. Frames are commonly stainless steel for hygiene.

Drive type

Often features a geared motor drive, with variable speed control commonly available for process flexibility.

Typical throughput

Highly variable, depending on belt speed, width, and product characteristics. Designed for continuous flow.

Footprint

The footprint will be dictated by the belt width and the radius of the 90-degree turn. Buyers should confirm exact dimensions with the seller.

Frequently Asked Questions

• What types of products can this conveyor handle?

  This class of conveyor is suitable for a wide range of food products, including packaged goods, raw ingredients, and semi-processed items, provided they are stable on the belt.

• Is this conveyor suitable for washdown environments?

• Can the speed of the conveyor be adjusted?

• What maintenance is typically required for a 90-degree conveyor?

• Are spare parts readily available for unknown manufacturer conveyors?
