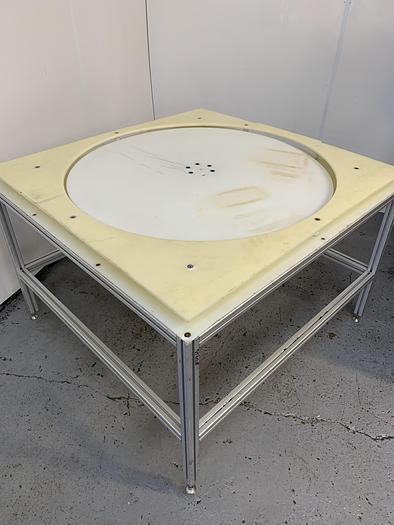

Acrylic Rotary Table

Applications & Use Cases

• Used for precise angular positioning in light assembly tasks.
• Commonly integrated into small-scale automation cells for part presentation.
• Suitable for inspection stations requiring repeatable rotation of components.
• Utilised in laboratory settings for experimental setups requiring controlled indexing.

Typical Specifications

Table Diameter

Typically ranges from 150mm to 400mm for this class of equipment.

Load Capacity

For acrylic units, commonly supports loads up to 5-10 kg, depending on design.

Indexing Accuracy

Typically offers angular accuracy in the range of ±1 to ±5 arc minutes.

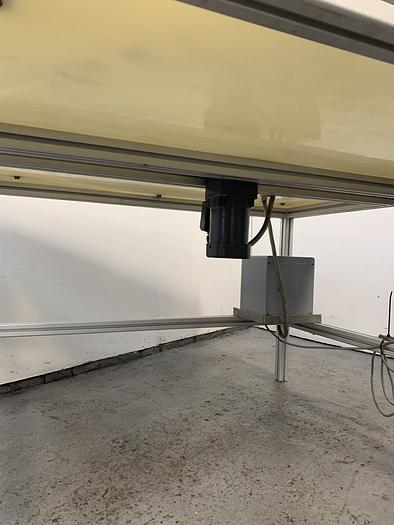

Drive Mechanism

Often features stepper or servo motor drives for precise control.

Power Supply

Commonly operates on 24V DC or single-phase 230V AC, depending on the motor and controller.

Material Construction

The table surface is acrylic, with the base and internal components typically made from aluminium or steel.

Frequently Asked Questions

• What are the advantages of an acrylic rotary table?

  Acrylic tables are often chosen for their non-conductive properties, lighter weight, and suitability for applications where metal contamination is a concern or visibility of the underside is required.

• Can this unit be integrated into an existing control system?

• What maintenance is typically required for a used rotary table?

• Is this suitable for high-speed indexing?

• What kind of environment is this equipment suitable for?
