What kind of measurements can this unit perform?

This unit typically performs measurements of voltage, current, resistance, frequency, and temperature, utilising its integrated Digital Multimeter.

Are the plug-in modules included with the unit?

Plug-in modules are typically sold separately or as part of a specific configuration. Buyers should confirm with the seller which modules are included with this particular unit.

Can this unit be controlled remotely?

Yes, units of this type commonly support remote control via standard interfaces such as GPIB and RS-232, using SCPI commands.

What is the typical power requirement for this equipment?

Units in this class typically operate on standard mains power, often 100-240V AC. Buyers should check the specific power requirements on the unit's rating label.

Is this unit suitable for continuous data logging?

Yes, the Agilent 34970a is designed with logging capabilities, making it suitable for continuous data acquisition over time in various test and monitoring applications.

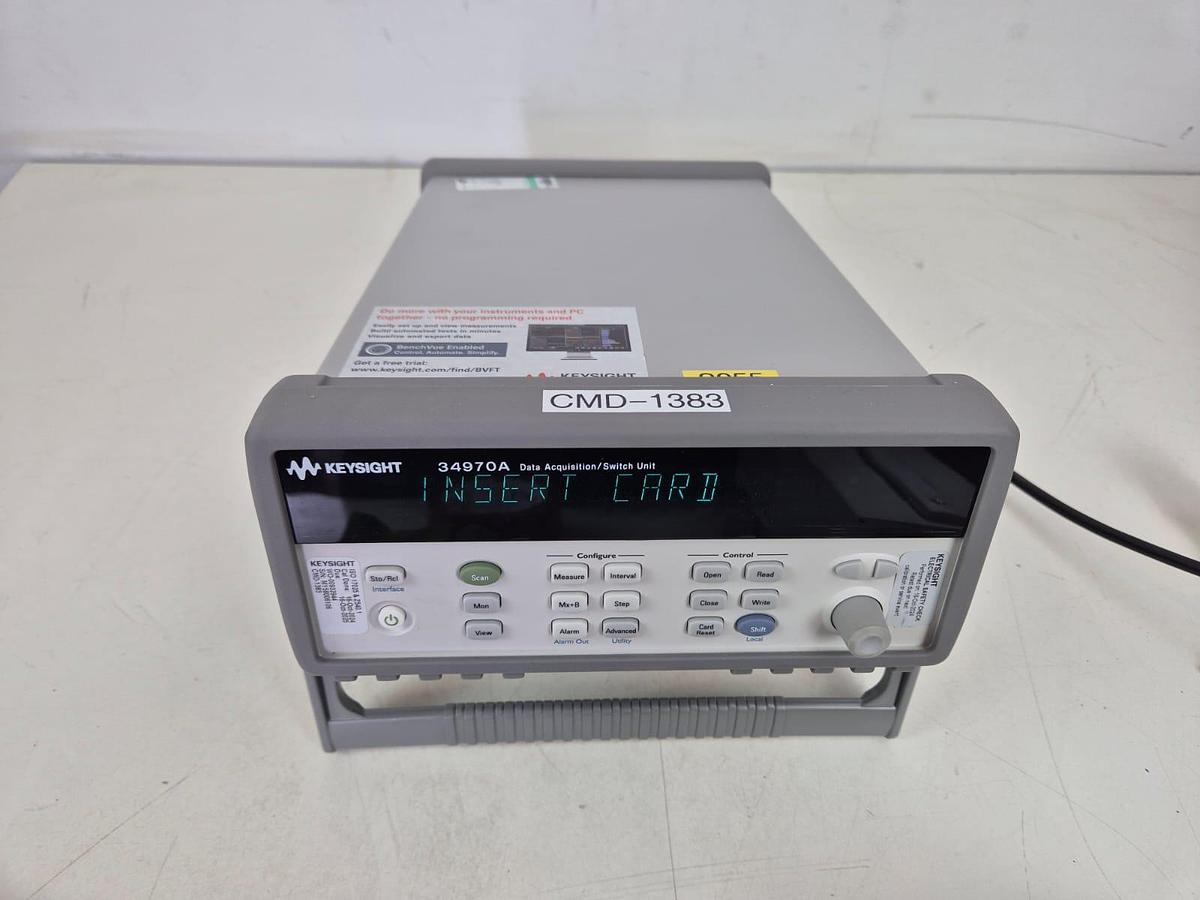

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 1

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 2

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 3

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 4

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 5

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 6

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 7

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 8

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 9

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 10

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 11

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 12

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 13

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 14

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 15

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 16

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 17

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules, photo 18

Used Agilent 34970a Data Loger Switch Unit - Control Units & PLC Modules

used Equipment

Available

Verified seller

Agilent 34970a Data Loger Switch Unit

Name: Agilent 34970a Data Loger Switch Unit
Brand: Agilent
SKU: 708254.5B
Price: 520 GBP
Availability: InStock

Price: £ 520

This listing is for the Agilent 34970a Data Loger Switch Unit.

The unit is in full working condition and is ready for immediate use.

Key Features:

3-slot mainframe: Supports up to 60 2-wire channels using plug-in modules.
Built-in 6½-digit DMM (Digital Multimeter): Measures voltage, current, resistance, frequency, and temperature.
Plug-in Modules Available: e.g. 34901A (20-channel multiplexer), 34902A (16-channel actuator), 34908A (40-channel single-ended multiplexer), etc.
Interfaces: GPIB and RS-232 standard (USB via adapter).
Logging Capabilities: Can log data over time for test/monitoring applications.
Scan Rates: Up to 250 channels/sec depending on configuration.
User Interface: Front-panel controls with LCD display.
Remote control via SCPI commands.

Typical Applications:

Environmental monitoring (temperature, humidity)
Functional test systems
Data logging in labs
Automotive and aerospace test setups
Industrial process monitoring

Cambridgeshire, United Kingdom

5,773 km away

Model Number

34970a Data Loger

Stock Number

708254.5B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Environmental monitoring, such as temperature and humidity tracking.
Functional testing within laboratory or production environments.
Data logging for research and development, particularly in automotive and aerospace sectors.
Industrial process monitoring for various parameters like voltage, current, and resistance.

Typical Channel Capacity: Supports up to 60 2-wire channels using plug-in modules, commonly found on units of this type.
Integrated Measurement Capability: Features a built-in 6½-digit DMM for measuring voltage, current, resistance, frequency, and temperature.
Scan Rate: Typically up to 250 channels/second, depending on the specific module configuration.
Interfaces: Commonly includes GPIB and RS-232 as standard, with USB connectivity often available via an adapter.
Module Compatibility: Designed to accept various plug-in modules, such as multiplexers and actuator modules, for diverse applications.
Data Logging Functionality: Capable of logging data over extended periods for continuous monitoring and analysis.

Control units and PLC modules are valued for their reliability and precision in laboratory and pharmaceutical environments. Buyers typically prioritise units with clear documentation and verified operational history, as proper maintenance directly affects performance. Common strengths include robust construction, compatibility with existing systems, and long operational lifespans. When purchasing used equipment, inspecting calibration records and testing functionality before installation remains standard practice. These systems generally command steady demand due to their essential role in process automation and facility management.
