ATI - F12/D Gas Transmitter
Copied to clipboard!
Price: £ 275

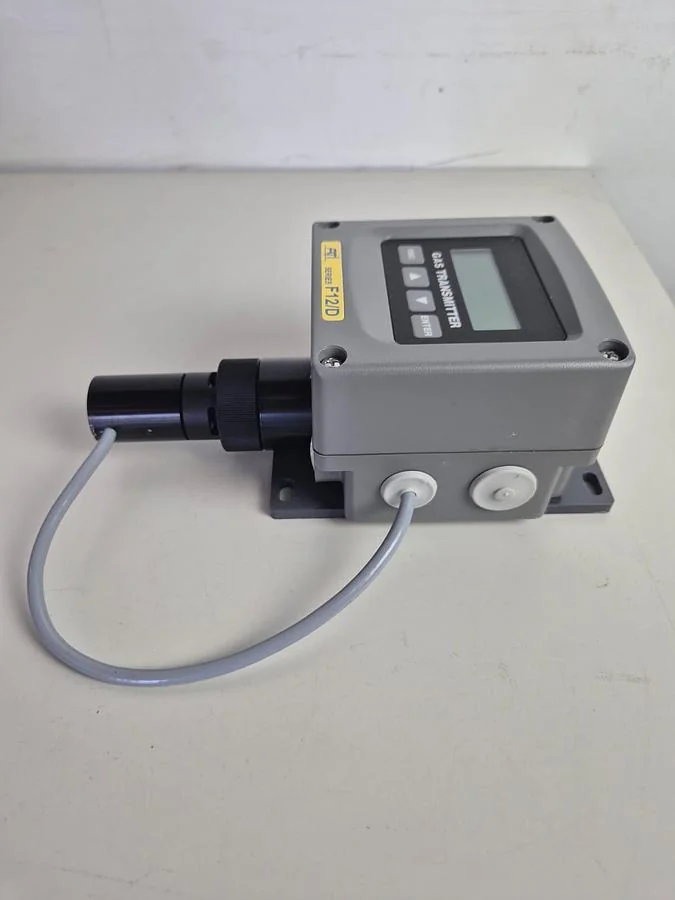

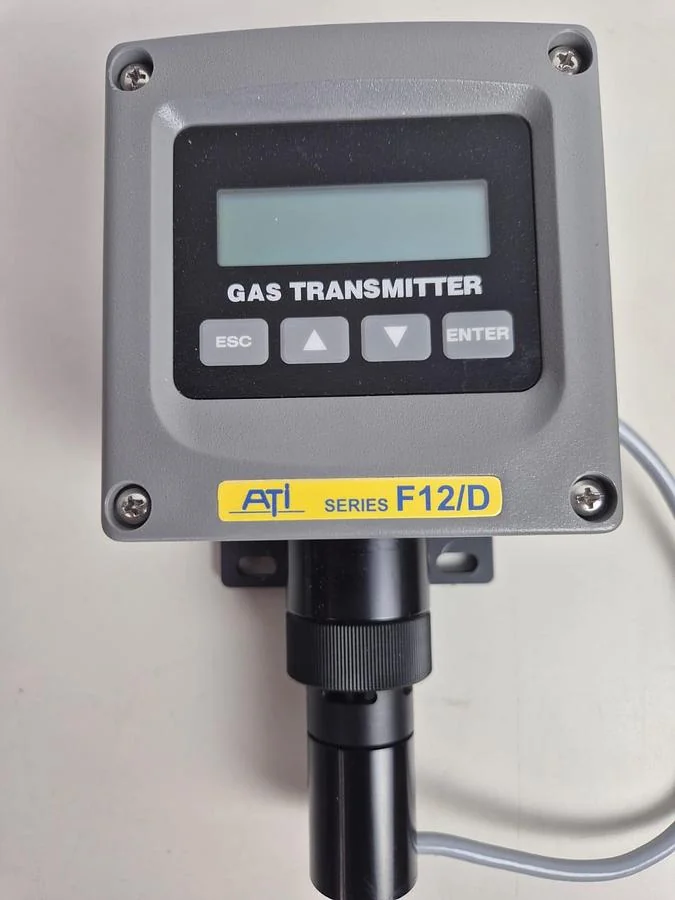

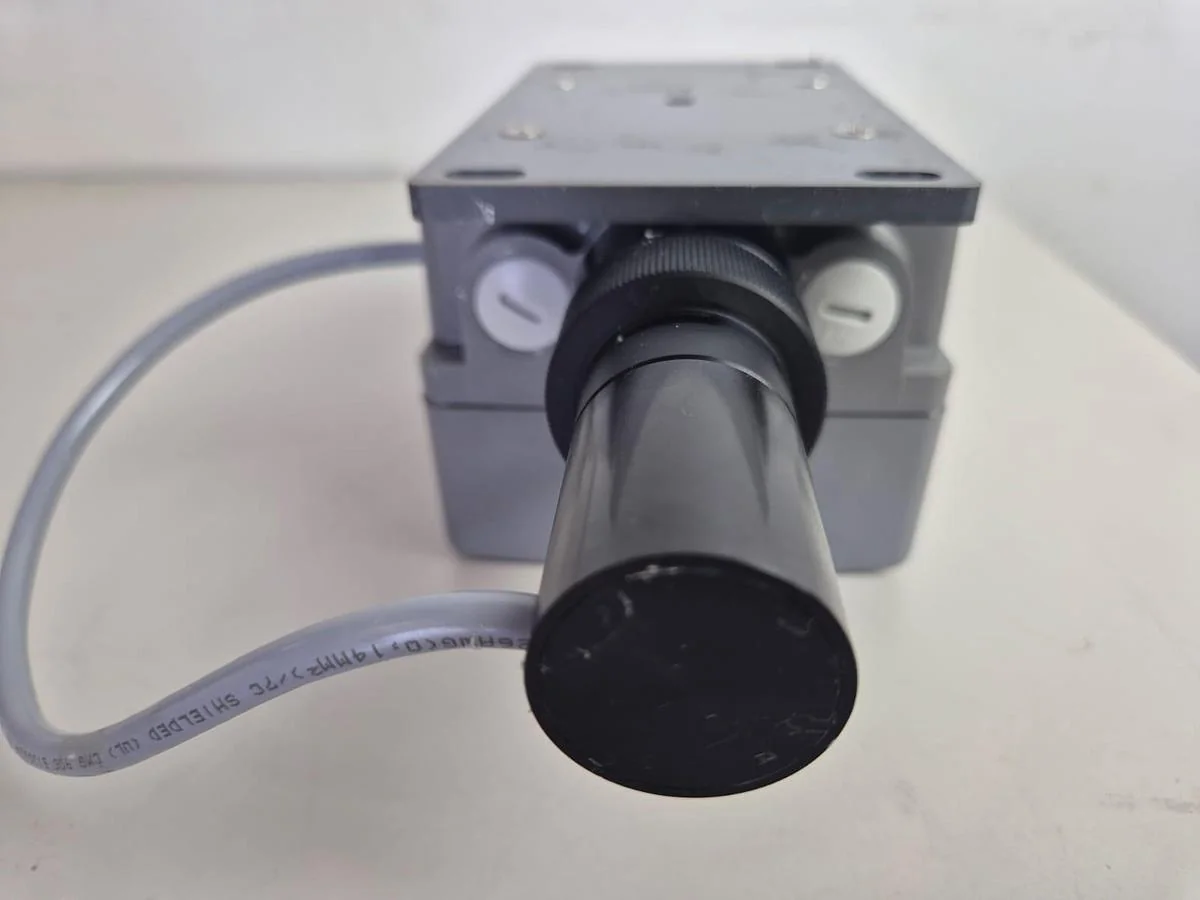

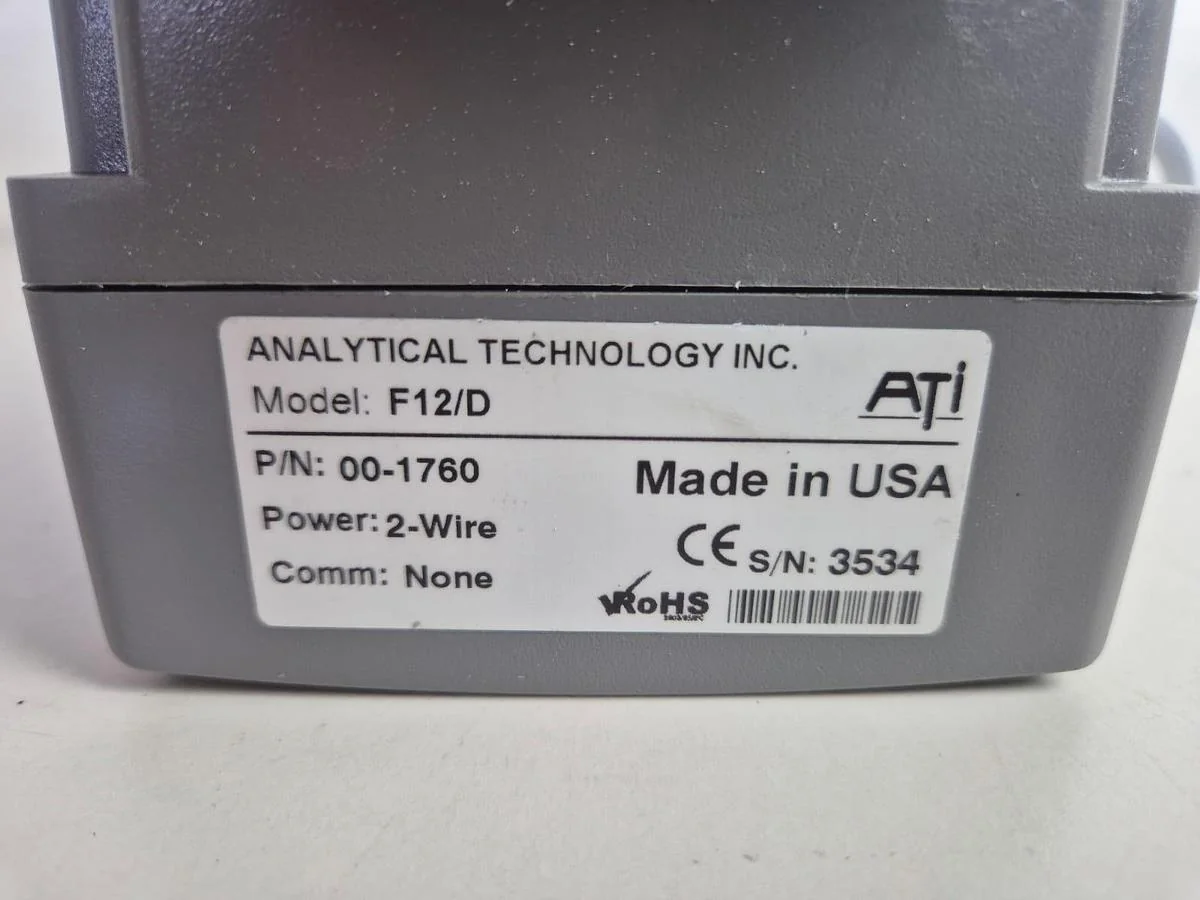

This listing is for the ATi f12/D Gas transmitter
The units are in full working condition and ready for immediate use
ATi F12/D Gas Transmitter Overview
The Series F12D Gas Transmitter is designed for detection of a variety of toxic gases in hazardous area applications. In addition, it is also well suited for general-purpose environments where toxic gas measurement is required. The F12D is highly customizable, making it adaptable to nearly every fixed-mount toxic gas monitoring application.
Key Features
Extensive Gas Detection
Supports over 60 interchangeable electrochemical sensors for detecting gases such as chlorine, ammonia, hydrogen sulfide, formaldehyde, nitric oxide, phosgene, and more.
Auto-Test Function
An integrated Auto-Test system uses a real gas sample to verify sensor function—eliminating the need for manual bump tests and ensuring operational integrity.
Smart Sensor Technology
H10 Smart Sensors store their own calibration data and can be swapped out in the field without recalibration, reducing maintenance time and cost.
Rugged, Durable Design
The F12D features a polycarbonate enclosure with stainless steel hardware, IP65 ingress protection, and is corrosion-resistant for harsh environments.
Flexible Power Supply Options
Operates on 12–24 VDC, 115 VAC, or 230 VAC to suit various site requirements.
Communication Capabilities
Offers RS-232/485 output and optional HART® or Modbus RTU for seamless integration into digital control systems.
Highly Customizable for Diverse Applications
The F12D offers broad configuration options, making it suitable for:
Hazardous Areas (e.g., chemical plants, refineries)
General Industrial Use (e.g., wastewater treatment, food & beverage, laboratories)
Customization Options Include:
Sensor Holder Styles
Integral mount
Remote mount (6 ft cable)
Duct mount
Auto-Test Gas Generators
Available for chlorine, ammonia, hydrogen sulfide, sulfur dioxide, and others.
Digital Interface Upgrades
Optional HART and Modbus interfaces for advanced integration and data transmission
Cambridgeshire, United Kingdom5,791 km away
Model Number
f12/D
Stock Number
AntSR9A
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Monitoring toxic gas levels in pharmaceutical manufacturing facilities.
- Ensuring safety in biotechnology laboratories and research environments.
- Detecting hazardous gases in chemical processing plants.
- Environmental monitoring in controlled cleanroom settings.
- Safety compliance in industrial facilities handling various toxic substances.
Typical Specifications
- Gas detection capability
- Typically supports over 60 interchangeable electrochemical sensors for a wide range of toxic gases.
- Power supply
- Commonly operates on 12–24 VDC, 115 VAC, or 230 VAC, depending on the specific unit configuration.
- Ingress protection
- Units of this type typically feature an IP65 rating for protection against dust and water jets.
- Communication protocols
- Often includes RS-232/485 output, with optional HART® or Modbus RTU for system integration.
- Sensor type
- Utilises electrochemical smart sensors that store calibration data.
- Enclosure material
- Typically constructed with a polycarbonate enclosure and stainless steel hardware for corrosion resistance.
Frequently Asked Questions
- This class of transmitter is designed to detect a wide range of toxic gases, including but not limited to chlorine, ammonia, hydrogen sulfide, formaldehyde, nitric oxide, and phosgene, via interchangeable sensors. Buyers should confirm specific sensor availability with the seller.
