What type of bowls can this lift accommodate?

This type of lift is designed for large bakery mixing bowls. Buyers should confirm compatibility with their specific bowl dimensions and lug configurations.

Is this unit suitable for washdown environments?

Given its Grade 304 stainless steel construction and IP65 rated control panel, units of this type are generally suitable for washdown, but buyers should confirm specific sealing and electrical component ratings.

What are the typical electrical requirements for a hydraulic bakery bowl lift?

Hydraulic power packs commonly require a 3-phase electrical supply (e.g., 400V, 50Hz). Exact requirements will depend on the motor size.

Does this equipment comply with UK safety regulations?

Equipment of this nature is expected to comply with relevant UK regulations such as PUWER (Provision and Use of Work Equipment Regulations 1998). Safety features like 'hold to run' controls and hydraulic safety valves are common.

What maintenance is typically required for a hydraulic bowl lift?

Routine maintenance typically involves checking hydraulic fluid levels, inspecting hoses and cylinders for wear, and verifying the function of electrical controls and safety switches. Lubrication of moving parts may also be required.

Can the discharge height be adjusted?

While the listed unit specifies a 1000mm discharge height, many bowl lifts offer some degree of adjustability or can be configured for specific discharge heights. Buyers should discuss their exact requirements with the seller.

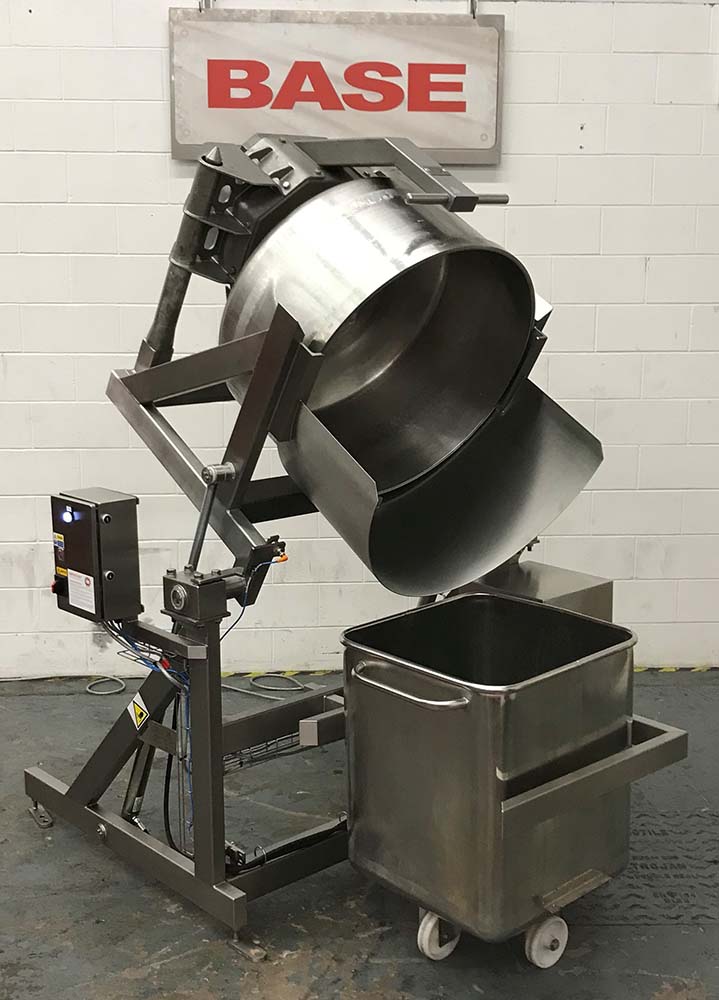

Bakery Bowl Lift - Lifting & Tipping, photo 1

Bakery Bowl Lift - Lifting & Tipping, photo 2

Bakery Bowl Lift - Lifting & Tipping, photo 3

Bakery Bowl Lift - Lifting & Tipping, photo 4

Bakery Bowl Lift - Lifting & Tipping, photo 5

Bakery Bowl Lift - Lifting & Tipping, photo 6

Available

Verified seller

Base Handling Ltd - Bakery Bowl Lift

Name: Bakery Bowl Lift
Brand: Base Handling Ltd
SKU: BTH/500/1000/B-
Availability: InStock

Price: Contact seller for price

BTH/500/1000/B Bakery Bowl Lift.

This Bakery Bowl Lift is designed to lift and tip a large 500 Kgs Bakery Bowl at a discharge height of 1000mm.

The Bakery Bowl Lift is constructed from Grade 304 stainless steel, is a TIG welded construction throughout and would be bolted to the floor.

This Bakery Bowl Lift was powered via a hydraulic powerpack and tipped the Bakery Bowl by the extension of a pair of stainless steel hydraulic cylinders to an angle of 30 degrees past the horizontal.

The hydraulic cylinders are fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor.

Bakery Bowl Lift Electrical Control.

This Bakery Bowl Lift is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates dual UP and DOWN pushbuttons and it’s operation is based on a ‘hold to run’ principle such that either both ‘Up’ or ‘Down’ pushbuttons must be held for the Bakery Bowl Lift to operate, as soon as a button is released, the Bakery Bowl Tipper will stop.

The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Bakery Bowl Lift

Model No.

BTH/500/1000/B

Tipping Height

1000mm

Machine Handing

Right Hand

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

Diosna And Kempa Bakery Bowls

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Powerpack

0.75kW, 415V, 3 PHASE, 50 CYCLE

Tip Angle

120 Degrees

Lifting Capacity

500 Kgs

Stock Number

BTH/500/1000/B-

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring dough or other bakery ingredients from mixing bowls to hoppers or other processing equipment.
Loading ingredients into depositors, moulders, or proofers.
Ergonomically lifting heavy bowls to prevent manual handling injuries in bakeries.
Integrating into automated production lines for continuous ingredient transfer.

Typical lifting capacity: Units in this class commonly handle bowls up to 500 kg.
Discharge height: Typically around 1000mm, adjustable for specific applications.
Construction material: Grade 304 stainless steel is standard for food contact and hygiene.
Tipping angle: Commonly tips to 30 degrees past horizontal to ensure complete discharge.
Power supply: Typically hydraulically powered, requiring a suitable electrical supply for the power pack (e.g., 3-phase).
Control system: Often features an IP65 rated stainless steel control panel with 'hold to run' safety functionality.
Safety features: Units typically include safety check valves on hydraulic cylinders and upper/lower limit switches.
Mounting: Designed for floor bolting to ensure stability during operation.

This type of lift is designed for large bakery mixing bowls. Buyers should confirm compatibility with their specific bowl dimensions and lug configurations.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
