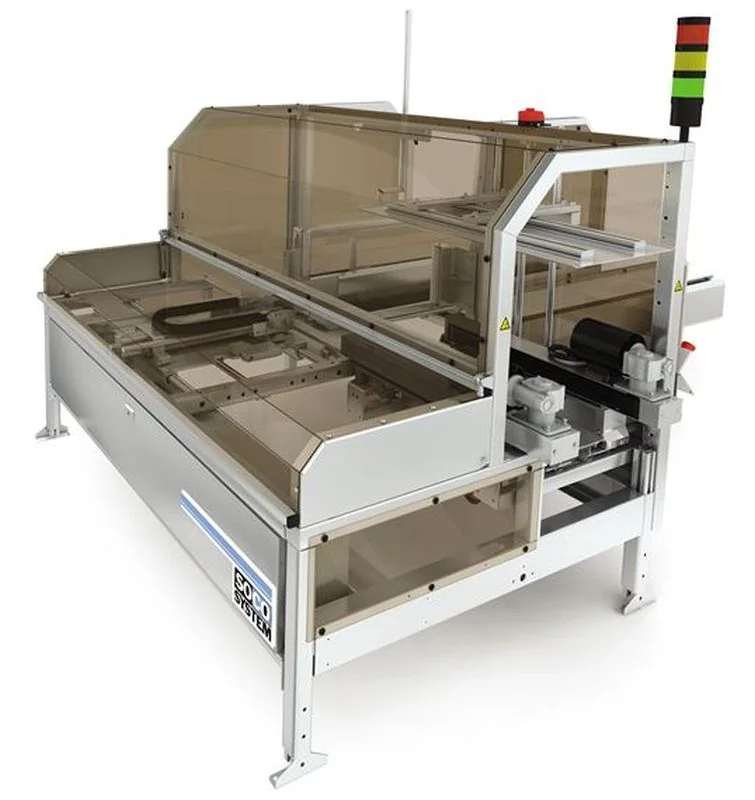

BE2200, 2300, 2400, 2500, 2600ATS

Specifications BE-2200 ATS BE-2300 ATS BE-2400 ATS BE-2500 ATS BE-2600 ATS Case size Min. L x W x H mm 180 x 130 x 100 250 x 190 x 130 265 x 190 x 150 400 x 220 x 185 430 x 310 x 350 Max. L x W x H mm 440 x 315 x 450 620 x 450 x 550 830 x 450 x x 500 x 850 900 x 695 x 800 Capacity cases/min. Up to 18*. Up to 15*. Up to 12*. Up to 8*. Up to 6*. Case construction FEFCO 0201. Other constructions available on demand. Case material Corrugated board thickness mm (a- b- c- b/c-flute). Case cardboard magazine capacity Approx. 190 pcs in c-flute. Suction plate Interchangeable suction plate. The machine is delivered with one vacuum head as standard. Electrical specifications 0.5 kW, 400 V, 50 Hz, 3 phases, with earth. Air consumption 38 l free air/cycle, min. 600 kPa, 1/2' connection. Noise level Max. 74 dBA. Colour As standard, the case erector is supplied in RAL-9006 (light grey). Queue control Queue control is standard.
