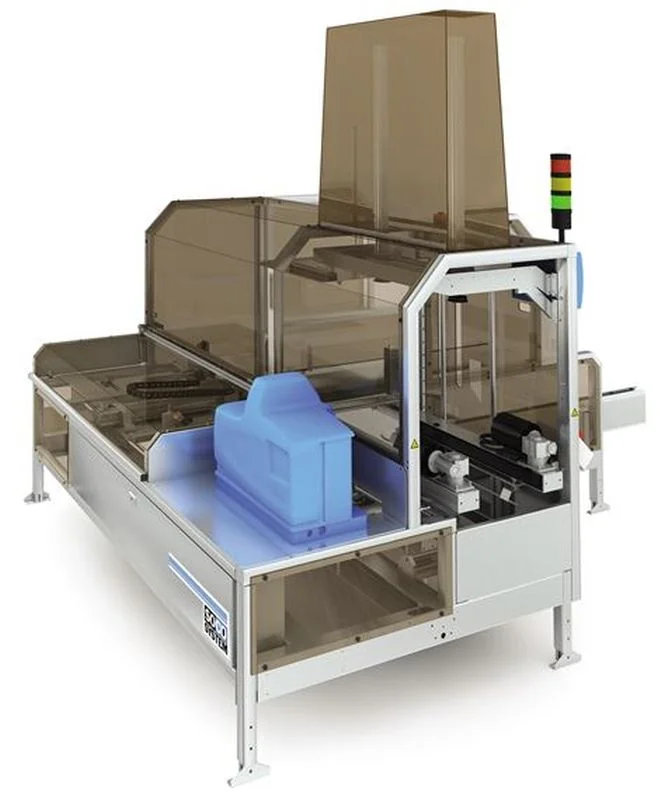

Product category: Case Packers
You are viewing from
new Equipment
Available
Specifications BE-2200 AHS BE-2300 AHS Case size Min. L x W x H mm 180 x 130 x 100 250 x 200 x 130 Max. L x W x H mm 450 x 300 x 450 620 x 400 x 550 Capacity cases/min. Up to 12*. Up to 10*. Case construction FEFCO 0201. Other constructions available on demand. Case material Corrugated board thickness mm (a- b- c- b/c-flute). Case cardboard magazine capacity Approx. 190 pcs in b-flute. Suction plate Interchangable suction plate. The machine is delivered with one vacuum head as standard. Hot-melt equipment Nordson Problue 4 kg as standard. Electrical specifications 4.5 kW, 3 x 400/230 V + PE, 50/60 Hz. Air consumption l free air/cycle, min 600 kPa, 1/2' connection. Noise level Max. 74 dBa. Colour As standard, the case erector is supplied in RAL-9006 (light grey). Queue control Queue control is standard.
