What type of bins can this unit accommodate?

Bin wash tippers are typically designed for standard Euro-style tote bins (buggies), though specific models may be configured for other container types. Always confirm the exact bin compatibility with the seller.

What are the typical space requirements for a bin wash tipper?

Footprint varies by model and capacity, but buyers should account for the unit's base dimensions, the bin's swing radius during tipping, and adequate access for loading, unloading, and washing.

Is installation complex for a pneumatic bin wash tipper?

Installation typically involves securing the unit to the floor and connecting it to an existing compressed air supply. Electrical connections are not usually required for purely pneumatic models.

What maintenance is typically required for this type of equipment?

Routine maintenance commonly includes checking pneumatic lines and cylinders for leaks, inspecting welds and structural integrity, and ensuring all safety controls are functional. Regular cleaning is also essential.

Can this equipment be used for purposes other than washing?

While primarily designed for washing, the tipping mechanism could potentially be used for emptying bins of non-liquid contents where a controlled tip is required, provided the unit's design and materials are suitable for the product.

Bin Wash Tipper - Bin Tippers and Dumpers, photo 1

Bin Wash Tipper - Bin Tippers and Dumpers, photo 2

Bin Wash Tipper - Bin Tippers and Dumpers, photo 3

Bin Wash Tipper - Bin Tippers and Dumpers, photo 4

Bin Wash Tipper - Bin Tippers and Dumpers, photo 5

Bin Wash Tipper - Bin Tippers and Dumpers, photo 6

Bin Wash Tipper - Bin Tippers and Dumpers

Available

Verified seller

Base Handling Ltd - Bin Wash Tipper

Name: Bin Wash Tipper
Brand: Base Handling Ltd
SKU: BTP/75/900/B-
Availability: InStock

Price: Contact seller for price

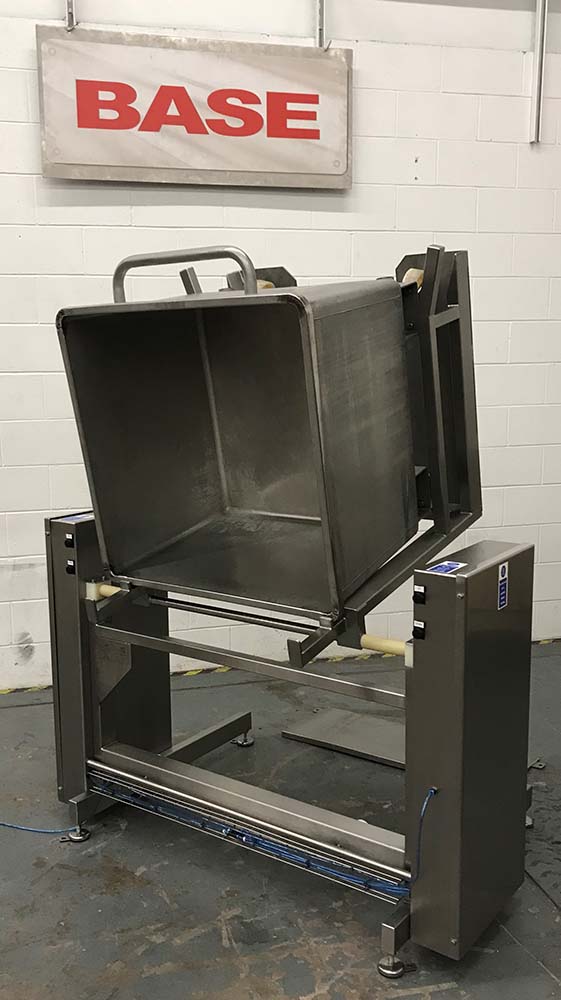

BTP/75/900/B Pneumatic Bin Wash Tipper.

This Bin Wash Tipper is designed to lift and tip a 500 Litre Stainless Steel Tote Bin to a tip height of approximately 900mm from the floor.

This Bin Wash Tipper is powered pneumatically and the bin is tipped over by a pneumatic cylinder to an angle of 10 degrees past the horizontal.

This allows both the inside and the outside of the bin to be pressure washed.

The Bin Wash Tipper is constructed from Grade 304 stainless steel, is a fully TIG welded construction throughout and is bolted to the floor.

Bin Wash Tipper Control.

The pneumatic controls for this Bin Wash Tipper are fitted within the stainless steel side enclosures with dual push button controls on each side of the Bin Wash Tipper.

The Bin Wash Tipper has ‘hold to run’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Bin Wash Tipper to operate.

As soon as the button is released, the Bin Wash Tipper will stop.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Bin Wash Tipper

Model No.

BTP/75/900/B

Tipping Height

900mm

Machine Handing

Left Hand

Container Description

Stainless Steel Tote Bin

Base Arrangement

Free Standing

Pneumatic Cylinder

Festo 100mm Bore x 320mm Long

IP Rating

IP65

Tip Angle

100 Degrees

Lifting Capacity

75 Kgs

Stock Number

BTP/75/900/B-

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Washing and sanitising standard 200L or 300L tote bins in food processing.
Cleaning pharmaceutical containers to maintain hygiene standards.
Sanitising bulk ingredient bins in bakeries and confectioneries.
Washing waste bins in high-care environments to prevent contamination.

Typical capacity: Designed for standard tote bins, commonly 200L or 300L, though this unit is specified for 500L bins.
Power supply: Pneumatic operation, requiring a compressed air supply, typically 6-8 bar.
Construction material: Typically 304-grade stainless steel for hygiene and corrosion resistance, as specified for this unit.
Tip height: Commonly around 900mm, suitable for discharge into floor-level drains or low-height receptacles.
Tipping angle: Often designed to tip beyond horizontal (e.g., 10 degrees past), facilitating thorough washing and drainage.
Control system: Typically features 'hold to run' dual push-button controls for operator safety, as described for this unit.
Mounting: Commonly bolted to the floor for stability during operation.

Bin wash tippers are typically designed for standard Euro-style tote bins (buggies), though specific models may be configured for other container types. Always confirm the exact bin compatibility with the seller.

Bin tippers and dumpers are valued across waste management, recycling, and manufacturing sectors for their reliability and durability. Buyers typically prioritise robust construction, hydraulic system condition, and container compatibility when purchasing used models. Industry sentiment favours equipment with well-maintained lifting mechanisms and minimal corrosion. Common strengths include straightforward operation, longevity with proper maintenance, and cost efficiency compared to new units. Potential buyers should inspect wear on hydraulic cylinders, structural integrity of the bin, and service history before purchase.

General overview for this equipment type

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
