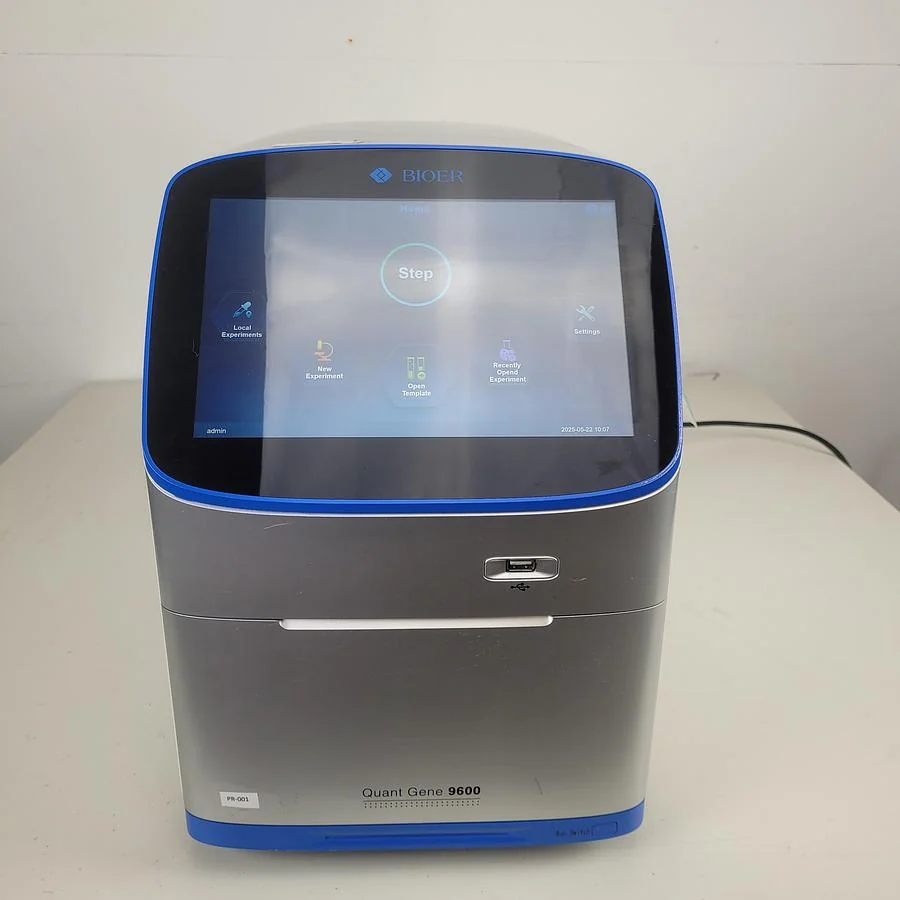

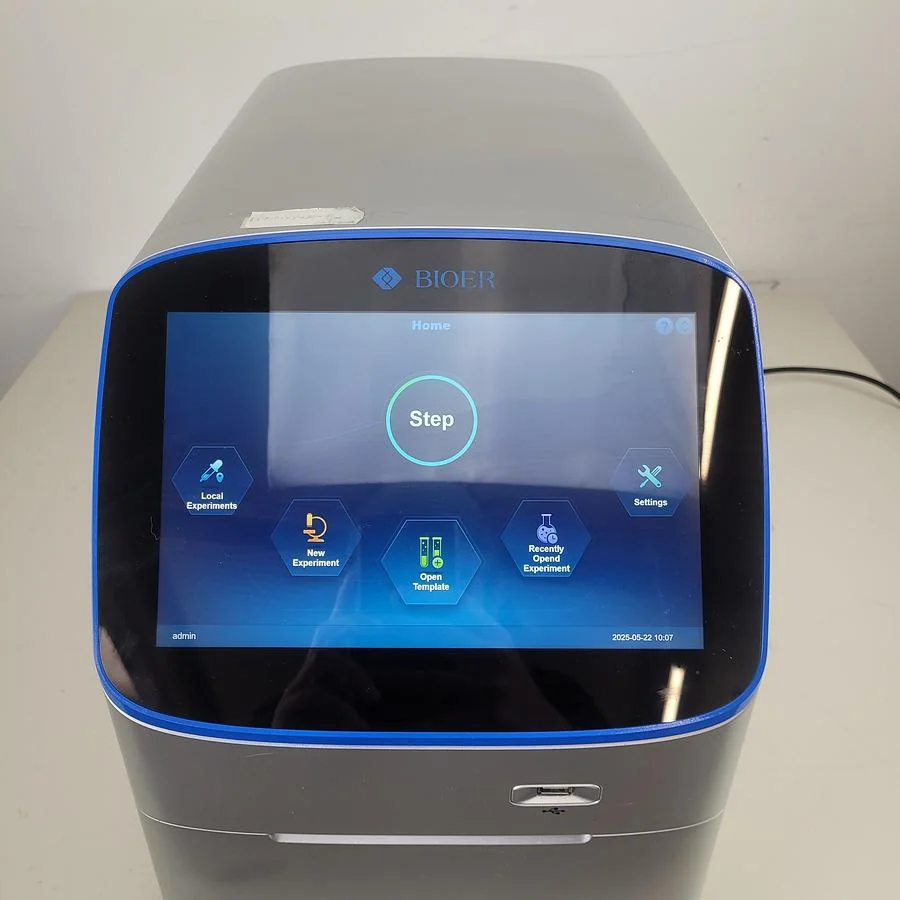

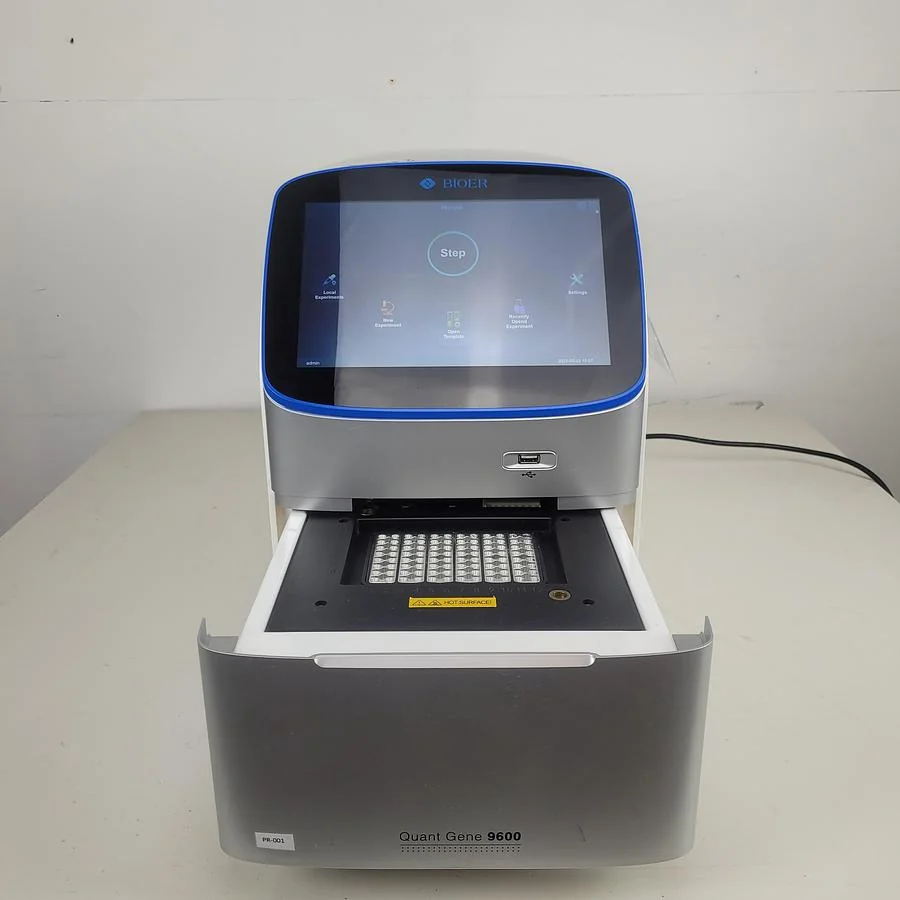

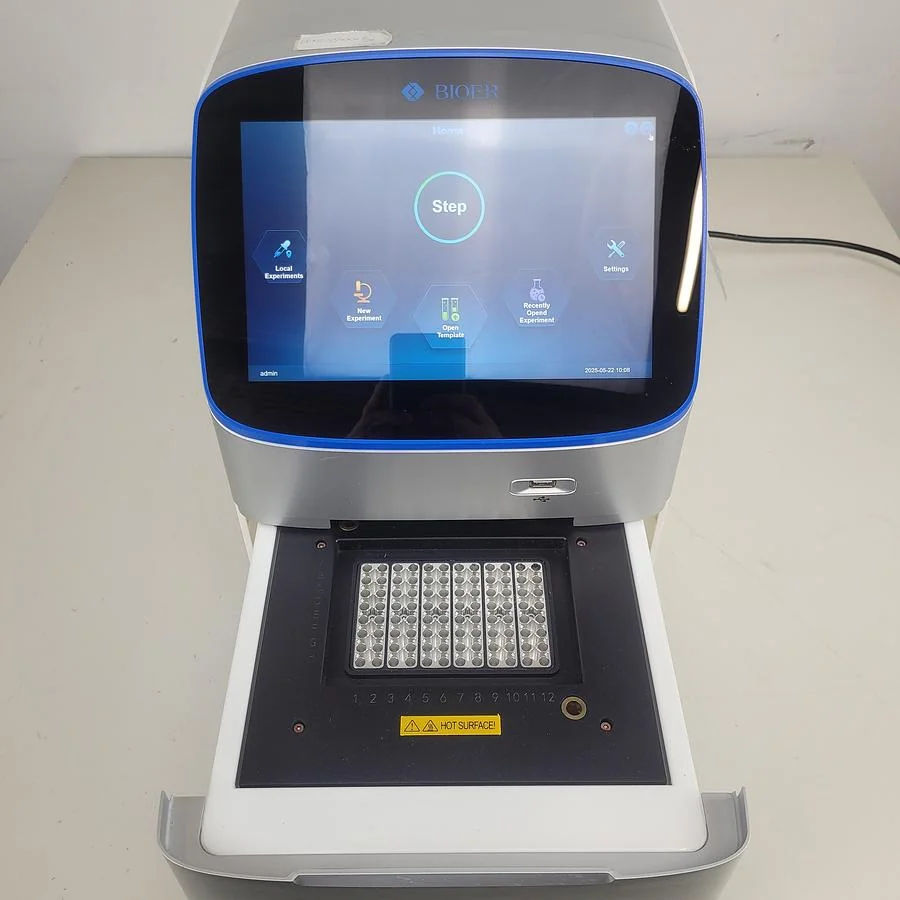

Bioer Quant Gene 9600 - Fluorescent Quantitative Detection System

This listing is for the Bioer Quant Gene 9600 Fluorescent Quantitative Detection System

The unit is in full working condition and is ready for immediate use

Bioer LineGene Plus 9600 FQD-96A – Fluorescent Quantitative Detection System

Key Specifications

Sample Capacity: 96-well 0.2 mL PCR plates, 12 × 8-strip tubes, or 96 × 0.2 mL single tubes (transparent bottom)

Reaction Volume: 5–100 µL

Dynamic Range: 1–10¹⁰ copies/µL

Detection Channels: 5 or 6 channels (F1–F6)

Excitation Wavelength: 300–800 nm

Emission Wavelength: 500–800 nm

Temperature Range: 4–105°C (0.1°C increments)

Temperature Control Accuracy: ±0.1°C

Temperature Uniformity: ≤ ±0.3°C

Heating Rate: Up to 4.0°C/s

Cooling Rate: Up to 4.0°C/s

Hot Lid Temperature Range: 30–110°C (adjustable, default 105°C)

Gradient Temperature Range: 1–36°C

Scanning Mode: Full-plate scanning and designated line scanning (5.5 seconds per scan)

Programming: Up to 20 segments per program, up to 99 cycles

Operating System Compatibility: Windows 7/8/10

Software Requirements: Microsoft Excel 2000/2002/2003/2007/2012

Minimum Computer Configuration: RAM: 512 MB; Hard Disk: 10 GB; CPU: Pentium 4; Virtual Memory: ≥1000 MB

Power Supply: 100–240V, 50/60Hz, 600W

Dimensions: 410 mm (W) × 386 mm (D) × 352 mm (H)

Weight: Approximately 20 kg

Certifications: CE, EMC, RoHS2.0, MET

.
