Box Dumper

Name: Box Dumper
SKU: BTM/2P/1000/7010/B/G
Availability: InStock

Price: Contact seller for price

BTM/2P/1000/7010/B/G Double Pillar Box Dumper

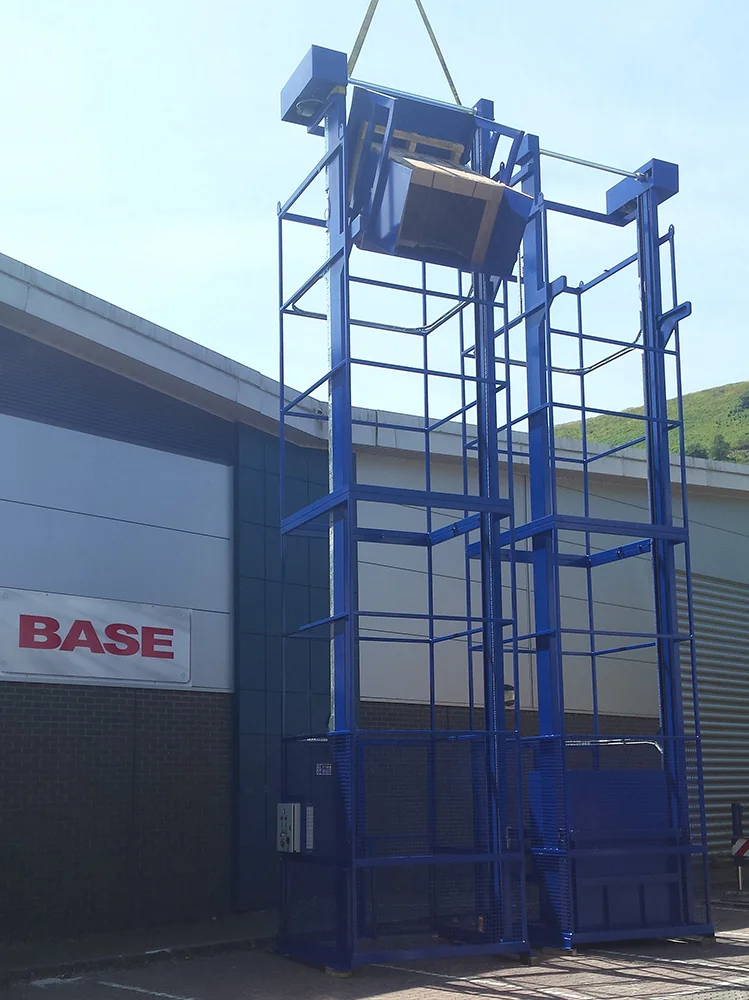

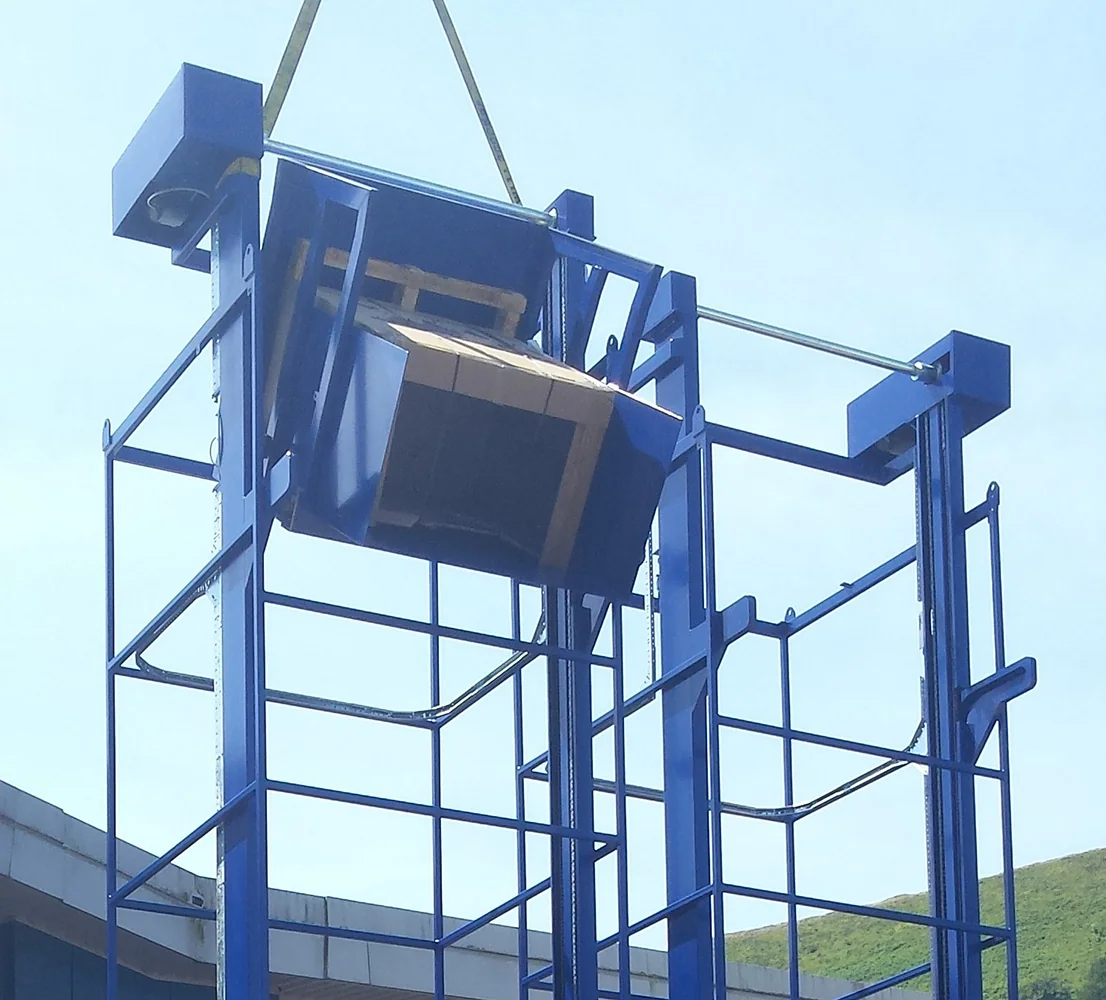

This Box Dumper is designed to lift and tip Gaylord Boxes (4’ x 4’ x 4’) at a discharge height of 23 ft with a Safe Working Load of 1000 Kgs. The Box Dumper is a fully welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

The safety guard is constructed from 40 x 40 x 3mm box section and 3mm wire, 40mm aperture weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. It encloses the Box Dumper to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Box Dumper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access while a load is raised.

Box Dumper Electrical Control

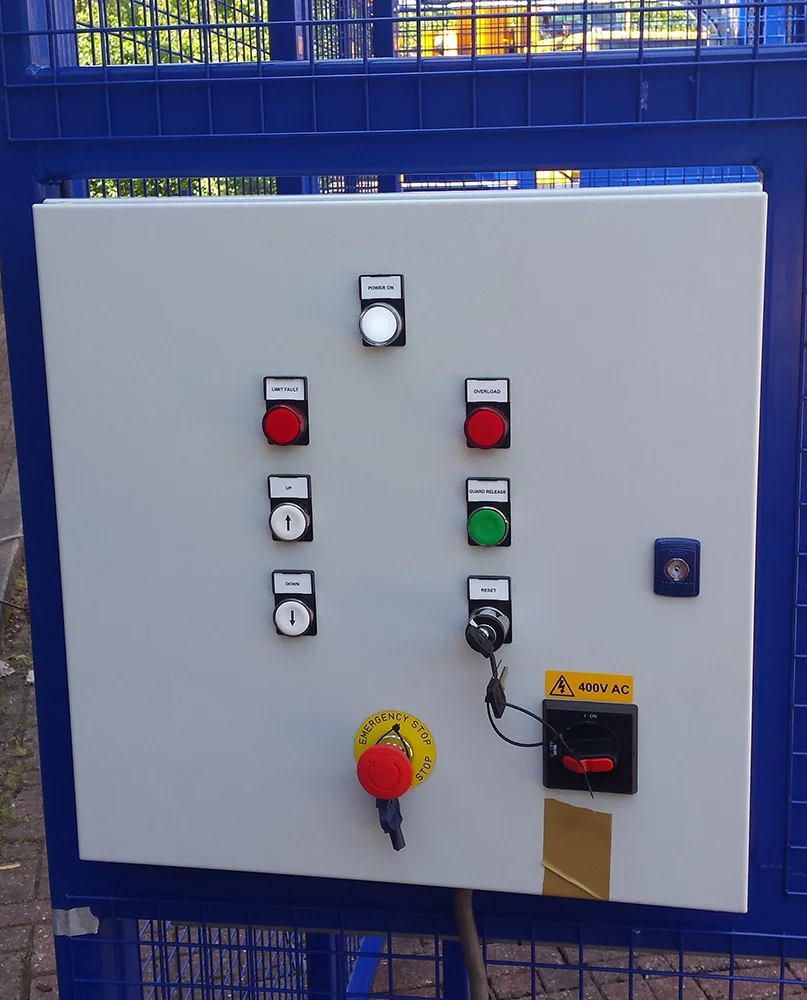

This Box Dumper is fitted with an IP65 Control Panel which is mounted on the safety guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Box Dumper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Box Dumper to the full down position. The full tip cycle can be automated if required so that after discharging, the lift returns automatically to the full down position. The control panel has the facility for a ‘call to run’ signal to be connected if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

1000 Kgs Double Pillar Box Dumper

Model No.

BTM/2P/1000/7010/B/G

Capacity

1000Kgs

Tipping Height

7010mm

Tipping Angle

130 Degrees

Overall Height

9340mm

Machine Handing

Right Hand

Maximum Headroom

10000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Paint Colour

Wendt Blue: Sherwin Williams RAL 5002

Container Description

Gaylord Box

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Limit Switches

Telemecanique

Gearbox Detail

SEW Eurodrive

Motor Detail

2.2kW, 415V, 3 PHASE, 50 CYCLE C/W BRAKE

Lift Chain

1" Simplex

Tensile Strength

6000 Kgs, 3000 Kgs

Tension Chain

¾” Simplex

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/2P/1000/7010/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring bulk ingredients from large containers into processing lines.
Loading raw materials into hoppers, mixers, or conveyors.
Emptying bins of finished products onto packaging lines.
Moving waste materials from collection points into disposal systems.
Feeding components into assembly or sorting machinery in non-food industries.

Typical Specifications

Typical capacity: For this class of equipment, a Safe Working Load (SWL) of 1000 kg is common, suitable for standard Gaylord boxes or similar bulk containers.
Discharge height: Units of this type commonly offer discharge heights around 23 ft, accommodating various processing line elevations.
Container compatibility: Typically designed to handle standard industrial bulk containers such as Gaylord boxes (e.g., 4' x 4' x 4') or custom bins.
Construction material: Fully welded construction, often from mild steel with appropriate finishes, is standard for durability in industrial environments.
Safety features: Commonly includes safety guarding to standards like BS EN 14120:2015, with interlocked access doors and emergency stops.
Power supply: Typically requires a three-phase electrical supply, commonly 400V, 50Hz, with a motor gearbox for lifting operations.
Control system: Often features an IP65 rated control panel with basic functions such as Up, Down, Guard Release, Emergency Stop, and Reset, complying with PUWER.
Footprint: Requires a floor-mounted installation, with dimensions dependent on the container size and discharge height, plus space for safety guarding.

Frequently Asked Questions

This type of box dumper is typically designed for large bulk containers such as Gaylord boxes. Buyers should confirm specific dimensions and weight limits with the seller.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
