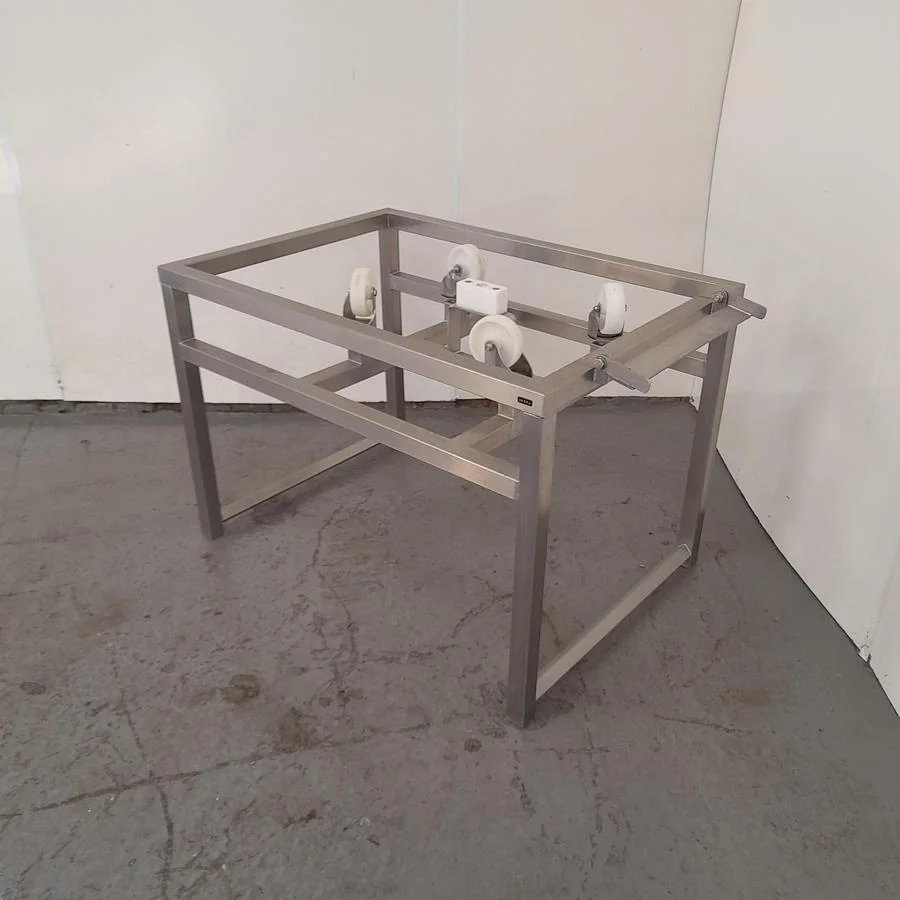

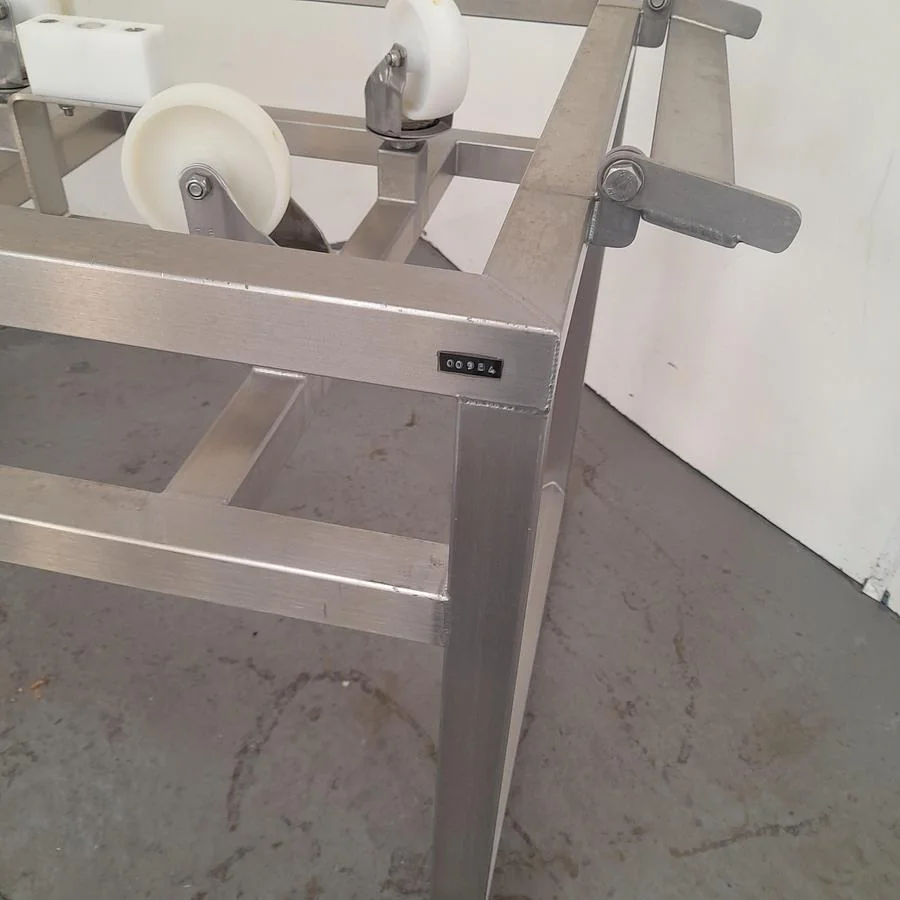

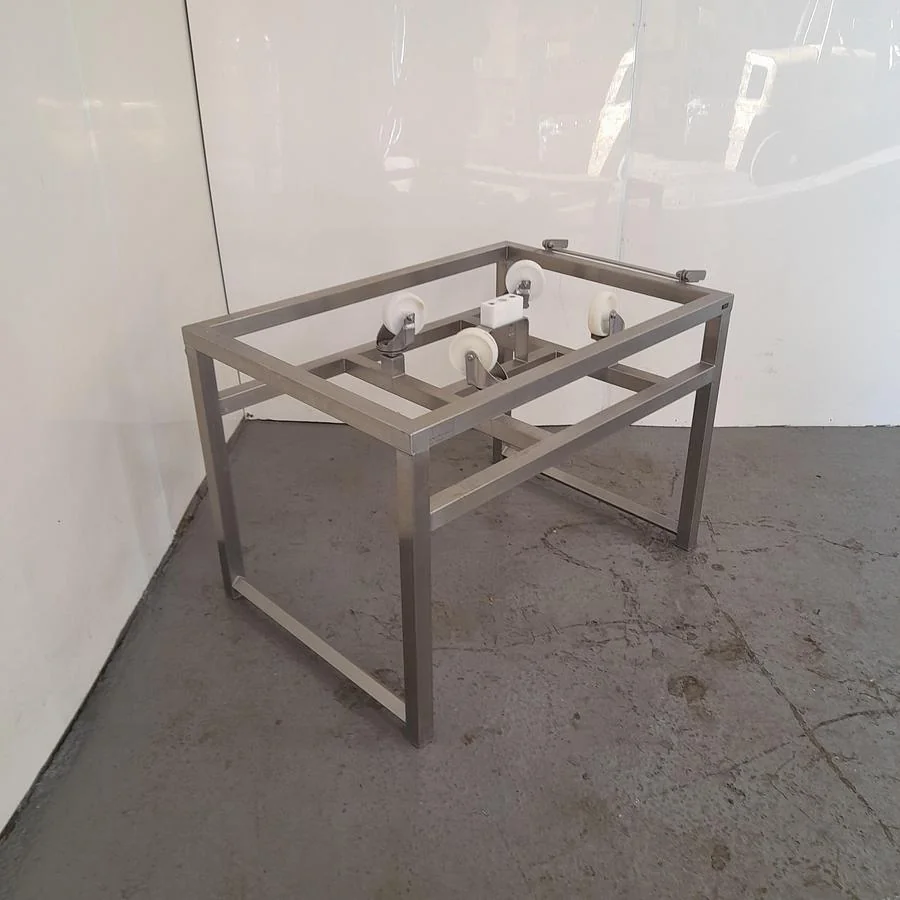

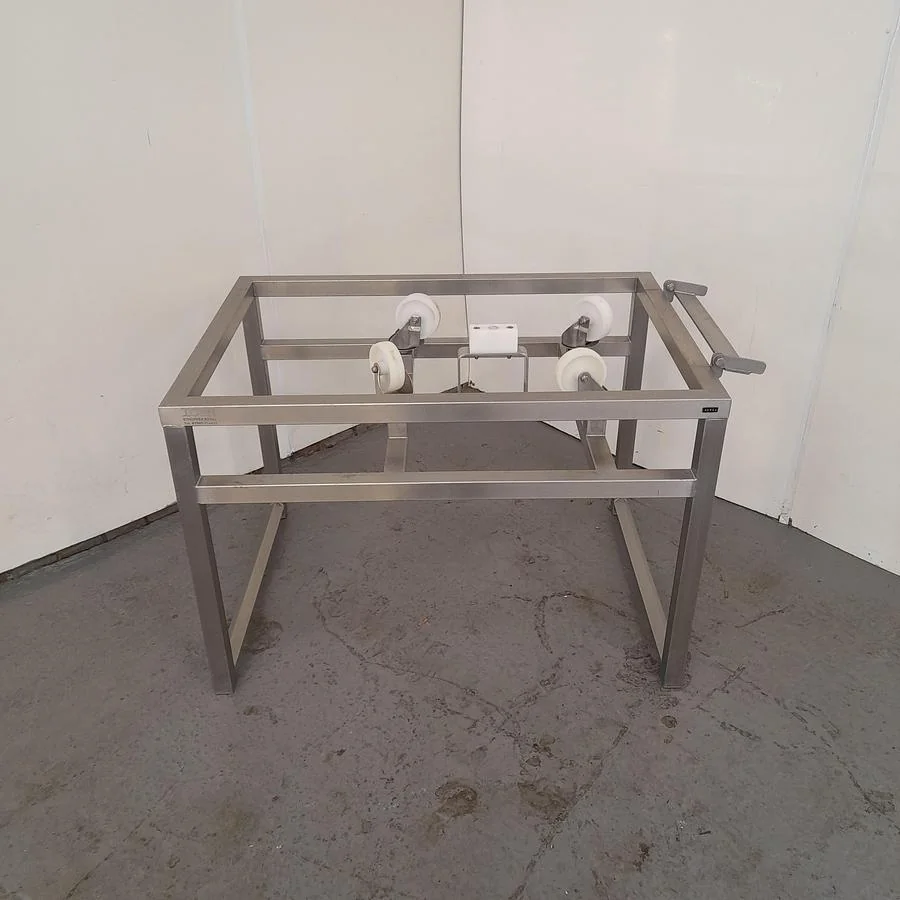

Icon Engineering - Box Rotation Stand

Applications & Use Cases

• Used in food processing lines for ergonomic rotation of ingredient boxes, improving operator safety and efficiency.
• Facilitates controlled emptying of bulk ingredient containers into mixers, hoppers, or other processing machinery.
• Supports the inversion of boxes for cleaning or inspection purposes in hygienic environments.
• Integrated into packaging lines to present boxes for specific filling or sealing operations.

Typical Specifications

Typical capacity

Designed to handle standard industrial ingredient boxes, often up to 1000 kg, depending on the specific model's structural integrity.

Power supply

Commonly pneumatic or hydraulic, sometimes electrically driven. Electrical units typically require 400V 3-phase power for motor operation.

Rotation angle

Units are typically capable of 90-degree or 180-degree rotation, with some offering full 360-degree continuous rotation.

Material construction

For food processing, units are predominantly constructed from stainless steel (e.g., 304 or 316 grade) to meet hygiene standards.

Footprint

The footprint will vary, but for this class of equipment, it typically accommodates the box size plus operational clearance, often around 1.5m x 1.5m.

Safety features

Commonly includes safety guarding, interlocks, and emergency stop buttons to protect operators during rotation.

Frequently Asked Questions

• What types of boxes can a box rotation stand handle?

  These stands are typically designed for standard industrial pallet boxes, tote bins, or specific proprietary containers. Buyers should confirm compatibility with their existing box dimensions and weight.

• Is this equipment suitable for washdown environments?

• What maintenance is typically required for a box rotation stand?

• Can a box rotation stand be integrated into an automated line?

• What are the common safety considerations for operating a box rotation stand?
