What type of film does a tray shrink packer use?

These machines typically use heat-shrinkable films, such as polyethylene (PE) or polyolefin (POF), which conform tightly to the product when heated.

Can this machine handle different product sizes?

Most tray shrink packers offer a degree of flexibility for different product sizes within their specified range. Changeovers typically involve adjusting guides and possibly changing forming parts.

What maintenance is typically required for a used unit?

Regular maintenance for used units commonly includes checking and replacing wear parts, lubricating moving components, inspecting electrical and pneumatic systems, and ensuring film sealing elements are in good condition.

Is a glue system always necessary for a tray shrink packer?

A glue system is typically used for forming the trays themselves from flat blanks. If pre-formed trays are used, or if the machine only handles the shrink-wrapping aspect, a glue system may not be integral to the shrink wrapper section.

What is the typical footprint of a machine in this category?

The footprint for a combined tray loader and shrink wrapper can vary significantly, but for this class of equipment, it commonly ranges from 3 to 6 metres in length and 1.5 to 2.5 metres in width.

used Equipment

Available

Verified seller

Bradman Lake COLL-WRAP-ITSW

Name: Bradman Lake COLL-WRAP-ITSW
SKU: 1759
Availability: InStock

Price: Contact seller for price

Manufacturer: Bradman Lake
Model: COLL-WRAP-ITSW
Category: Tray Shrink Packer
Output: 25PPM
Year: 2006
Status: For Sale
Machine Notes:

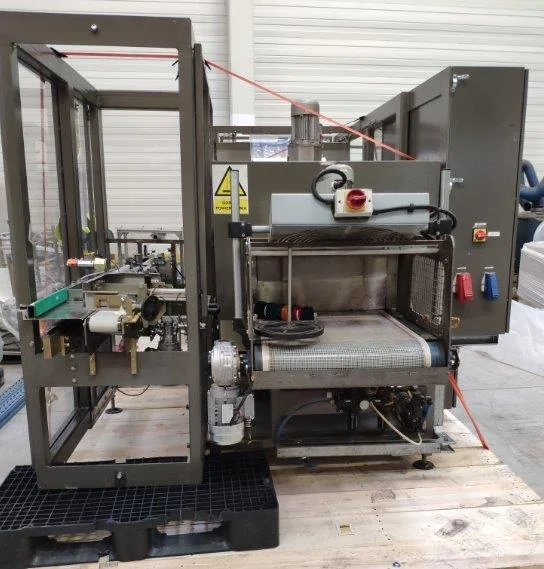

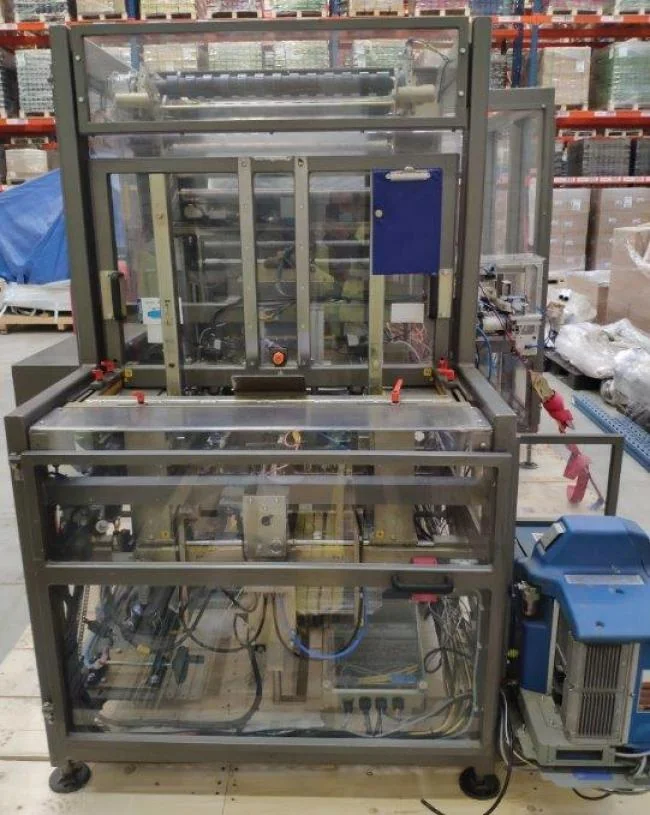

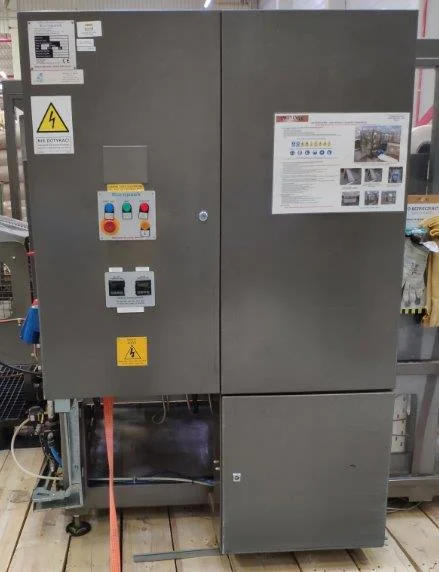

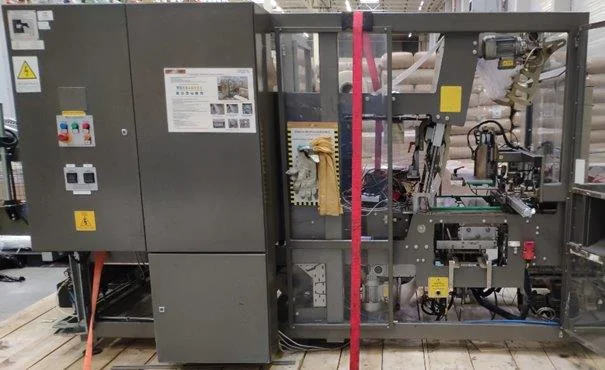

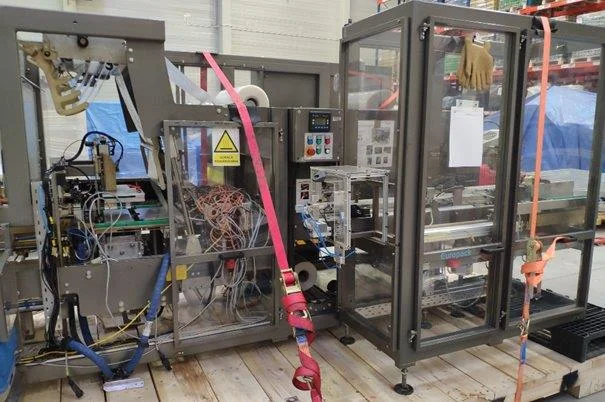

Bradman Lake - Europack Tray Loader and Shrink Wrapper

Year of Manufacture: 2006

Product:    Boxes for tea

Size:         52-220 mm long x 23-120 mm high x 50-220 mm wide

Capacity: 25 ppm

Technical parameters:

a)    Drive: Lenze

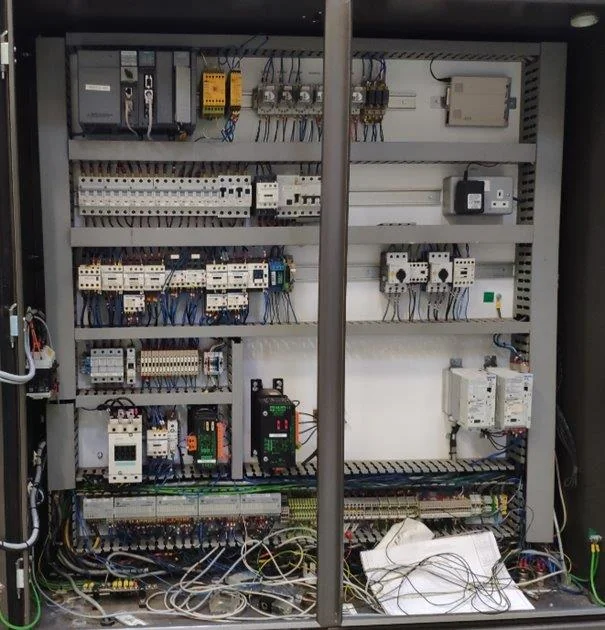

b)    PLC control: Allen Bradley SLC5/03

c)    Pneumatic component: SMC

d)    Glue system: Nordson

e)    Machine construction: Painted carbon steel with policarbon cover

f)    Electro-installation: 3 PEN 50 Hz, 400 V

g)    Installed power input:: ~22 kW

h)    Air pressure: 0,6 Mpa (6 bar)

i)    Air consumption: n/a

j)    Machine dimension LxWxH [cm]: 290x210x235

k)    Machine weight [kg]:2000

l)    Machine documentation: english

Location: Poland

Please contact us for further details.

Essex, United Kingdom

5,774 km away

Product Specifications

Manufacturer: Bradman Lake Model: COLL-WRAP-ITSW Category: Tray Shrink Packer Output: 25PPM Year: 2006 Status: For Sale Machine Notes: Machine Notes Bradman Lake - Europack Tray Loader and Shrink Wrapper: Bradman Lake - Europack Tray Loader and Shrink Wrapper 2006: 2006 Technical parameters: a) Drive: Lenzeb) PLC control: Allen Bradley SLC5/03c) Pneumatic component: SMCd) Glue system: Nordsone) Machine construction: Painted carbon steel with policarbon coverf) Electro-installation: 3 PEN 50 Hz, 400 V Please contact us for further details.: Please enter your email address in the box below and we will send you the details of this machine. By ticking the following consent opt-in box, you are confirming that you consent to us storing your email address in our database to be used as described in our Privacy Policy. I confirm consent

Stock Number

1759

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Packaging of individual or multi-pack food items into trays for retail display.
Shrink-wrapping products such as tea boxes, confectionery, or ready meals for protection and tamper evidence.
Automated end-of-line packaging for various consumer goods in the food sector.
Creating shelf-ready packaging solutions for supermarkets and distributors.

Typical Specifications

Typical capacity: For this class of equipment, output commonly ranges from 20 to 60 packs per minute, depending on product size and configuration.
Power supply: Units of this type typically require a 3-phase electrical supply, commonly 400V, 50Hz, with an installed power input of approximately 15-30 kW.
Air pressure: Pneumatic components commonly operate at 0.6 MPa (6 bar) air pressure.
Control system: PLC control systems, such as Allen Bradley or Siemens, are commonly found on units of this type, often with HMI for operator interface.
Construction materials: Machine construction typically involves painted carbon steel frames with polycarbonate safety guarding, suitable for non-washdown food environments.
Product dimensions: Tray shrink packers are typically designed to handle a range of product lengths, widths, and heights, which can be adjusted within specified limits.

Frequently Asked Questions

These machines typically use heat-shrinkable films, such as polyethylene (PE) or polyolefin (POF), which conform tightly to the product when heated.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
