What types of liquids can this machine fill?

This type of machine is generally suitable for filling still, non-carbonated liquids with a range of viscosities. For specific product compatibility, the seller should be consulted.

Can this machine handle different bottle sizes?

While specified for 5L bottles, many machines in this category can be adapted for other sizes through change parts. Buyers should confirm exact adjustability with the seller.

What maintenance is typically required for such a machine?

Routine maintenance typically involves cleaning, lubrication of moving parts, and inspection of seals and wear components. Regular servicing ensures optimal performance and longevity.

Is it possible to change the capping type?

The machine is described as a crown capper, but was used for push-on caps. Changing to a different capping type (e.g., screw caps) would likely require significant modifications or a different capping head, which should be discussed with the seller.

What are the typical installation requirements?

Installation typically requires a stable, level floor, connection to a suitable 3-phase electrical supply, and potentially compressed air for pneumatic components. Integration with existing conveyors may also be necessary.

Home
/
Food Processing
/
Packaging Equipment
/
Filling Machines
/
Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 1

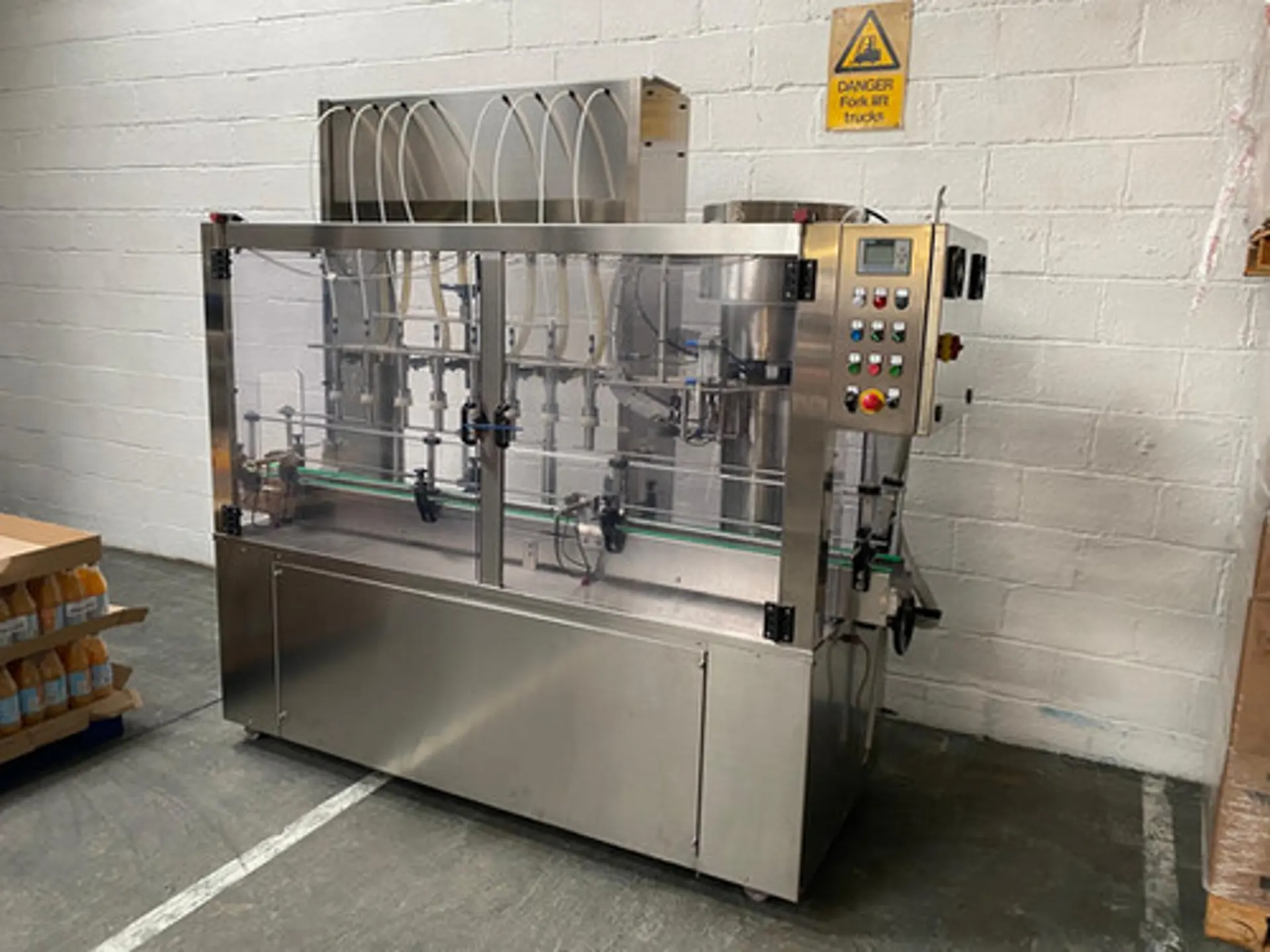

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 2

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 3

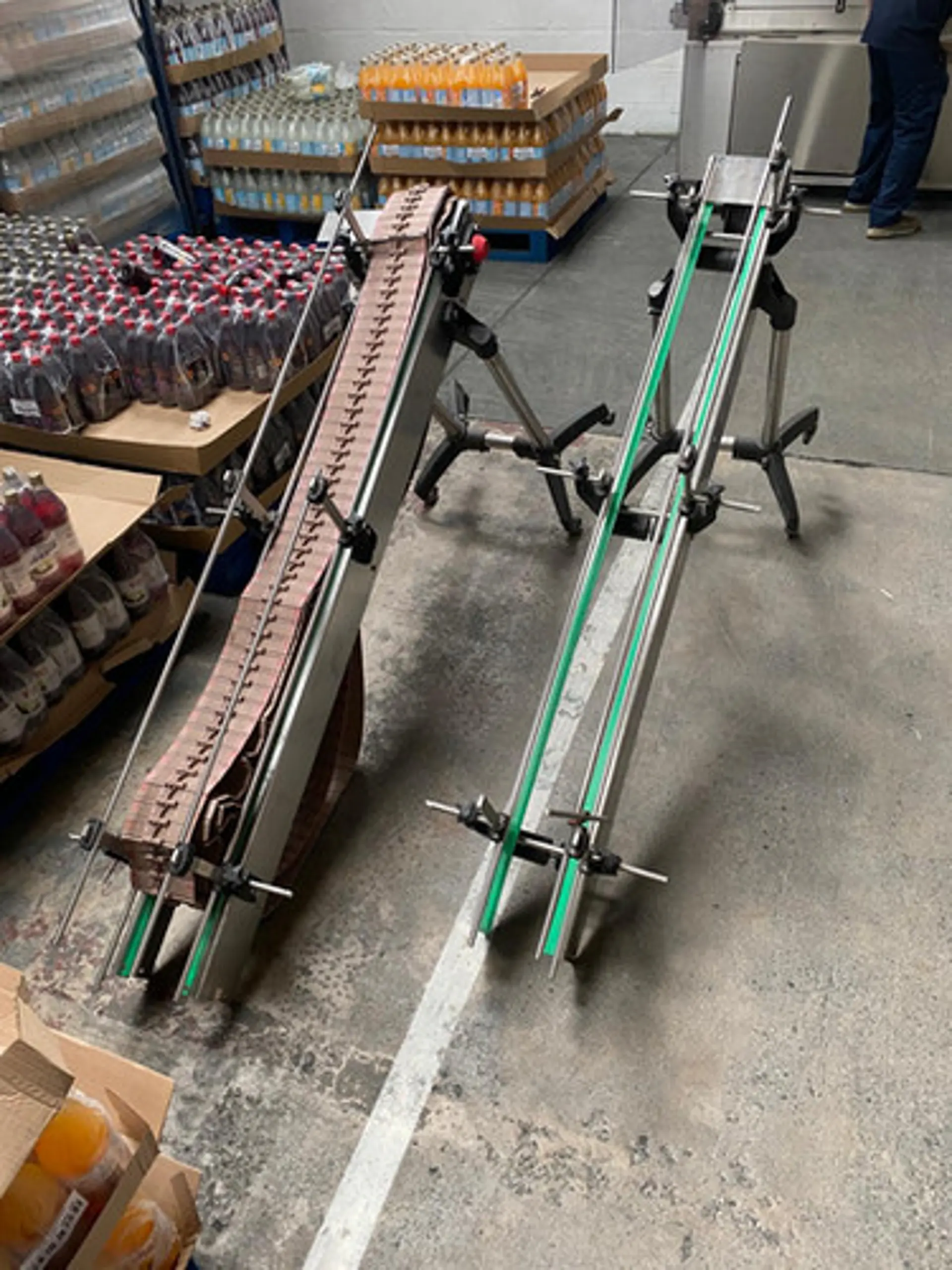

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 4

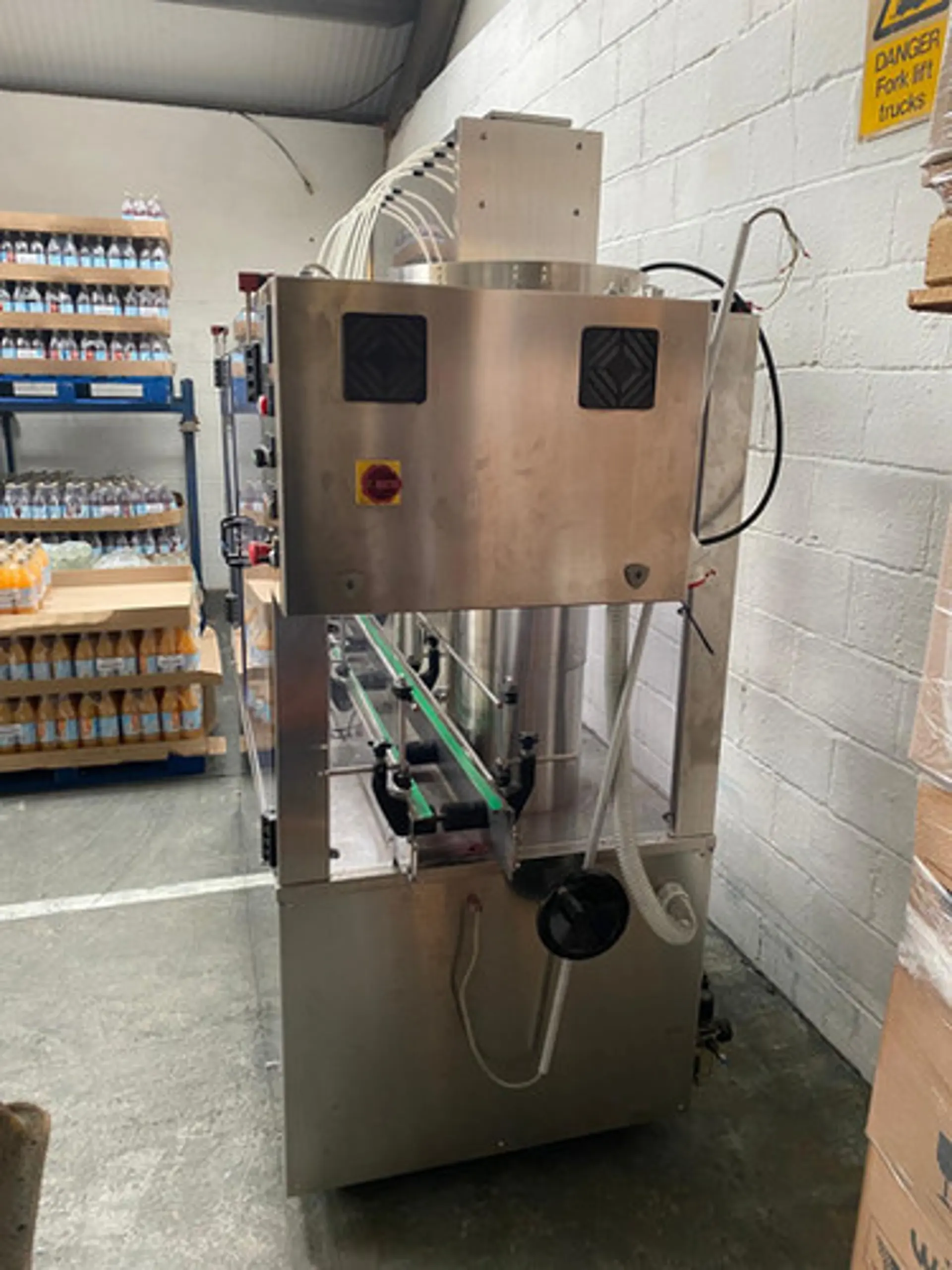

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 5

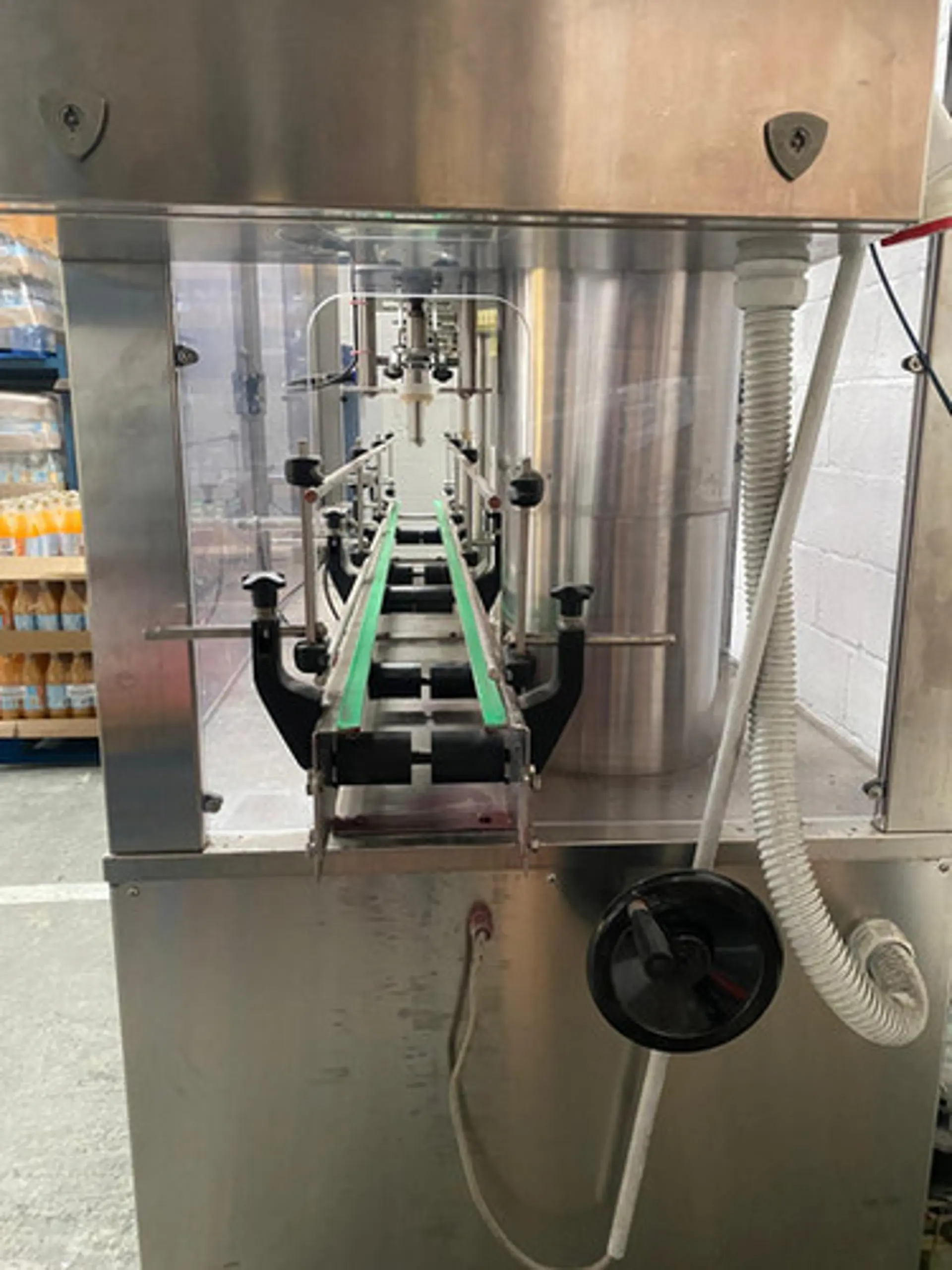

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 6

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 7

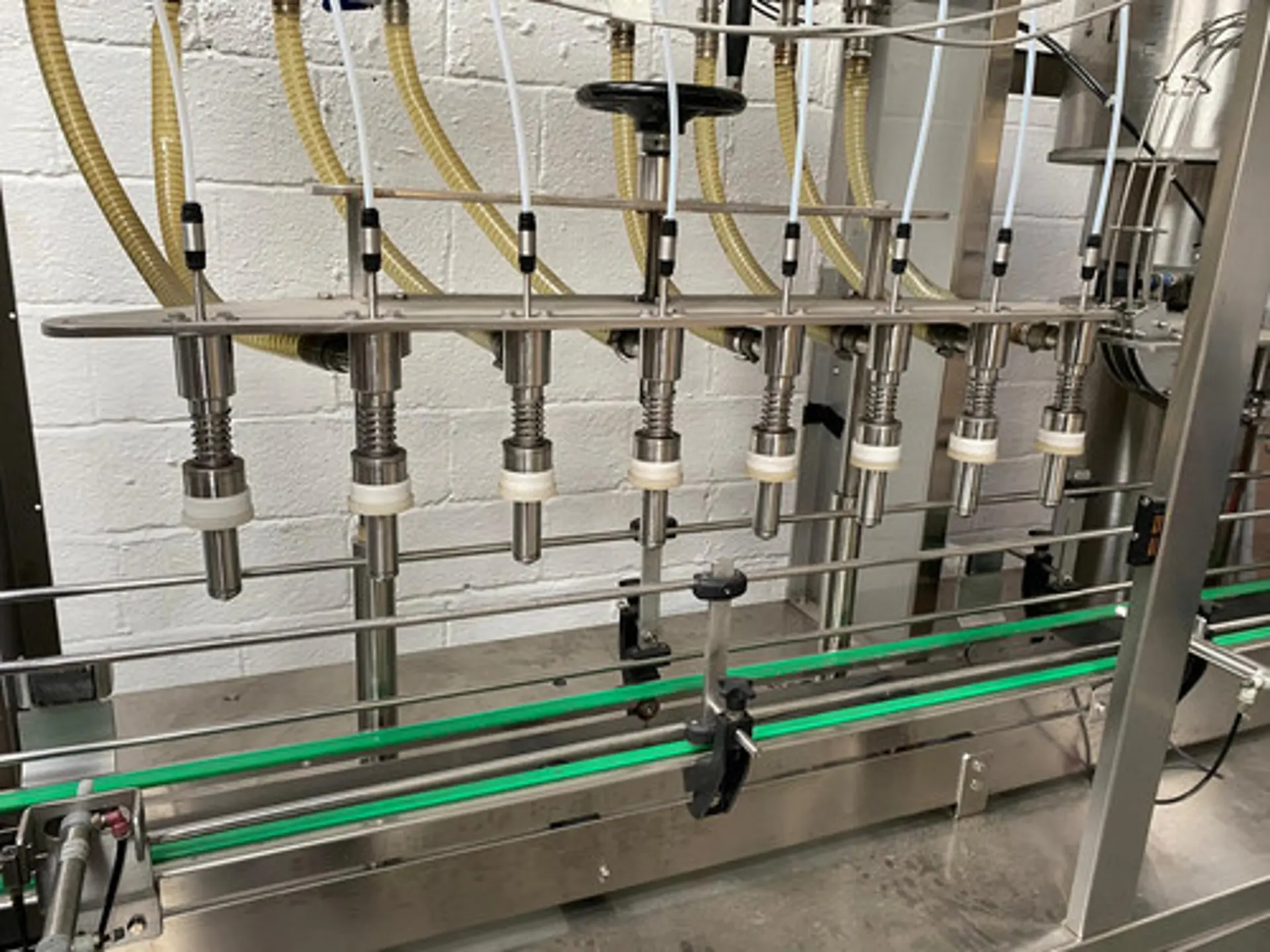

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 8

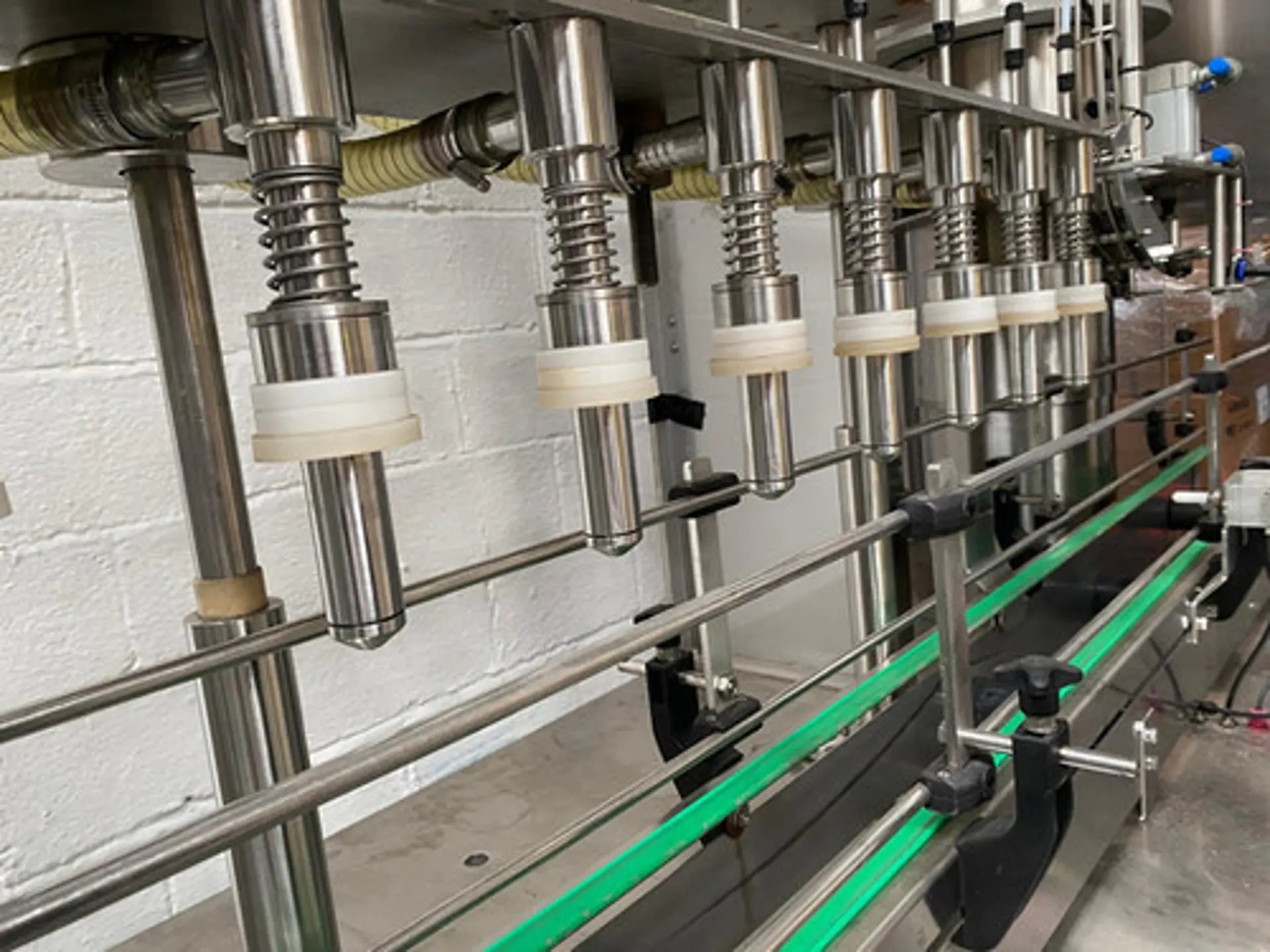

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 9

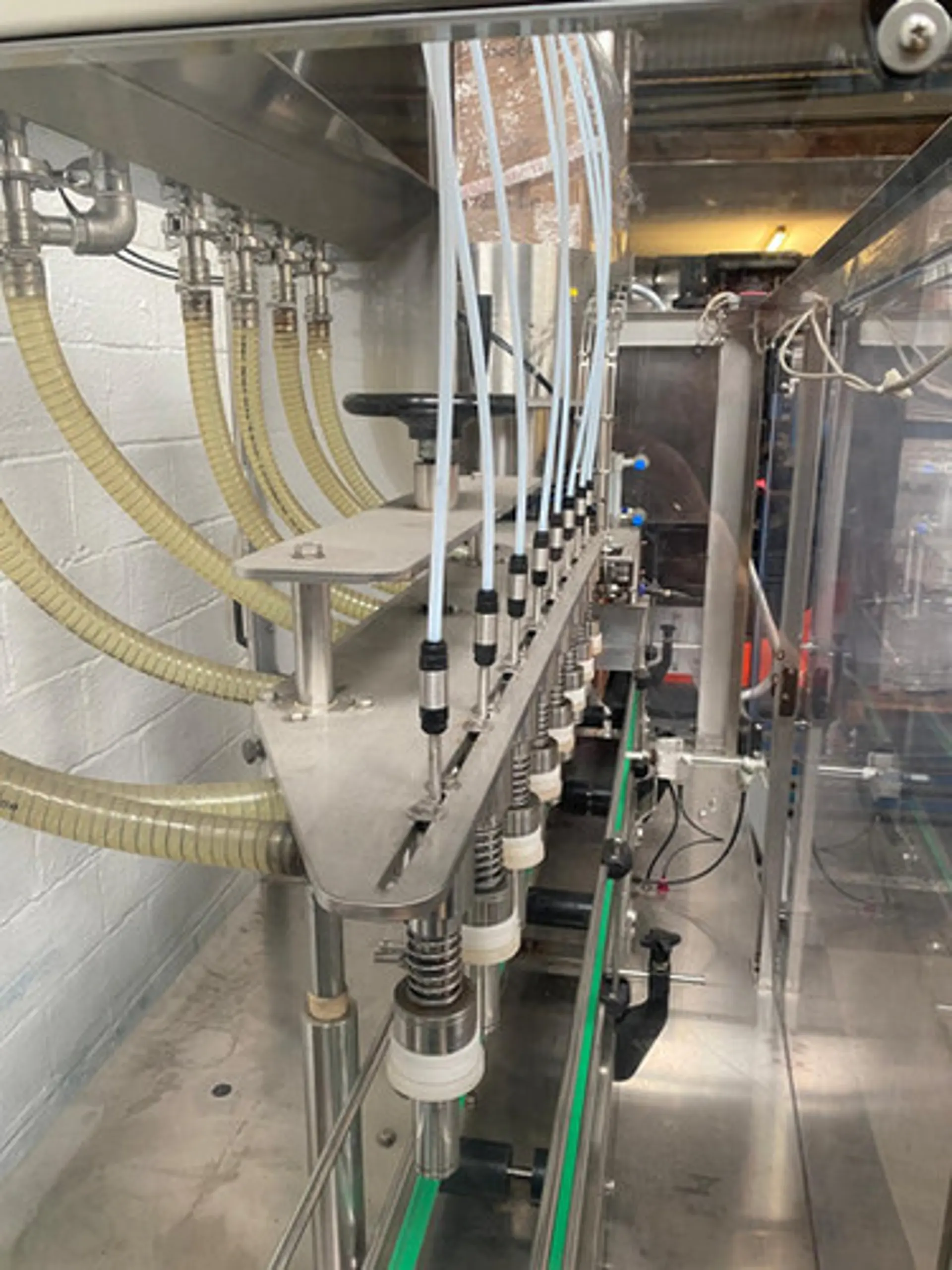

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 10

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 11

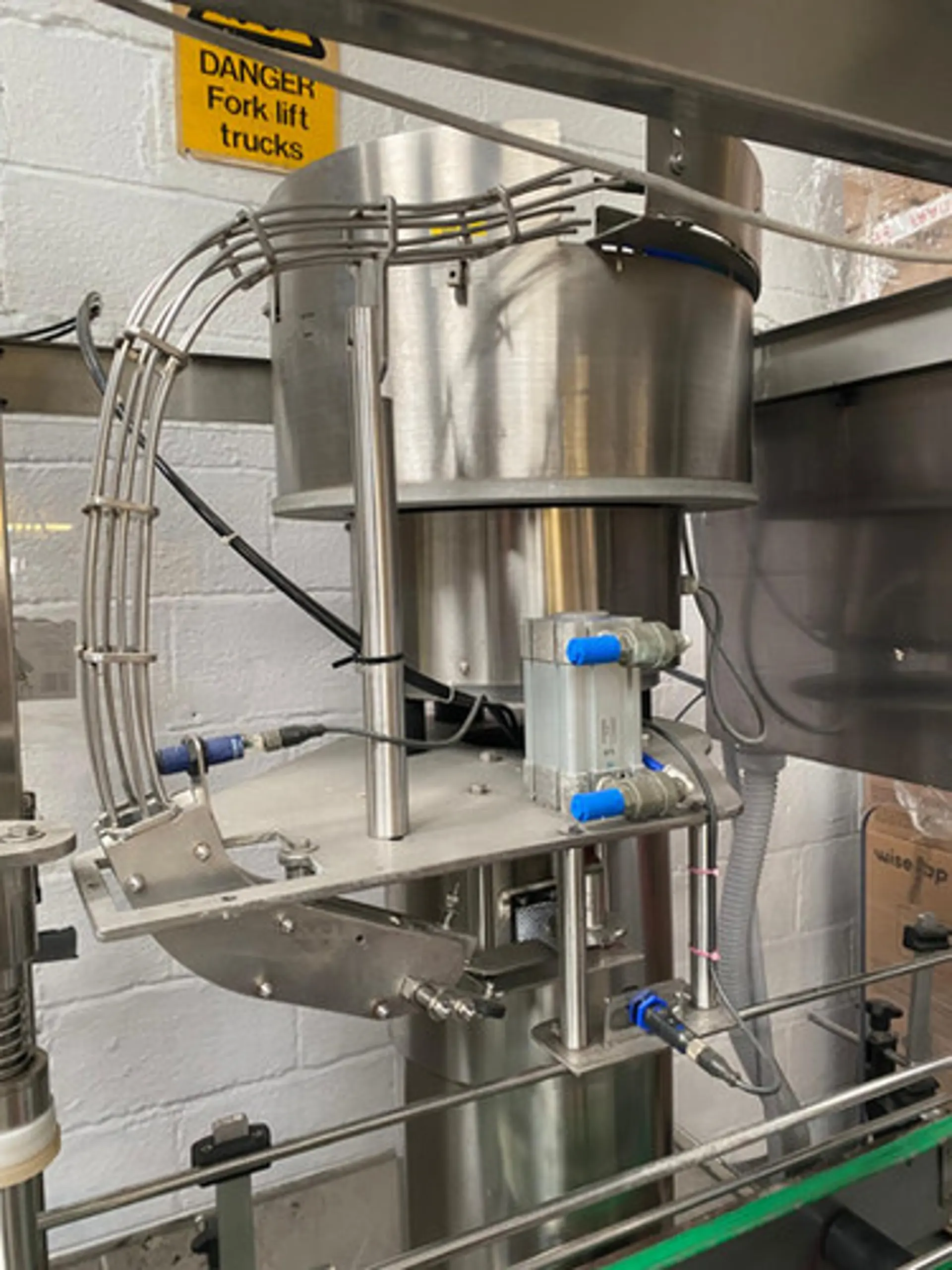

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines, photo 12

Used Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles - Filling Machines

used Equipment

Available

Verified seller

Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles

Name: Canellitech Srl 8-1 Automatic Inline Filler / Capper for 5L Bottles
Brand: Canellitech Srl
SKU: MM5771
Price: 20000 GBP
Availability: InStock

Price: £ 20,000

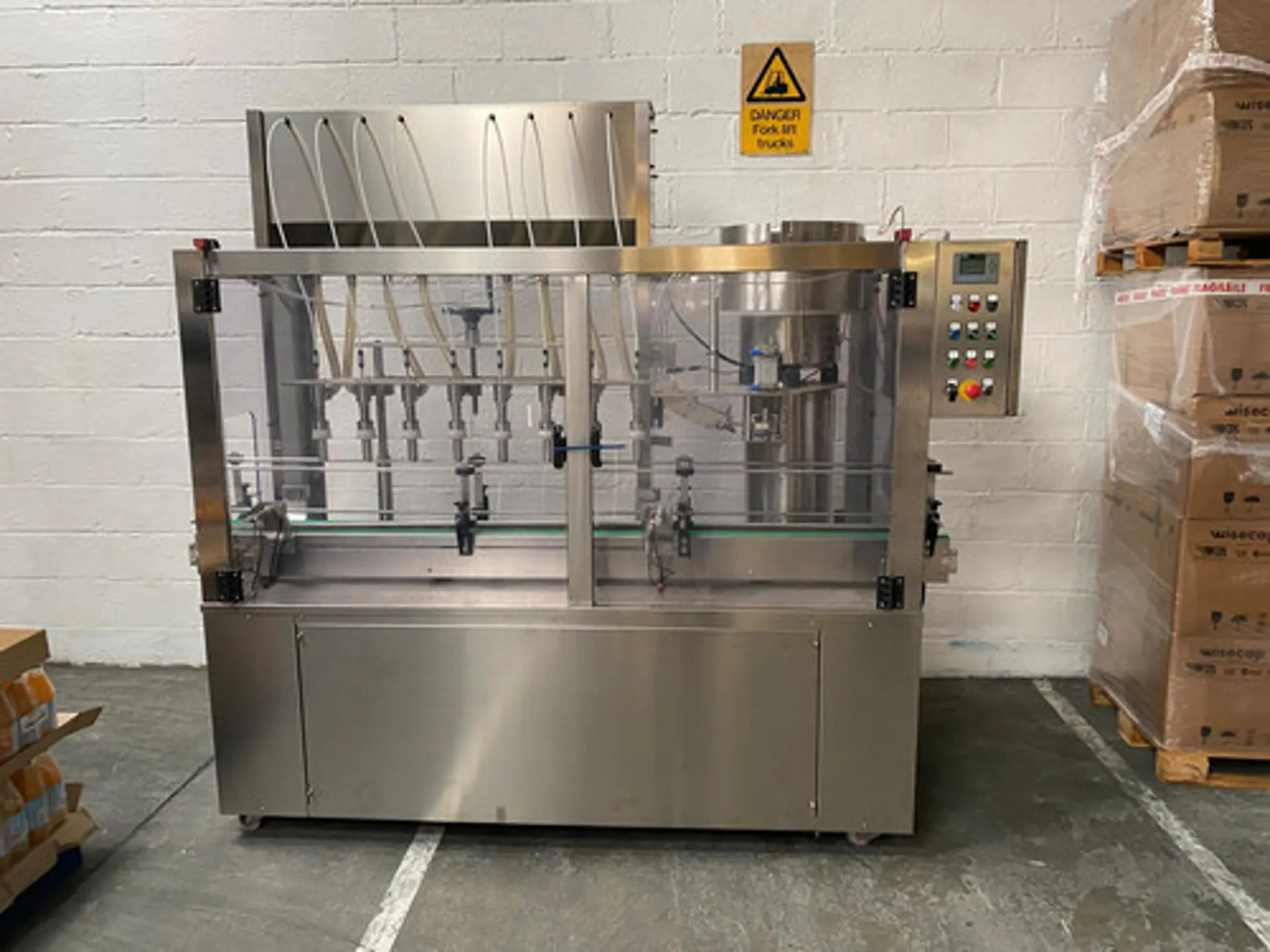

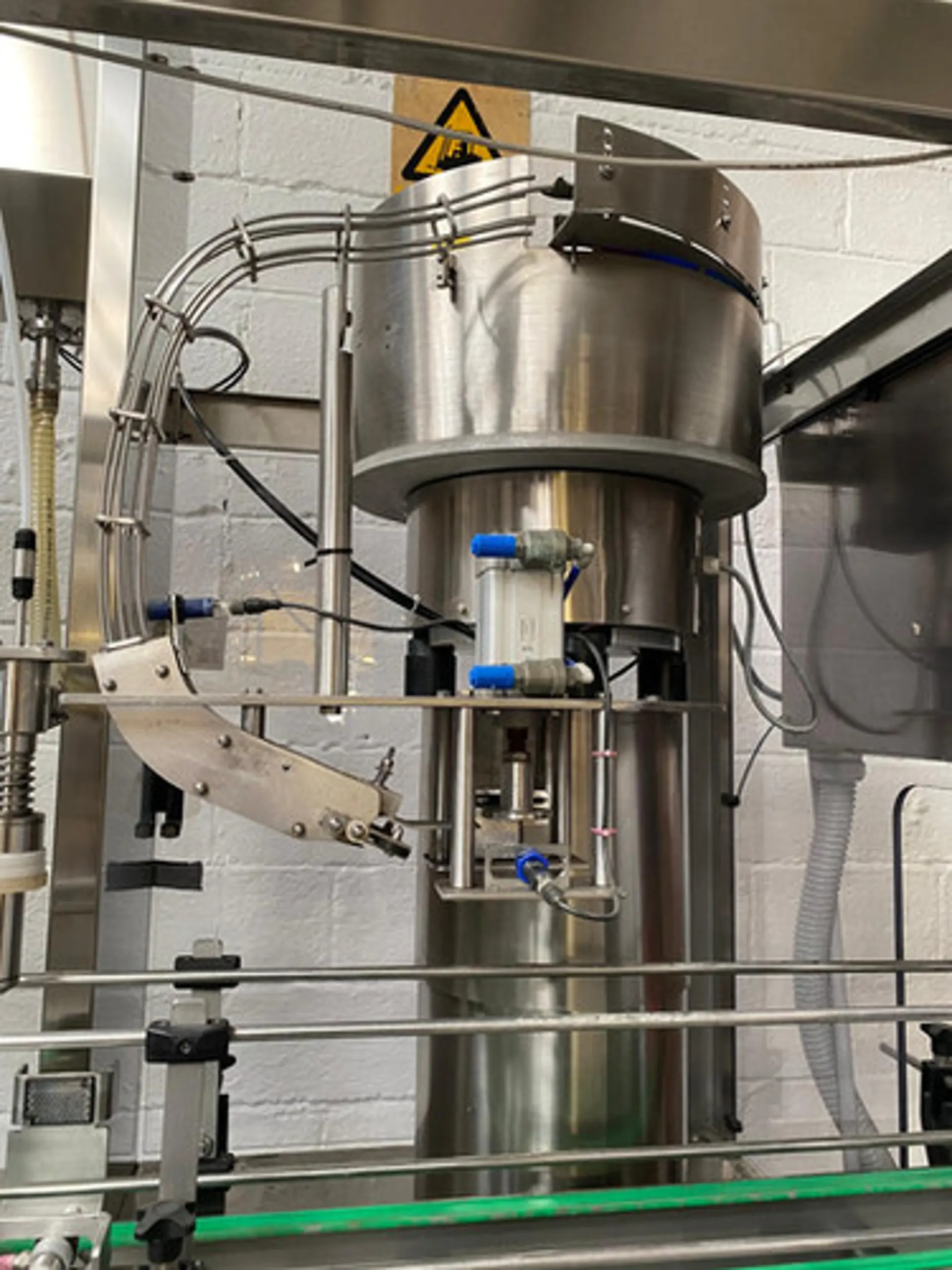

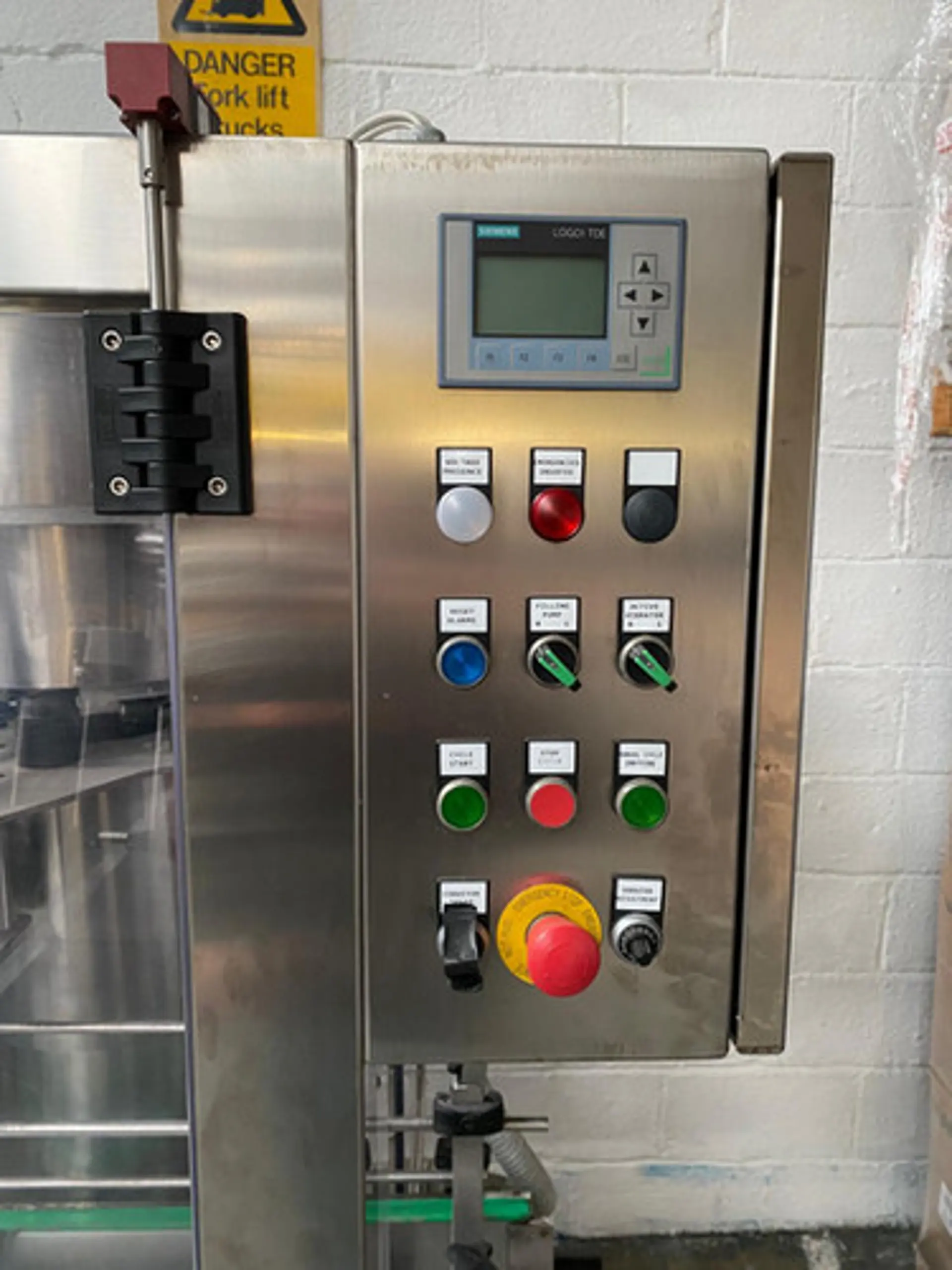

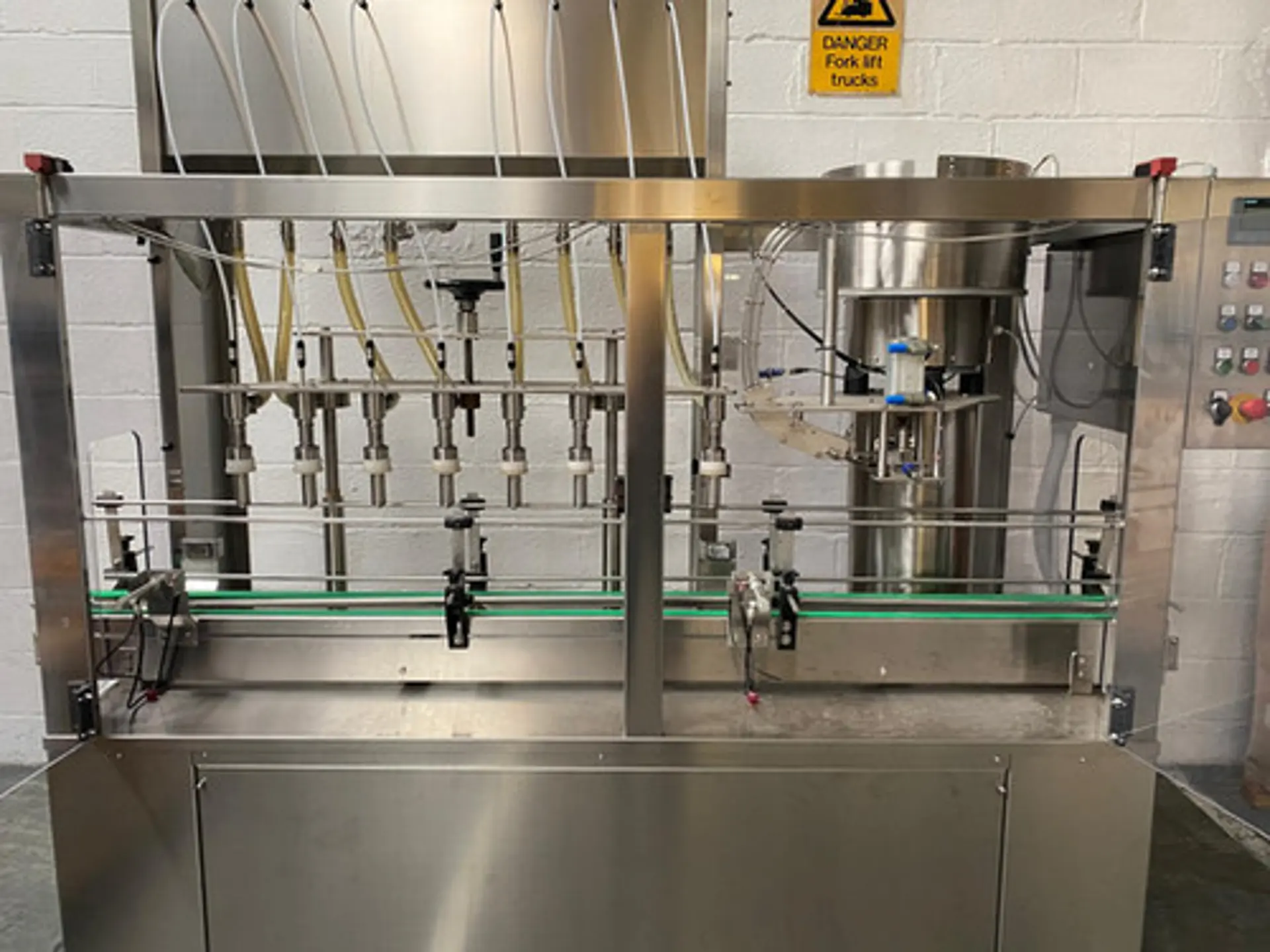

REF: MM5771 2019 automatic inline monoblock filling and capping machine for 5 litre bottles, with 8 filling heads. Supplied with infeed and outfeed conveyors. Listed as Canellitech Srl 8-1. The manual identifies the manufacturer as Rizzolio Equipments S.r.l., model RLV 8-1. Technical specification:✅ Manufacturer - Rizzolio Equipments S.r.l. (listed as Canellitech Srl)✅ Model - RLV 8-1 (8 filling heads)✅ Year of manufacture - 2019✅ Set up for - 5 litre rectangular PET bottles with push caps✅ Capping - push capping head✅ Speed - up to 500 bottles per hour nominal. The manual states actual output depends on the operator.✅ Electrical - 380V / 50Hz / 3 phase + neutral, 24V controls, electro-pneumatic✅ Power - 1.0 kW max absorption, 2 kW installed✅ Weight - 400 kg✅ Dimensions - 2.7m L x 1.1m W x 2.45m H Condition: lightly used. Documents: EU Declaration of Conformity (Machinery Directive 2006/42/EC) included in the manual.

Somerset, United Kingdom

5,688 km away

Stock Number

MM5771

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Filling and capping of still liquids, such as water, edible oils, or cleaning products, into 5-litre containers.
Suitable for small to medium-scale production lines requiring automated filling and crown capping.
Often found in beverage, chemical, or food processing facilities handling larger format containers.
Can be integrated into existing production lines for increased automation and efficiency.

Typical throughput: For this class of equipment, throughput can typically range from 500 to 2,000 bottles per hour, depending on product viscosity and bottle dimensions.
Power supply: Units of this type commonly require a 3-phase electrical supply, typically 400V, 50Hz, with a power rating of 3-7 kW.
Bottle size suitability: This machine is specified for 5-litre bottles, but similar models often have some adjustability for slightly different bottle heights and diameters within that class.
Capping mechanism: This unit is designed for crown capping, which is a specific type of closure. It was previously used for push-on caps, indicating potential for change parts or a different capping head.
Construction materials: Typically, product contact parts are made from food-grade stainless steel (e.g., AISI 304 or 316) to ensure hygiene and corrosion resistance.
Footprint: An inline monoblock machine with integrated conveyors for 5L bottles typically requires a footprint of approximately 3 to 6 metres in length and 1.5 to 2 metres in width.

This type of machine is generally suitable for filling still, non-carbonated liquids with a range of viscosities. For specific product compatibility, the seller should be consulted.

Filling machines remain sought-after on the secondhand market due to their durability and long operational lifespan. Buyers typically value models from established manufacturers known for robust construction. When purchasing used units, inspectors should verify seal integrity, calibration accuracy, and maintenance history, as these directly affect product consistency and line efficiency. Common strengths include straightforward mechanical design facilitating repairs and adaptability to different container sizes. Reliability and minimal downtime are frequently cited priorities among processors seeking cost-effective production solutions.
