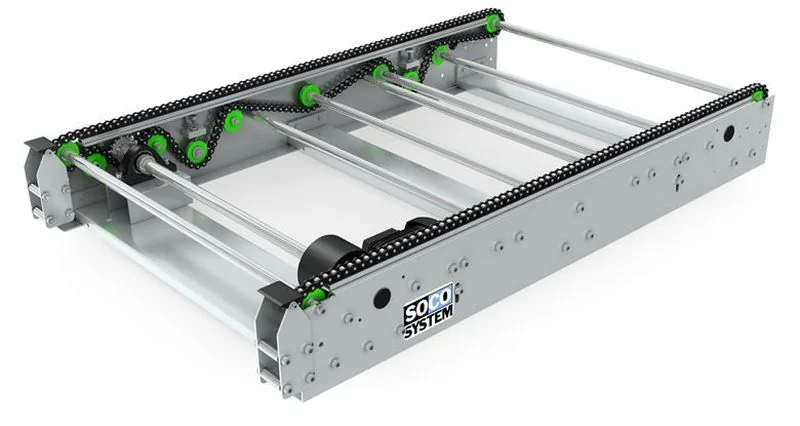

Chain Conveyor

Specifications Payload For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM. Standard height Supports available for standard heights from 225 mm to 650 mm. Other heights available on request. Chains 3/4' pallet chain with straight side plates. Chain distance Approx. 700 mm for 750 mm width. Approx. 900 mm for 950 mm width. Gear motor 0.55 kW. Worm reduction gear mounted on cross bar between the frames. Speed 11.8 m/min., 1500 kg with single gear motor. Other speeds available on request. Subject to alteration.
