What types of containers can this tipper handle?

This class of equipment is typically designed for standard industrial combo bins, totes, or large plastic containers. Buyers should confirm specific container dimensions with the seller.

Is the tip height adjustable?

Many combo box tippers offer some degree of tip height adjustment or can be modified to suit specific discharge requirements. It is advisable to discuss your exact needs with the seller.

What are the power requirements for this machine?

Units of this type commonly require a 3-phase electrical supply to operate the hydraulic lifting mechanism. Specific voltage and amperage details should be confirmed with the seller.

Can this tipper be integrated into an existing production line?

Yes, combo box tippers are often designed for integration into processing lines, feeding into conveyors, hoppers, or mixers. Compatibility with your specific line should be verified.

What maintenance is typically required for a hydraulic tipper?

Routine maintenance typically involves checking hydraulic fluid levels, inspecting hoses and seals for wear, and ensuring all safety mechanisms are functioning correctly. Regular cleaning is also essential, particularly in food environments.

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 1

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 2

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 3

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 4

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 5

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 6

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 7

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 8

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 9

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 10

Used Combo Box Tipper – Wired - Lifting & Tipping, photo 11

Used Combo Box Tipper – Wired - Lifting & Tipping

used Equipment

Available

Verified seller

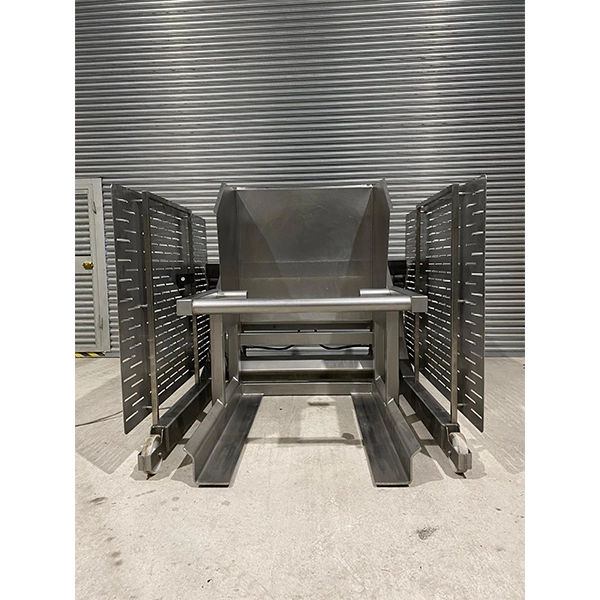

CM Process Solutions - Combo Box Tipper – Wired

Name: Combo Box Tipper – Wired
Brand: CM Process Solutions
SKU: 5177
Availability: InStock

Price: Contact seller for price

CM Process Solutions Combo Box Tipper – Wired.

Model: HT4-1000

3 phase motor hydraulic lifting mechanism.

Suitable for various size containers.

Safe working load = 2645.5lbs (1200kg).

Tip height = 42” (1050 mm) – Chute can be modified to reduce/increase tip height.

Tip angle = 110 degrees (20 degrees past horizontal).

Max bin height = 32.5” (830mm) – Can be modified if required.

Max bin width = 41.5” (1050 mm).

In good used condition.

Pennsylvania, United States

8,795 km away

Stock Number

5177

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring bulk ingredients from large containers into processing lines.
Feeding product into hoppers, mixers, or conveyors in food processing.
Handling raw materials in bakeries, dairies, and meat processing facilities.
Emptying waste bins or recycling containers into larger collection systems.
Loading components or materials into manufacturing equipment in various industries.

Typical capacity: Units of this type commonly handle loads up to 1200 kg, suitable for standard combo bins or totes.
Power supply: Industrial tippers typically require a 3-phase electrical supply for hydraulic operation.
Tip height: Commonly, tip heights range from 1000 mm to 1200 mm, often adjustable or modifiable to suit specific line requirements.
Tip angle: A tip angle of 110 degrees (20 degrees past horizontal) is typical, ensuring complete discharge of contents.
Container compatibility: Designed to accommodate standard industrial combo bins, with maximum dimensions typically around 830 mm high and 1050 mm wide.
Construction material: For food processing applications, units are commonly constructed from stainless steel for hygiene and durability.

This class of equipment is typically designed for standard industrial combo bins, totes, or large plastic containers. Buyers should confirm specific container dimensions with the seller.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.

General overview for this equipment type

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
