What type of bins can this hoist accommodate?

This class of hoist is typically designed for standard 200-litre tote bins, also known as Eurobins or DIN 9797 bins. Buyers should confirm compatibility with their specific bin dimensions.

Is this hoist suitable for washdown environments?

Yes, with Grade 304 stainless steel construction and an IP65 rated control panel, units of this type are generally suitable for regular washdown in food processing environments.

What are the typical safety considerations for operating a column bin hoist?

Key safety features often include 'hold to run' controls, upper and lower limit switches, and a safety latch for chain failure. Adherence to PUWER regulations and site-specific risk assessments are crucial.

Can the discharge height be adjusted?

While the listed unit has a fixed discharge height, the end-of-travel limit switches are typically adjustable by trained personnel for fine-tuning on site. Significant height changes may require modification.

What maintenance is typically required for this equipment?

Routine maintenance commonly involves checking chain tension, lubricating moving parts, inspecting electrical connections, and verifying safety features. Regular cleaning is also essential for hygiene.

Column Bin Hoist - Lifting & Tipping, photo 1

Column Bin Hoist - Lifting & Tipping, photo 2

Column Bin Hoist - Lifting & Tipping, photo 3

Column Bin Hoist - Lifting & Tipping, photo 4

Column Bin Hoist - Lifting & Tipping, photo 5

Column Bin Hoist - Lifting & Tipping, photo 6

Available

Verified seller

Column Bin Hoist

Name: Column Bin Hoist
SKU: BTM/250/1850/B/SL
Availability: InStock

Price: Contact seller for price

BTM/250/1850/B/SL Single Column Bin Hoist

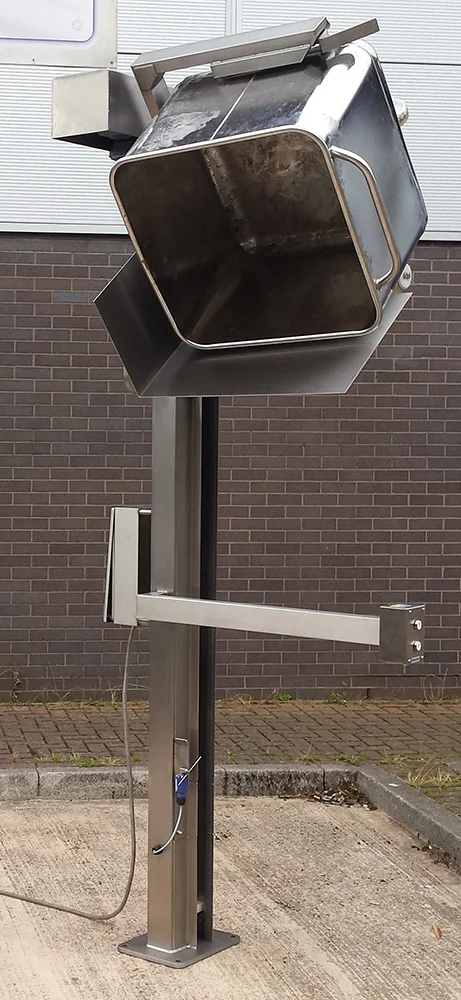

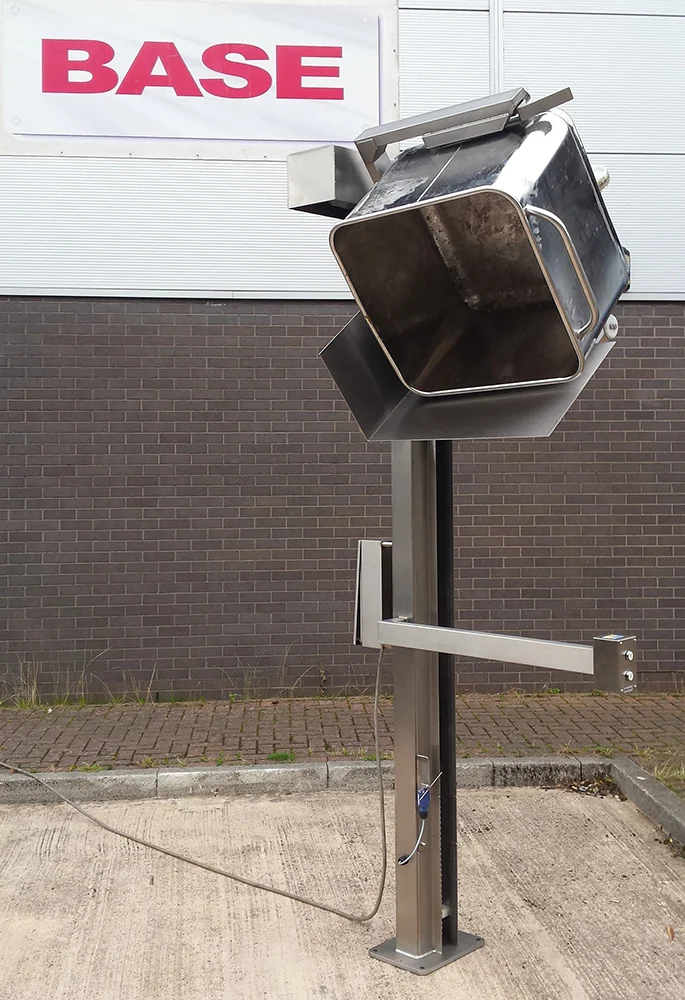

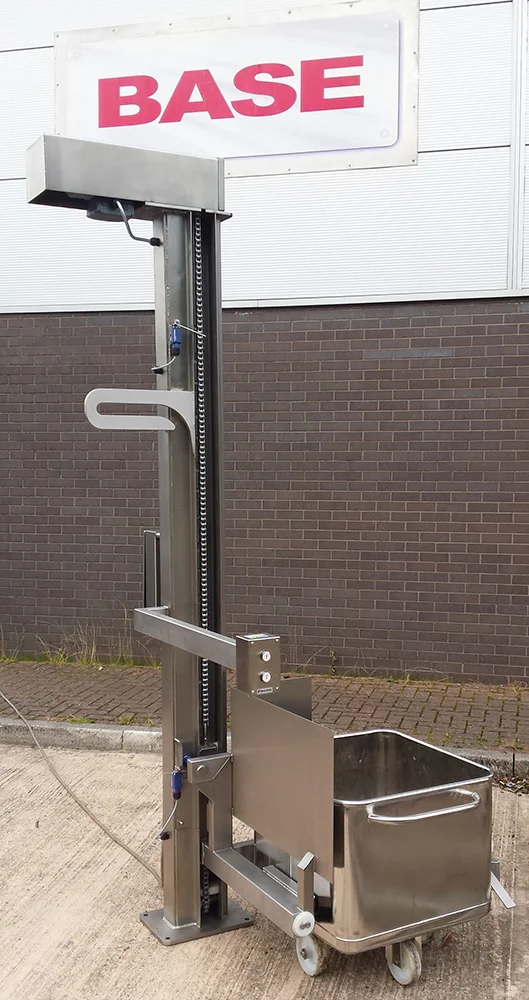

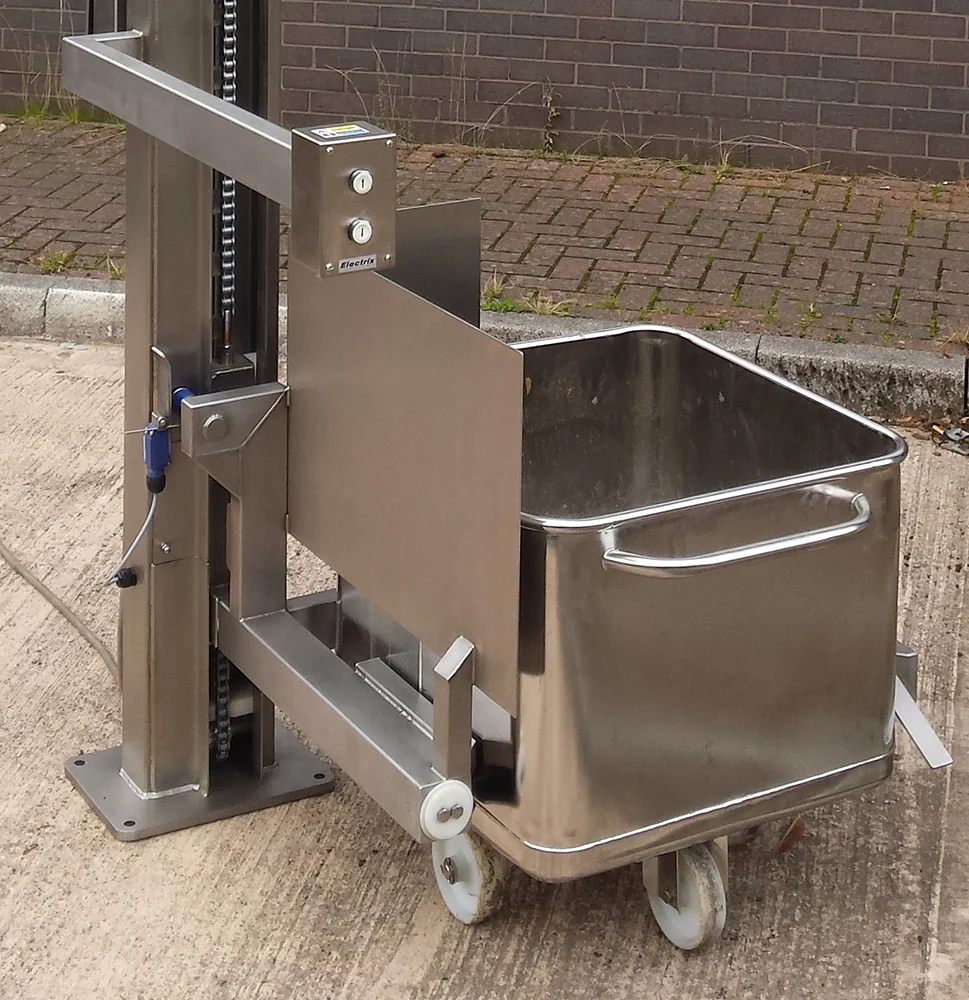

This Single Column Bin Hoist is a 200 Litre tote bin tipper with a side loading lift carriage that is designed to lift and tip at a discharge height of 1850mm. The Column Bin Hoist is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Column Bin Hoist is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Column Bin Hoist Electrical Control

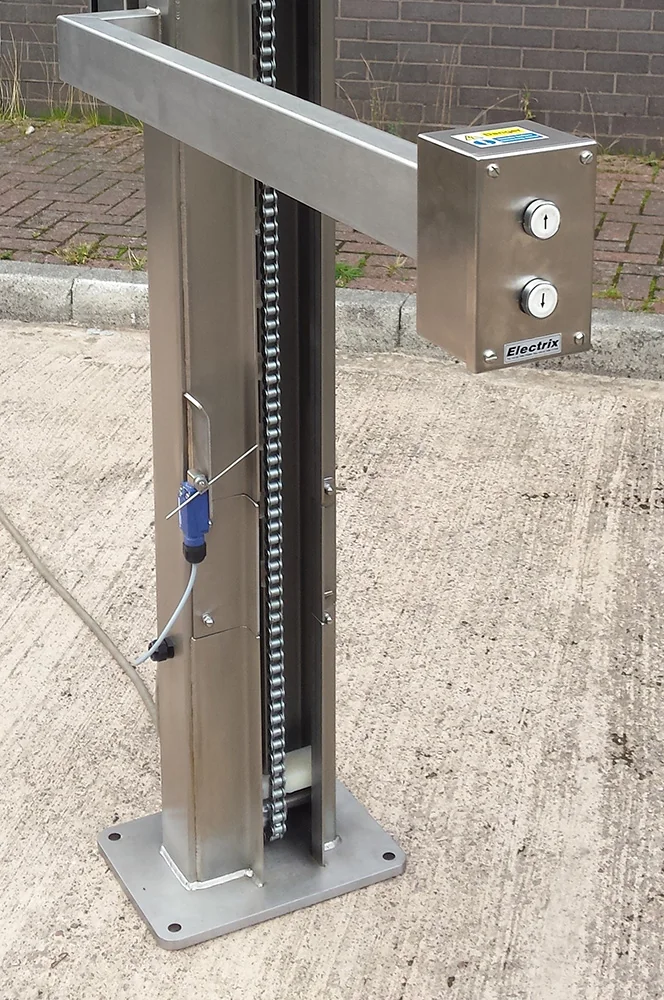

This Column Bin Hoist is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Column Bin Hoist operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Column Bin Hoist to operate. As soon as either button is released, the Column Bin Hoist will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Column Bin Hoist

Model No.

BTM/250/1850/B/SL

Capacity

250 Kgs

Tipping Height

1850mm

Tipping Angle

130 Degrees

Overall Height

2922mm

Machine Handing

Right Hand Side Loading

Maximum Headroom

In Excess Of 3000mm

Tipping Chute

Yes, On Two Sides Of The Lift Carriage

Container Description

200 Litre Tote Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/250/1850/B/SL

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from tote bins into mixers or processing vessels.
Loading raw materials into hoppers for further processing lines.
Elevating bulk ingredients for ergonomic dispensing at workstations.
Feeding packaging machinery with product from intermediate storage bins.

Typical Specifications

Typical capacity: Designed for standard 200-litre tote bins, commonly handling loads up to 250 kg.
Discharge height: Units of this type commonly offer discharge heights around 1850mm, adjustable for specific process needs.
Construction material: Typically manufactured from Grade 304 stainless steel for hygiene and durability in food environments.
Power supply: Commonly operates on a three-phase electrical supply, such as 400V, 50Hz.
Control system: Features an IP65 rated control panel, often with 'hold to run' functionality for operator safety.
Safety features: Units typically include a safety latch mechanism to prevent uncontrolled descent in the event of chain failure.
Mounting: Designed for floor bolting to ensure stability during operation.
