Column Lifter Guarded

BTM/250/3700/B/G Single Pillar Column Lifter Guarded

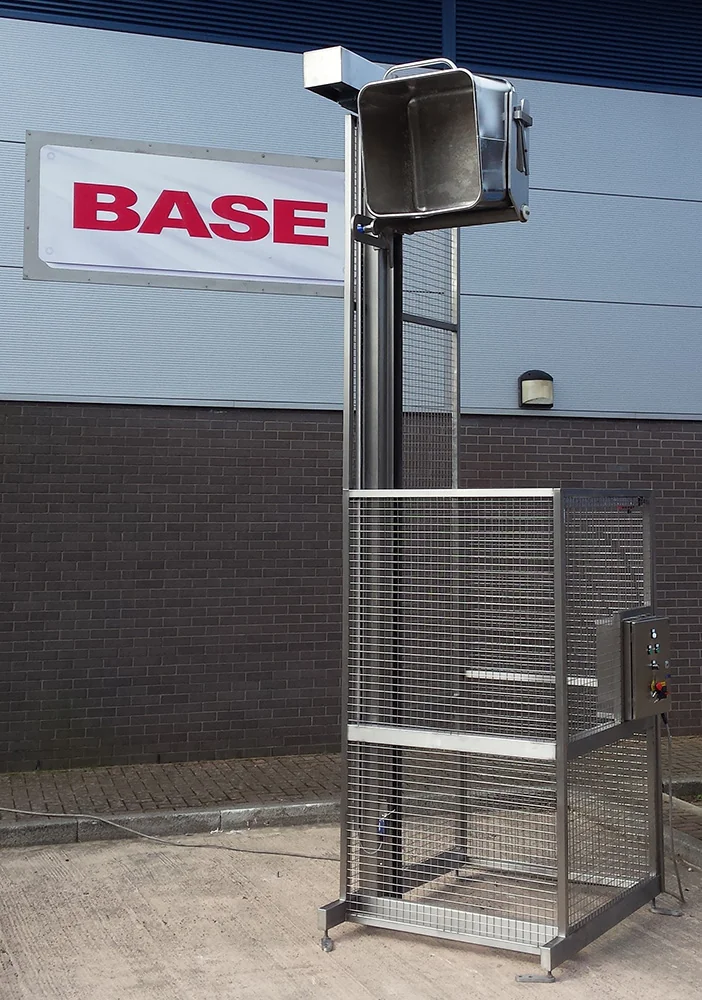

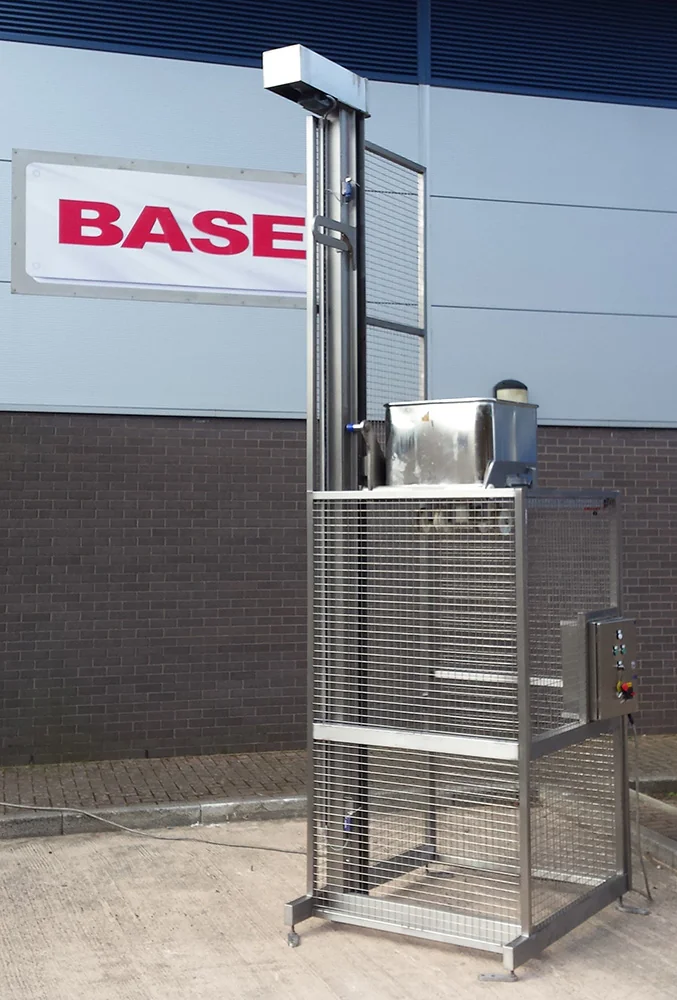

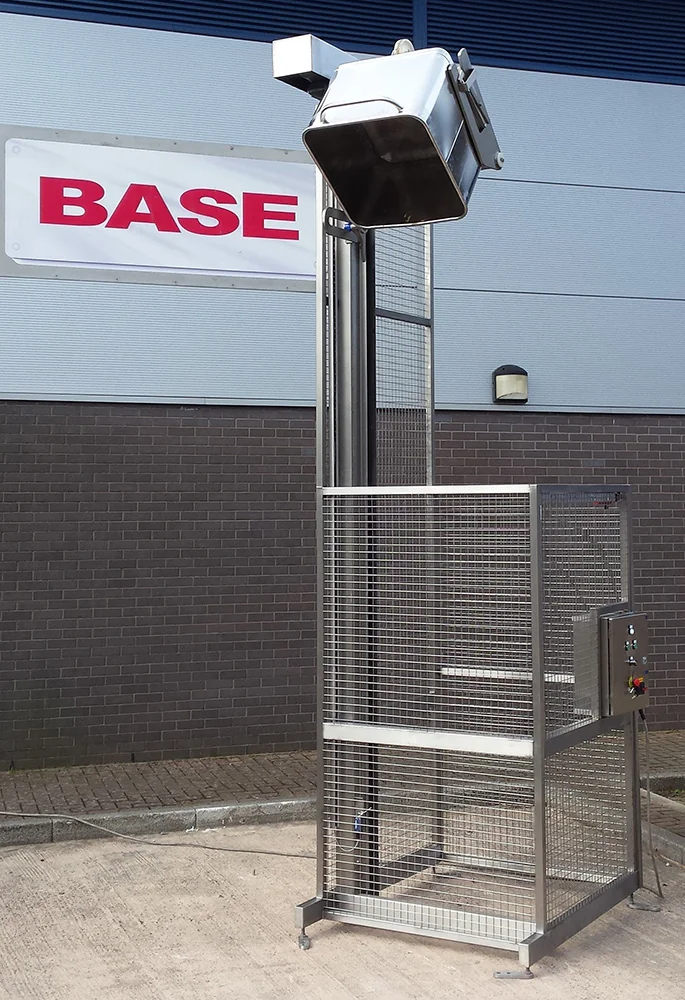

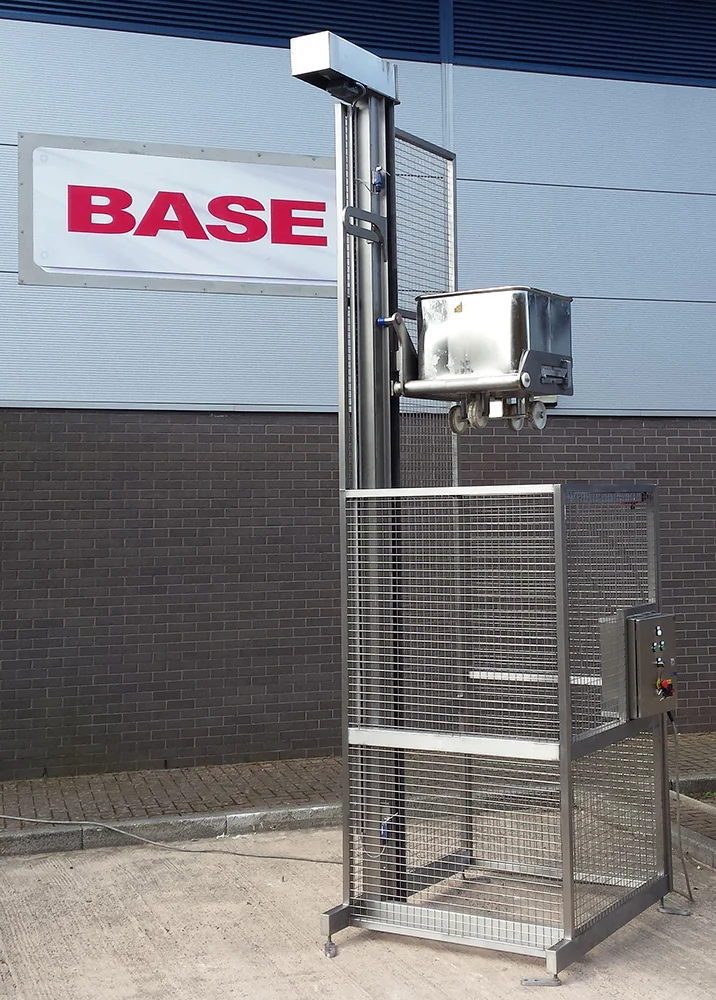

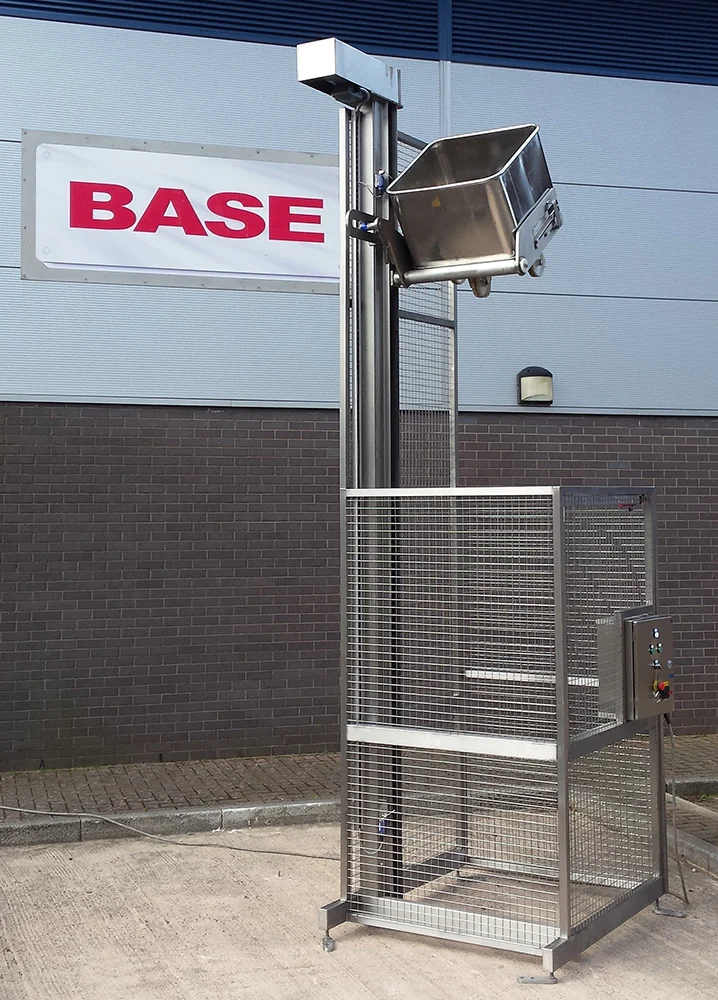

This Column Lifter Guarded is a single pillar 200 Litre tote bin tipper that is designed to lift and tip at a discharge height of 3700mm. The Column Lifter Guarded is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

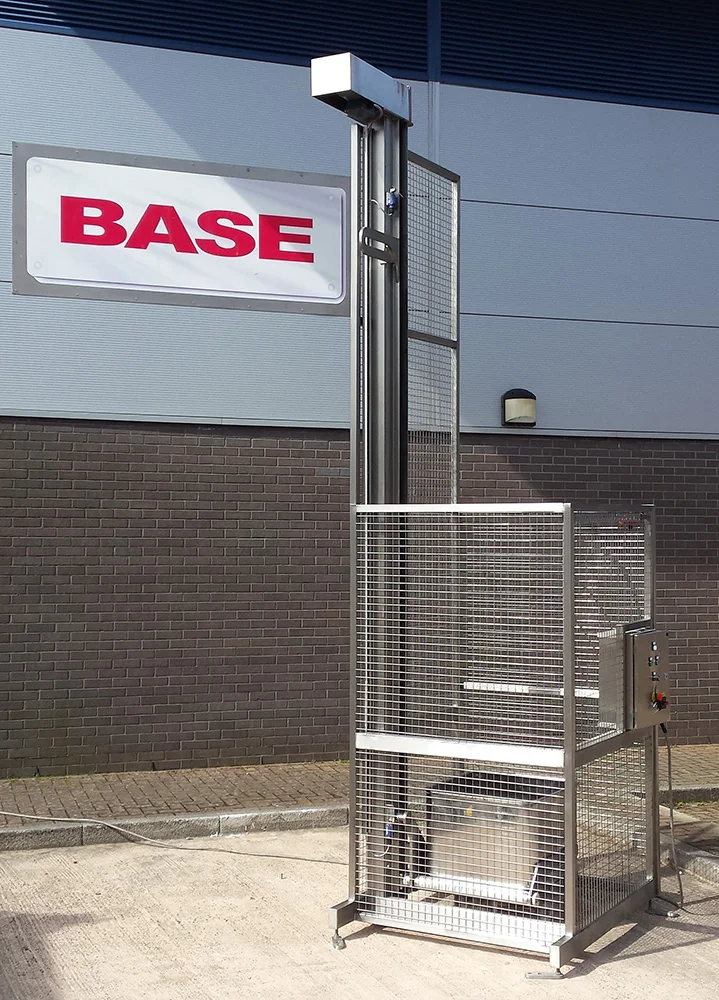

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture stainless steel weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. It encloses the Column Lifter Guarded to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Column Lifter Guarded from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Column Lifter Guarded Electrical Control

This Column Lifter Guarded is fitted with an IP65 Stainless Steel Control Panel which is mounted on the safety guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Column Lifter Guarded operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Column Lifter Guarded to the full down position. The control panel has the facility for a ‘call to run’ signal to be connected if required.
