What types of containers can this equipment handle?

Combo box dumpers are typically designed to handle standard industrial bulk containers such as combo boxes, vats, tanks, and Gaylords. Customisation for specific container dimensions is often possible.

What are the typical safety features on these units?

Common safety features include emergency stop buttons, safety interlocks on guards, hydraulic pressure relief valves, and robust guarding to prevent access to moving parts during operation.

Is customisation available for specific process requirements?

Yes, manufacturers commonly offer customisation for tipping height, tip angle, machine handing (left or right), and specific container types to integrate seamlessly into existing production lines.

What maintenance is typically required for a hydraulic dumper?

Routine maintenance typically involves checking hydraulic fluid levels, inspecting hoses and seals for wear, lubricating pivot points, and ensuring electrical connections are secure. Regular cleaning is essential in food processing environments.

What are the power requirements for this type of equipment?

Hydraulic power packs commonly require a 3-phase electrical supply, typically 400V, 50Hz, with the exact amperage depending on the motor size and lift capacity of the unit.

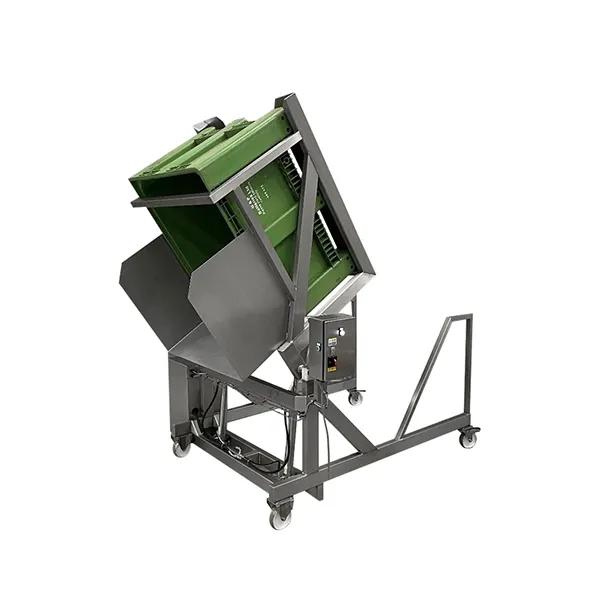

New Combo Box Dumper - Lifting & Tipping, photo 1

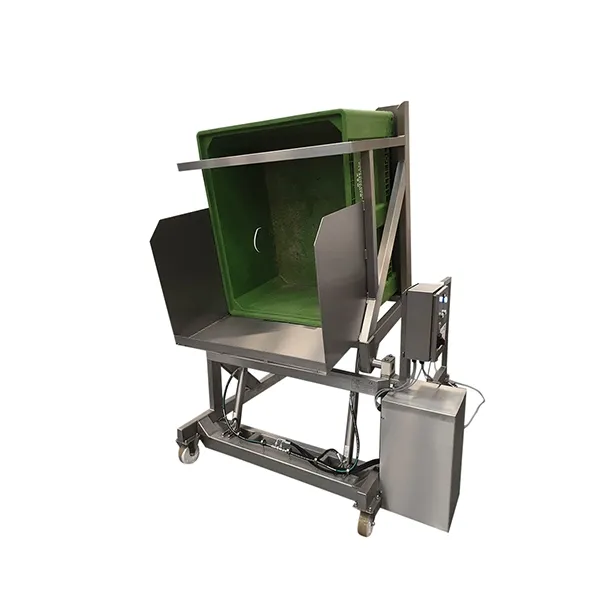

New Combo Box Dumper - Lifting & Tipping, photo 2

New Combo Box Dumper - Lifting & Tipping

new Equipment

Available

Verified seller

Combo Box Dumper

Name: Combo Box Dumper
SKU: 1154
Availability: InStock

Price: Contact seller for price

The ISCA Combo Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.

Standard model features:

-Suitable for combo boxes, vats, tanks, gaylords
-Tipping height 39” (1000 mm)
-Tip angle 30 degrees past horizontal
-Lift capacity 2200 lb (1000 kg)
-Machine handing – Right hand side
-304 stainless steel
-Welded construction throughout
-Hydraulic powerpack

Pennsylvania, United States

8,794 km away

Stock Number

1154

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring bulk ingredients from large containers into processing lines.
Loading raw produce into washing or sorting machinery.
Feeding mixing or blending equipment with pre-weighed components.
Discharging waste materials from collection bins into larger receptacles.
Moving frozen blocks of product into grinders or flakers.

Typical Specifications

Typical lift capacity: For this class of equipment, lift capacities commonly range from 500 kg to 2000 kg, suitable for standard combo bins or vats.
Typical tipping height: Units typically offer tipping heights from 1000 mm to 2500 mm, depending on the receiving equipment's infeed.
Typical tip angle: A common tip angle is 30 to 45 degrees past horizontal, ensuring complete discharge of contents.
Construction material: Units designed for food processing are typically constructed from 304-grade stainless steel, with 316-grade available for more corrosive environments.
Power supply: Hydraulic power packs commonly require a 3-phase electrical supply, typically 400V, 50Hz, with varying amperage depending on motor size.
Footprint: The footprint for a combo box dumper typically requires sufficient floor space for the unit itself plus operational clearance for loading and maintenance.
Container compatibility: This type of equipment is typically designed to handle standard combo boxes, vats, tanks, or Gaylord containers, with custom cradles available for specific dimensions.

Frequently Asked Questions

Combo box dumpers are typically designed to handle standard industrial bulk containers such as combo boxes, vats, tanks, and Gaylords. Customisation for specific container dimensions is often possible.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
