Affeldt - COMPLETE LINE: Bagging Line

(00946A/B/C/D/E)

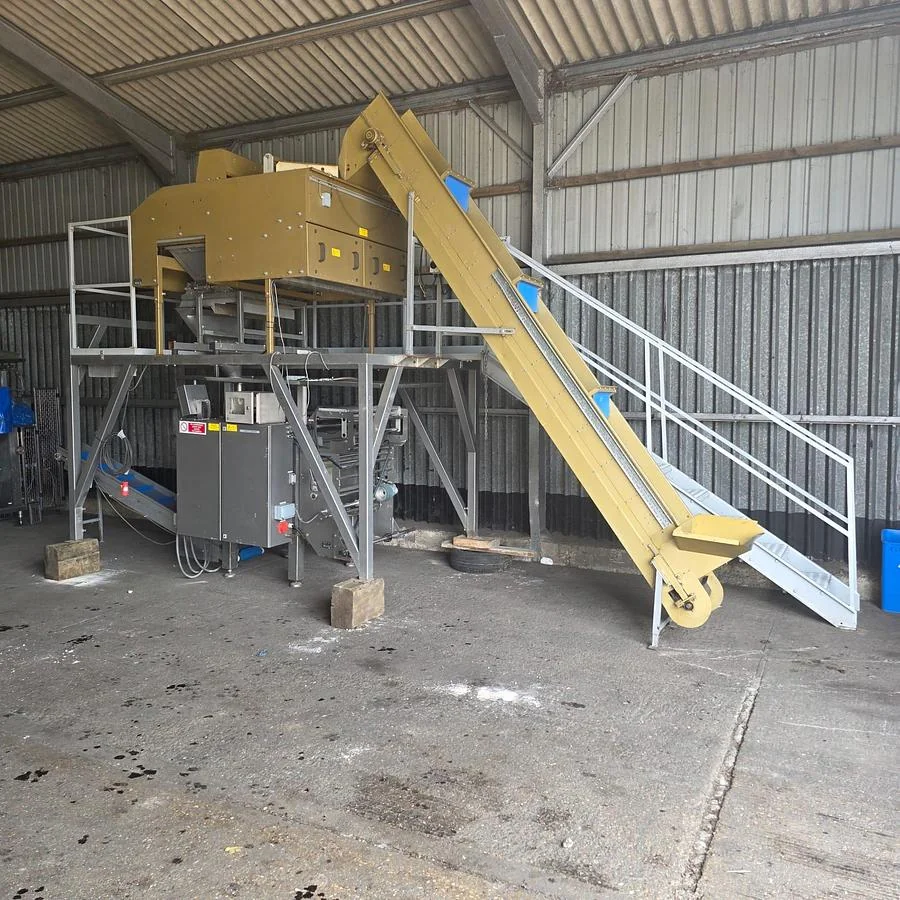

The Affeldt D-25335 production line is a high-performance, fully integrated packaging solution designed for accurate, efficient, and continuous operation in industrial environments. The line includes the following key components:

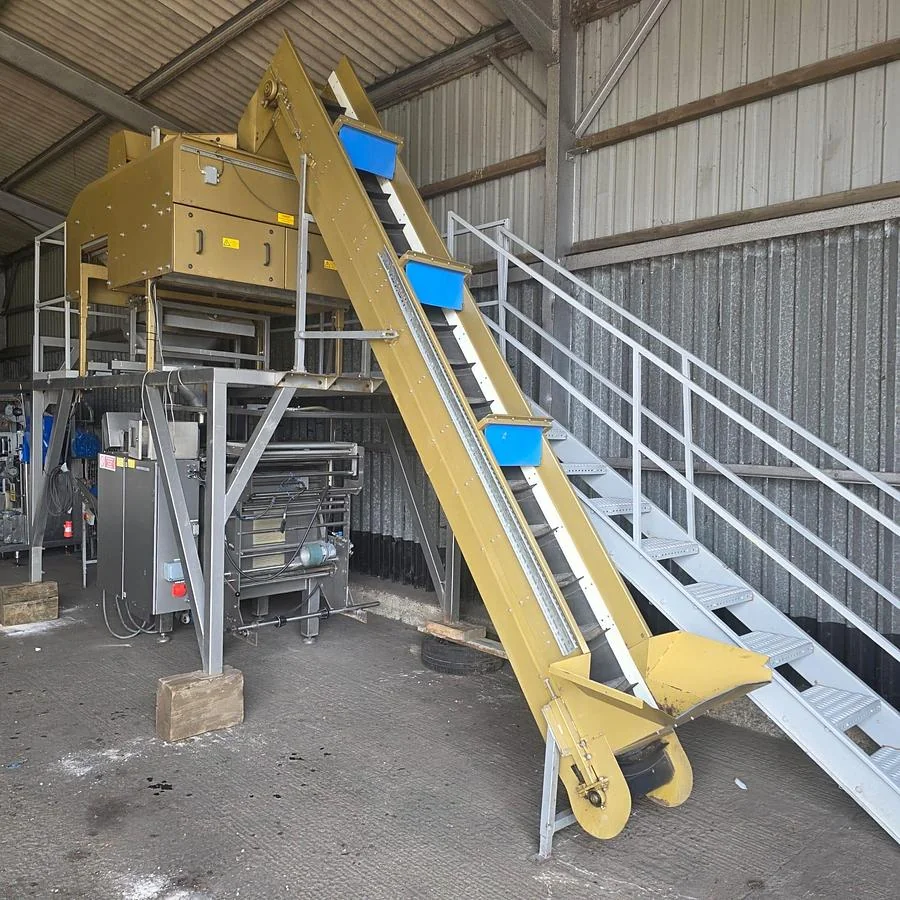

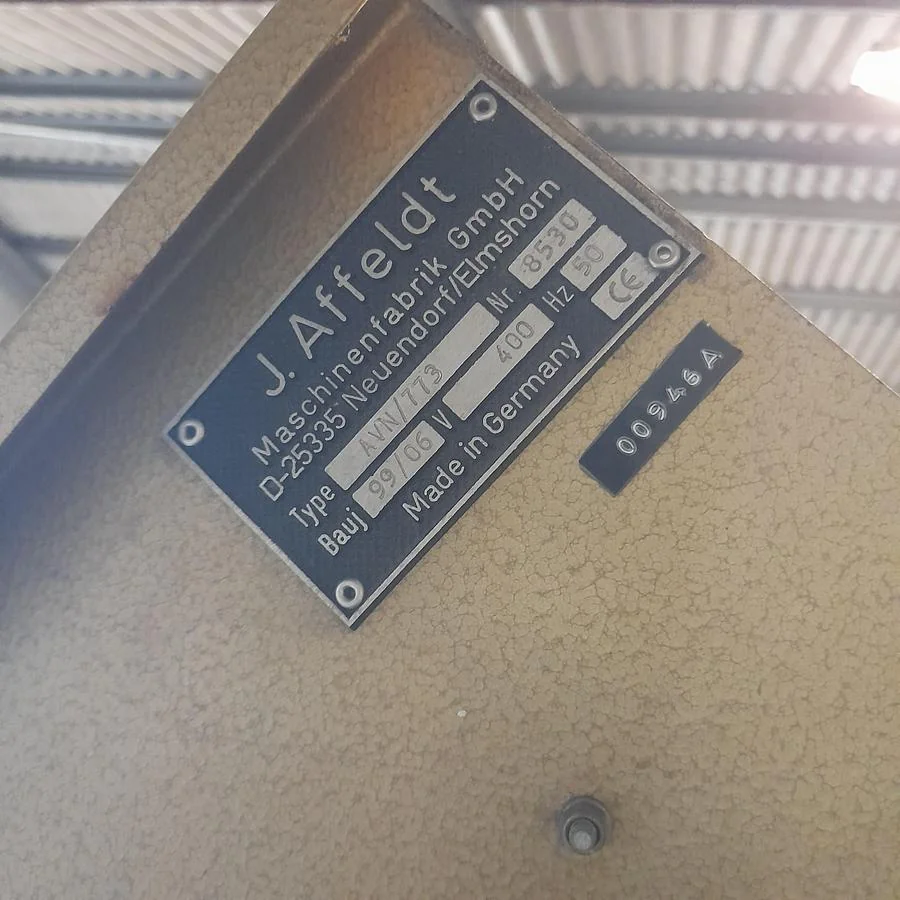

• Infeed Conveyor (00946A)
• The infeed conveyor provides a consistent and controlled product flow to the multilane weighing system. Engineered for gentle product handling, it ensures optimal feeding rates and uniform distribution, reducing product damage and downtime.
• Overall Width: 920mm / Overall Length: 4600mm / Overall Height: 3900mm / Belt Width: 380mm / Belt Length: 4150mm

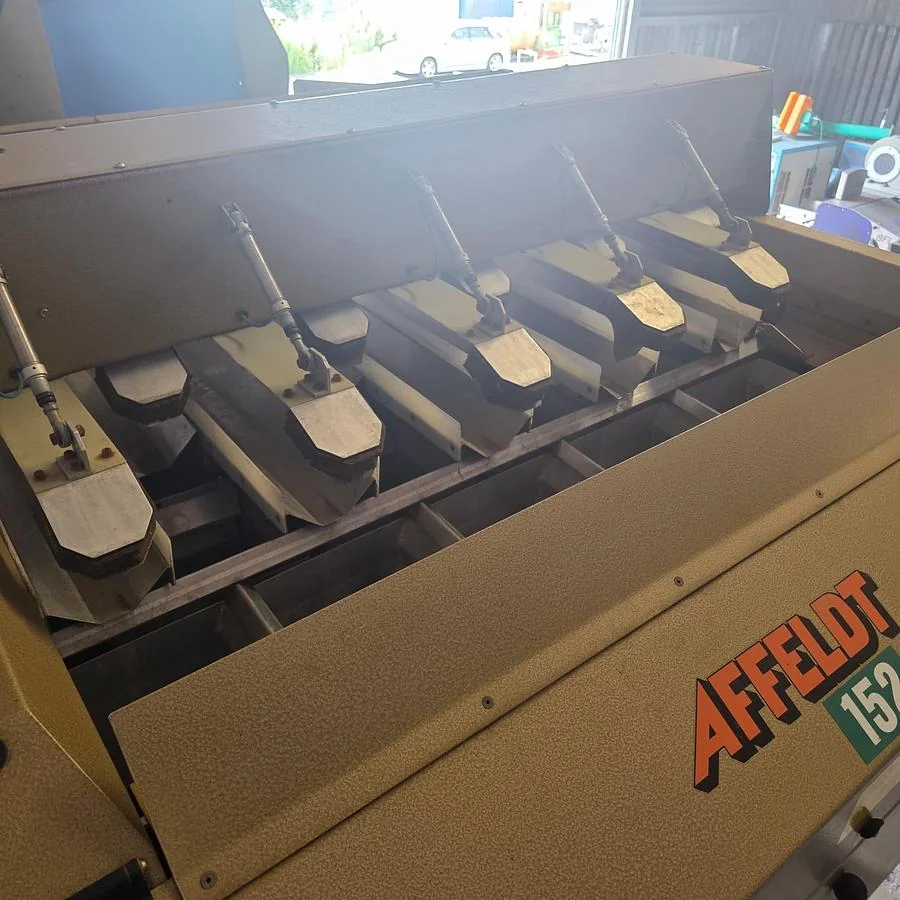

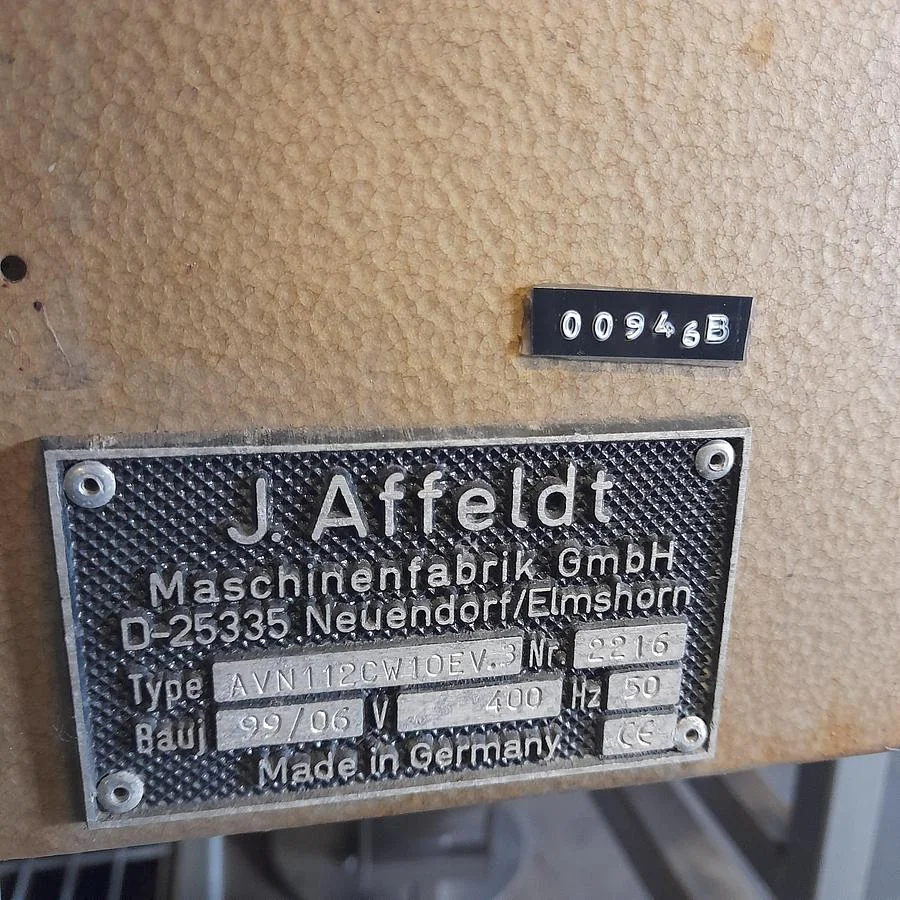

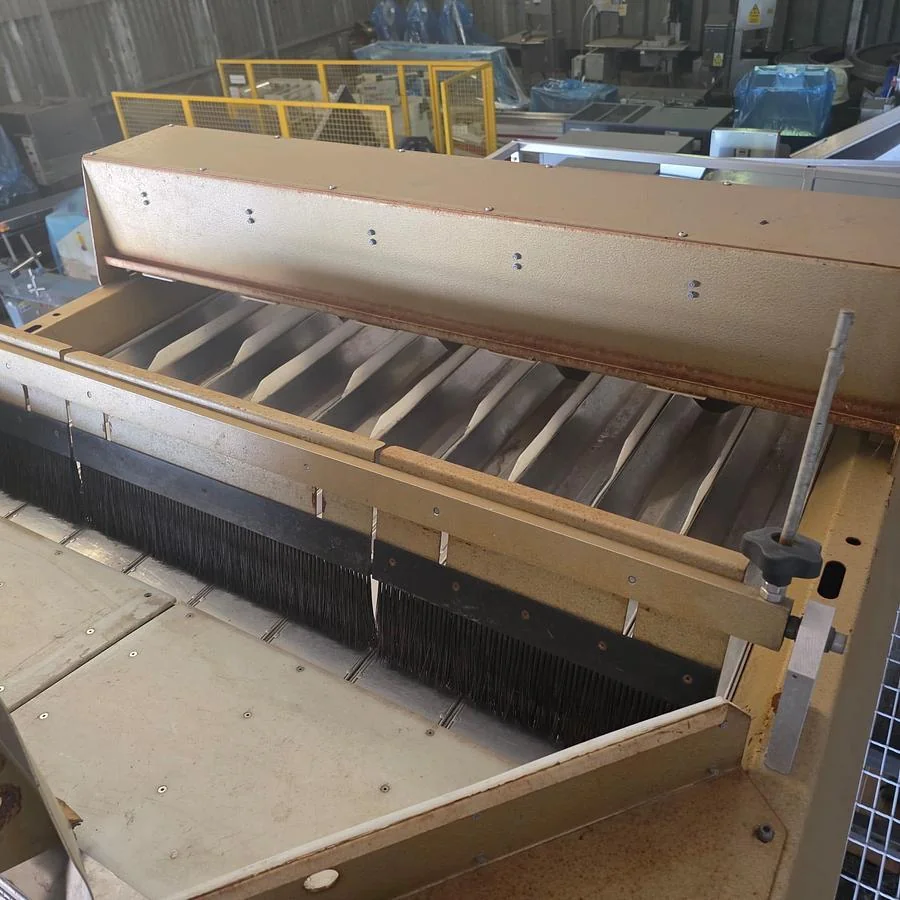

• Multilane Weigher (00946B)
• At the heart of the system is a high-precision multilane weigher, tailored for fast and accurate dosing of granular or irregularly shaped products. The multilane design allows for simultaneous weighing across multiple streams, significantly increasing throughput and reducing bottlenecks.
• Overall Width: 1510mm / Overall Length: 1900mm / Overall Height: 1800mm

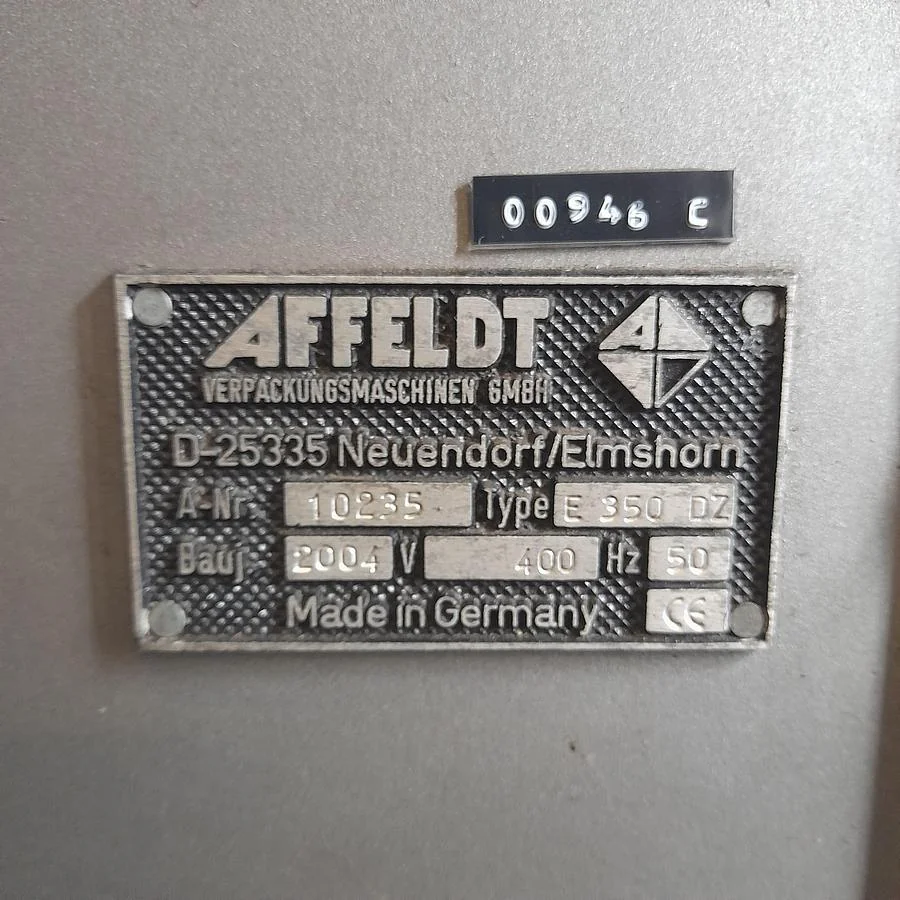

• VFFS Machine (Vertical Form-Fill-Seal) (00946C)
• Integrated seamlessly with the weigher, the VFFS machine automates the forming, filling, and sealing of flexible bags. The machine ensures airtight seals and consistent bag shapes, supporting a wide range of packaging formats and materials, ideal for food and non-food products alike.
• Overall Width: 1350mm / Overall Length: 2540mm / Overall Height: 1830mm

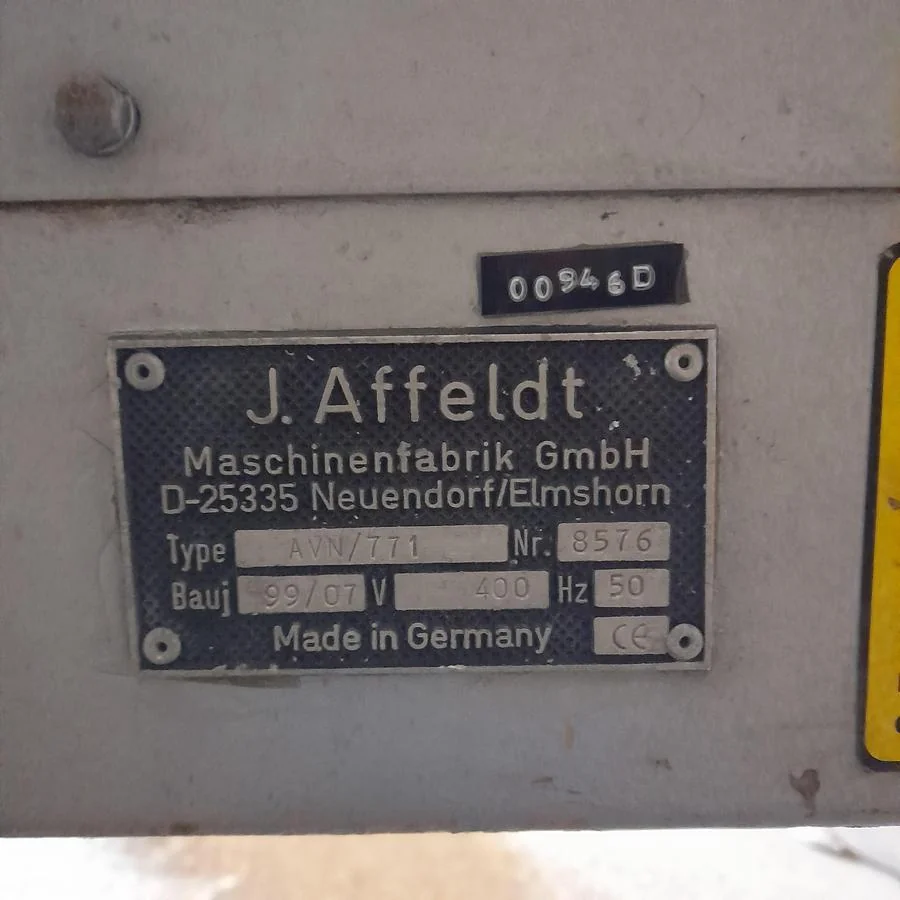

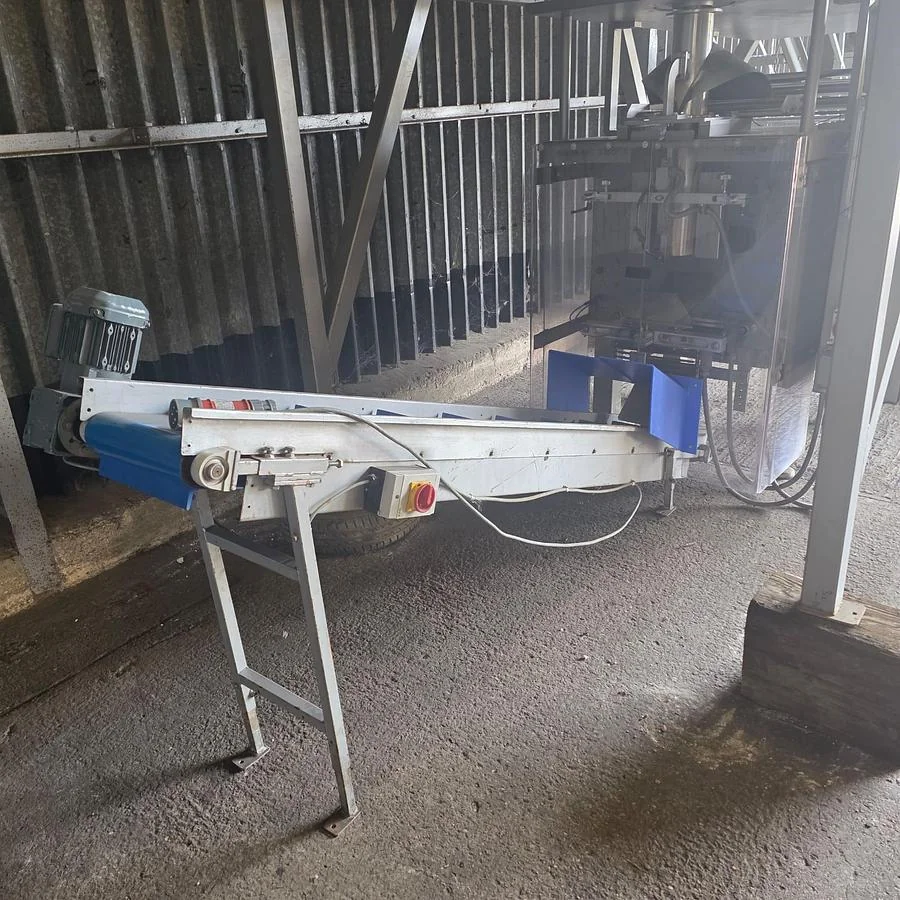

• Outfeed Conveyor (00946D)
• Positioned downstream of the VFFS unit, the outfeed conveyor transports finished bags away from the packaging station. It is designed to interface smoothly with further downstream equipment such as checkweighers, metal detectors, or case packers.
• Overall Width: 600mm / Overall Length: 2600mm / Overall Height: 1250mm / Belt Width: 300mm / Belt Length: 2600mm

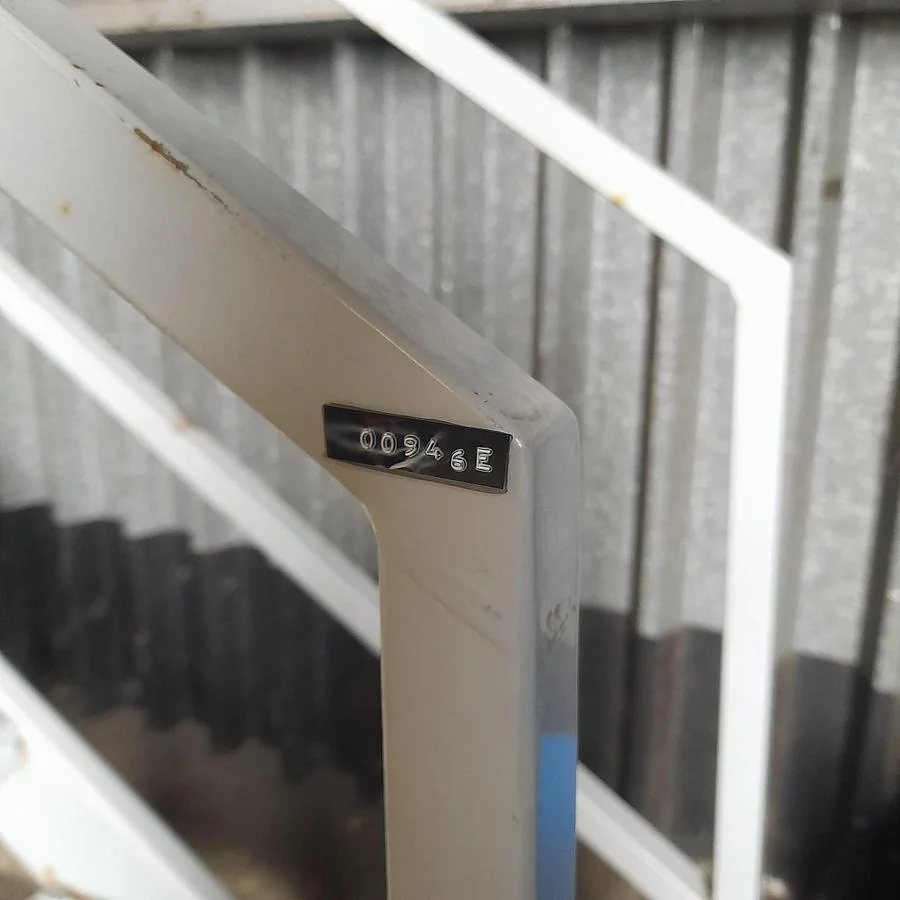

• Gantry with Stairs (00946E)
• A robust gantry structure with integrated stairs provides safe and easy access to the multilane weigher and VFFS system for maintenance, cleaning, and operational oversight. Built to meet industrial safety standards, the gantry offers elevated visibility and operational control.
• Overall Width: 2060mm / Overall Length: 6600mm / Overall Height: 2850mm

This configuration ensures maximum efficiency, accuracy, and safety, making the Affeldt D-25335 an ideal solution for medium to high-speed packaging applications. Let me know if you'd like this tailored to a specific industry or product type.
