What are the common safety features on a crate tipper?

Common safety features include 'hold to run' controls, upper and lower limit switches, and safety latches to prevent uncontrolled descent. Guarding is often added depending on the specific installation and risk assessment.

Is this unit suitable for outdoor use?

While constructed from stainless steel and featuring an IP65 control panel, prolonged outdoor exposure may require additional weatherproofing. It is best to confirm with the seller for specific environmental suitability.

Can the discharge height be adjusted?

This unit is designed for a fixed discharge height of 1750mm. Some crate tippers offer adjustable discharge heights, but this is not a standard feature on all single-pillar designs.

What maintenance is typically required for a crate tipper?

Routine maintenance usually involves checking the drive chain and gearbox, lubricating moving parts, inspecting electrical connections, and ensuring all safety features are operational. Regular cleaning, especially in food environments, is also crucial.

What are the power requirements for this type of equipment?

Crate tippers typically operate on a 3-phase electrical supply, commonly 400V, 50Hz. The exact amperage will depend on the motor size and lifting capacity.

Is installation complex for a crate tipper?

Installation typically involves bolting the unit to a suitable floor and connecting it to the electrical supply. Professional installation is recommended to ensure correct setup, safety compliance, and optimal operation.

Crate Tipper - Lifting & Tipping, photo 1

Crate Tipper - Lifting & Tipping, photo 2

Crate Tipper - Lifting & Tipping, photo 3

Crate Tipper - Lifting & Tipping, photo 4

Crate Tipper - Lifting & Tipping, photo 5

Crate Tipper - Lifting & Tipping, photo 6

Available

Verified seller

Base Handling Ltd - Crate Tipper

Name: Crate Tipper
Brand: Base Handling Ltd
SKU: BTM/100/1750/B
Availability: InStock

Price: Contact seller for price

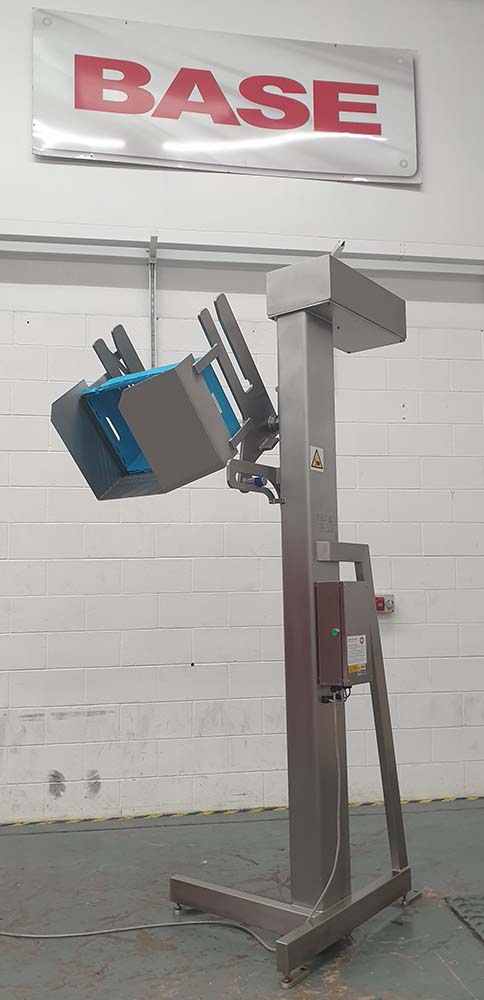

BTM/100/1750/B Single Pillar Crate Tipper.

This Single Pillar Crate Tipper is designed to lift and tip a Blue Plastic Crate (600 x 400mm) at a discharge height of 1750mm.

The Crate Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor.

The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

The unguarded Crate Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Crate Tipper Electrical Control.

This Crate Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The unguarded Crate Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Crate Tipper to operate.

As soon as either button is released, the Crate Tipper will stop.

The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Single Pillar Crate Tipper

Model No.

BTM/100/1750/B

Overall Height

2670mm

Machine Handing

Left Hand

Maximum Headroom

3200mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

Blue Plastic Crate (600 x 400mm)

Base Arrangement

Base Frame Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Safe Working Load

100 Kgs

Tip Height

1750mm

Tip Angle

135 Degrees

Load/Tension Chain

¾” Simplex

Stock Number

BTM/100/1750/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring ingredients from crates into hoppers or processing lines in bakeries.
Loading raw materials into mixers or blenders in prepared food factories.
Discharging produce from field crates into washing or sorting systems.
Feeding packaging machinery with components or finished products from bulk containers.
Moving waste products from collection crates into larger disposal units.

Typical lift capacity: Units of this type commonly handle crates weighing up to 100-200 kg.
Discharge height: This specific unit is designed for a 1750mm discharge height; other models typically range from 1m to 3m.
Crate compatibility: Designed for 600 x 400mm plastic crates; many tippers are built for specific crate dimensions.
Construction material: Manufactured from Grade 304 stainless steel, which is standard for food processing environments.
Power supply: Typically requires a 3-phase electrical supply, commonly 400V, 50Hz.
Control system: Features an IP65 rated control panel with 'hold to run' operation, common for safety in tipping applications.
Mounting: Designed for floor bolting, which is typical for fixed-position crate tippers.

Common safety features include 'hold to run' controls, upper and lower limit switches, and safety latches to prevent uncontrolled descent. Guarding is often added depending on the specific installation and risk assessment.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
