How does the water recycling system work?

The water recycling system collects fresh rinse water and reuses it in earlier cleaning phases, such as pre-washing or the main wash. This significantly reduces overall water consumption during operation.

Can this washer be customised for specific needs?

Yes, units of this type commonly offer optional module add-ons. These can include water blow-off/drying, sticker removal, and noise reduction features to tailor the machine to specific operational requirements.

What maintenance is typically required for a crate tunnel washer?

Routine maintenance typically involves cleaning filter screens, checking spray nozzles for blockages, and monitoring water levels and detergent dispensers. Easy access to components is a common design feature to facilitate this.

Is this equipment suitable for high-volume operations?

Yes, with capacities commonly exceeding 1500 items per hour for larger models, these tunnel washers are designed for continuous, high-volume cleaning and sanitising in industrial settings.

What are the common safety features on these machines?

Safety features commonly include electronically interlocked doors to prevent access during operation, low-level water protection systems, and IP65-rated control panels for protection against dust and water ingress.

new Equipment

Available

Verified seller

Nieros - Crate Tunnel Washer

Name: Crate Tunnel Washer
Brand: Nieros
SKU: 1051
Availability: InStock

Price: Contact seller for price

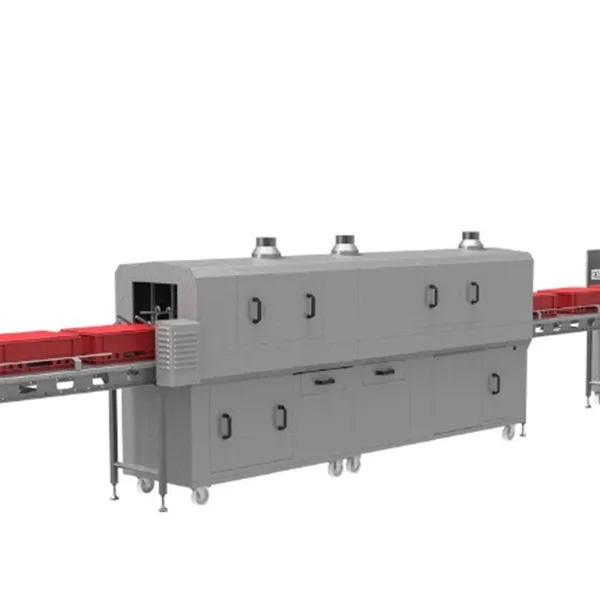

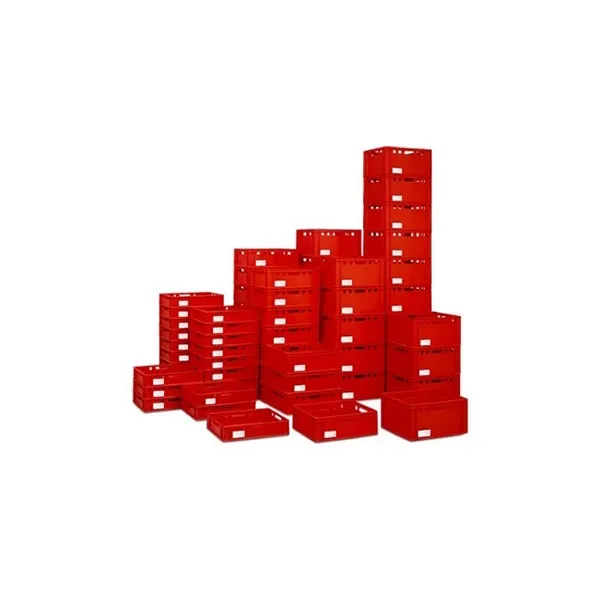

The NIEROS CLT range of tray tunnel washers clean and sanitize trays, crates, baskets, and other items with similar characteristics and dimensions.
A batch or in-line solution with the following optional module add-ons: water blow off/drying, sticker removal, noise reduction and more

Features:

-Washing capacity of up to 1500+ items per hour (depending on the model).
-Tunnel washing machine – Pre-wash, main wash and rinsing zones
-Stainless steel DIN 1.4301 (AISI 304) construction
-Electric or steam water heating
-Adjustable washing and rinsing parameters
-Washing, rinsing, and sanitizing with hot water up to 185°F (85°C)
-Automatic detergent dispenser
-Height adjustable feet
-Stainless steel DIN 1.4301 (AISI 304) conveyor chain
-Easily adjustable side guards and hold-down attachments
-Easy and convenient access to spray nozzles and water tanks
-Adjustable nozzles
-Sustained high-impact water jetting
-Electronically interlocked doors
-Multiple wash programs
-Object detection sensor in the rinsing zone
-Removable filter screens
-Market leading control panel IP65 rated
-Low operating costs with a water recycling system
-Double filter system to prolong pump’s lifespan
-Low-level water protection system

Sustainable solutions:
-Water recycling system effectively reduces water consumption by reusing fresh rinse water in other cleaning phases. The machine collects the rinse water to make it available either for a pre-washing or cleaning phase. As a result, the machine consumes significantly less freshwater in both these phases.

-Double filtering system prolongs the pump’s lifespan by ensuring that the double-filtered water flowing through the pump contains no dirt particles.

-Low water level protection stops the machine in case of insufficient water level in the system, preventing damage to the pump and heating elements that could appear in case of dry operation.

Pennsylvania, United States

8,794 km away

Stock Number

1051

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Cleaning and sanitising reusable crates and trays in food processing facilities.
Washing baskets and containers in bakeries and confectioneries.
Sanitising bulk bins and boxes in fruit and vegetable packing operations.
Cleaning equipment components and utensils in pharmaceutical production.
Washing returnable transit packaging in logistics and distribution centres.

Typical Specifications

Typical capacity: For this class of equipment, capacities commonly range from a few hundred to over 1500 items per hour, depending on the model and item size.
Power supply: Units of this type typically require a three-phase electrical supply, commonly 400V, 50Hz, with varying amperage based on heating and pump power.
Heating method: Water heating is commonly achieved via electric elements or direct steam injection.
Construction material: Industrial washers are typically constructed from stainless steel, commonly DIN 1.4301 (AISI 304) for hygiene and corrosion resistance.
Operating temperature: Washing and rinsing temperatures can typically reach up to 85°C for effective sanitation.
Water management: Many units feature a water recycling system to reduce consumption by reusing rinse water.

Frequently Asked Questions

This equipment is designed to clean and sanitise trays, crates, baskets, and other items with similar characteristics and dimensions. It is suitable for various reusable transit items.
