Doinghaus - Döinghaus Ultracut Filou Ultrasonic Cutting Machine
Copied to clipboard!
Price: $ 89,000

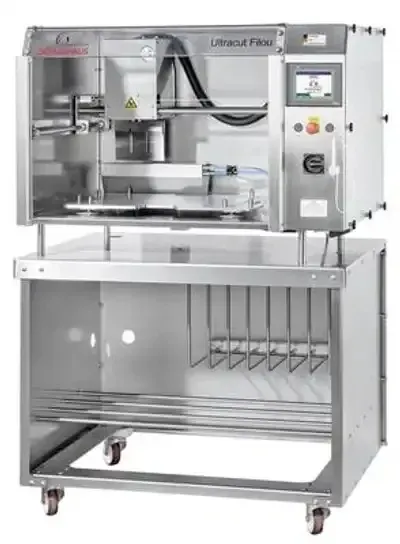

The Ultracut Filou is an automatically working ultrasonic cutting machine for cutting squares, rectangles, sheets, and round cakes in portions. Products are placed manually on the cutting table, the program is started via touch screen, and the cutting process works stepwise. Features a 12" wide ultrasonic blade, industrial PLC control, electronic safety light curtain, and a hygienic blade cleaning station using fresh water and compressed air at periodic intervals. A knife guard prevents major damage to the blade by automatically stopping the machine if it hits a hard surface. Comes with two cutting tables for different products, standard diagonal cut included. Can handle products in trays or on boards (max 16½" x 24⅜") and round products up to 11¾". Cutting time is approximately 0.8–2.0 seconds per cut. The whole machine is designed for easy and fast cleaning based on EHEDG guidelines. Stainless steel housing on casters. Includes Module 1 remote modem for service technician access. Packed in a wooden box.
Washington, United StatesDistance: 12,311 km away

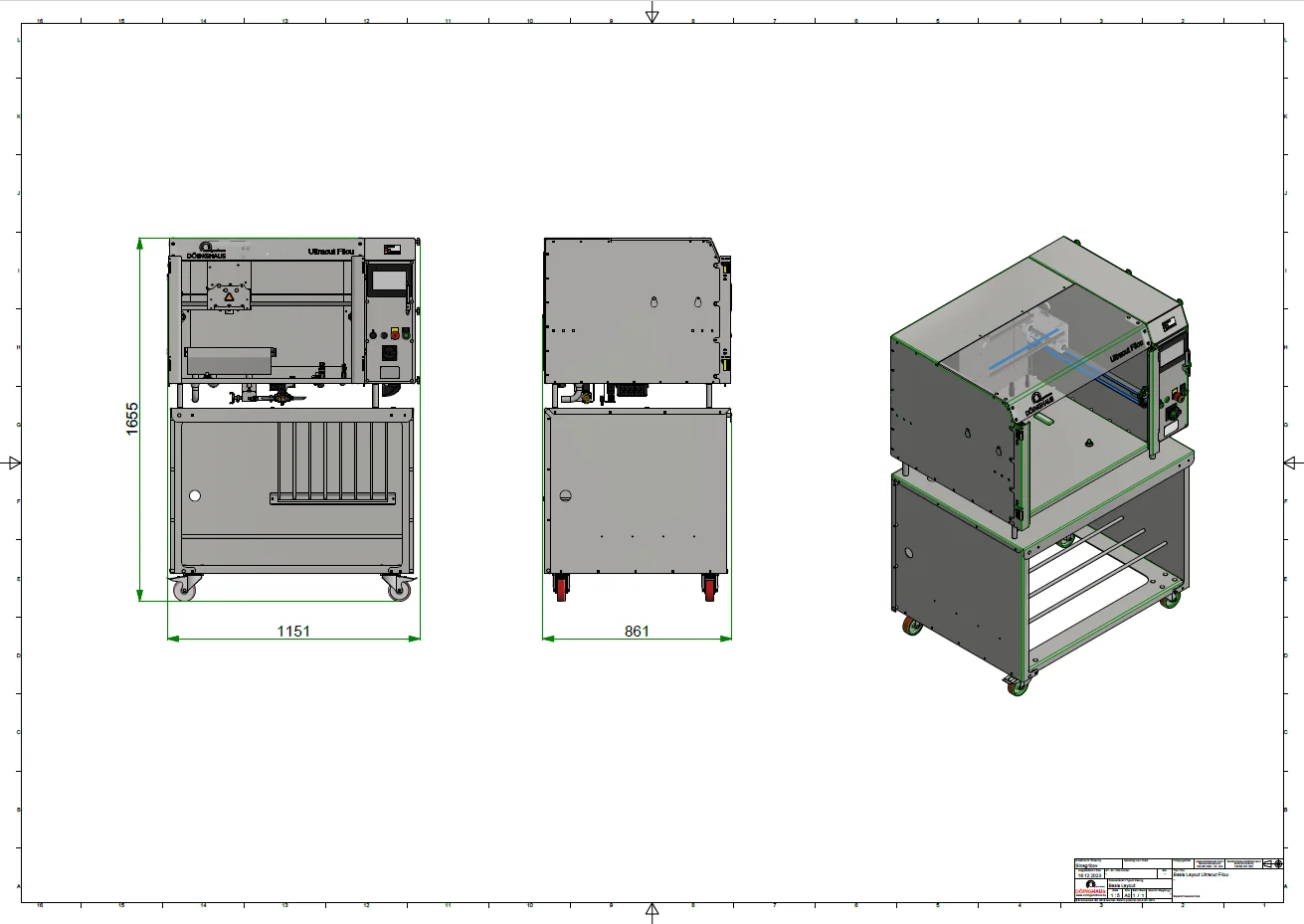

Length
45.375 in
Width
33.875 in
Height
65 in
Cutting System
Ultrasonic with 12" wide blade
Cutting Time
0.8–2.0 sec per cut (approx. 1.5 sec for most cakes)
Max Product Size (Trays/Boards)
16½" x 24⅜"
Max Round Product Size
Up to 11¾"
Cut Shapes
Square, rectangle, diamond, triangle (variable via touch screen), round portions
Cutting Temperature
Ambient temperature, cooled or frozen (still soft enough to cut)
Working Height
39⅜" (± 1")
Weight
770 lbs
Control
Industrial PLC with touch screen
Safety
Electronic safety light curtain, knife guard with automatic stop
Cleaning
Hygienic blade cleaning station (fresh water + compressed air), EHEDG guidelines
Housing
Stainless steel on casters
Electricity
Single phase, 220/208V, 60Hz (20 Amp breaker)
Compressed Air
Approx. 90 PSI, constant pressure volume
Water
Approx. 30 PSI, constant pressure volume
Included
2 cutting tables, standard diagonal cut, Module 1 remote modem, wooden box packaging, English manual
Delivery Time
10 weeks after order confirmation and receipt of down payment
Warranty
12 months after delivery on mechanical and electrical components (excludes expendable parts and tools)
Optional
Additional cutting tables — US $1,520
Year of Manufacture
2026
