What is a 'Smart Switch'?

A Smart Switch offers more features than an unmanaged switch, such as VLANs and QoS, but is simpler to configure than a fully managed switch, often via a web interface.

Can this switch be used with existing network infrastructure?

Yes, this type of switch is designed for seamless integration with existing Ethernet networks, supporting auto-negotiation for speed and duplex mode.

What are the benefits of Gigabit Ethernet ports?

Gigabit Ethernet ports provide significantly higher data transfer speeds (up to 1000 Mbps) compared to Fast Ethernet, which is crucial for bandwidth-intensive applications and large file transfers.

Is this unit suitable for industrial environments?

While robust, this model is primarily designed for office and light industrial environments. For harsh industrial settings, purpose-built industrial switches with extended temperature ranges and ruggedised casings are typically recommended.

Does this switch support Power over Ethernet (PoE)?

The PowerConnect 2808 model typically does not include Power over Ethernet (PoE) functionality. Buyers requiring PoE for devices like IP cameras or VoIP phones should verify this with the seller or consider alternative models.

How is this unit typically mounted?

Units of this size are commonly designed for desktop placement or can be rack-mounted using an optional rackmount kit, depending on the specific model and accessories included.

Used PowerConnect 2808 Smart Switch - Power Supplies & Switch Units, photo 1

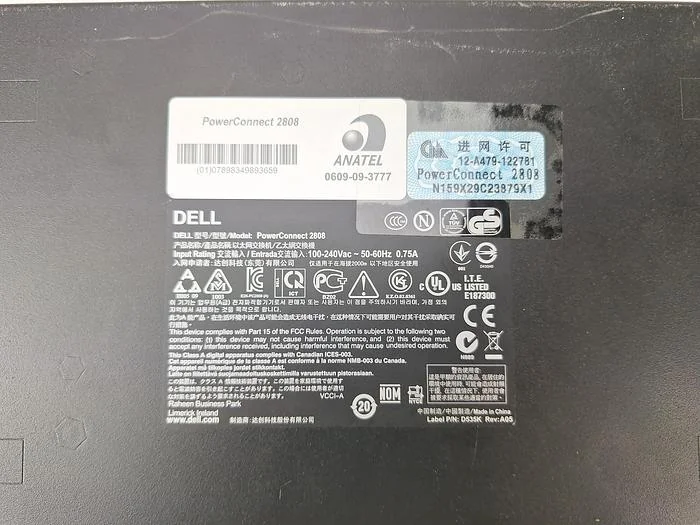

Used PowerConnect 2808 Smart Switch - Power Supplies & Switch Units, photo 2

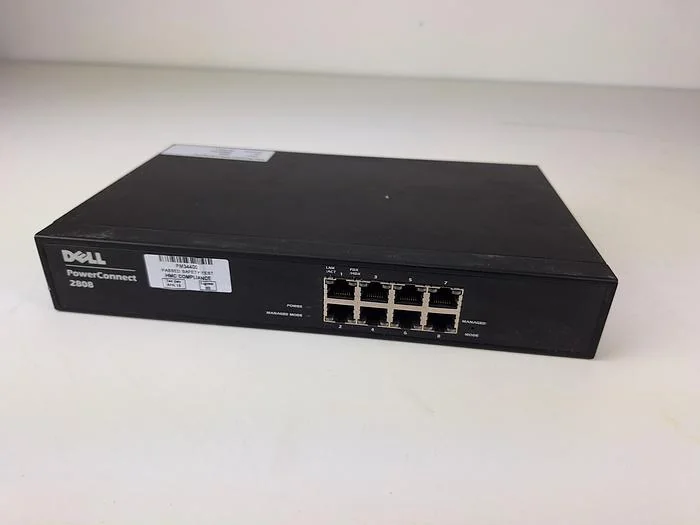

Used PowerConnect 2808 Smart Switch - Power Supplies & Switch Units, photo 3

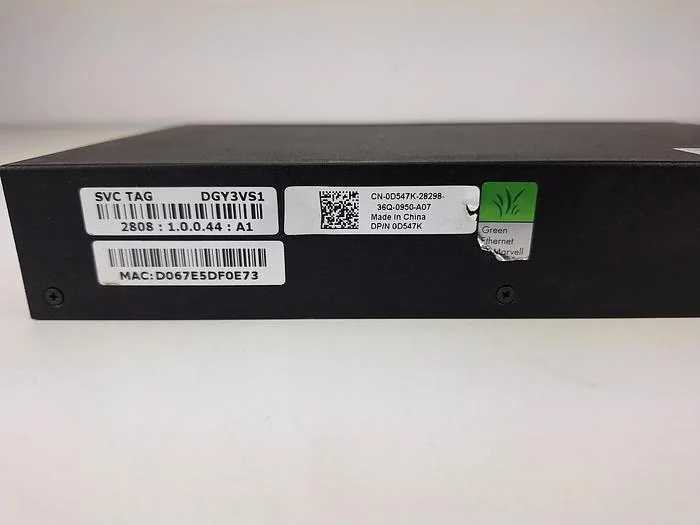

Used PowerConnect 2808 Smart Switch - Power Supplies & Switch Units, photo 4

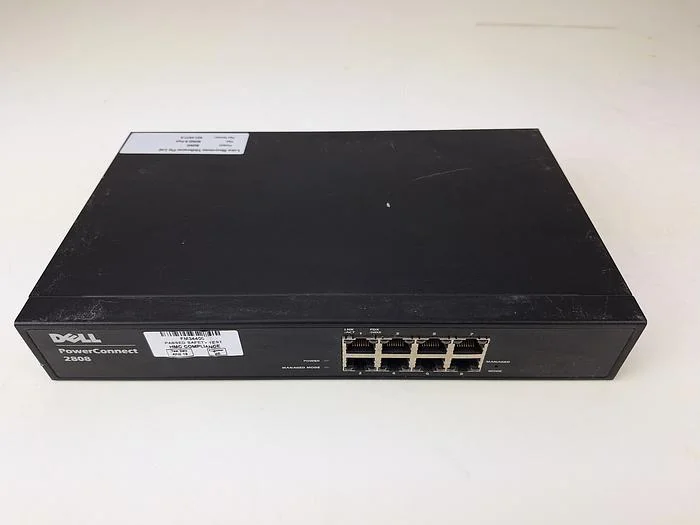

Used PowerConnect 2808 Smart Switch - Power Supplies & Switch Units, photo 5

Used PowerConnect 2808 Smart Switch - Power Supplies & Switch Units

used Equipment

Available

Verified seller

DELL - PowerConnect 2808 Smart Switch

Name: PowerConnect 2808 Smart Switch
Brand: DELL
SKU: 412973.DELSR11M
Price: 50 GBP
Availability: InStock

Price: £ 50

This listing is for a DELL PowerConnect 2808 Smart Switch.

The unit is in full working condition and is ready for immediate release.

DELL PowerConnect 2808 Smart Switch

The PowerConnect 2808 is an 8-port web-managed switch designed for diverse networking needs, from small workgroups to branch office aggregations.

Key Features:

Gigabit Ethernet Ports:

8 x 10/100/1000Base-T auto-sensing ports, ensuring high-speed connectivity for devices.

Power Efficiency:

Incorporates power reduction for short cables or inactive connections, contributing to energy savings.

Auto-Negotiation:

Automatically negotiates speed, duplex mode, and flow control for optimal performance.

Virtual Cable Diagnostics:

Uses Marvell’s technology for diagnostics, allowing for easier troubleshooting of connectivity issues.

Visual Monitoring:

Equipped with integrated LEDs for real-time monitoring of switch status and port activity.

High Capacity:

Switch Fabric Capacity: Up to 16 Gbps

Forwarding Rate: 11.9 Mpps, supporting smooth data transmission.

VLAN Support:

Supports up to 64 port-based VLANs, enhancing network segmentation and security.

Quality of Service (QoS):

Provides 4 priority queues per port, utilizing 802.1p and IP DSCP values for traffic prioritization.

Link Aggregation:

Adheres to IEEE 802.3ad standards, supporting up to 4 link aggregation groups with 4 ports each, improving bandwidth utilization.

Security Features:

Local passwords and restricted IP addresses ensure secure switch access.

Port Mirroring:

Allows mirroring of four source ports for effective network traffic monitoring and troubleshooting.

DHCP Support:

Includes an internal DHCP server and client support for simplified IP address management.

User-Friendly Management:

Easily configurable via an intuitive web-management interface, with easy upload/download of configurations and switch software.

Enhanced Performance:

Jumbo frame support for packets up to 9000 bytes, optimizing large data transfers.

Network Stability:

Cambridgeshire, United Kingdom

5,791 km away

Model Number

PowerConnect 2808

Stock Number

412973.DELSR11M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Providing network connectivity for small to medium-sized workgroups within labs or offices.
Aggregating network traffic from various devices in a branch office or departmental setting.
Connecting IP-enabled laboratory instruments and control systems to a central network.
Extending network infrastructure in facilities requiring reliable data transfer for utilities and power monitoring.
Supporting VoIP phones, security cameras, and other network peripherals in a professional environment.

Typical Specifications

Typical Port Configuration: Units in this class commonly feature 8 Gigabit Ethernet ports (10/100/1000Base-T).
Switch Fabric Capacity: For this class of equipment, a switch fabric capacity of up to 16 Gbps is typical.
Forwarding Rate: A forwarding rate of approximately 11.9 Mpps is commonly found on units of this type.
Power Supply: Typically operates on standard AC mains power, with an internal or external power adapter.
Management Type: Web-managed (Smart Switch) functionality is standard for this model, offering a balance of features and ease of use.
VLAN Support: Units commonly support up to 64 port-based VLANs for network segmentation.
Quality of Service (QoS): Typically includes 4 priority queues per port, utilising 802.1p and IP DSCP values.
Link Aggregation: Adherence to IEEE 802.3ad standards, supporting multiple link aggregation groups, is a common feature.

Frequently Asked Questions

A Smart Switch offers more features than an unmanaged switch, such as VLANs and QoS, but is simpler to configure than a fully managed switch, often via a web interface.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
