Dolaf Bin Tipper

BTH/750/1100/B/G Hydraulic Dolaf Bin Tipper

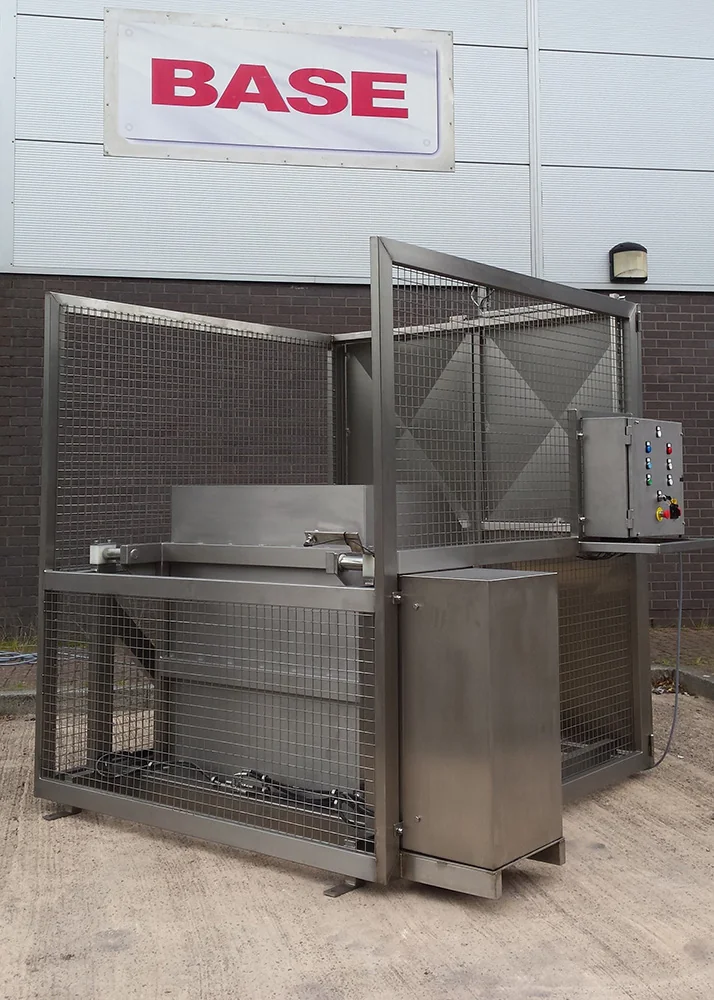

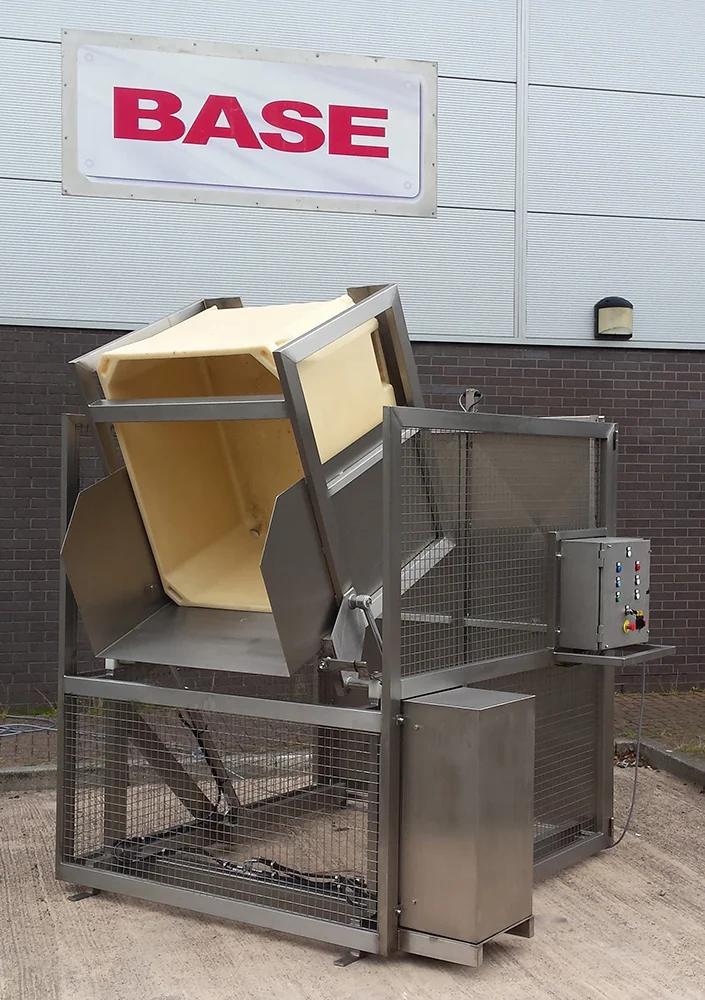

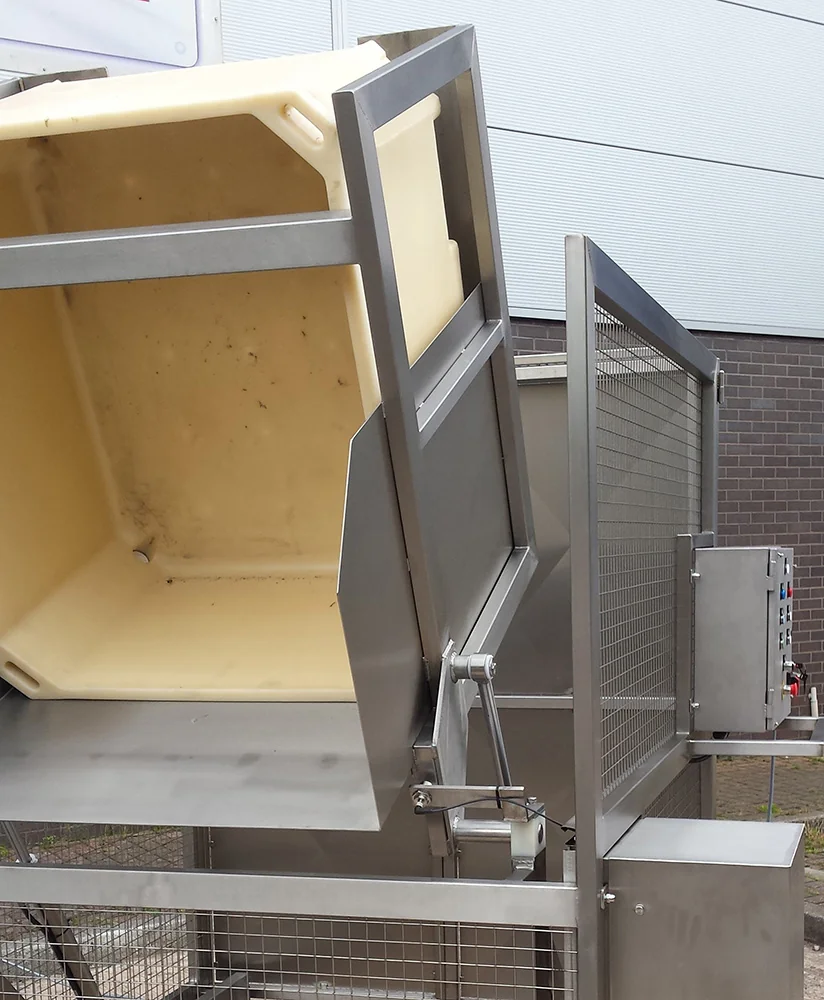

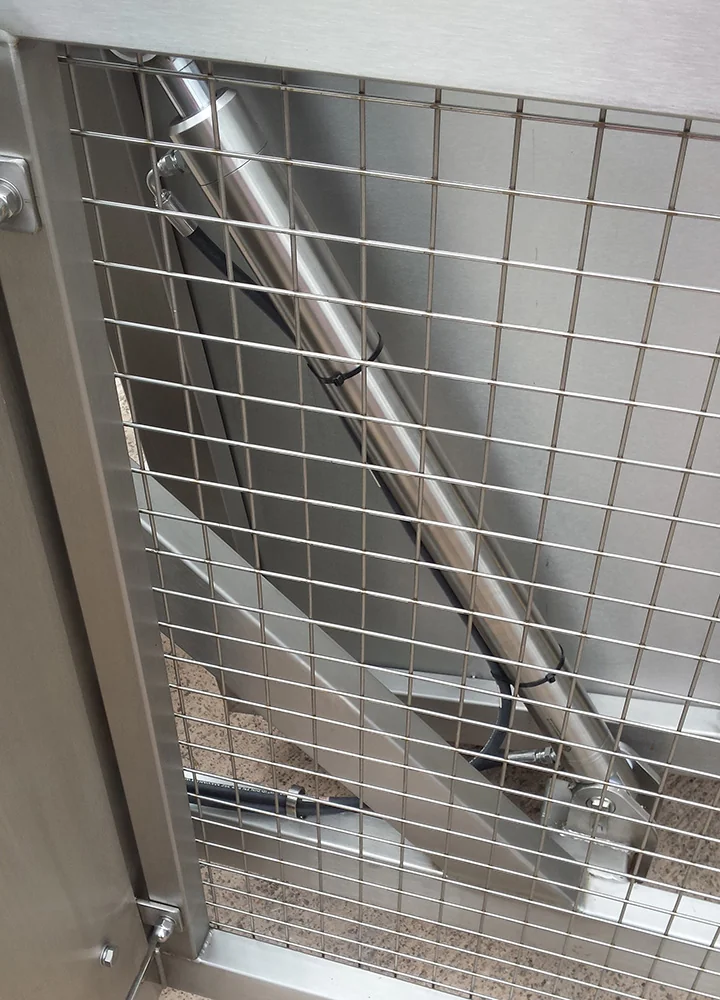

This Dolaf Bin Tipper was designed to lift and tip a 660 Litre Insulated Container at a height of 1100mm and has a Safe Working Load of 750 Kgs. The Dolaf Bin Tipper was constructed from Grade 304 stainless steel, is a TIG welded construction throughout and was designed to be bolted to the floor. This Dolaf Bin Tipper was powered via a hydraulic powerpack and would tip the containers by the extension of a stainless steel hydraulic cylinder to an angle of 30 degrees past the horizontal. The hydraulic cylinder is fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor. The Hydraulic Powerpack will be mounted under a stainless steel enclosure and the motor will be stainless steel rated to IP69. The C-Top Valves will also be under the cover but will only be rated to IP65.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

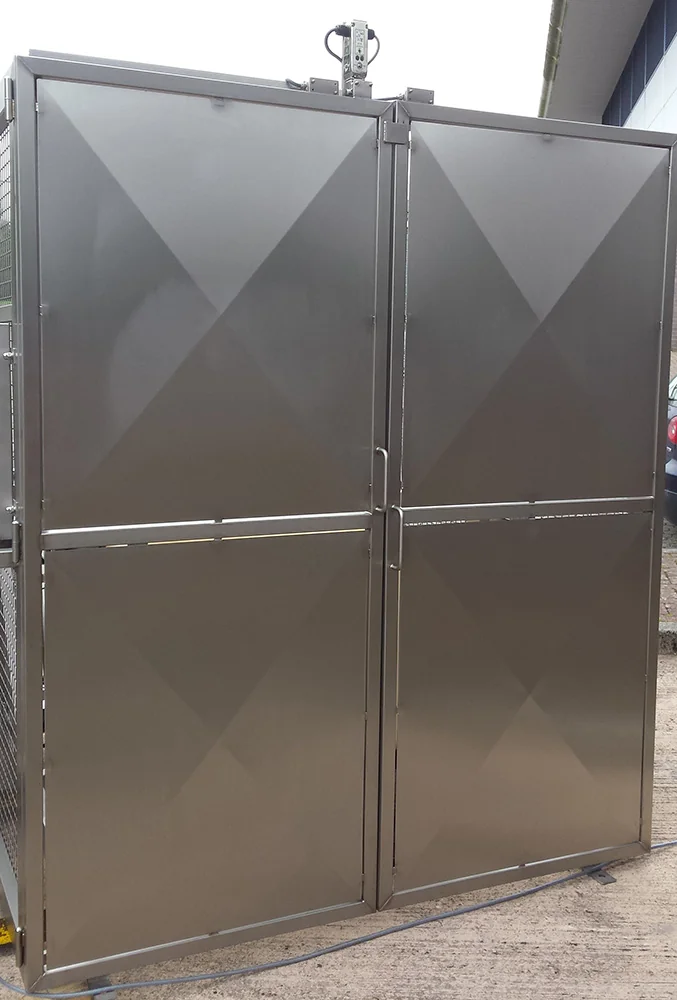

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture stainless steel weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard encloses the Dolaf Bin Tipper to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Dolaf Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Dolaf Bin Tipper Electrical Control

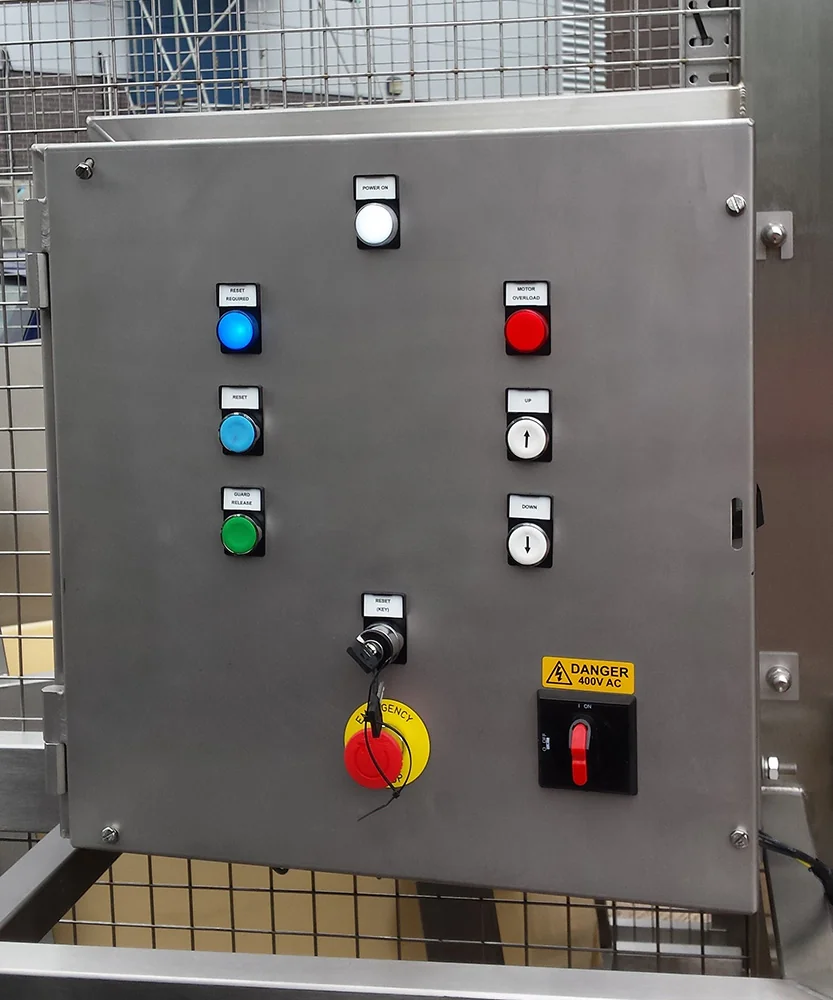

This Dolaf Bin Tipper is fitted with an IP66/67 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). IP66 Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Dolaf Bin Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Dolaf Bin Tipper to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.
