What safety features are typically included?

Units commonly feature interlocked guarding, emergency stop buttons, and safety chains or sensors to prevent operation if the bin is not correctly positioned. PUWER compliance is a standard expectation.

Can this tipper handle different bin sizes?

This specific unit is designed for 1100L wheelie bins. Other tippers in this category may offer adjustable cradles or be specified for a range of bin sizes; buyers should confirm compatibility with the seller.

What are the typical maintenance requirements?

Routine maintenance typically involves checking chain tension, lubricating moving parts, inspecting electrical connections, and ensuring all safety features are operational. Stainless steel construction simplifies cleaning.

Is installation complex?

Installation typically requires bolting the unit to a suitable floor and connecting it to a mains electrical supply. Integration with existing control systems may require specialist electrical work.

What is the typical operational noise level?

While specific levels vary, these units are generally designed for industrial environments. Noise levels are typically moderate during operation, primarily from the motor and chain drive.

Available

Verified seller

Double Column Wheelie Bin Tipper

Name: Double Column Wheelie Bin Tipper
SKU: BTM/2P/1000/2100/B
Availability: InStock

Price: Contact seller for price

BTM/2P/1000/2100/B Double Column Wheelie Bin Tipper

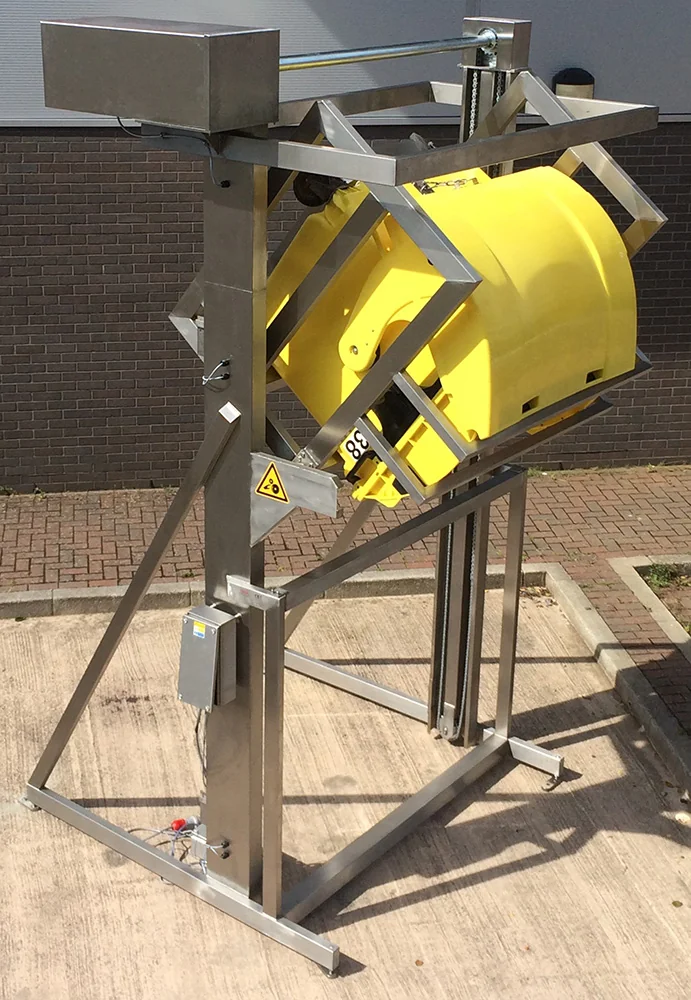

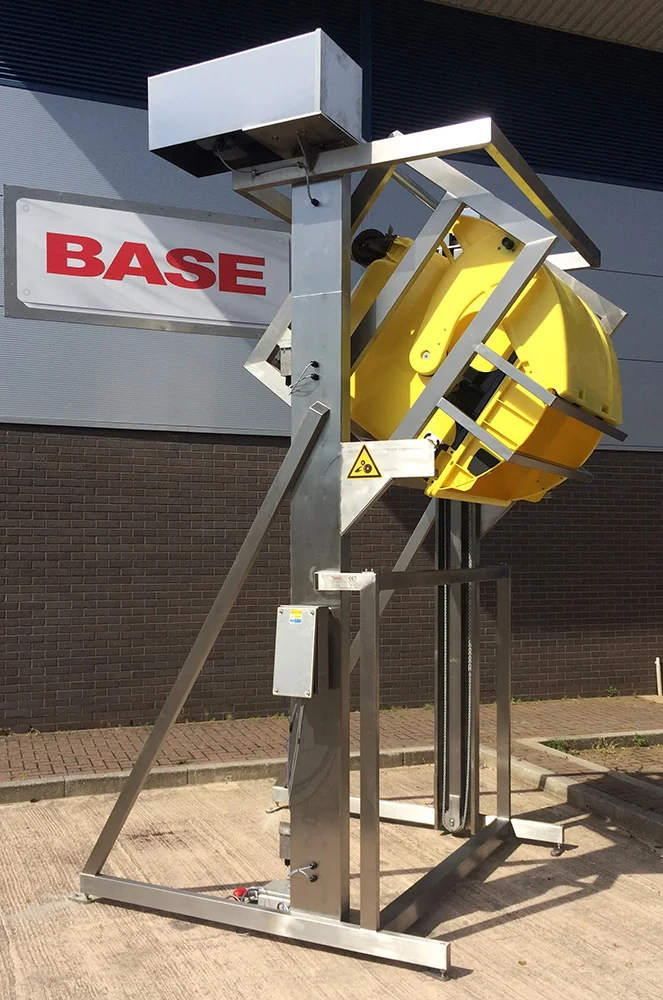

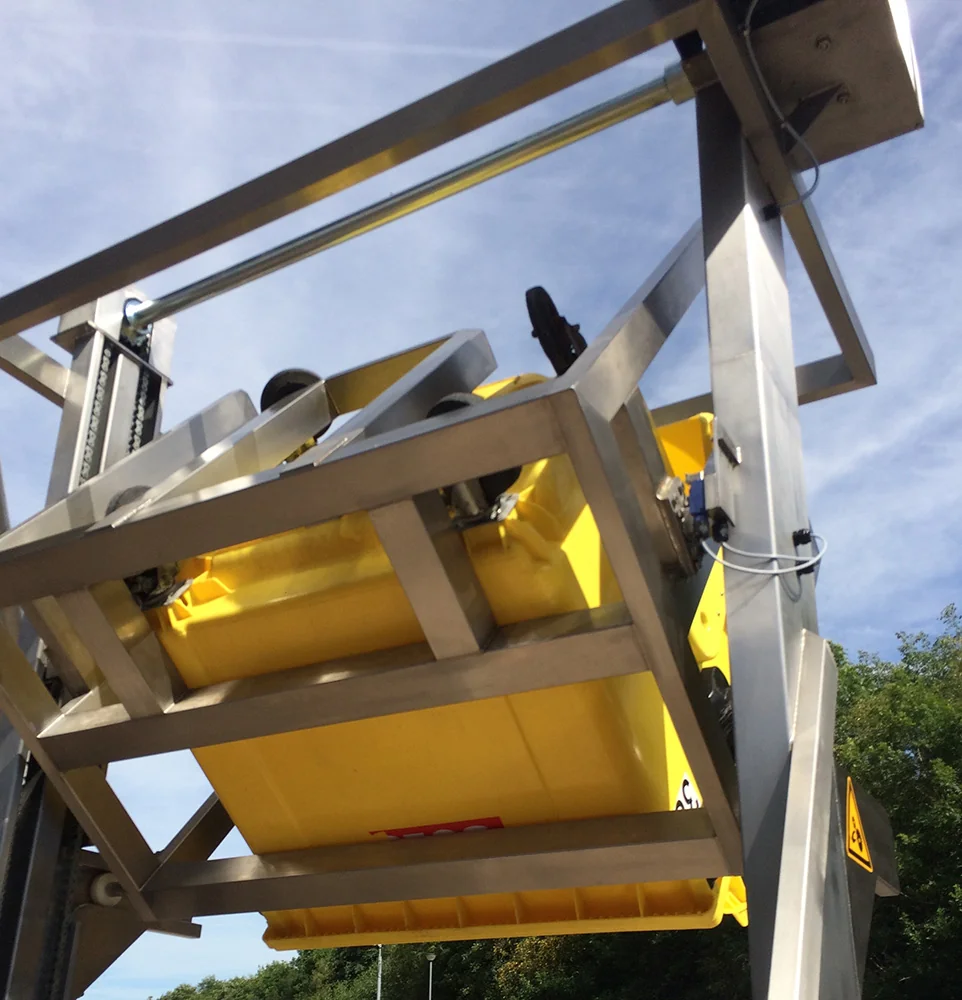

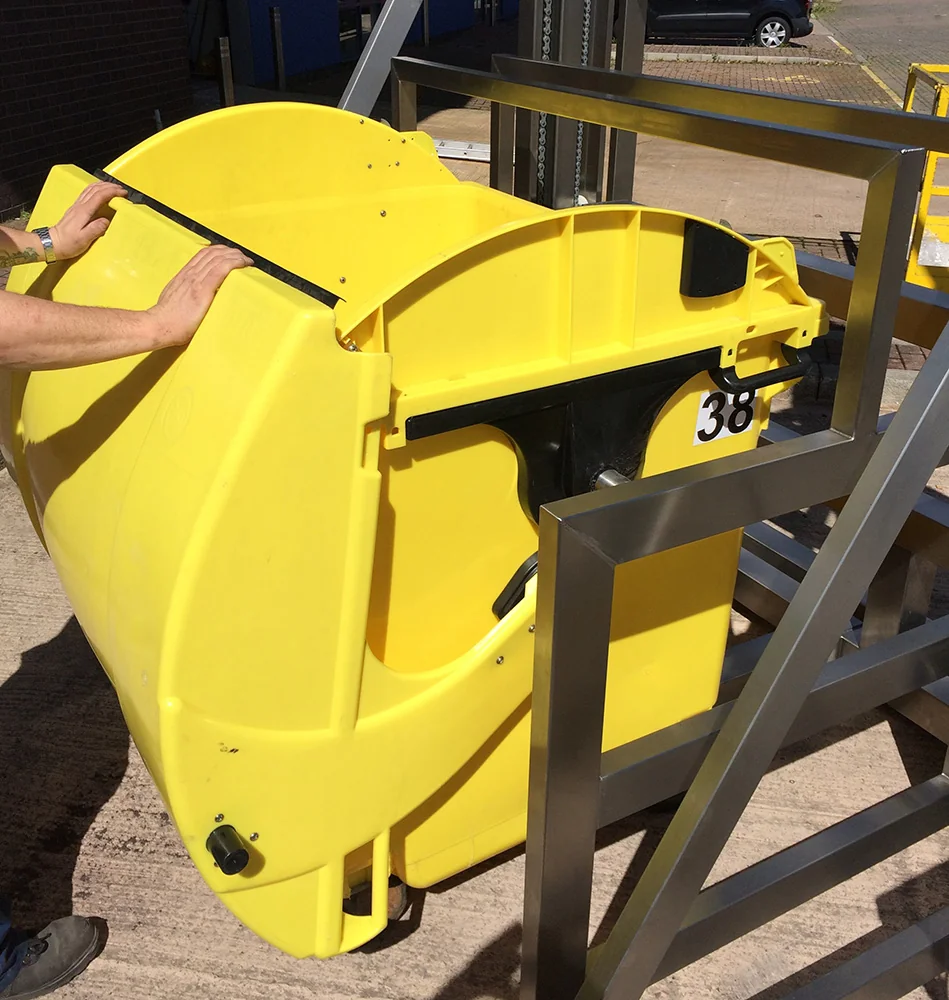

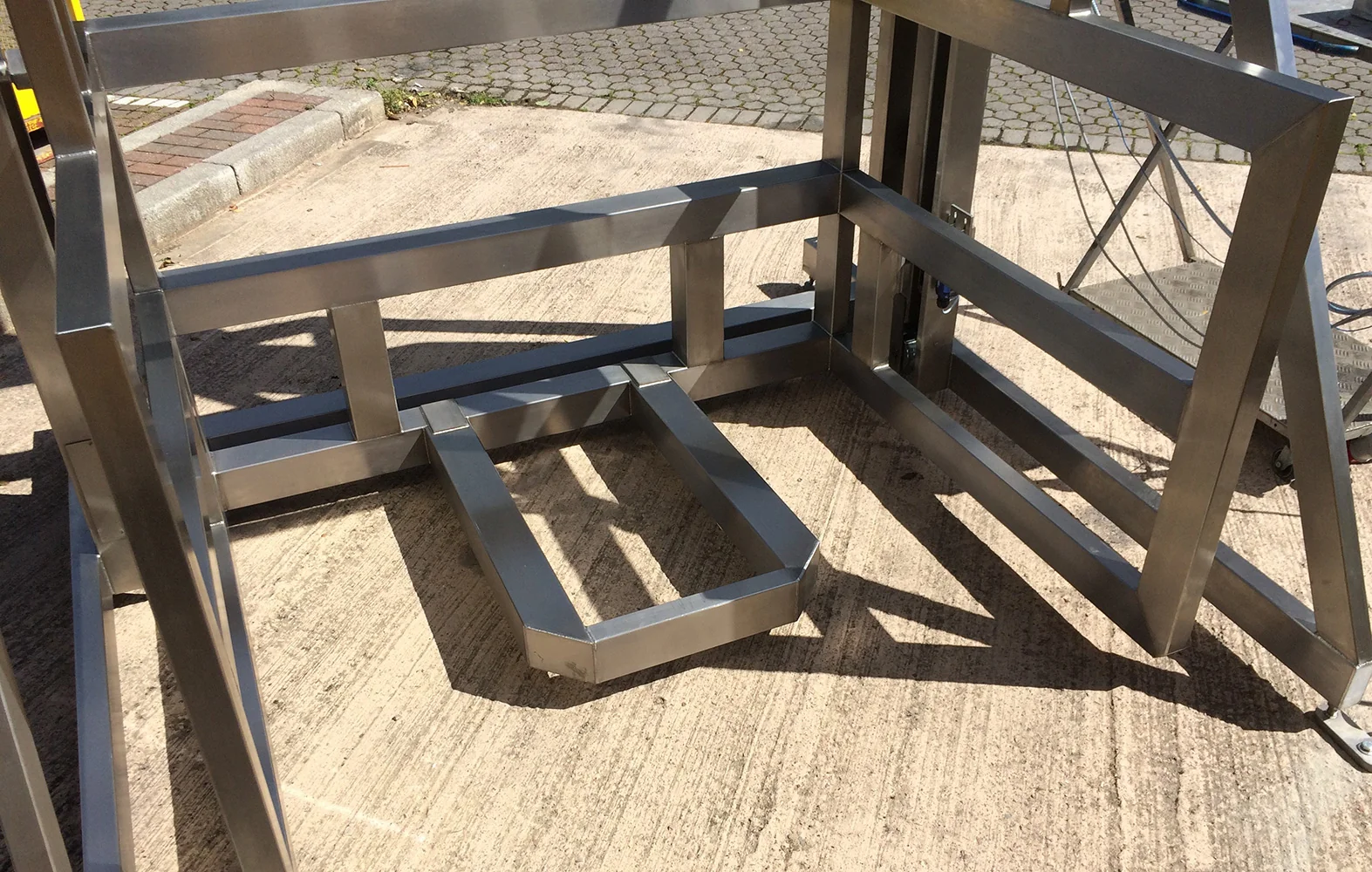

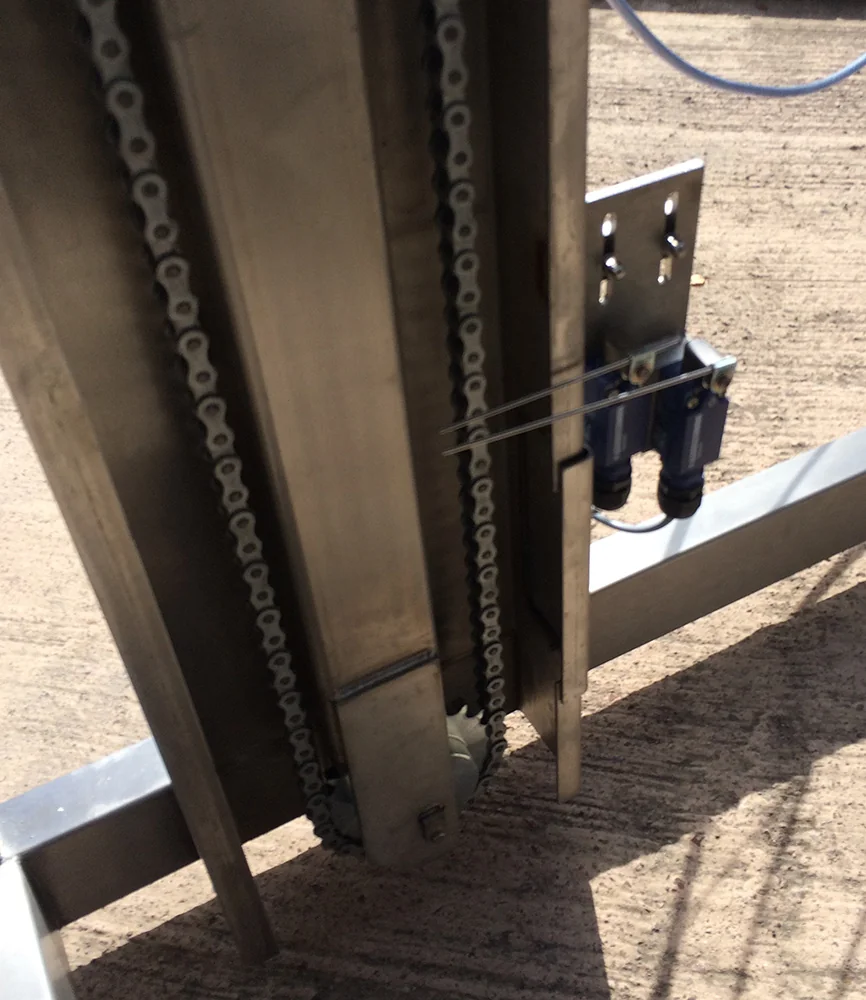

This Double Column Wheelie Bin Tipper is designed to lift and tip an 1100 Litre Wheelie Bin at a discharge height of 2100mm. The Double Column Wheelie Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column. The bin lid must be opened prior to loading the bin or the bin will not enter the lift carriage.

Double Column Wheelie Bin Tipper Electrical Control

This Double Column Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Terminal Box which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control was incorporated into the Main Control System by others.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Double Column Wheelie Bin Tipper

Model No.

BTM/2P/1000/2100/B

Capacity

1000Kgs

Tipping Height

2100mm

Tipping Angle

130 Degrees

Overall Height

4091mm

Machine Handing

Right Hand

Maximum Headroom

4500mm

Tipping Chute

Container Description

1100 Litre Wheelie Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Gearbox Detail

SEW Eurodrive

Motor Detail

2.2kW, 415V, 3 PHASE, 50 CYCLE C/W BRAKE

Lift Chain

1" Simplex

Tensile Strength

6000 Kgs, 3000 Kgs

Tension Chain

¾” Simplex

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/2P/1000/2100/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients or waste in food production lines.
Loading hoppers or conveyors with bulk materials.
Emptying waste bins in industrial kitchens or processing plants.
Handling ingredients in bakeries, dairies, or meat processing facilities.

Typical Specifications

Typical capacity: Designed for 1100 Litre wheelie bins; other units in this class commonly handle 240L to 1280L bins.
Discharge height: This unit offers 2100mm; units of this type commonly range from 1500mm to 3000mm.
Construction material: Grade 304 stainless steel, suitable for hygienic environments. Other units may use Grade 316 for enhanced corrosion resistance.
Power supply: Typically 3-phase electrical supply (e.g., 400V, 50Hz) for motor gearbox operation.
Control system: IP65 rated stainless steel terminal box is standard; integration into existing plant control systems is common.
Mounting: Units of this type are typically bolted to the floor for stability and safety.

Frequently Asked Questions

Units commonly feature interlocked guarding, emergency stop buttons, and safety chains or sensors to prevent operation if the bin is not correctly positioned. PUWER compliance is a standard expectation.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
