Double Pillar Box Tipper

BTM/2P/600/1450/B/G Double Pillar Box Tipper

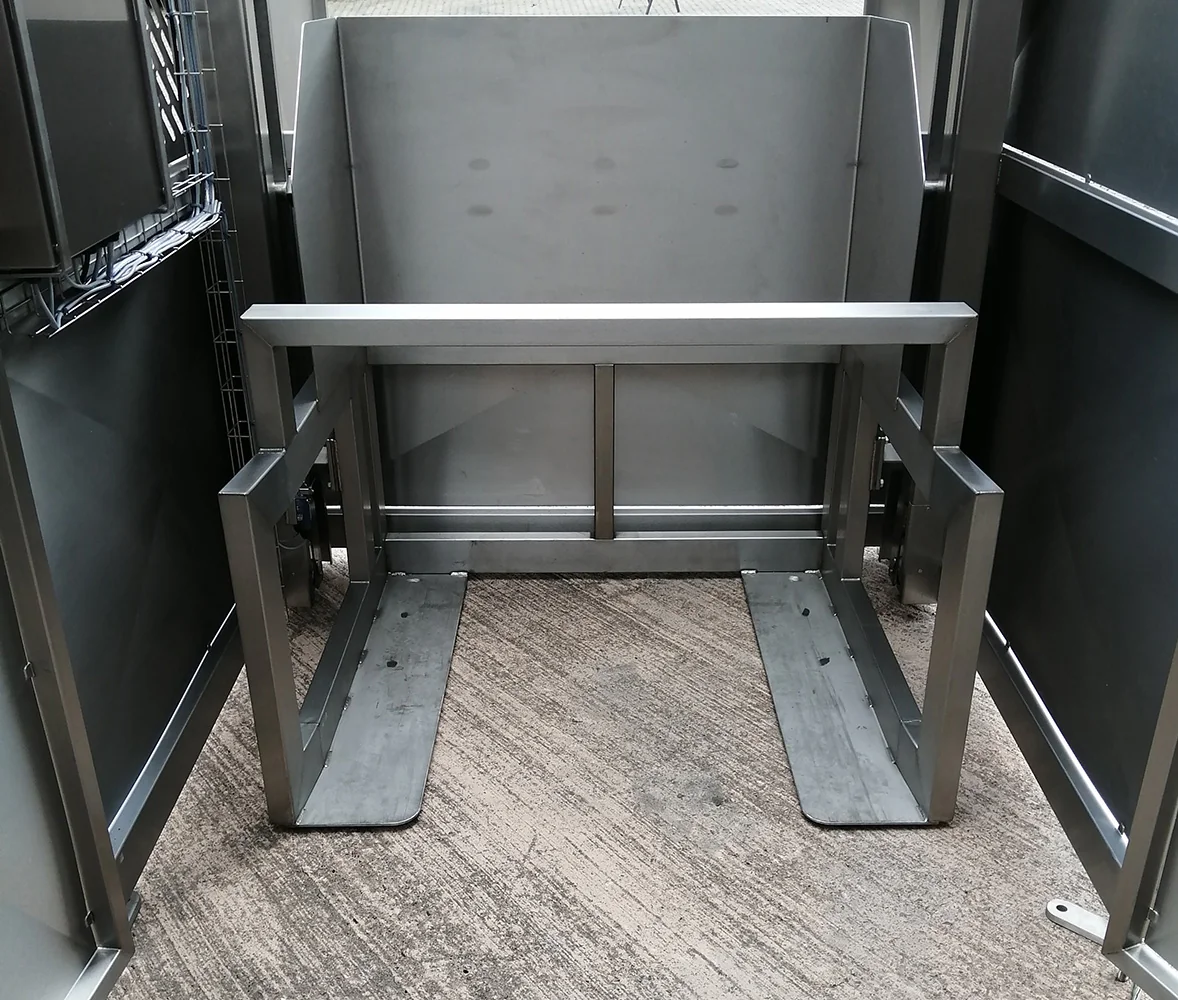

This Double Pillar Box Tipper is designed to lift and tip a 600 Kgs Dolaf Container (1120mm L x 1120mm W x 800mm H) at a discharge height of 1450mm. The Double Pillar Box Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

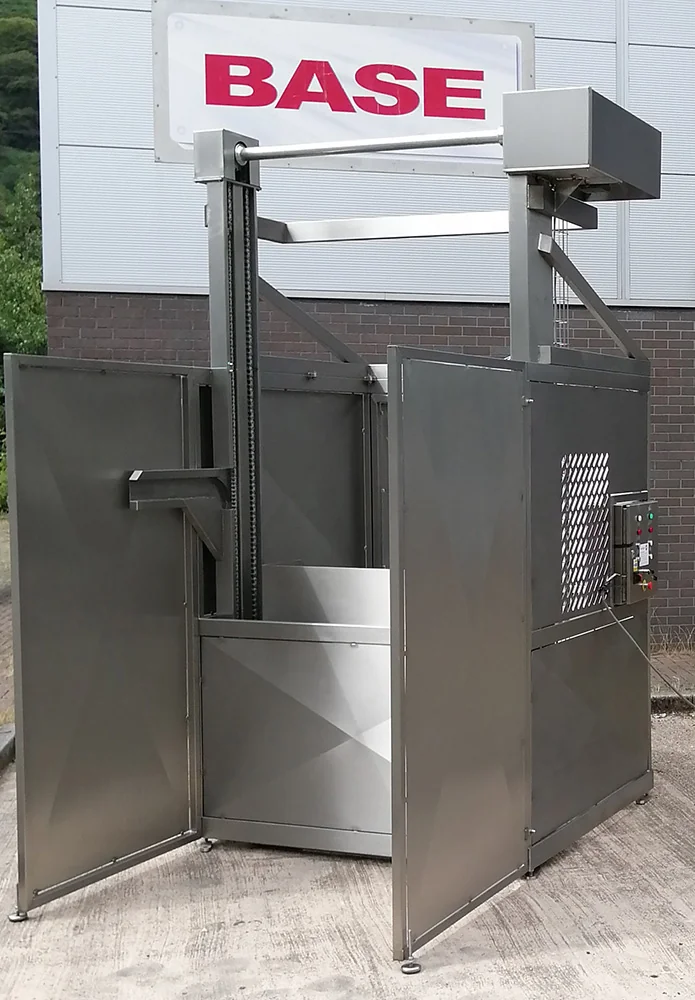

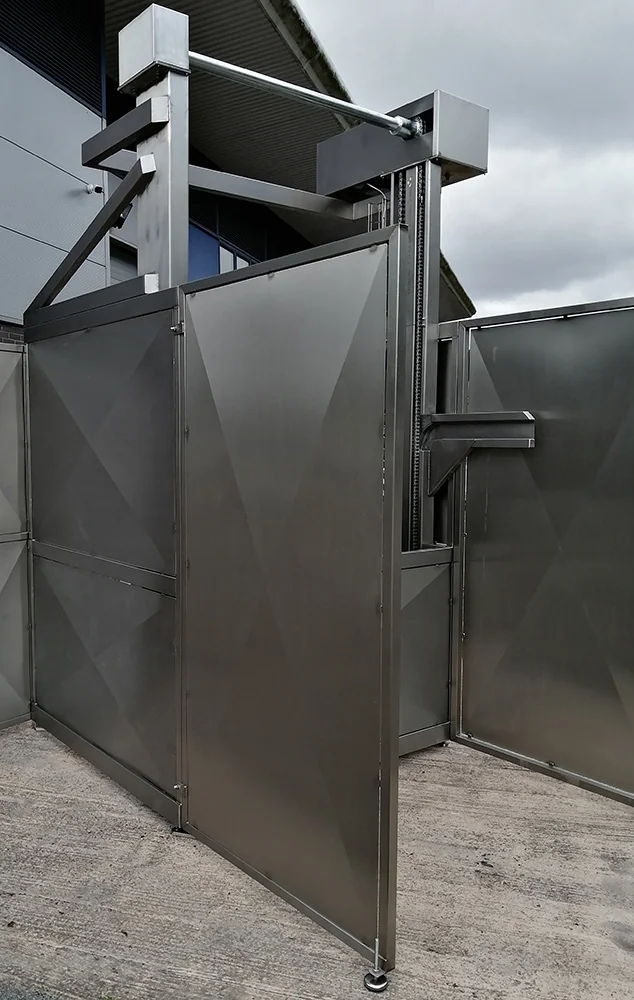

This Double Pillar Box Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. It encloses the Double Pillar Box Tipper to a height of 2200mm on two sides, 1300mm at the tipping position with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Double Pillar Box Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

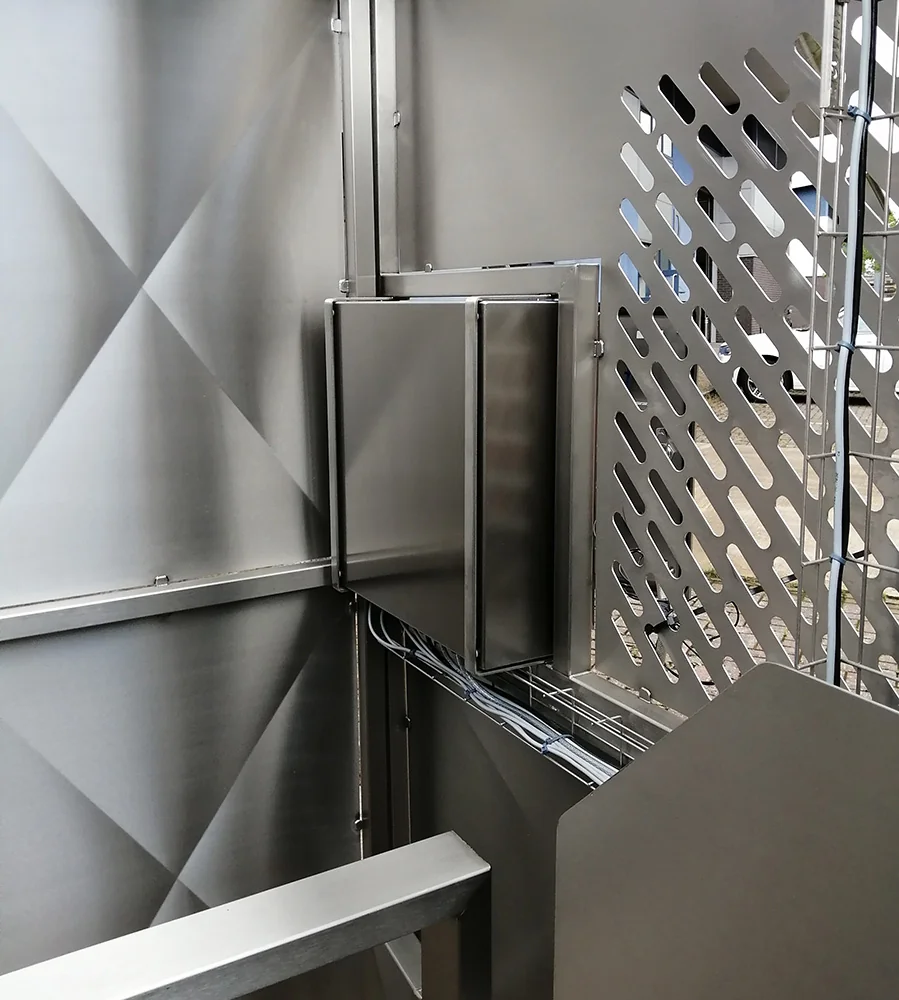

Also included were 2 off guards at each side of the Double Pillar Box Tipper to guard the tipping cam area from access. These guards bolted to the main guard so that they could be easily removed for maintenance access.

Double Pillar Box Tipper Electrical Control

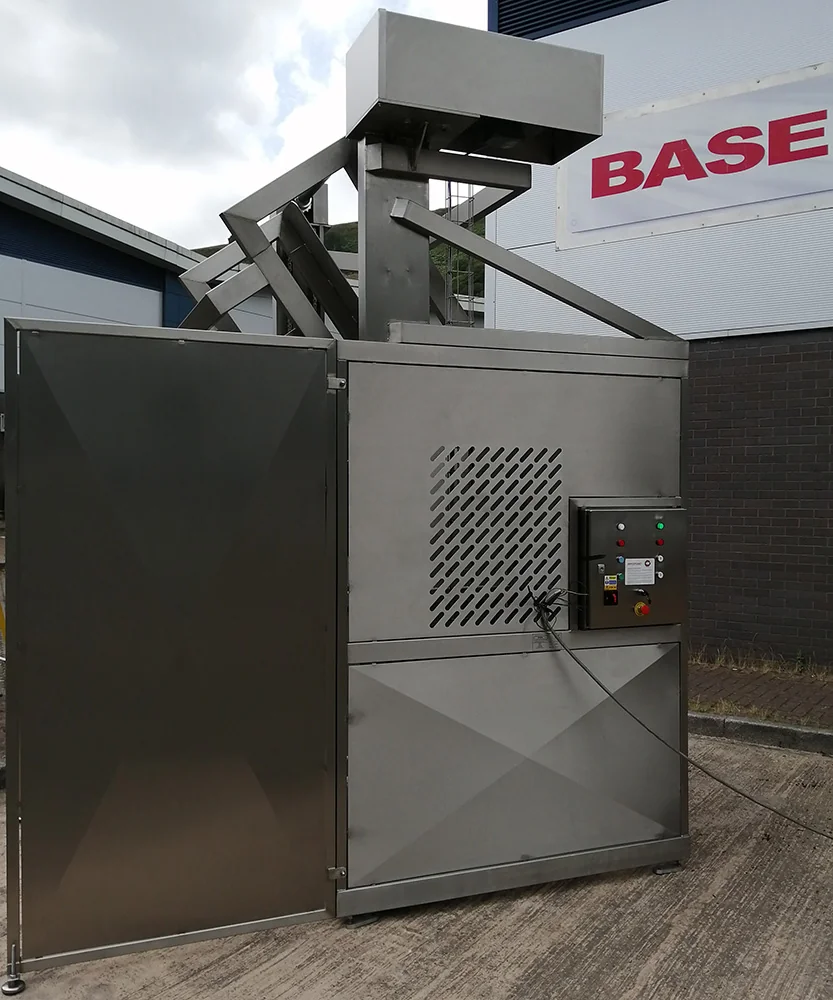

This Double Pillar Box Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the Safety Guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility.

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The guarded Double Pillar Box Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Double Pillar Box Tipper to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.
