BTM/750/1800/B/G Double Pillar Lifter

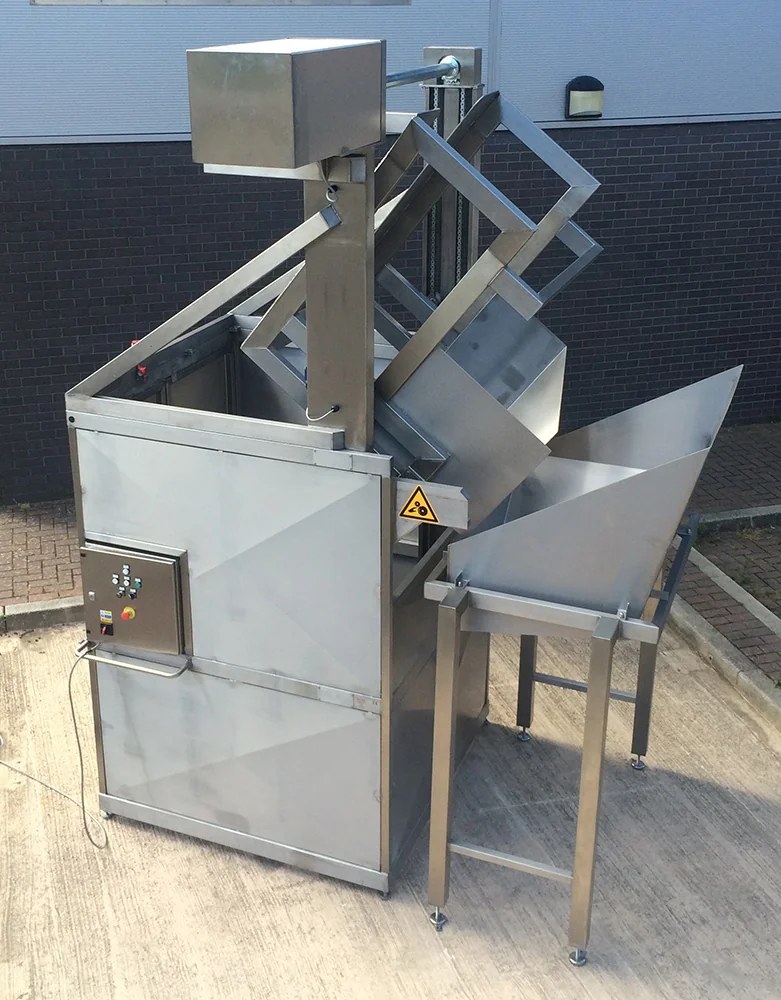

This Double Pillar Lifter is designed to lift and tip at a discharge height of 1800mm via an intermediate hopper into a screw feeder. The Double Pillar Lifter is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

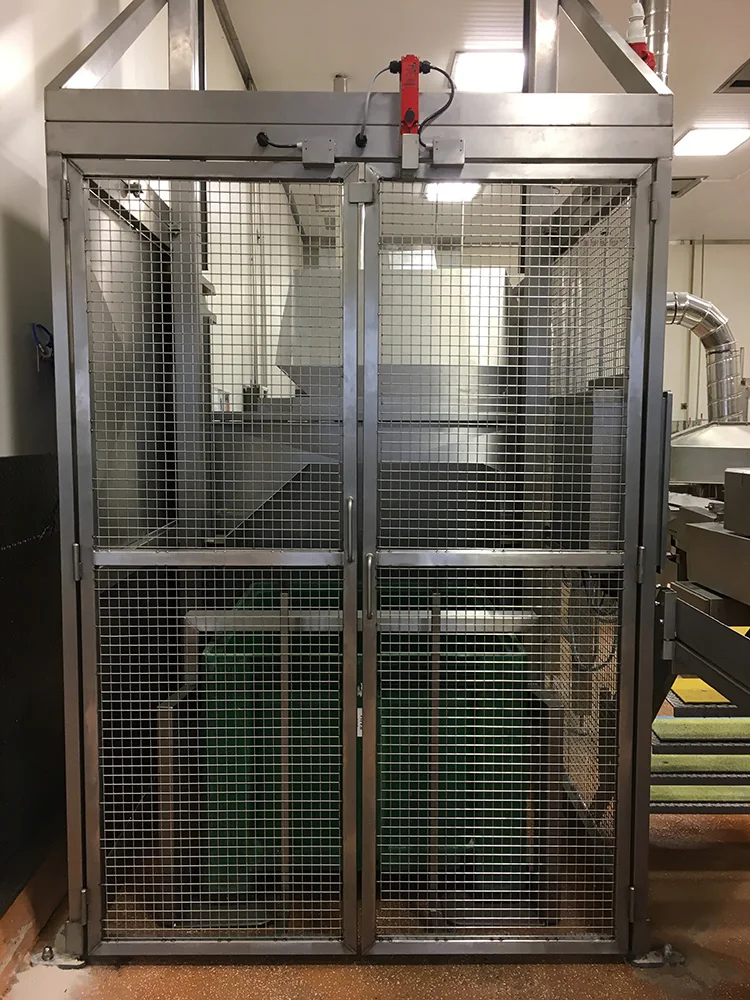

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 1.5mm stainless steel sheet to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. It encloses the Double Pillar Lifter to a height of 2200mm on two sides, 00mm on the tipping side with a pair of hinged gates on the fourth side. The guard doors are electrically and mechanically interlocked preventing the Double Pillar Lifter from operating when a door is open. Additionally, the guard doors can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised. The safety guarding will extend out beyond the front of the Double Pillar Lifter to guard the tipping area.

Double Pillar Lifter Electrical Control

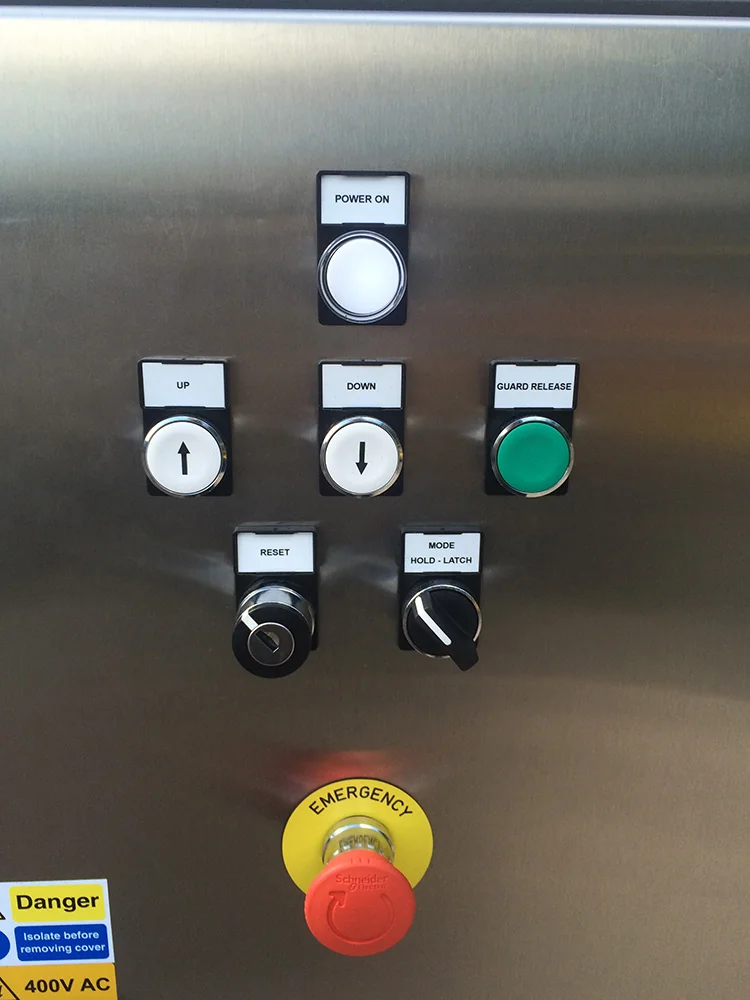

This Double Pillar Lifter is fitted with an IP65 Stainless Steel Control Panel which is mounted on the safety guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Double Pillar Lifter operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Double Pillar Lifter to the full down position. The control panel has the facility for a ‘call to run’ signal to be connected if required. There will also be a selector switch to change between latched operation and hold to run operation.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Double Pillar Lifter

Model No.

BTM/750/1800/B/G

Capacity

750 Kgs

Tipping Height

1800mm

Tipping Angle

130 Degrees

Overall Height

3916mm

Machine Handing

Left Hand

Maximum Headroom

4000mm

Tipping Chute

Yes

Container Description

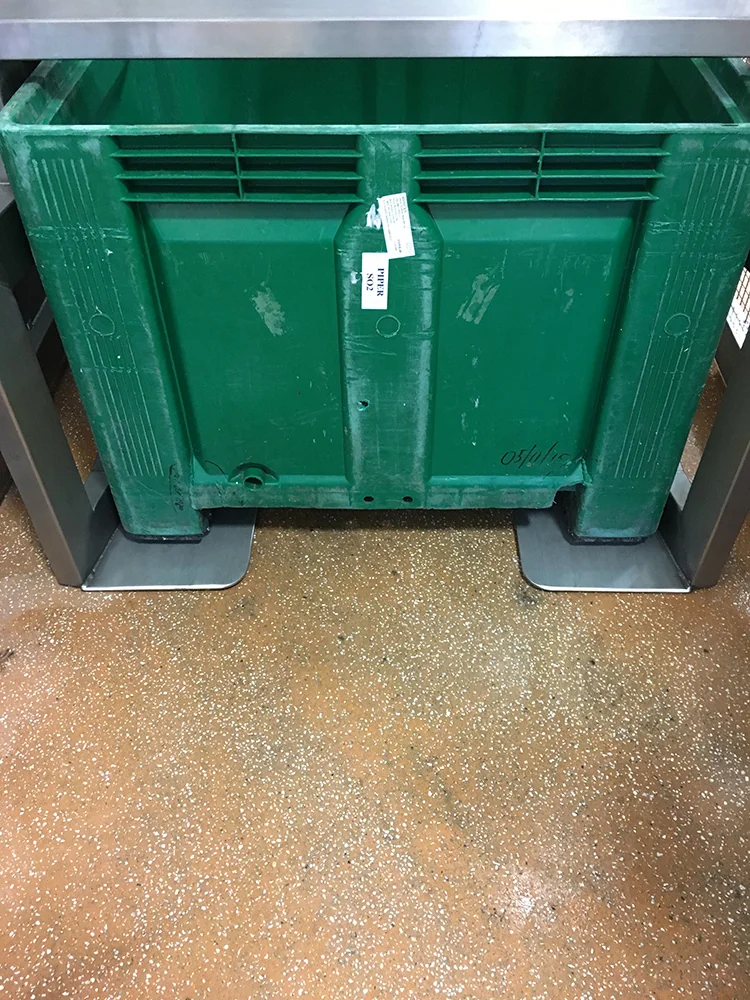

Dolaf Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

1.5kw, 415V, 3 PHASE, 50 CYCLE C/W BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

1" Simplex

Tensile Strength

6000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/750/1800/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring bulk ingredients from floor-level containers into processing machinery.
Loading mixers, hoppers, or other equipment with raw materials in food production.
Elevating and discharging products in bakeries, dairies, and meat processing plants.
Integrating into automated production lines for controlled material feeding.
Handling ingredients in pharmaceutical or chemical industries requiring hygienic transfer.

Typical Specifications

Typical lift capacity: For this class of equipment, lift capacities commonly range from 200kg to 1000kg, depending on design.
Discharge height: This unit is specified for 1800mm; other units typically offer discharge heights from 1200mm to 3000mm.
Construction material: Units of this type are typically manufactured from Grade 304 or 316 stainless steel for hygiene and durability.
Power supply: Commonly requires a 3-phase electrical supply, typically 400V, 50Hz, with varying motor power.
Lifting mechanism: Chain-driven systems are common, often with a motor gearbox and crossover shaft for synchronised lifting.
Safety standards: Units are typically designed to comply with BS EN 14120:2015 and other relevant machinery safety directives.
Control panel rating: IP65 rated control panels are commonly found, indicating protection against dust and water jets.
Mounting: Double pillar lifters are typically designed for floor bolting to ensure stability during operation.

Frequently Asked Questions

Double pillar lifters are typically designed to accommodate standard Eurobins (200L or 300L) or custom-sized containers, depending on the carriage configuration. Buyers should confirm compatibility with their specific bins.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
