What type of pallets can this conveyor handle?

Driven roller conveyors are generally suitable for most standard pallet types (e.g., Euro pallets, Chep pallets) as long as the pallet base allows for stable contact with the rollers. Pallets with open or irregular bases may require specific considerations.

Is this conveyor suitable for outdoor use?

While electro-galvanised steel offers good corrosion resistance, continuous outdoor exposure to harsh weather conditions is typically not recommended without additional protective measures or specific outdoor-rated components. Buyers should confirm with the seller for this specific unit.

Can the speed of the conveyor be adjusted?

Many modern driven roller conveyors can be fitted with variable speed drives (VSDs) to adjust the operating speed. For this specific used unit, buyers should enquire with the seller about current speed settings and potential for adjustment.

What maintenance is typically required for a driven roller conveyor?

Routine maintenance typically involves checking chain tension, lubricating moving parts, inspecting rollers for wear or damage, and ensuring gear motor functionality. Regular cleaning to prevent debris build-up is also important.

How is power supplied to this type of conveyor?

Driven roller conveyors typically require a standard industrial electrical supply, commonly 3-phase, with voltage and amperage requirements dependent on the motor size and overall system length. Buyers should confirm the exact electrical specifications with the seller.

Can this conveyor be integrated into an existing system?

Yes, driven roller conveyors are often designed for modularity and can typically be integrated into existing material handling systems. Compatibility will depend on control systems, height matching, and load specifications of the current setup.

Home
/
Food Processing
/
Food Handling & Storage
/
Conveyor Systems
/
Driven roller pallet conveyor

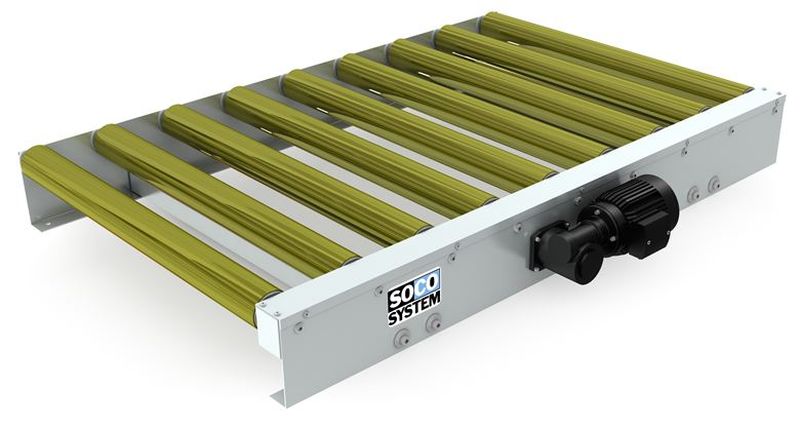

Used Driven roller pallet conveyor - Conveyor Systems, photo 1

Used Driven roller pallet conveyor - Conveyor Systems

used Equipment

Available

Verified seller

Soco Systems - Driven roller pallet conveyor

Name: Driven roller pallet conveyor
Brand: Soco Systems
SKU: driven-roller-pallet-conveyor-c19cf84d
Availability: InStock

Price: Contact seller for price

Specifications Surface treatment Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome. Frames Cold-bend angle profiles bolted to C-profile cross bars with supports. Rollers ? 80 mm electro galvanized steel tubes. Axle diameter ? 17 mm. Bearings 6203 - 2rs. Roller fittings Rollers are suspended between side frames by means of M10 axle. Payload For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM. Standard height The total height from floor to top of rollers is 90 mm. Chain drive Chains operate beneath roller surface. Chain drive is from roller to roller. ?' sprockets of hardened steel are integrated with the bearing of the roller. Chain cover Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor. Gear motor 0.37 kW. Worm reduction gear sidemounted on conveyor frame. Speed 11.4 m/min (other speeds available). Subject to alteration.

Galway, Ireland

5,948 km away

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transporting palletised goods between workstations or processing stages in warehouses.
Integrating into automated production lines for material handling.
Buffering pallets in distribution centres prior to dispatch or storage.
Moving heavy loads in manufacturing facilities, such as automotive or white goods production.
Feeding or discharging pallets from palletisers, stretch wrappers, or other end-of-line equipment.

Typical payload capacity: Units of this type are commonly designed for loads up to 1,500 kg per pallet, with overall capacity depending on conveyor length and motor configuration.
Roller diameter: Rollers on this class of equipment typically feature a diameter of 80 mm.
Roller material: Commonly, rollers are electro-galvanised steel for durability and corrosion resistance.
Drive type: Driven roller conveyors typically utilise a chain drive system, often operating beneath the roller surface.
Motor power: A 0.37 kW gear motor is typical for a single drive section on this type of conveyor, with multiple motors used for longer or heavier duty systems.
Typical operating speed: Common speeds for pallet conveyors are around 11.4 m/min, though variable speed options are often available.
Construction material: Frames are typically constructed from electro-galvanised steel or similar cold-bend angle profiles for robust industrial use.
Standard height: The total height from floor to the top of the rollers is commonly around 90 mm for low-profile units, but can vary significantly based on application.

Driven roller conveyors are generally suitable for most standard pallet types (e.g., Euro pallets, Chep pallets) as long as the pallet base allows for stable contact with the rollers. Pallets with open or irregular bases may require specific considerations.

Buyers typically value conveyor systems for their reliability and longevity when well-maintained. Key considerations when purchasing used units include belt condition, motor functionality, frame integrity, and available spare parts. Industry sentiment emphasises the importance of verifying operational history and cleanliness standards, particularly for food handling applications. Common strengths include robust construction, relatively straightforward maintenance requirements, and cost savings versus new equipment. Reputable manufacturers' models tend to hold their value well and integrate readily into existing production lines.

General overview for this equipment type

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
