Drum Hoist
Copied to clipboard!
Price: Contact seller for price

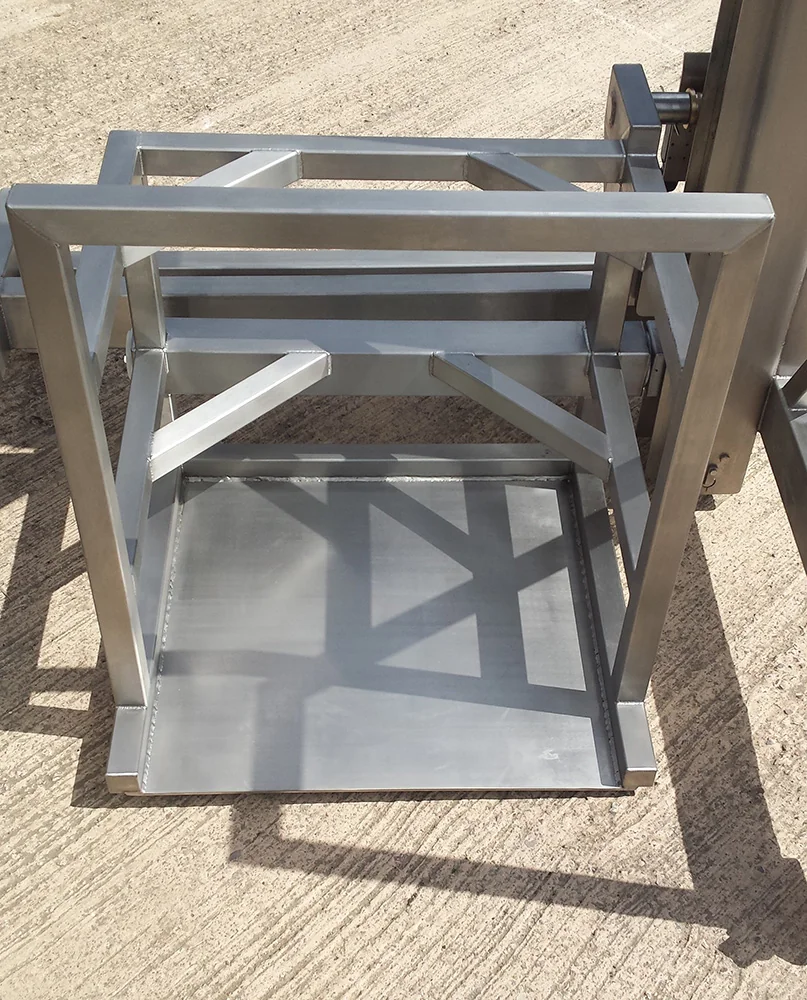

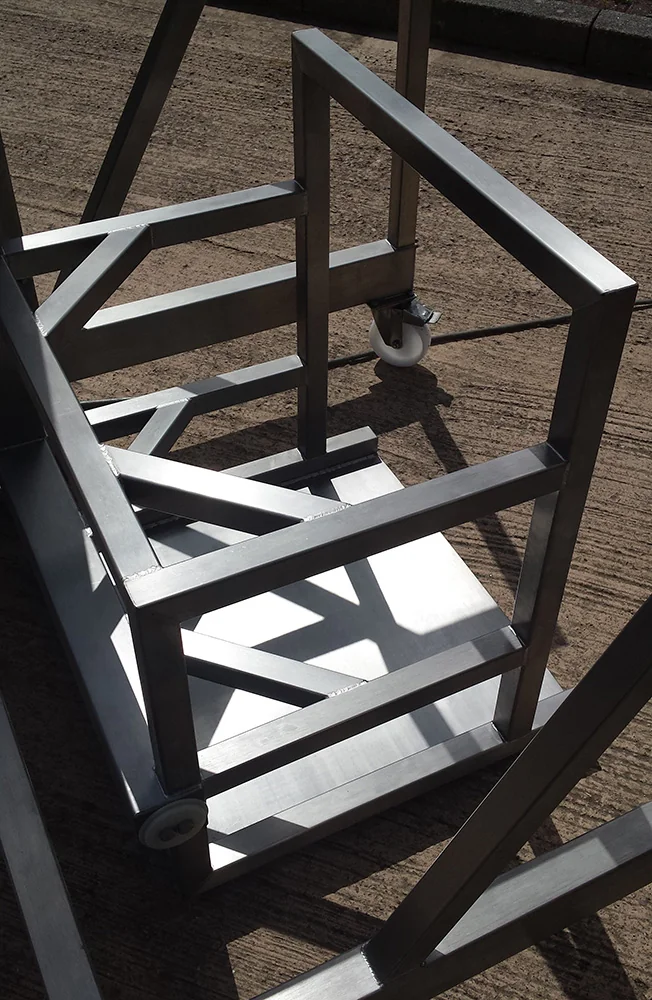

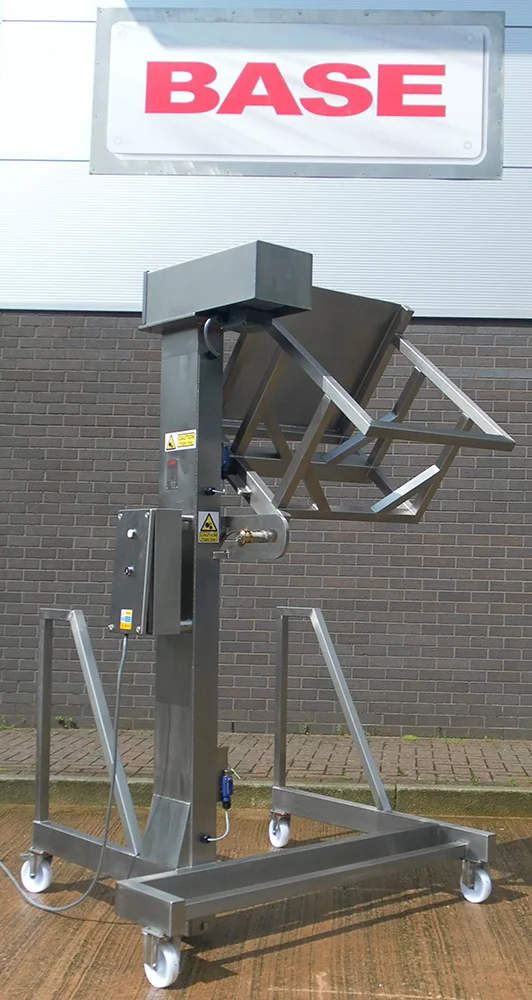

BTM/250/1275/M Single Pillar Drum HoistThis Mobile Single Pillar Drum Hoist is designed to lift and tip at a discharge height of 1275mm. The Drum Hoist is manufactured from Grade 304 stainless steel and is a welded construction throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Drum Hoist is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure. To avoid spillage as your drums are being tipped, we feel that there should be a conical intermittent infeed cone which will locate into the Sieve Inlet and allow the ingredients to pass through without spillage. Drum Hoist Electrical ControlThis Drum Hoist is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Drum Hoist has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Drum Hoist to operate. As soon as the button is released, the Drum Hoist will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required. |
Blaenau Gwent County Borough, United Kingdom5,762 km away
Description
Single Pillar Drum Hoist
Model No.
BTM/250/1275/M
Capacity
250 Kgs
Tipping Height
1275mm
Tipping Angle
130 Degrees
Overall Height
2200mm
Machine Handing
Right Hand
Maximum Headroom
2540mm
Removable Infeed Cone
Yes

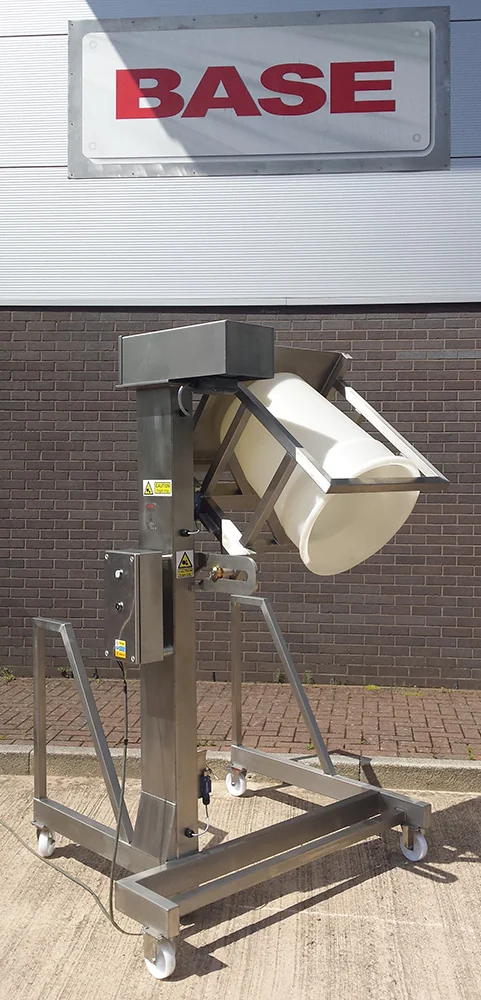

Container Description
White Plastic Drum
Base Arrangement
Mobile On Castors
Control Circuit
24Vac
Electrical Rating
IP65
Limit Switches
Telemecanique
Motor Detail
0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE
Gearbox Detail
SEW Eurodrive
Output R.P.M
28 R.P.M.
Ratio
50:1
Load/Lift/Tension Chain
¾" Simplex
Tensile Strength
3000 Kgs
Lift Speed
6.4 Meters/Minute
Stock Number
BTM/250/1275/M
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Transferring ingredients from drums into process vessels or hoppers.
- Loading raw materials into mixers or blenders in food production.
- Elevating and discharging bulk solids or liquids from drums in pharmaceutical or chemical industries.
- Feeding packaging lines with pre-weighed drum contents.
- Ergonomic handling of heavy drums to reduce manual labour and improve safety.
Typical Specifications
- Typical lifting capacity
- For this class of equipment, drum hoists commonly handle drums weighing between 100 kg and 300 kg.
- Discharge height
- This unit specifies a 1275mm discharge height; other units typically range from 1000mm to 3000mm depending on application.
- Material of construction
- Grade 304 stainless steel is standard for food-grade applications, with Grade 316 often available for enhanced corrosion resistance.
- Power supply
- Typically 3-phase electrical supply, commonly 400V, 50Hz in the UK, with motor power varying based on lifting capacity.
- Control system
- Units commonly feature IP65-rated control panels, often with 'dead man's handle' operation for safety.
- Safety features
- Automatic safety latches for chain failure are a key feature, along with emergency stop buttons.
- Mobility
- Mobile single-pillar designs are common, offering flexibility in plant layout.
Frequently Asked Questions
- Drum hoists of this type are typically designed to accommodate standard industrial drums, including steel, plastic, or fibre drums, often with specific clamping mechanisms for different drum types. Buyers should confirm compatibility with their specific drum dimensions and materials.
