What types of drums can this equipment handle?

Drum tippers are typically designed for standard industrial drums, commonly 200-litre steel or plastic drums. Buyers should confirm compatibility for specific drum dimensions and materials with the seller.

Is this unit suitable for washdown environments?

Units constructed from stainless steel with IP65-rated control panels are generally suitable for washdown environments, which is common in food processing. Always verify the specific IP rating and construction details with the seller.

What are the typical safety features?

Common safety features include automatic safety latches to prevent uncontrolled descent, upper and lower limit switches to prevent over-travel, and 'hold to run' controls requiring continuous operator presence. Additional guarding may be present depending on the design.

Can the discharge height be adjusted?

While the listed unit has a fixed discharge height, some drum tippers offer adjustable discharge heights or can be customised. Fine adjustment of end-of-travel limits is often possible by trained personnel.

What maintenance is typically required?

Routine maintenance commonly involves checking chain tension, lubricating moving parts, inspecting electrical connections, and ensuring all safety features are operational. Specific schedules will be detailed in the manufacturer's manual.

Is installation complex for a mobile unit?

For mobile units, installation is generally straightforward, primarily involving positioning the unit and connecting to the appropriate electrical supply. Fixed-mount units may require bolting to the floor.

Drum Tipper - Lifting & Tipping, photo 1

Drum Tipper - Lifting & Tipping, photo 2

Drum Tipper - Lifting & Tipping, photo 3

Drum Tipper - Lifting & Tipping, photo 4

Drum Tipper - Lifting & Tipping, photo 5

Drum Tipper - Lifting & Tipping, photo 6

Available

Verified seller

Drum Tipper

Name: Drum Tipper
SKU: BTM/250/1600/M
Availability: InStock

Price: Contact seller for price

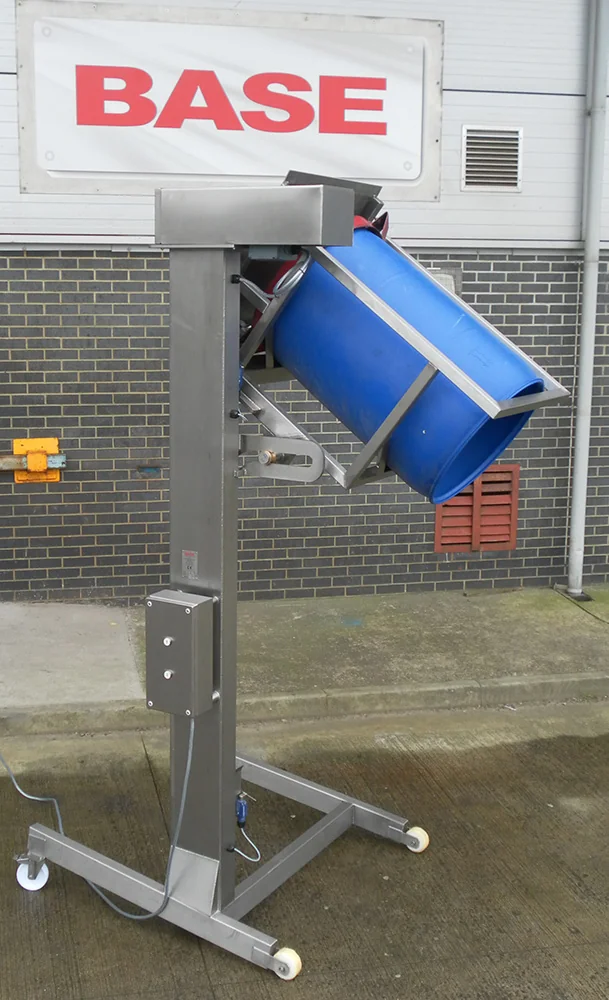

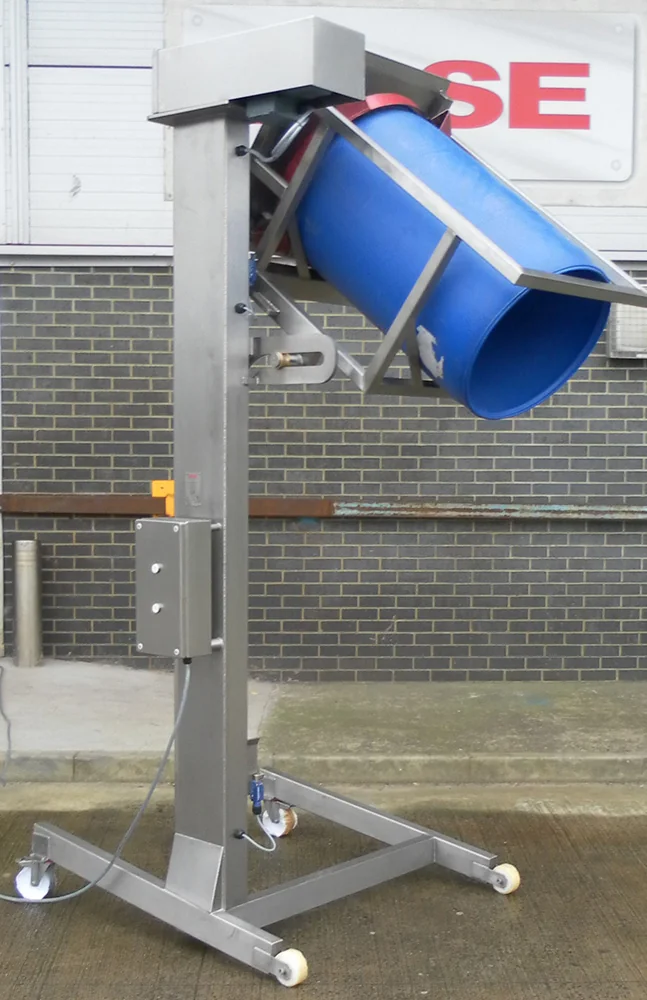

BTM/250/1600/M Single Pillar Drum Tipper

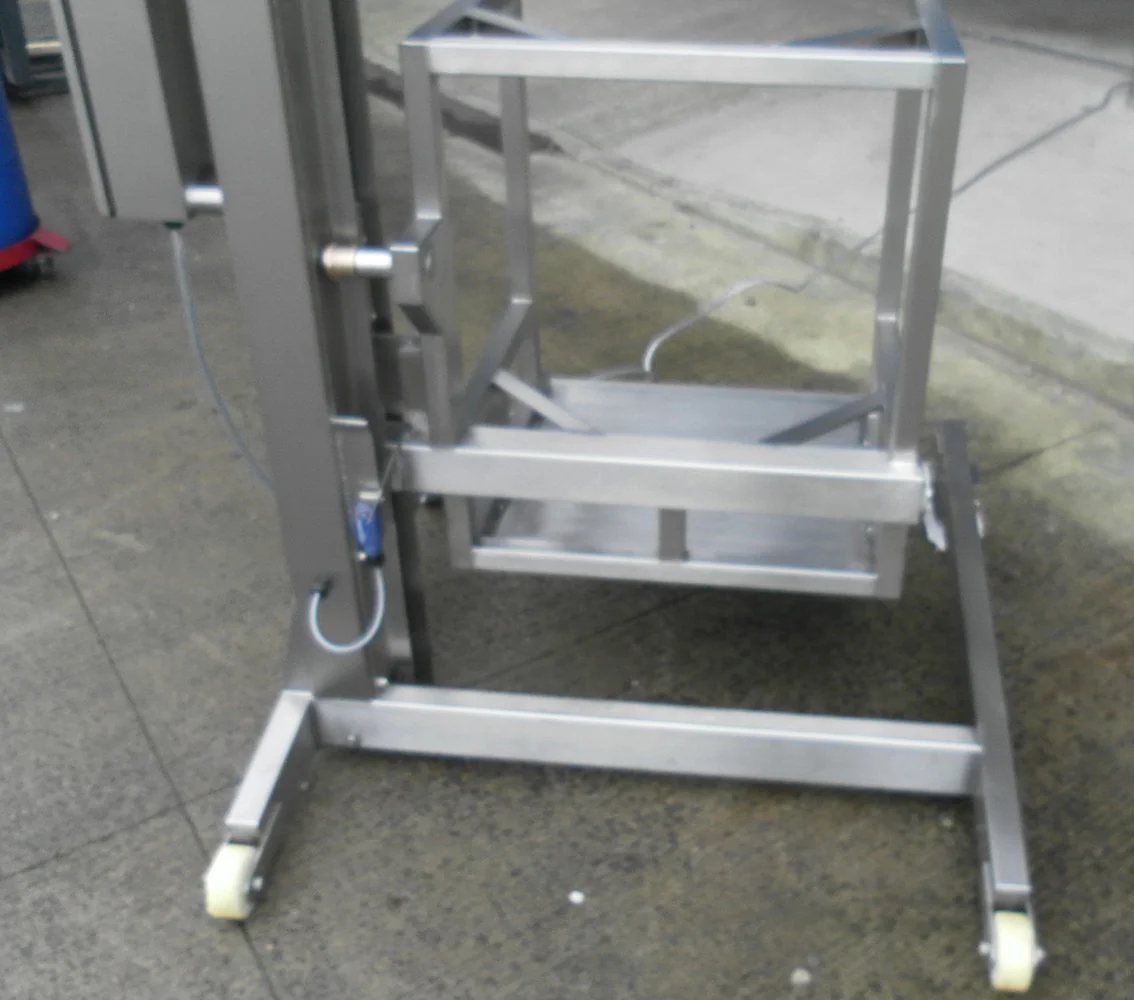

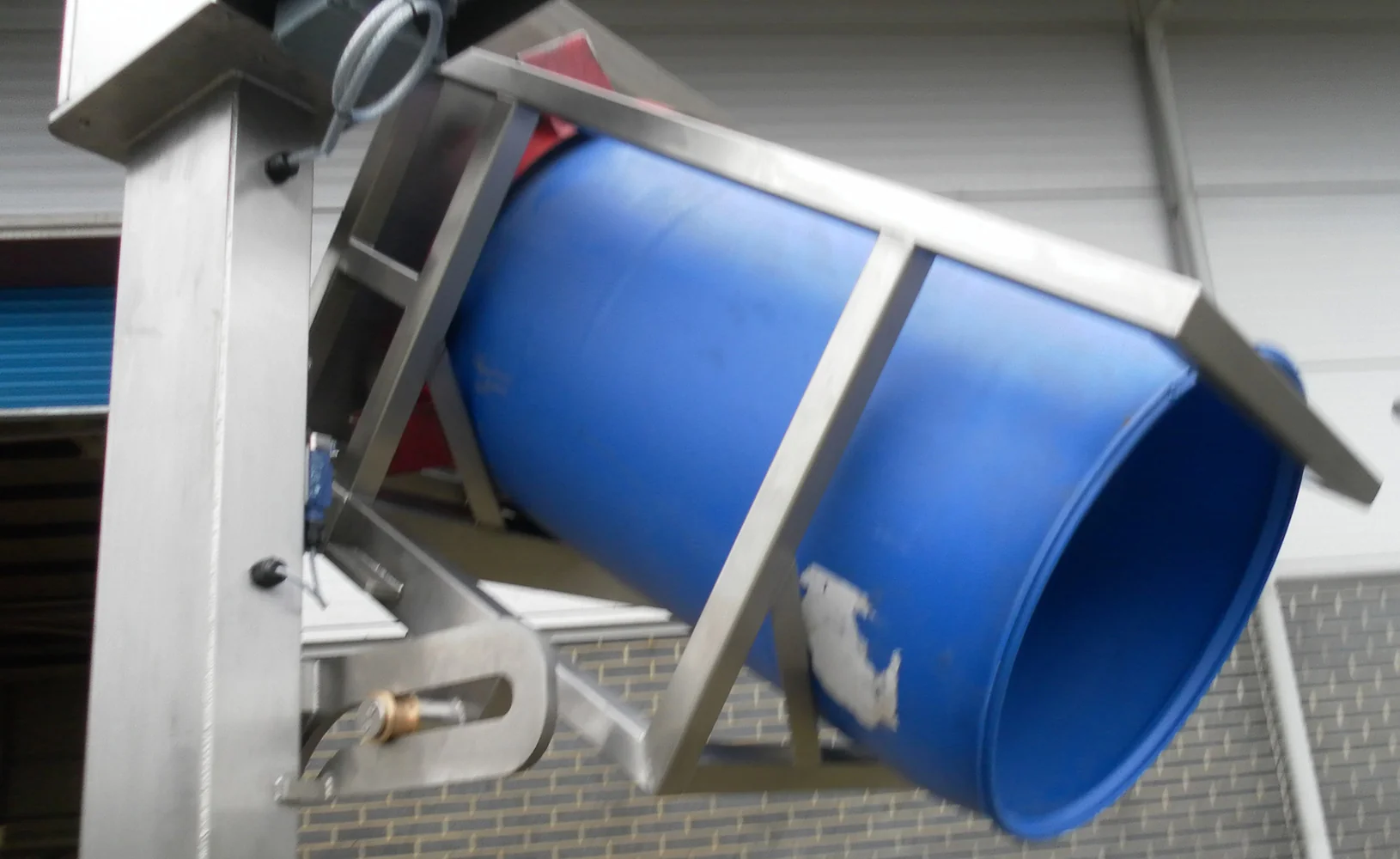

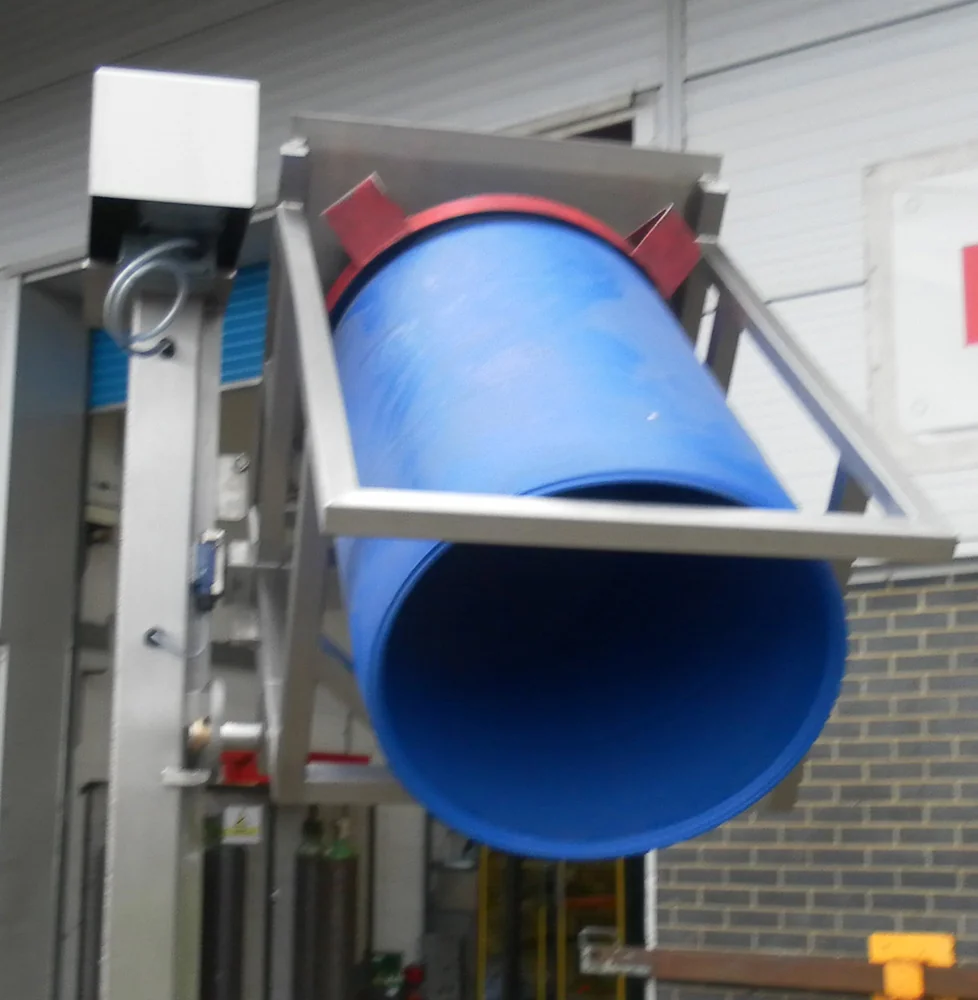

This Single Pillar 200 Litre Drum Tipper that is designed to lift and tip at a discharge height of 1600mm. The Drum Tipper is constructed from Grade 304 stainless steel, is fully welded throughout and is designed to be mobile on castors. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Drum Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure. To load the drum into the tipper, the operator wheels the drum and trolley onto the lift carriage. The drum will be securely retained in the lift carriage in the tipped position.

Drum Tipper Electrical Control

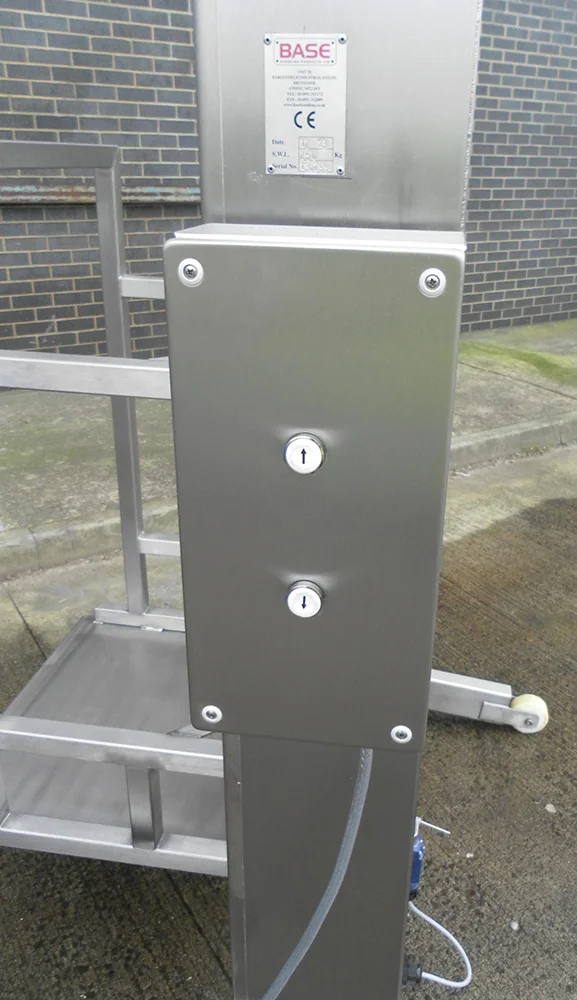

This Drum Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded machine operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the machine to operate. As soon as either button is released, the machine will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar 200 Litre Drum Tipper

Model No.

BTM/250/1600/M

Capacity

250 Kgs

Tipping Height

1600mm

Tipping Angle

130 Degrees

Overall Height

2760mm

Machine Handing

Right Hand

Maximum Headroom

In Excess Of 4000mm

Tipping Chute

Container Description

200 Litre Drum

Base Arrangement

Mobile On Castors, Two FIxed And Two Swivel Braked

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/250/1600/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from drums into mixers or hoppers in bakeries and confectionery.
Discharging bulk powders or liquids into processing lines within pharmaceutical manufacturing.
Loading raw materials into cooking vessels or blenders in prepared meal production.
Emptying waste products or by-products into collection bins in various food processing operations.
Feeding ingredients into packaging machinery for efficient product filling.

Typical Specifications

Typical capacity: Units of this class commonly handle 200-litre (55-gallon) drums, with some variations for smaller or larger containers.
Discharge height: For this class of equipment, discharge heights typically range from 1200mm to 2500mm, depending on the specific model and application.
Construction material: Food-grade drum tippers are typically constructed from Grade 304 stainless steel, with Grade 316 stainless steel used for more corrosive environments.
Mobility: Many units are designed to be mobile on castors for flexible placement, while others are fixed-mount for permanent installations.
Power supply: Commonly, these machines operate on a 3-phase electrical supply, typically 400V, 50Hz, though single-phase options may be available for lighter duties.
Safety features: Units typically incorporate safety latches, limit switches, and 'hold to run' controls for operator safety.
Control panel rating: Electrical control panels are commonly rated to IP65 for protection against dust and water ingress, suitable for washdown environments.
