What types of bins can this tipper accommodate?

This class of tipper is typically designed to accommodate standard 200 or 300-litre tote bins, often referred to as Eurobins or Buggies. Buyers should confirm compatibility with their specific bin dimensions.

Is this equipment suitable for washdown environments?

Yes, units constructed from Grade 304 stainless steel with IP65 rated control panels are generally designed for use in food processing environments and can withstand regular washdown procedures.

What are the typical safety features?

Common safety features include a 'hold to run' control principle, upper and lower end of travel limit switches, and a safety latch system to prevent uncontrolled descent in the event of a lift chain failure.

Can the discharge height be adjusted?

Yes, units of this type commonly feature an adjustable discharge height, allowing for flexibility when tipping into different receiving vessels. The range of adjustment should be confirmed with the seller.

What are the power requirements for this tipper?

Dump buggie tippers typically require a three-phase electrical supply. Specific voltage and amperage requirements will vary by unit and should be verified with the seller.

Is this tipper mobile?

Many units in this category are designed to be mobile, fitted with castors to allow for easy relocation within a facility. Buyers should confirm the presence and type of castors.

Available

Verified seller

Dump Buggie Tipper

Name: Dump Buggie Tipper
SKU: BTM/300/1400-2300/M/ADJ
Availability: InStock

Price: Contact seller for price

BTM/300//M/ADJ Single Pillar Dump Buggie Tipper

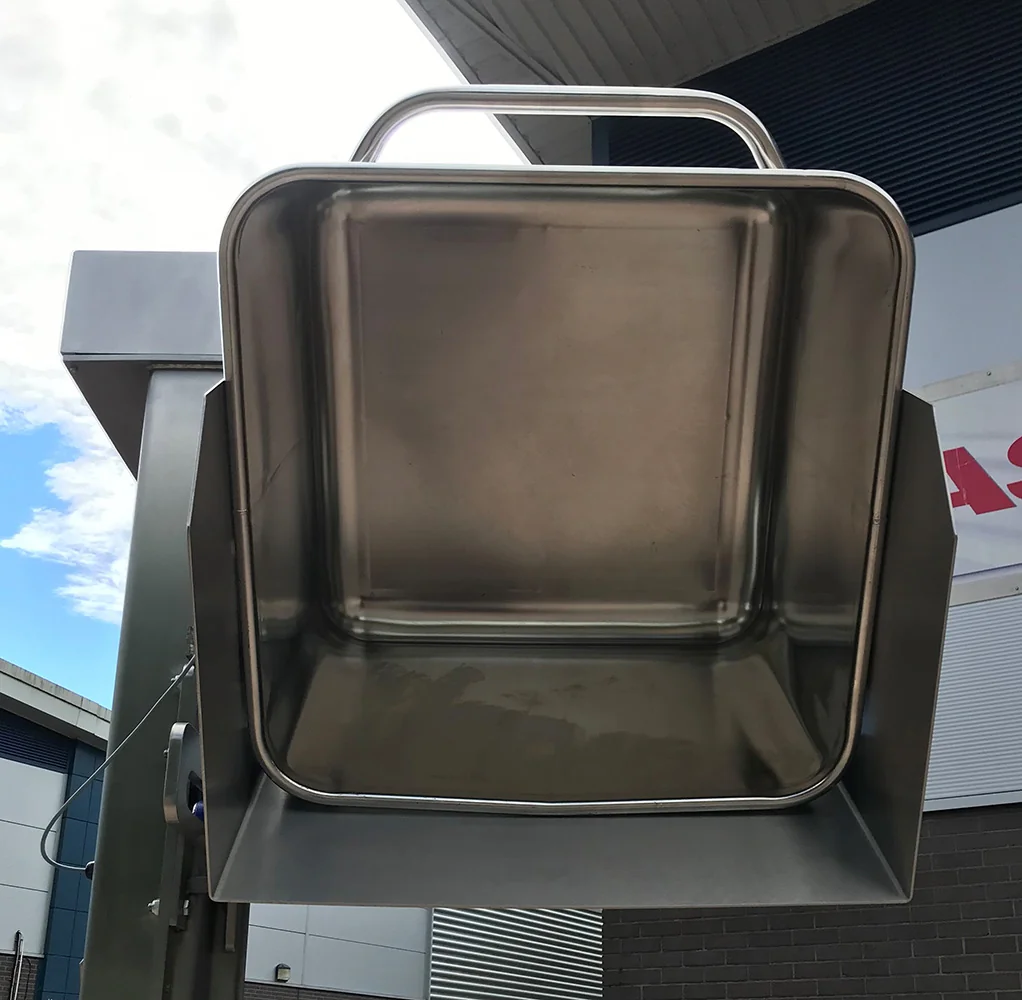

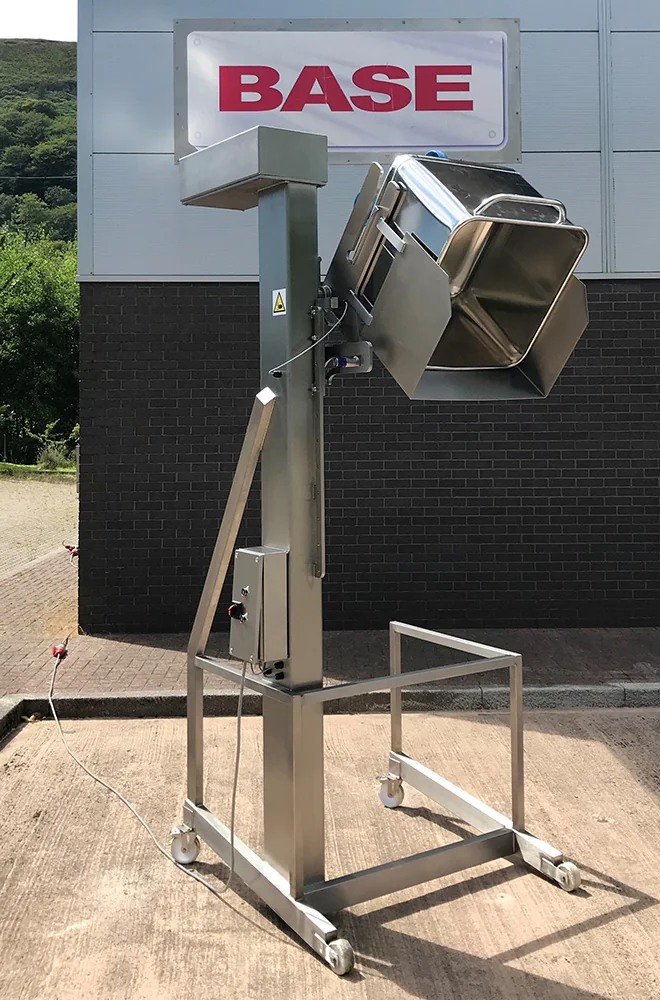

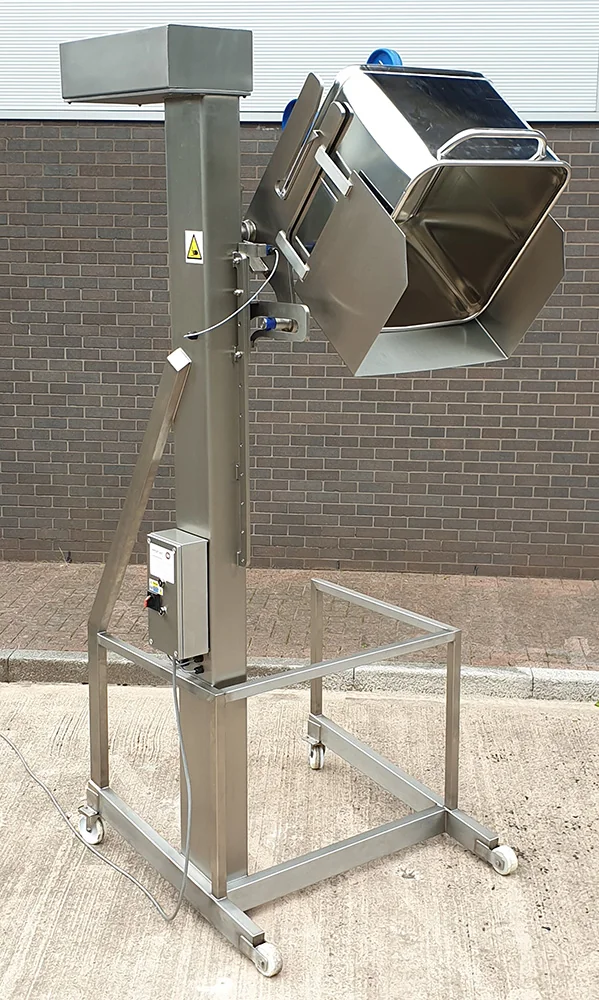

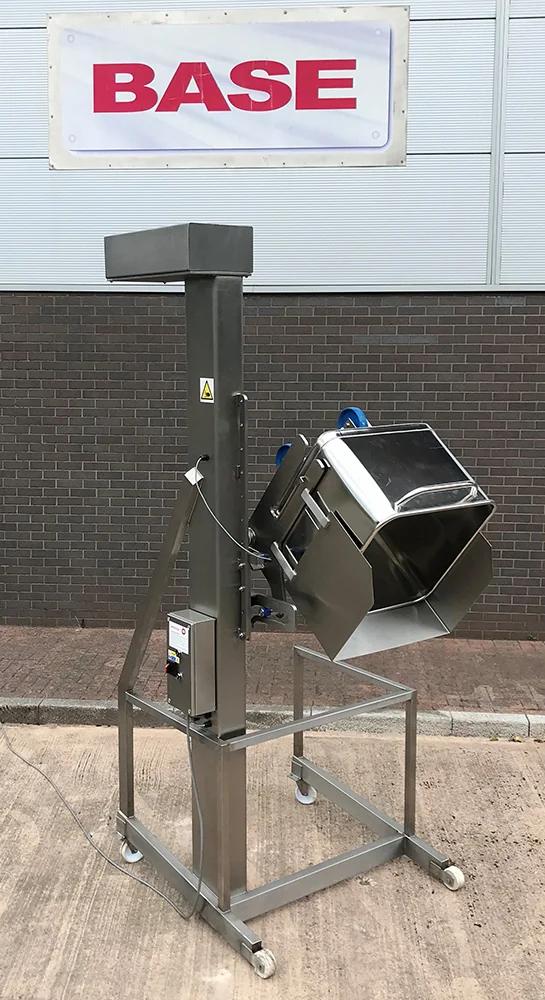

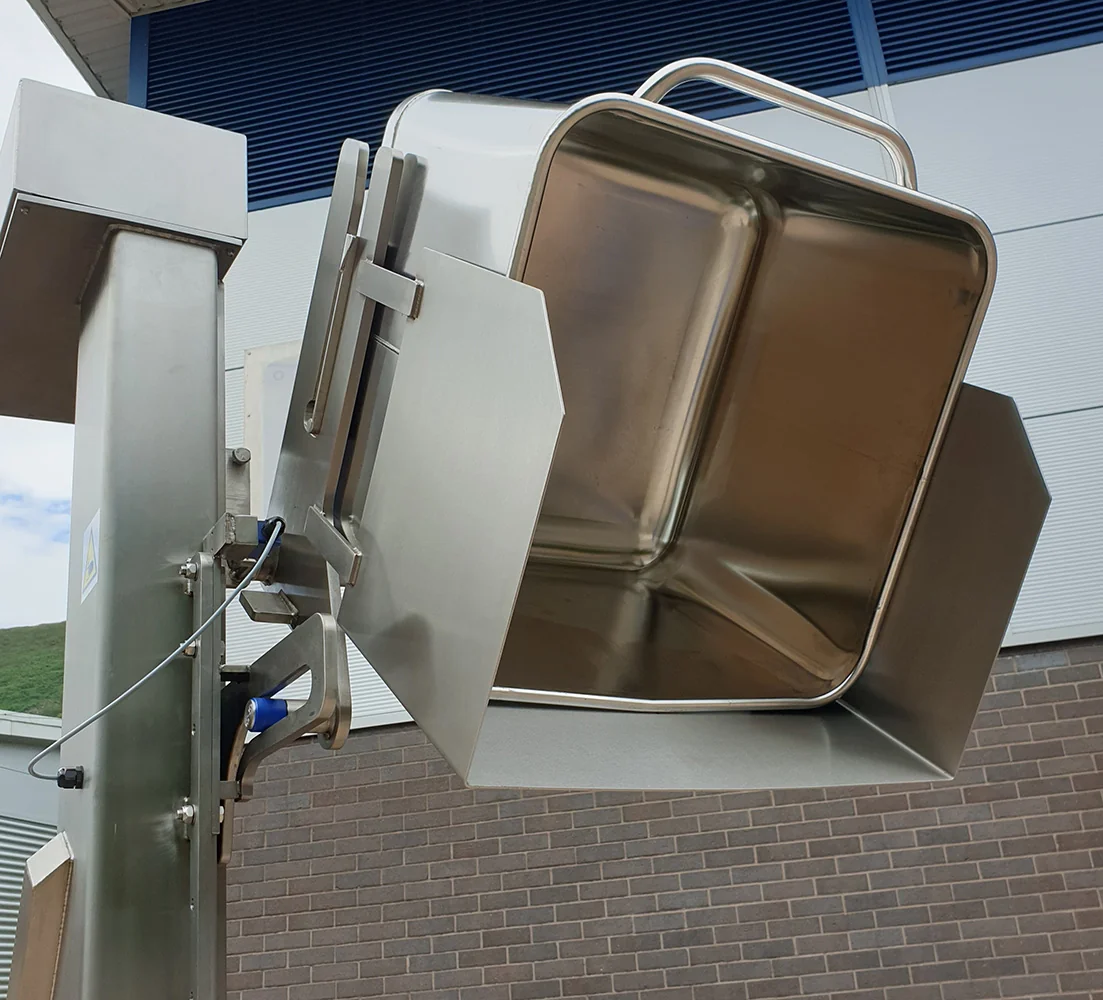

This Dump Buggie Tipper is a 200 or 300 Litre tote bin tipper that is designed to lift and tip at an adjustable discharge height of between 1400 and 2300mm. The Dump Buggie Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be mobile on castors. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Dump Buggie Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Dump Buggie Tipper Electrical Control

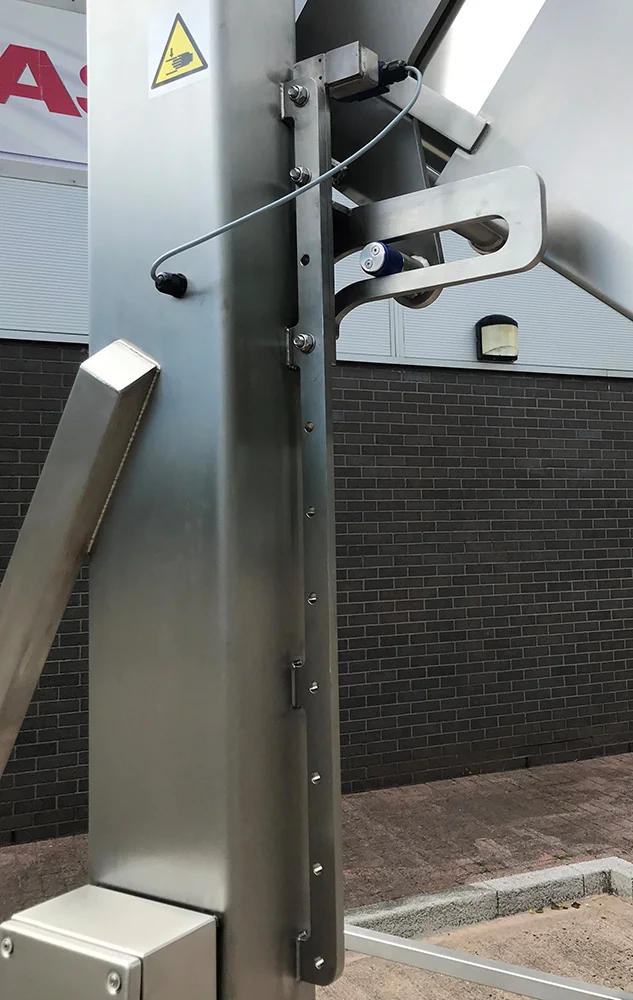

This Dump Buggie Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Dump Buggie Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Dump Buggie Tipper to operate. As soon as either button is released, the Dump Buggie Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Dump Buggie Tipper

Model No.

BTM/300/1400-2300/M/ADJ

Safe Working Load

300 Kgs

200 Litre Minimum Tip Height

1400mm (55”)

200 Litre Maximum Tip Height

2300mm (90”)

300 Litre Minimum Tip Height

1200mm (47”)

300 Litre Maximum Tip Height

2100mm (82 ½”)

Tipping Angle

135 Degrees

Overall Height

3240mm

Machine Handing

Right Hand

Maximum Headroom

3000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

200 Litre Tote Bin or 300 Litre Tote Bin

Base Arrangement

Mobile On Castors

Customer Supply

480V, 60 Hz, 3 Phase & Earth Only

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 480V, 3 PHASE, 60 CYCLE, c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/1400-2300/M/ADJ

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients or finished products from tote bins into mixers, hoppers, or other processing machinery.
Loading raw materials into production lines in bakeries, meat processing plants, and ready meal facilities.
Elevating bulk solids or liquids for gravity feeding into subsequent stages of a food production process.
Ergonomically emptying waste or by-products from standard bins into larger collection containers.
Integrating with automated lines to provide controlled discharge of materials at specific heights.

Typical Specifications

Typical capacity: For this class of equipment, units commonly handle 200 or 300-litre tote bins.
Discharge height: Adjustable discharge heights are typical, often ranging from 1400mm to 2300mm for this type of tipper.
Construction material: Units are typically manufactured from Grade 304 stainless steel, with welded construction throughout for hygiene and durability.
Mobility: Many units are designed to be mobile, fitted with castors for flexible positioning within a facility.
Lifting mechanism: A chain-driven system, often a ¾” Simplex chain driven by a motor gearbox, is commonly used for reliable lifting.
Electrical control: An IP65 rated stainless steel control panel is typical, mounted for convenient access and compliance with regulations like PUWER.
Safety features: Safety latches for chain failure and 'hold to run' controls are standard features on this type of equipment.
Power supply: Typically operates on a standard industrial three-phase supply, with specific voltage requirements varying by unit.

Frequently Asked Questions

This class of tipper is typically designed to accommodate standard 200 or 300-litre tote bins, often referred to as Eurobins or Buggies. Buyers should confirm compatibility with their specific bin dimensions.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
