What types of dump buggies are compatible with this lifter?

This class of equipment is typically designed to be compatible with standard 200lb (120L), 400lb (200L), and 600lb (400L) dump buggies. Buyers should confirm specific buggy dimensions with the seller.

Is this unit suitable for washdown environments?

Yes, units constructed from 304 stainless steel with welded construction are generally designed for the stringent hygiene requirements of food processing facilities and are suitable for washdown.

What is the typical power requirement for charging the battery?

The battery charger for these units commonly requires a 110V single-phase power supply. Buyers should verify the exact voltage and plug type with the seller.

Can the tipping height be adjusted?

Standard models often feature a fixed tipping height. However, some manufacturers offer customisation options for specific product, process, and building requirements.

What safety features are typically included?

Common safety features include a hydraulic cylinder with a safety check valve to prevent the bin from falling in the event of a hydraulic hose failure. A chute is also typically fitted to the lift carriage.

new Equipment

Available

Verified seller

Dump Buggy Lifter Tipper – Battery

Name: Dump Buggy Lifter Tipper – Battery
SKU: 1023
Availability: InStock

Price: Contact seller for price

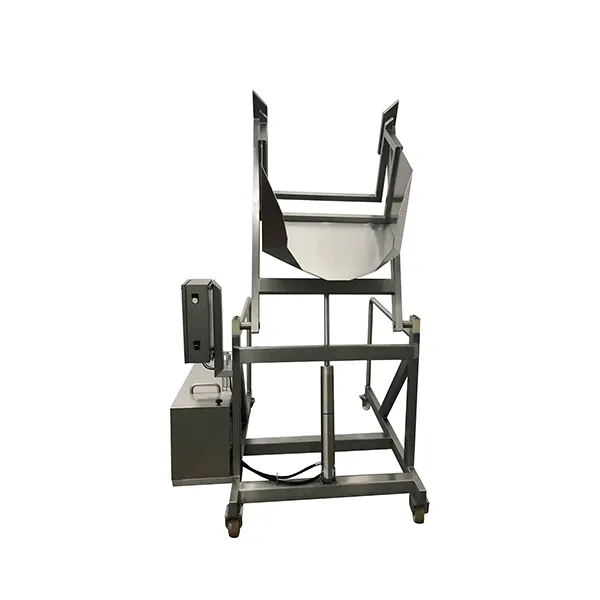

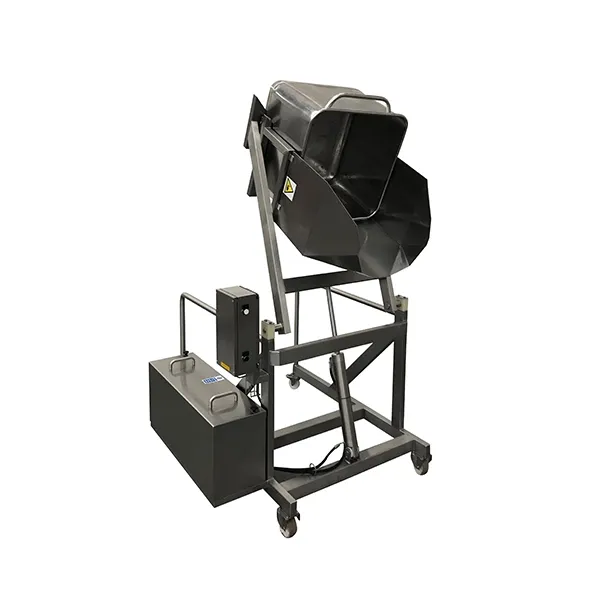

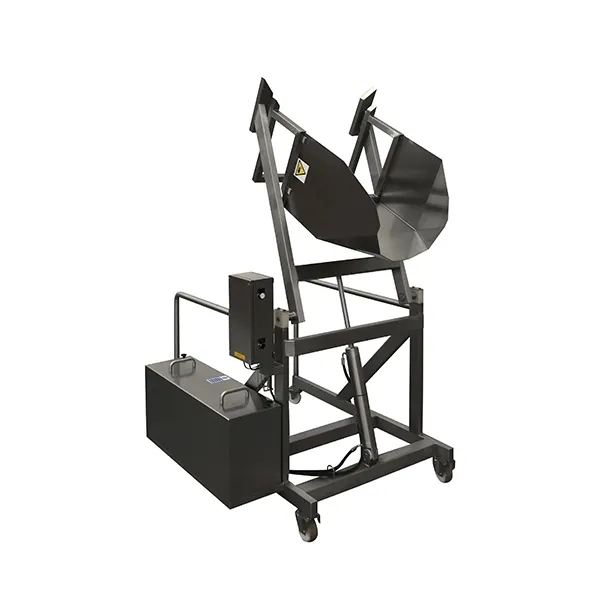

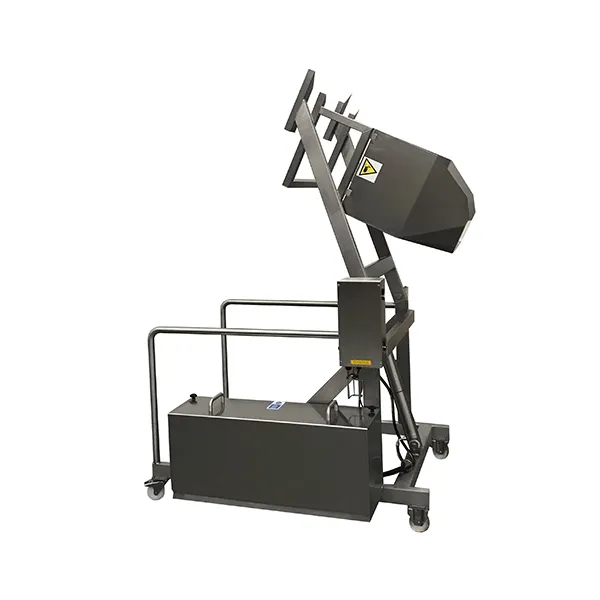

ISCA’s battery-powered dump buggy tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.

Standard model features:

-Compatible with 200lb (120l), 400lb (200L), and 600lb (400L) dump buggies
-The tipping height is fixed at 51” (1295mm)
-Tipping angle = 30 degrees past the horizontal
-The machine is mobile as standard, on two fixed, and two swivel castor wheels
-304 stainless steel
-Welded construction throughout
-Gel Battery (12v)
-Battery charger supply – 110v Single Phase
-Hydraulic power pack
-The hydraulic cylinder is fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor
-Chute fitted to the lift carriage as standard

Pennsylvania, United States

8,794 km away

Stock Number

1023

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from dump buggies into mixers or other processing equipment.
Loading raw materials into hoppers or conveyors at an elevated height.
Discharging waste products from production lines into collection bins.
Moving bulk ingredients within a food processing facility.
Feeding portioning or packaging machinery with product from mobile containers.

Typical Specifications

Compatible Buggy Sizes: Typically designed for 200lb (120L), 400lb (200L), and 600lb (400L) dump buggies.
Tipping Height: Commonly features a fixed tipping height, often around 1295mm (51 inches).
Tipping Angle: Units of this type typically offer a tipping angle of 30 degrees past horizontal.
Construction Material: Generally constructed from 304-grade stainless steel with welded construction for hygiene.
Mobility: Often mobile, fitted with a combination of fixed and swivel castor wheels.
Power Supply: Battery-powered, typically using a 12V gel battery, with a charger requiring a 110V single-phase supply.
Safety Features: Commonly includes a hydraulic cylinder fitted with a safety check valve to prevent bin descent in case of hose failure.

Frequently Asked Questions

This class of equipment is typically designed to be compatible with standard 200lb (120L), 400lb (200L), and 600lb (400L) dump buggies. Buyers should confirm specific buggy dimensions with the seller.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
