What type of containers can this lifter tipper accommodate?

This specific unit is designed for 200-litre dump buggies. Buyers should confirm compatibility with their existing container types.

Is this equipment suitable for washdown environments?

Constructed from Grade 304 stainless steel, units of this type are generally suitable for washdown, but buyers should verify the IP rating of electrical components.

What are the typical safety considerations for operating a dump buggy lifter tipper?

Operators should be trained in safe use, and guarding requirements should be assessed. Features like emergency stops and safety latches are common.

Can the discharge height be adjusted?

This unit specifies a fixed discharge height of 1350mm. Other models in this category may offer adjustable discharge heights or custom configurations.

What maintenance is typically required for this type of equipment?

Routine maintenance typically involves checking the chain tension, lubricating moving parts, inspecting electrical connections, and ensuring all safety features are operational.

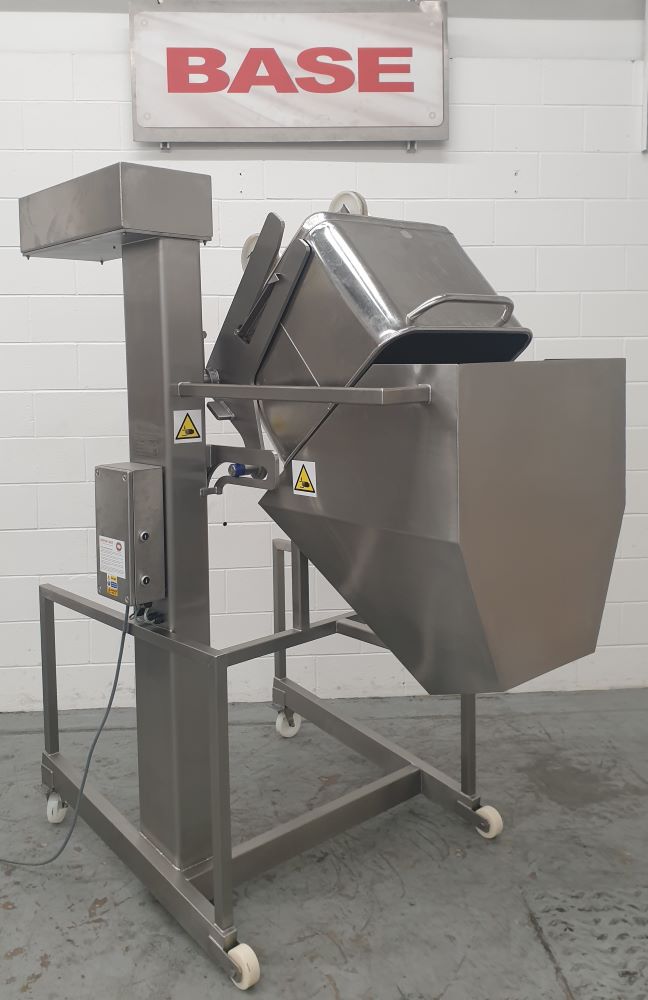

Dump Buggy Lifter Tipper - Lifting & Tipping, photo 1

Dump Buggy Lifter Tipper - Lifting & Tipping, photo 2

Dump Buggy Lifter Tipper - Lifting & Tipping, photo 3

Dump Buggy Lifter Tipper - Lifting & Tipping, photo 4

Dump Buggy Lifter Tipper - Lifting & Tipping, photo 5

Dump Buggy Lifter Tipper - Lifting & Tipping, photo 6

Dump Buggy Lifter Tipper - Lifting & Tipping

Available

Verified seller

Base Handling Ltd - Dump Buggy Lifter Tipper

Name: Dump Buggy Lifter Tipper
Brand: Base Handling Ltd
SKU: BTM/300/1350/M
Availability: InStock

Price: Contact seller for price

BTM/300/1350/M Dump Buggy Lifter Tipper

The Dump Buggy Lifter Tipper was designed to lift and tip a 200 Litre Dump Buggy at a discharge height of 1350mm into an intermediate chute.

The Dump Buggy Lifter Tipper was manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be mobile on castors.

The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main colum n. The unguarded machine is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Dump Buggy Lifter Tipper

Model No.

BTM/300/1350/M

Capacity

300 Kgs

Tipping Angle

130 Degrees

Overall Height

2289mm

Machine Handing

Right Hand

Maximum Headroom

4500mm

Tipping Chute

Yes, Intermediate Chute Fitted To Front Of Tipper

Container Description

200 LITRE DUMP BUGGY

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Tip Height

1350mm

Load/Tension Chain

¾” Simplex

Stock Number

BTM/300/1350/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring ingredients or products from 200-litre dump buggies into processing machinery.
Loading mixers, grinders, or hoppers in food production lines.
Elevating bulk materials for portioning or packaging operations.
Facilitating ergonomic material handling in food preparation areas.
Integrating into automated or semi-automated food processing workflows.

Typical lift capacity: Designed for standard 200-litre dump buggies, typically handling weights up to 250-300 kg.
Discharge height: This unit specifies 1350mm; models in this class commonly offer various fixed or adjustable discharge heights.
Construction material: Typically Grade 304 stainless steel for hygiene and corrosion resistance in food environments.
Mobility: Often designed to be mobile on castors for flexibility in plant layout.
Lifting mechanism: Commonly employs a chain-driven motor gearbox system for reliable lifting.
Power supply: Typically requires a 3-phase electrical supply, commonly 400V, 50Hz.
Safety features: Units of this type often include safety latches or interlocks to prevent uncontrolled descent.

This specific unit is designed for 200-litre dump buggies. Buyers should confirm compatibility with their existing container types.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
