What types of dump buggies are compatible with this lifter?

This class of equipment is typically designed to work with industry-standard 200lb (120L), 400lb (200L), and 600lb (400L) dump buggies, often referred to as Euro bins or tote bins.

Can the tipping height be adjusted for specific applications?

Yes, while a standard tipping height is usually offered, manufacturers commonly provide options for customising the tipping height to suit specific customer processes and equipment.

Is this equipment suitable for washdown environments?

Given its 304 stainless steel construction and welded design, units of this type are built for the stringent hygiene requirements of food processing and are suitable for regular washdown.

What maintenance is typically required for a hydraulic dump buggy lifter?

Routine maintenance typically involves checking hydraulic fluid levels, inspecting hoses and seals for wear, and ensuring all moving parts are clean and lubricated. Electrical connections should also be periodically checked.

Are there safety features to prevent accidental lowering of a loaded bin?

Yes, units commonly incorporate safety features such as a hydraulic check valve on the cylinder, which is designed to prevent the bin from falling in the event of a hydraulic hose failure.

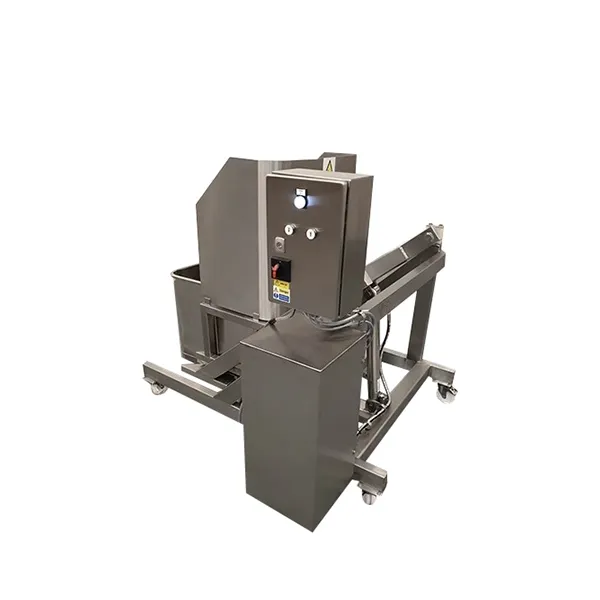

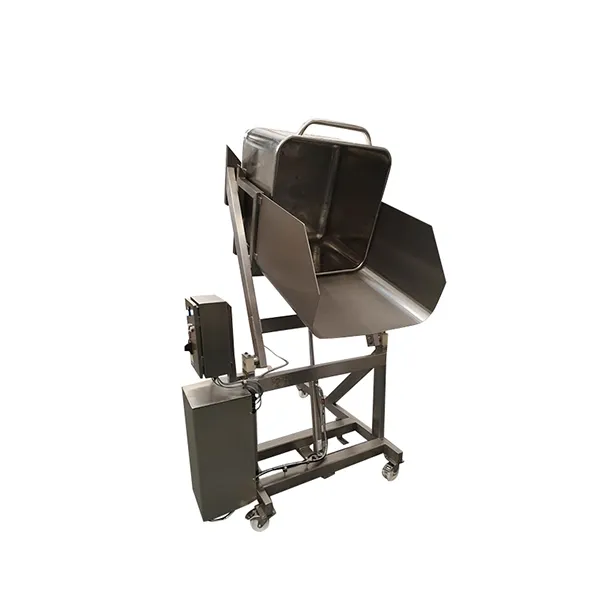

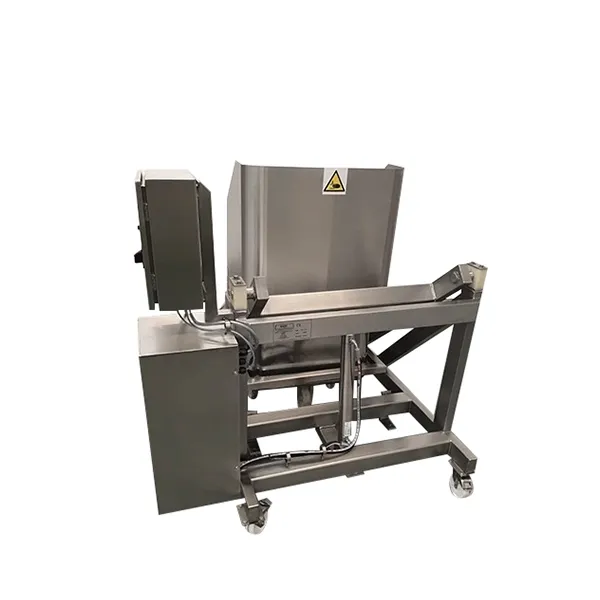

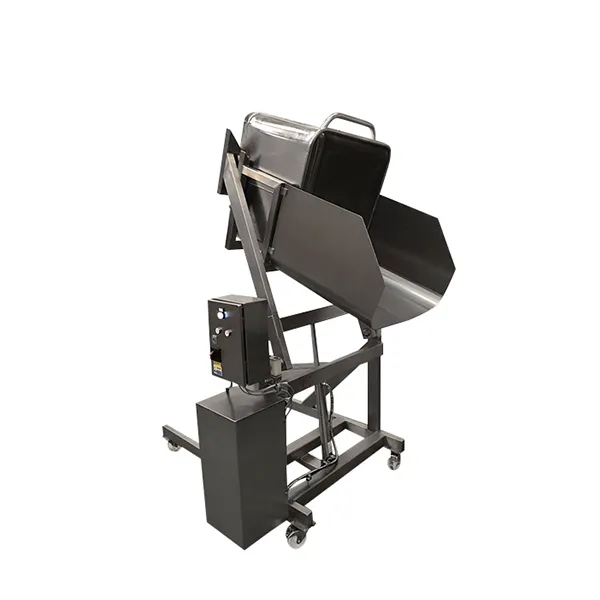

New Dump Buggy Lifter Tipper - Lifting & Tipping, photo 1

New Dump Buggy Lifter Tipper - Lifting & Tipping, photo 2

New Dump Buggy Lifter Tipper - Lifting & Tipping, photo 3

New Dump Buggy Lifter Tipper - Lifting & Tipping, photo 4

New Dump Buggy Lifter Tipper - Lifting & Tipping

new Equipment

Available

Verified seller

Dump Buggy Lifter Tipper

Name: Dump Buggy Lifter Tipper
SKU: 1020
Availability: InStock

Price: Contact seller for price

The Universal Dump Buggy Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.

Standard model features:

-Compatible with 200lb (120l), 400lb (200L), and 600lb (400L) dump buggies
-The std tipping height is 39” (1000mm). Note: this can be modified to suit the customer’s application.
-Tipping angle = 30 degrees past the horizontal
-The machine is mobile as standard, on two fixed, and two swivel castor wheels
-304 stainless steel
-Welded construction throughout
-Hydraulic power pack (Stainless steel hydraulic cylinder)
-The hydraulic cylinder is fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor
-Chute fitted to the lift carriage as standard

Pennsylvania, United States

8,794 km away

Stock Number

1020

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring meat, poultry, or fish products from dump buggies into processing machinery.
Loading ingredients into mixers, grinders, or other food preparation equipment.
Elevating bulk materials for packaging lines or storage hoppers.
Handling and emptying food waste bins in a hygienic manner.
Moving and tipping ingredients in bakeries, dairies, and confectionery production.

Typical Specifications

Compatible Buggy Sizes: Typically designed to accommodate standard 200lb (120L), 400lb (200L), and 600lb (400L) dump buggies.
Tipping Height: Standard tipping heights commonly range around 1000mm (39 inches), with customisation often available.
Tipping Angle: Units in this class typically offer a tipping angle of 30 degrees past horizontal to ensure complete emptying.
Construction Material: Predominantly constructed from 304-grade stainless steel for hygiene and durability in food environments.
Mobility: Often supplied as mobile units on castor wheels, typically two fixed and two swivel, for ease of repositioning.
Power Supply: Hydraulic power packs are common, typically requiring a standard industrial electrical supply (e.g., 3-phase).
Safety Features: Commonly includes safety check valves on hydraulic cylinders to prevent uncontrolled descent of a raised load.

Frequently Asked Questions

This class of equipment is typically designed to work with industry-standard 200lb (120L), 400lb (200L), and 600lb (400L) dump buggies, often referred to as Euro bins or tote bins.
