What types of samples can be processed?

This equipment is designed for the efficient and gentle vacuum concentration of a wide range of biological and chemical samples, including DNA, RNA, nucleotides, proteins, and other liquid or wet samples.

Is an external vacuum pump required?

Many units in this category feature an integrated vacuum pump. However, some configurations may include an AC receptacle for connection to an external pump, with all pump functions controlled by the concentrator.

What maintenance is typically involved?

Units with PTFE diaphragm pumps are generally maintenance-free, eliminating the need for oil changes. Routine cleaning and inspection are usually sufficient.

How does it prevent sample bumping or foaming?

This class of equipment commonly incorporates features such as automatic vacuum release to prevent sample bumping or foaming during the concentration process.

What are the typical heating options?

Commonly, four heating levels are available: 30°C, 45°C, 60°C, and ambient. These options allow users to match the heating to the specific sample and solvent needs, optimising processing time.

used Equipment

Available

Verified seller

Eppendorf AG - Concentrator Plus

Name: Concentrator Plus
Brand: Eppendorf AG
SKU: 56919
Price: 3500 GBP
Availability: InStock

Price: £ 3,500

This listing is for a Eppendorf Concentrator AG

The unit is in full working condition and is ready for immediate release

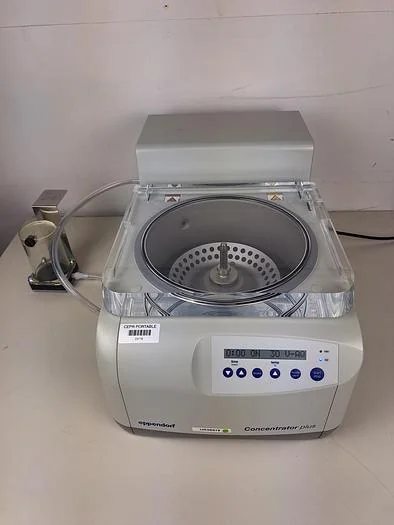

The Eppendorf Concentrator plus is a benchtop device designed for the efficient and gentle vacuum concentration of DNA, RNA, nucleotides, proteins, and other liquid or wet samples. It features advanced heating technology and a chemical-resistant, maintenance-free PTFE diaphragm pump, eliminating the need for oil changes. The system offers versatility with a wide variety of rotor options to accommodate tubes from 0.2 mL to 50 mL, as well as microplates and PCR plates.

Key Features

Motorless drive and sealed chamber for trouble-free operation

Whisper-quiet operation (60 dB), even with the pump on, for a pleasant working environment

Automatic vacuum release prevents sample bumping or foaming

Integrated brake mode for a faster rotor stop and quicker access to samples

Three evaporation modes (aqueous, alcohol, and off)

Four heating levels (30°C, 45°C, 60°C, and ambient) to match sample and solvent needs, reducing processing time

System Options

Basic System

Includes the Vacufuge Concentrator and a 48 x 1.5 to 2.0 mL rotor

AC receptacle for external vacuum pump connection

All pump functions, including vacuum release and evaporation modes, are controlled by the concentrator

Cambridgeshire, United Kingdom

5,791 km away

Model Number

Concentrator Plus

Stock Number

56919

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Concentration of DNA and RNA samples in molecular biology.
Evaporation of solvents from protein samples in proteomics.
Preparation of samples for chromatography or mass spectrometry.
Drying of PCR products and oligonucleotides.
Concentration of samples in clinical diagnostics and drug discovery.

Typical Specifications

Typical rotor capacity: Units in this class commonly accommodate a range of tube sizes, typically from 0.2 mL to 50 mL, and can also support microplates or PCR plates via various rotor options.
Evaporation modes: Typically includes modes for aqueous, alcohol, and potentially other solvent types to optimise processing.
Heating levels: Commonly offers multiple heating levels, such as 30°C, 45°C, 60°C, and ambient, to suit different sample and solvent requirements.
Vacuum pump type: For this class of equipment, a chemical-resistant, maintenance-free PTFE diaphragm pump is commonly integrated or recommended.
Noise level: Units of this type are often designed for quiet operation, typically around 60 dB or less.
Footprint: Benchtop units are designed to be compact, suitable for standard laboratory benches.
Power supply: Typically operates on standard laboratory mains power, commonly 230V, 50/60Hz for UK operation.

Frequently Asked Questions

This equipment is designed for the efficient and gentle vacuum concentration of a wide range of biological and chemical samples, including DNA, RNA, nucleotides, proteins, and other liquid or wet samples.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
