What is a Eurobin lift used for?

A Eurobin lift is used to safely raise and tip standard Eurobins (200L or 300L capacity) to discharge their contents into other processing equipment, hoppers, or conveyors at an elevated height.

What are the common safety features on these lifts?

Common safety features include 'hold to run' controls, upper and lower limit switches, and mechanical safety latches or anti-fall devices to prevent uncontrolled descent in the event of a chain or drive failure.

Is this type of equipment suitable for washdown environments?

Yes, units constructed from Grade 304 stainless steel with IP65-rated control panels are typically designed to withstand regular washdown procedures common in food processing environments.

What kind of maintenance does a Eurobin lift require?

Maintenance typically involves regular inspection of the lifting chain, motor gearbox, electrical connections, and limit switches. Lubrication of moving parts and general cleaning are also essential.

Can this equipment be integrated into an automated line?

Many Eurobin lifts, including this one with its 'volt free pair of contacts', can be integrated into automated lines via a 'Call to Run' signal, allowing for remote activation or synchronisation with other machinery.

Available

Verified seller

Eurobin Lift

Name: Eurobin Lift
SKU: BTM/300/2100/B
Availability: InStock

Price: Contact seller for price

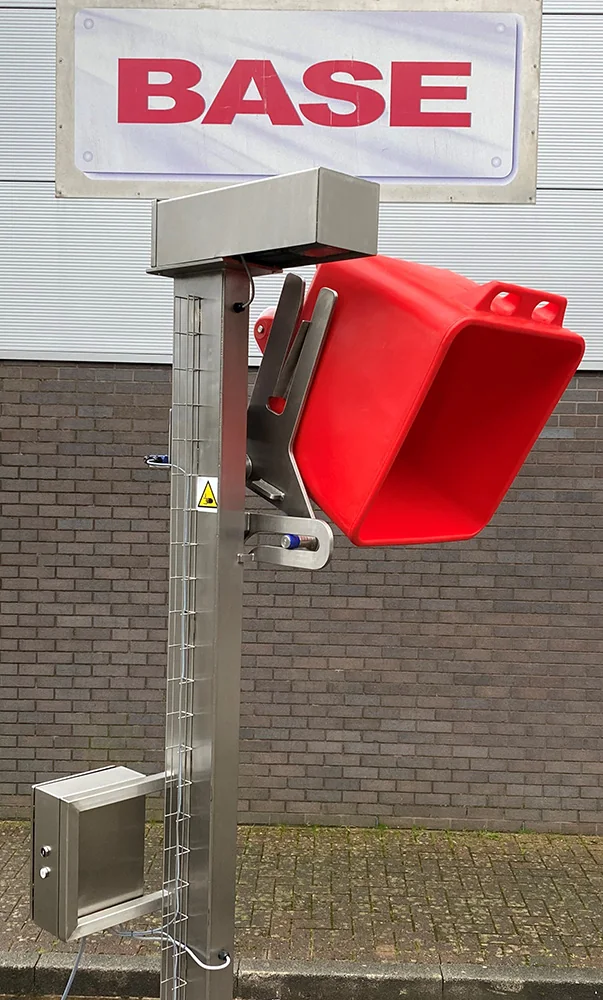

BTM/300/2100/B Single Pillar Eurobin Lift

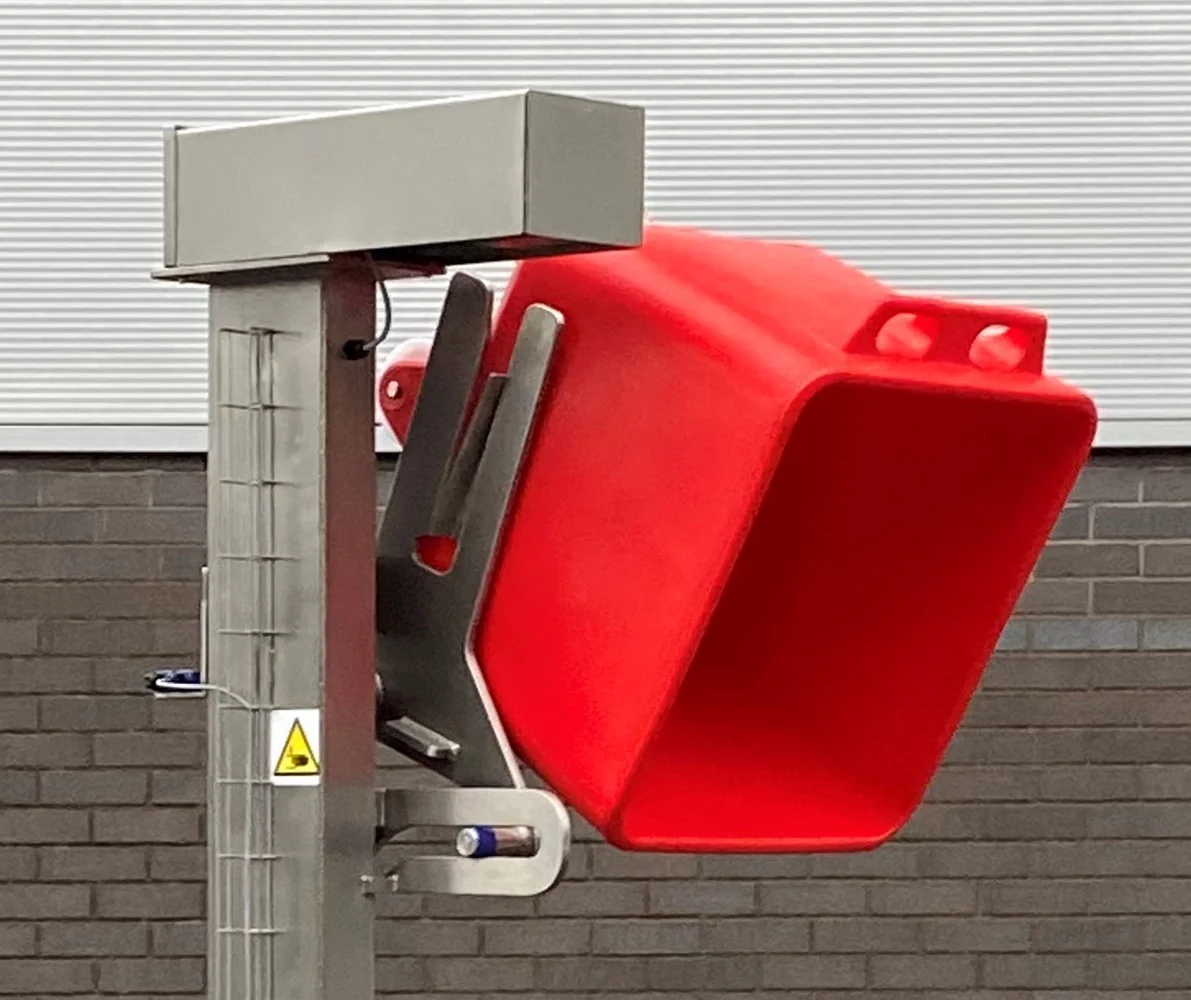

This Eurobin Lift is designed to lift and tip at a discharge height of 2100mm. The Eurobin Lift is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Eurobin Lift is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Eurobin Lift Electrical Control

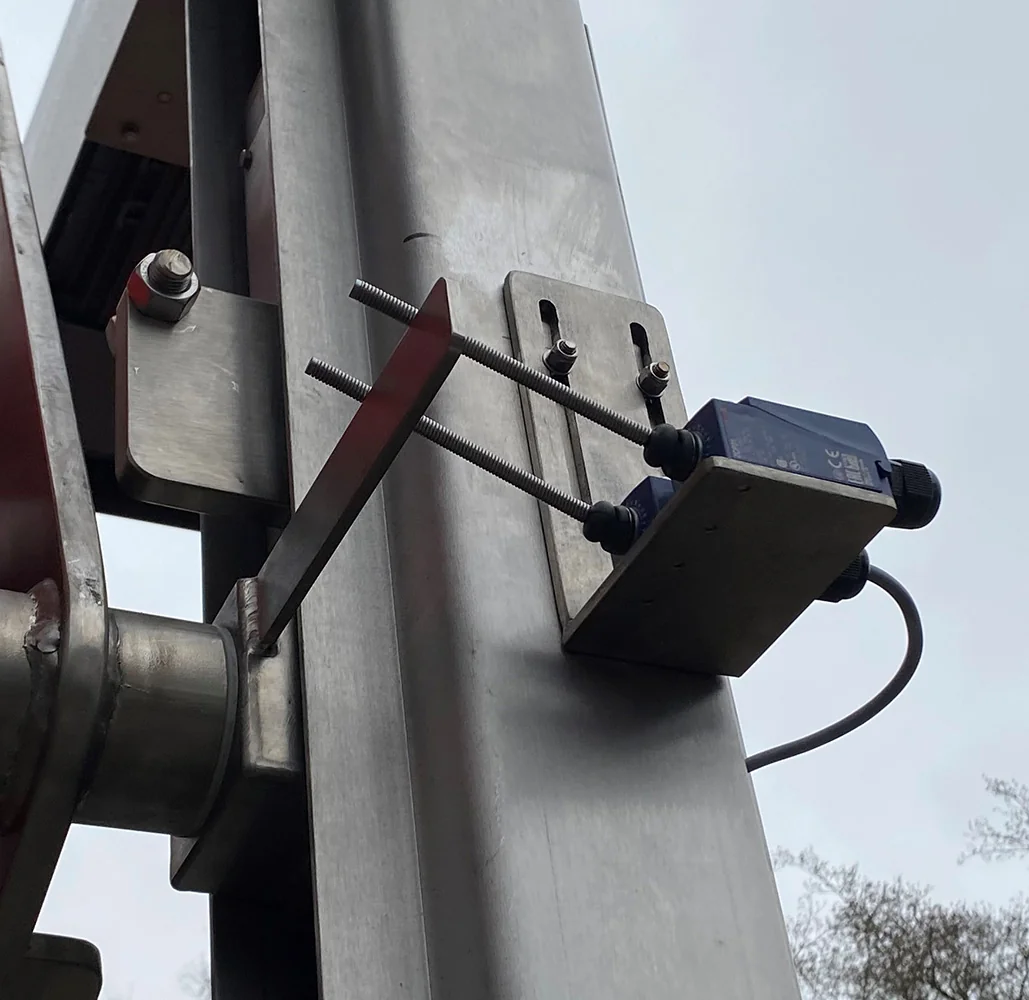

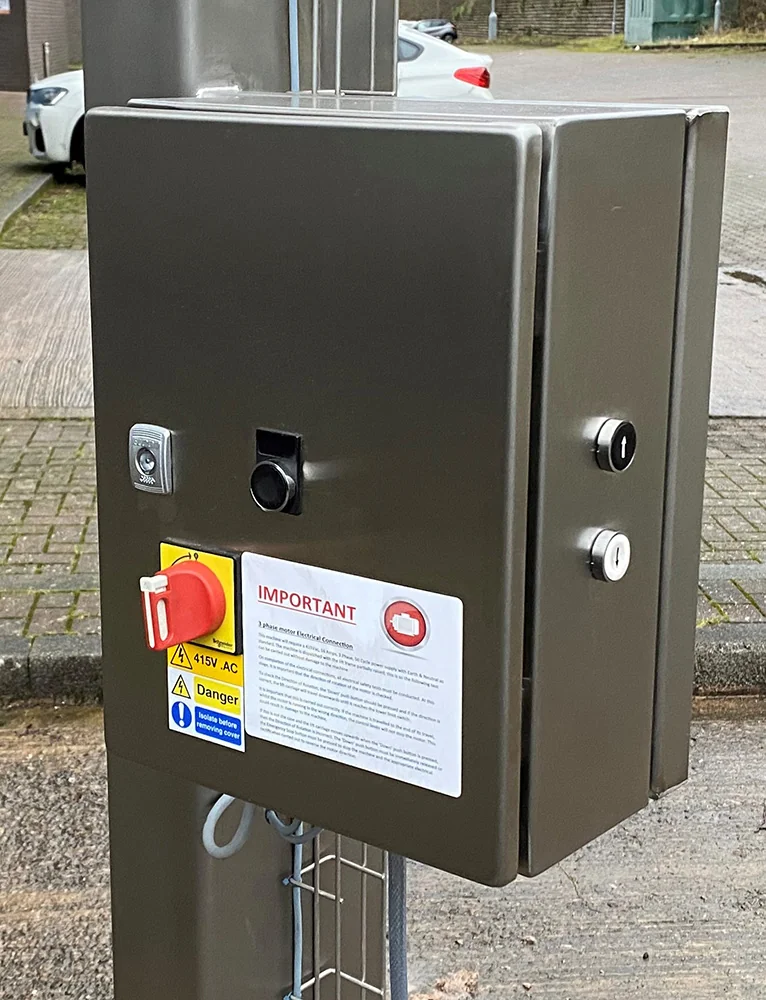

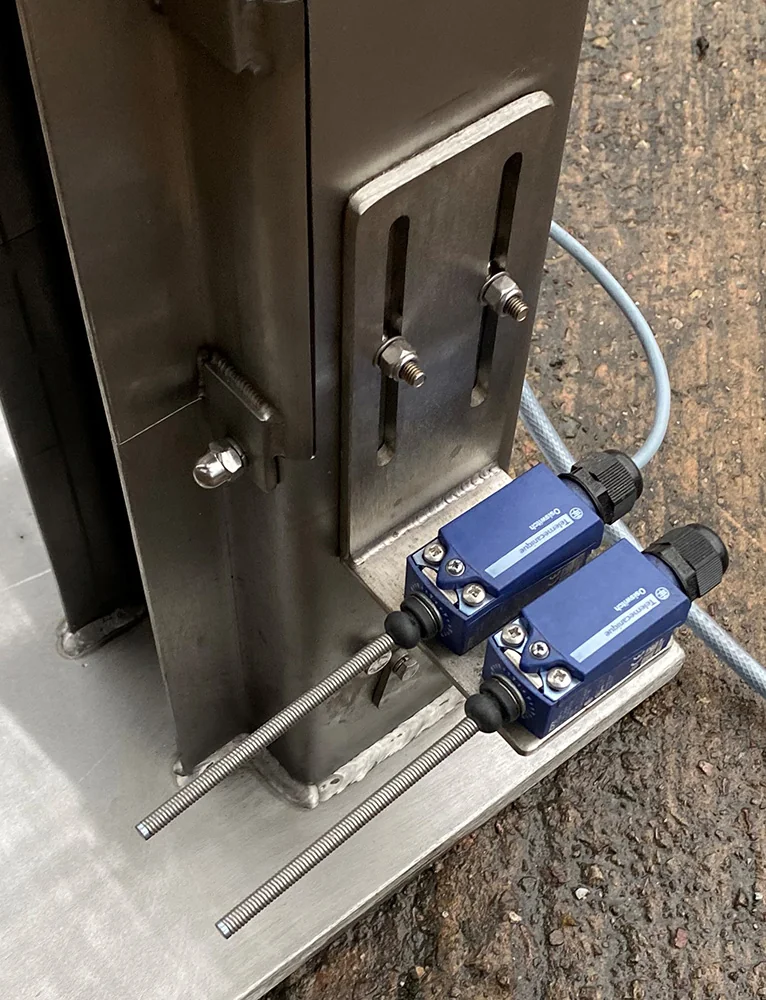

This Eurobin Lift is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The unguarded Eurobin Lift operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Eurobin Lift to operate. As soon as either button is released, the Eurobin Lift will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar 200 Litre Eurobin Lift

Model No.

BTM/300/2100/B

Safe Working Load

300 Kgs

Tipping Height

2100mm

Tipping Angle

110 Degrees

Overall Height

3163mm

Machine Handing

Right Hand

Maximum Headroom

4000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

Chuted 200 Litre Tote Bin

Base Arrangement

Base Frame Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/2100/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from Eurobins into mixers or processing vessels.
Loading raw materials into hoppers or conveyors at elevated heights.
Discharging finished products from Eurobins into packaging lines.
Moving waste materials from processing areas into skips or compactors.
Ergonomic lifting of heavy Eurobins to reduce manual handling risks.

Typical Specifications

Typical lifting capacity: For this class of equipment, units commonly handle Eurobins with capacities up to 300 kg.
Typical discharge height: Units of this type are often designed for discharge heights between 1800mm and 2500mm, with this specific unit offering 2100mm.
Construction material: Typically manufactured from Grade 304 stainless steel for hygiene and durability in food environments, as specified for this unit.
Power supply: Commonly operates on a 3-phase electrical supply, such as 400V, 50Hz.
Control system: Units typically feature an IP-rated control panel, often IP65, with 'hold to run' functionality for safety.
Safety features: Modern Eurobin lifts commonly include safety latches or anti-fall mechanisms, as well as upper and lower limit switches.
Installation: Most single-pillar Eurobin lifts are designed for floor bolting to ensure stability during operation.
