Eurobin Tipper

Name: Eurobin Tipper
SKU: BTM/300/1400/M
Availability: InStock

Price: Contact seller for price

BTM/300/1400/M Single Pillar Eurobin Tipper

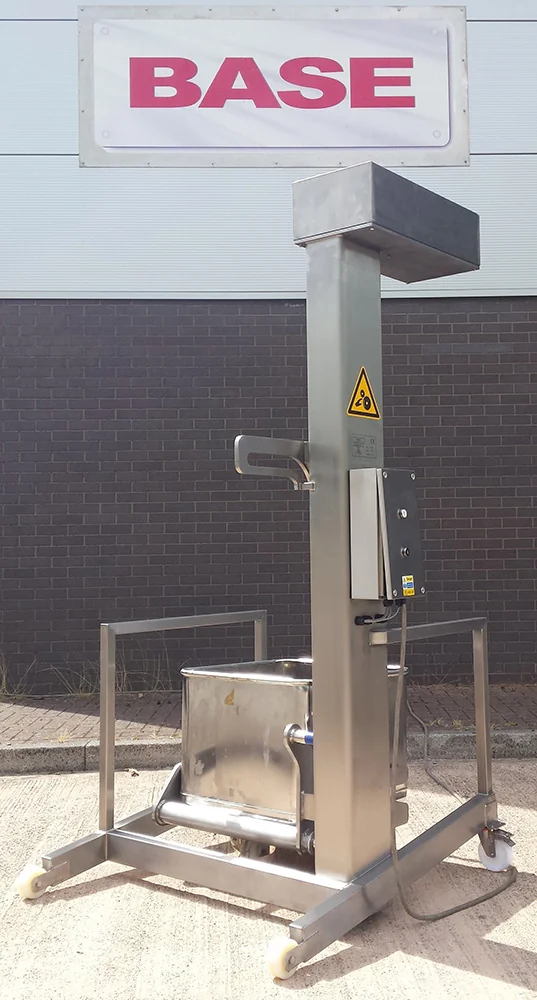

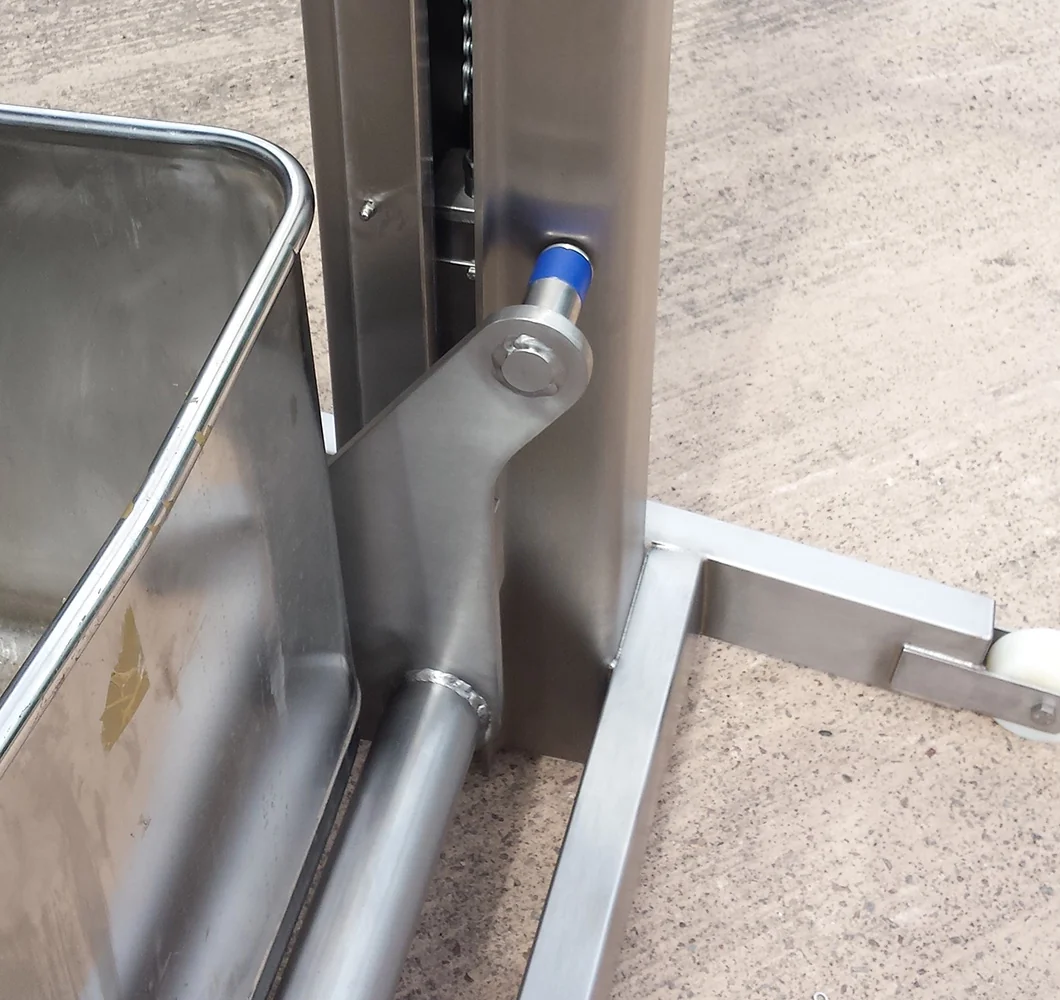

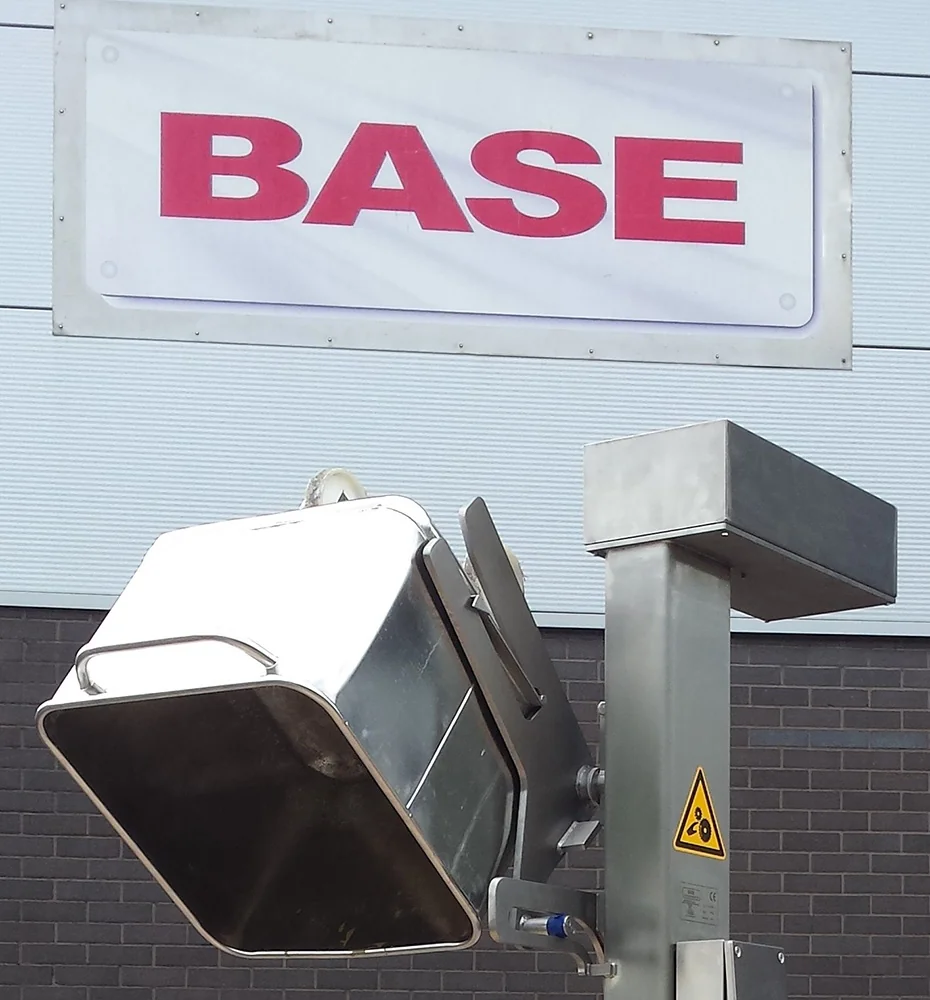

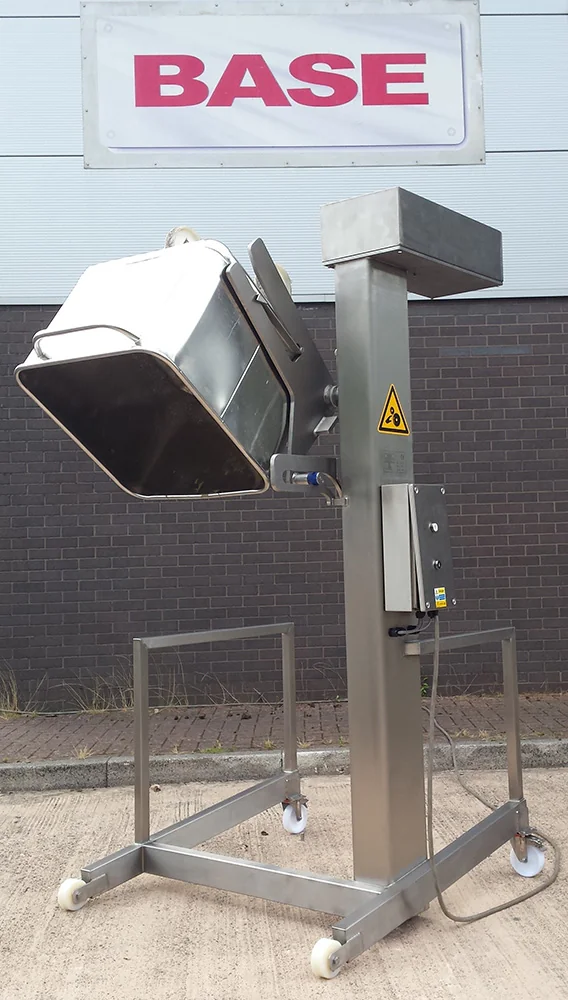

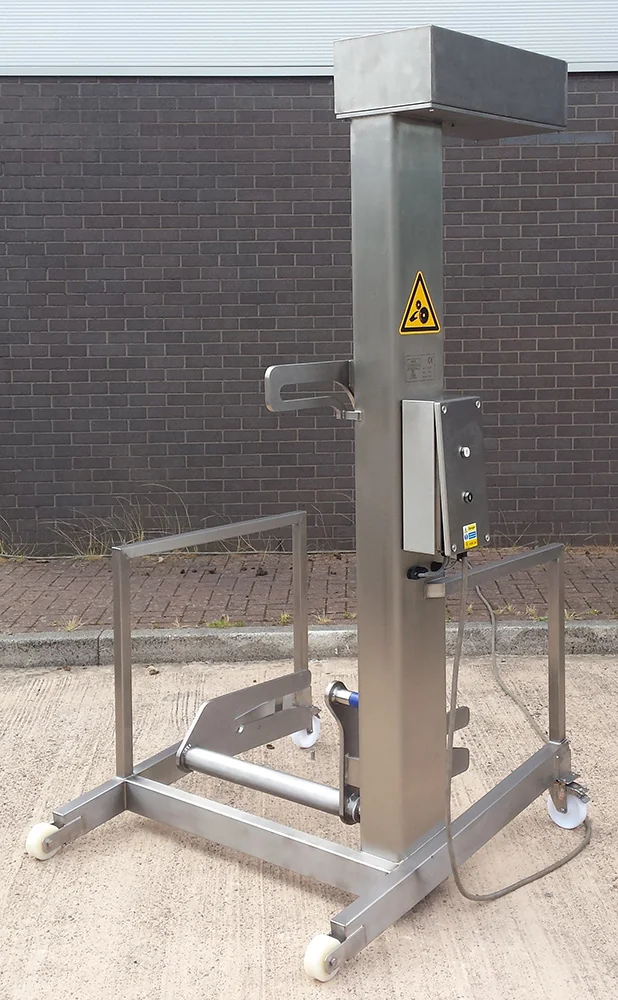

This single pillar 200 Litre Eurobin Tipper is designed to lift and tip at a discharge height of 1400mm. The Eurobin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be mobile on castors. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Eurobin Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Eurobin Tipper Electrical Control

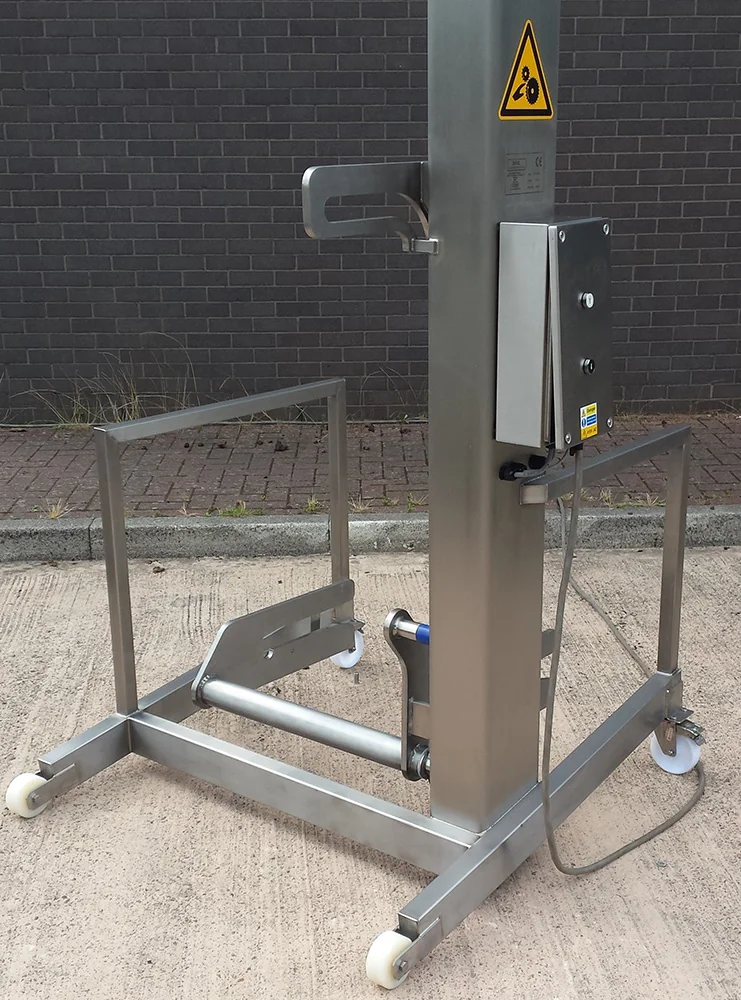

This Eurobin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Eurobin Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Eurobin Tipper to operate. As soon as either button is released, the Eurobin Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar 200 Litre Eurobin Tipper

Model No.

BTM/300/1400/M

Safe Working Load

300 Kgs

Tipping Height

1350mm

Tipping Angle

135 Degrees

Overall Height

2339mm

Machine Handing

Left Hand

Maximum Headroom

2400mm

Tipping Chute

Container Description

200 Litre Eurobin Tipper

Base Arrangement

Mobile 2 Swivel & 2 Fixed Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/1400/M
