Spiral Freezer by EUROTEK is a used spiral freezers listing available on Machinery Masters. Browse specifications, request seller details, and find similar equipment on Machinery Masters.
used Equipment
Available
EUROTEK - Spiral Freezer
Copied to clipboard!
Price: Contact seller for price
- Spiral freezer model :
- Belt width 660mm - Usable belt width 610mm

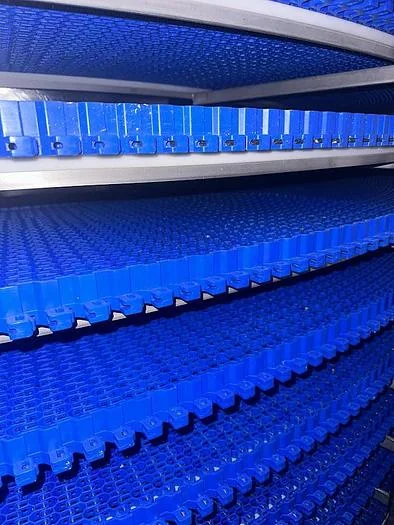

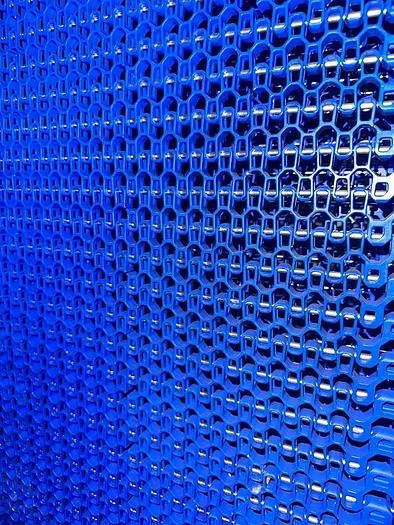

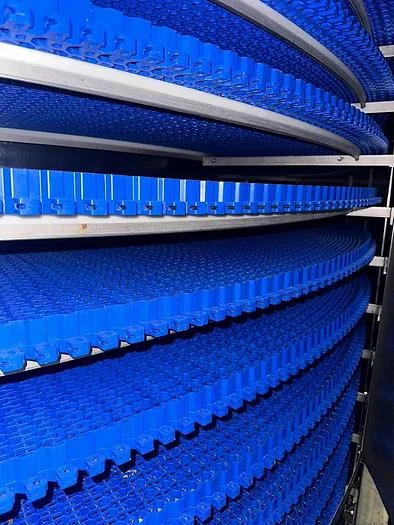

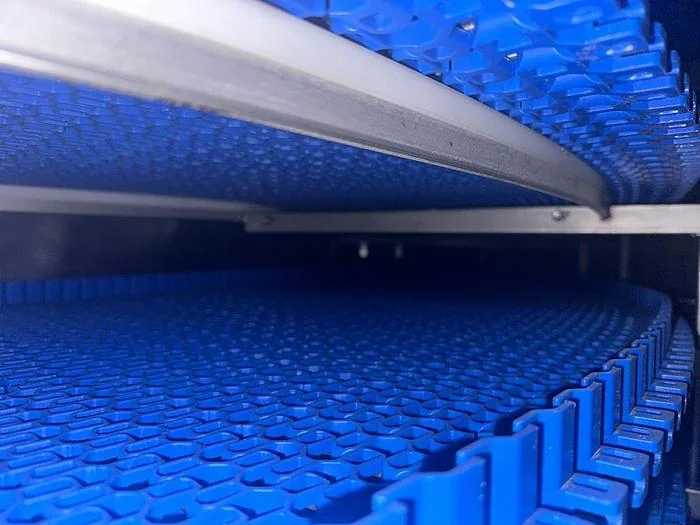

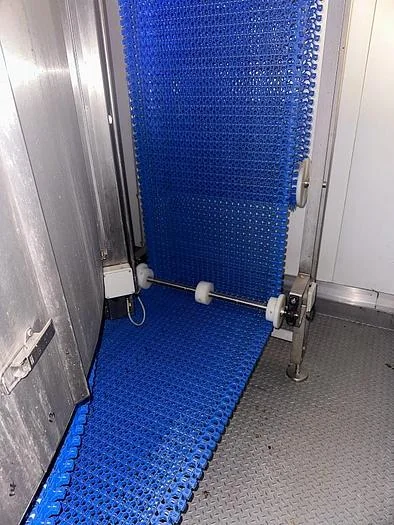

- Belt type : Ashworth Advantage 120 Acetal with 25mm side flights

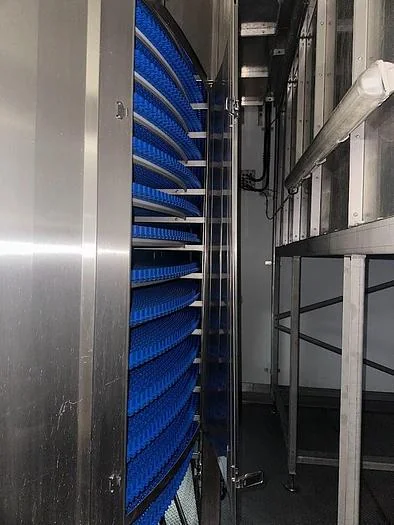

- Number of tiers : 36
- Tier pitch 145mm - Max product height 75mm
- Belt length per tier : 13.28m
- Effective belt length : 478.08m
- Effective belt area : 245.95m²

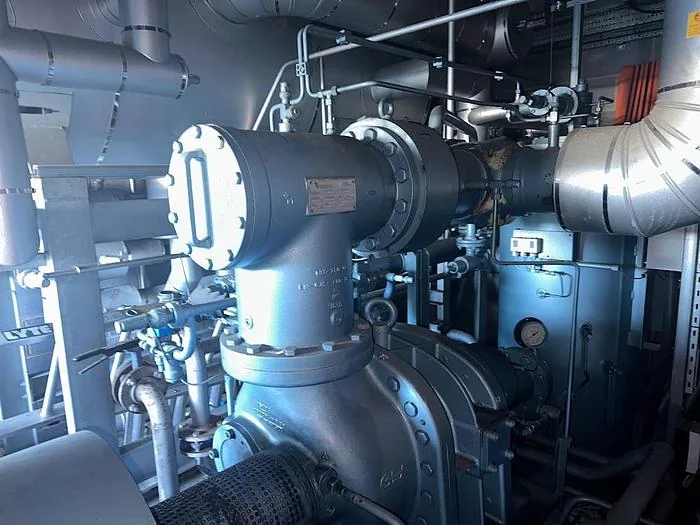

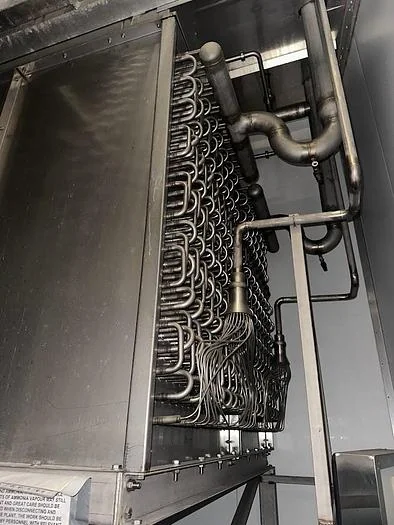

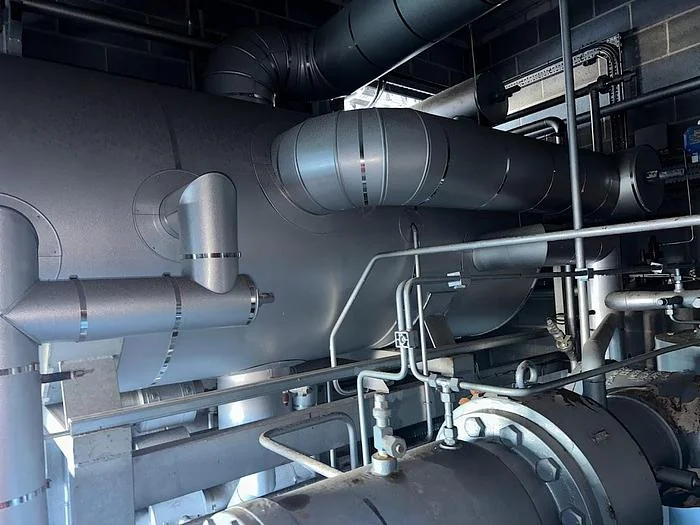

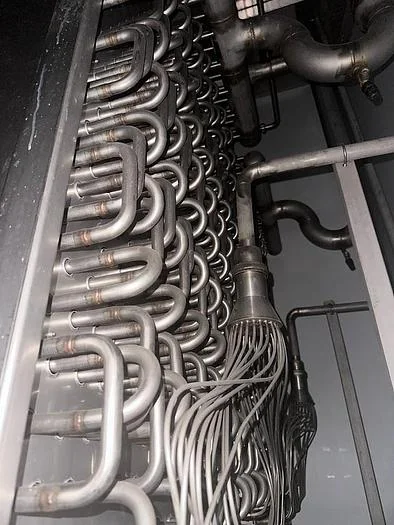

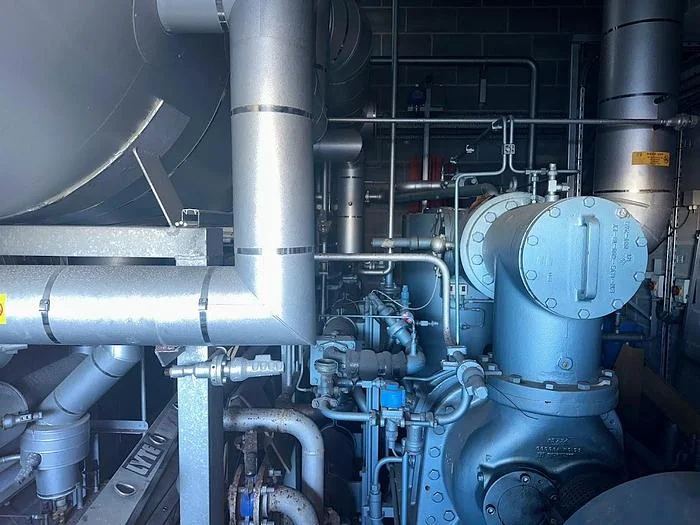

- Refrigeration duty : 200KW

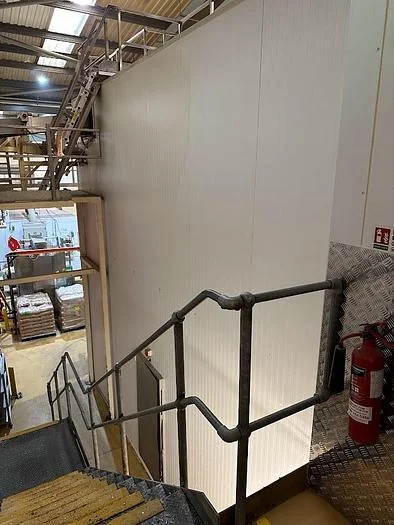

- Approx dims 7650mm x 5700mm x 6700mm high
Doncaster, United Kingdom5,942 km away
Model Number
26 2.2 36-145
Stock Number
1
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Freezing a wide range of food products such as bakery items, poultry, meat, fish, and prepared meals.
- Rapidly cooling products to preserve quality, texture, and extend shelf life.
- Handling high-volume production lines requiring continuous freezing processes.
- Processing individually quick frozen (IQF) products like fruits, vegetables, and seafood.
Typical Specifications
- Typical throughput
- For this class of equipment, throughput can range from 500 kg/hr to several tonnes/hr, depending on product type and temperature requirements. Buyers should contact the seller for exact unit specifications.
- Typical temperature range
- Spiral freezers commonly operate at temperatures between -35°C and -45°C for optimal freezing efficiency.
- Refrigeration medium
- Units of this type typically utilise ammonia (NH3) or CO2 as the primary refrigerant, though other refrigerants may be found.
- Power supply
- Industrial spiral freezers commonly require a 3-phase electrical supply, typically 400V, 50Hz, with significant power draw for refrigeration compressors and motors.
- Footprint considerations
- While offering a compact freezing solution relative to linear freezers, spiral freezers still require substantial floor space and height clearance, as indicated by the approximate dimensions provided for this unit.
- Belt material
- Belts are typically constructed from food-grade stainless steel or high-performance plastics like acetal, designed for durability and hygiene in low-temperature environments.
Frequently Asked Questions
- Spiral freezers are highly versatile and suitable for a broad array of products, including baked goods, poultry, red meat, fish, prepared meals, and various IQF items. The continuous process is ideal for high-volume production.
